Passive UAV Detection System with 10km Detection Radius 360° Omnidirectional Coverage and ≥30 Simultaneous Detections

Name: Passive UAV Detection System with 10km Detection Radius 360° Omnidirectional Coverage and ≥30 Simultaneous Detections
Brand: Shenzhen Ladasky Technology Co.，Ltd
SKU: LDSKC02
Price: 14039 USD
Availability: InStock

Brand Name:	LDSK
Model Number:	LDSKC02
MOQ:	1
Price:	$14039
Delivery Time:	7-10 workdays
Payment Terms:	D/A,D/P,T/T,Western Union,,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Detection Frequency Band:

900MHz / 1.4GHz / 2.4GHz / 5.2GHz / 5.8GHz

Detection Radius:

10km (urban Environment)

Directivity:

360° Omnidirectional

Simultaneous Detection Capability:

≥30 Drones

Power Supply:

Internal Battery (15 Hours) Or AC 220V

Dimensions:

470 × 357 × 176 Mm (cover Closed)

Supply Ability:

5000pcs per month

Highlight:

10km Detection Radius Passive UAV Detection System

360° Omnidirectional Handheld Drone Detector

≥30 Simultaneous Detections Drone Detection Device

Product Description

Professional Drone Detection System LDSKC02 | Aeroscope Technology

Product Description

The LDSKC02 is an advanced passive drone detection system that accurately detects, identifies, and tracks over 350 UAV models within a 5km radius without transmitting any signals. Supporting both Aeroscope-like and standard alarm modes, it provides 24/7, fully-automatic drone threat alerts, making it a reliable solution for protecting critical airspace.

Applications include:

Event security and public safety
Border and perimeter monitoring
Airport and restricted area protection
Industrial facility security patrols

Product Specifications

Item	Specification
Key Detection Frequency Bands	900MHz / 1.4GHz / 2.4GHz / 5.2GHz / 5.8GHz
Detection Method	Passive (No signal transmission)
Detection Distance	Radius: 5 km, Coverage: 10 km
Operating Modes	Mode 1: Aeroscope-like; Mode 2: CRPC
Sensitivity	Better than -115 dBm (25kHz)
Directivity	360° Omnidirectional
Supported Modulations	FM, 2FSK, 4FSK, GFSK, MSK, BPSK, QPSK, 16QAM, 64QAM, OFDM, DSSS, FHSS
Simultaneous Detection Capability	≥30 drones
Detection Modes	Panoramic scanning, Channel scanning
Dynamic Range	70 dB
Power Supply	Internal battery (15 hours) or AC 220V
Operating Time	24/7 continuous or 15 hours on battery
Dimensions	470 × 357 × 176 mm (cover closed)
Weight	≤13 kg

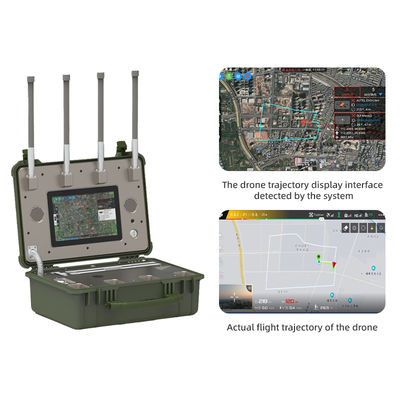

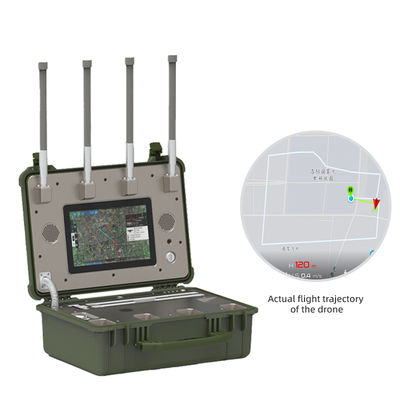

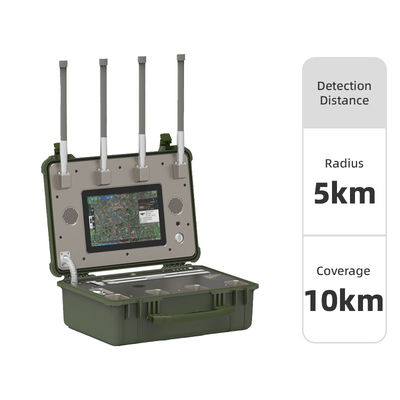

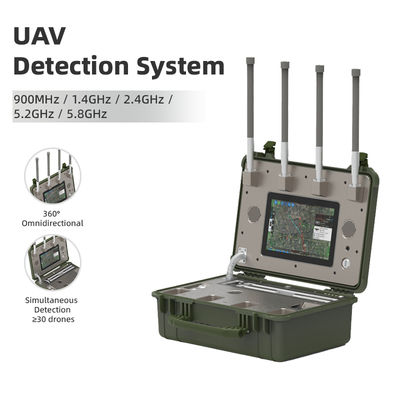

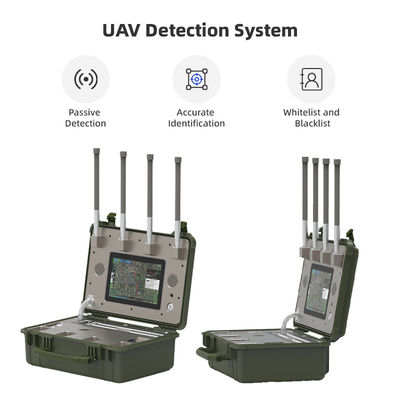

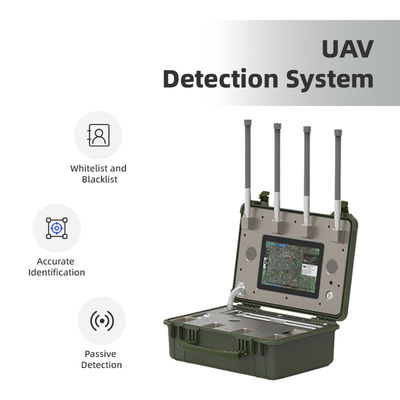

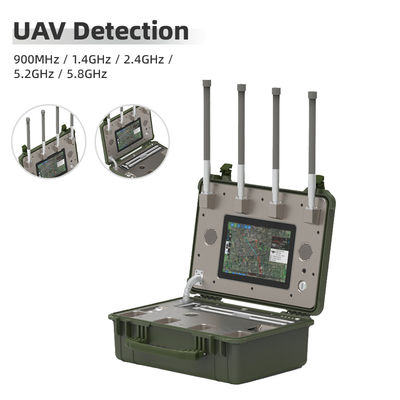

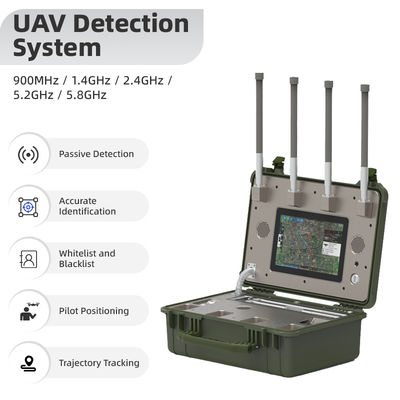

Product Images

Frequently Asked Questions

1. Why Choose us?

We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2. What is the process of placing an order?

First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
