Home Products

RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M

Brand Name:	LDSK
MOQ:	1 piece
Delivery Time:	1-3 workdays
Payment Terms:	D/A, D/P, T/T, Western Union， Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

OUTPUT Power:

50W

Product Size:

132 × 53 × 17

Product Weight:

400g

Customization:

Available | Customized Request

Supply Ability:

50000pcs per month

Highlight:

RF power amplifier module 6500-7200M

GaN RF amplifier board anti-FPV

drone security system RF amplifier

Product Description

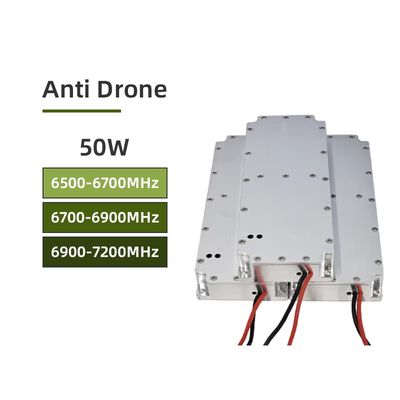

6500-6700mhz/6700-6900mhz/6900-7200mhz 50W anti drone module/PA module

Power and Frequnecy support Customzation form 10-7500mhz, 10W,20W,30W, 40W, 50W,100W,150W,200W

The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M 6500-6700 6700-6900 6900-7200 6-7.5G rf amplifiers cb radio wideband rf power amplifier rf amplifiers 100w 220 mhz rf power amplifier 150w rf amplifier 1000w vhf 100-7500mhz factory

Performance Parameters

Parameter	Min.	Typ.	Max.	Unit	Symbol
Operating Frequency	6500–6700, 6700–6900, 6900–7200			MHz
Bandwidth	-	200	-	MHz	BW
Peak Output Power (CW signal)	-	50	-	W	PSAT
Efficiency	-	28	-	%	EFF
Harmonics (1st–Nth, @70W)	10	-	-	dBc	HN
Spurious Emission	60	-	-	dBc	Spur
Input VSWR	-	-	2:1	-	VSWR
Output VSWR	-	-	2:1	-	VSWR
Operating Voltage	28	-	-	V	VDC
Current Consumption	5.5	-	-	IDC

Mechanical Parameters

Parameter	Typ.	Unit
Weight	0.4	kg

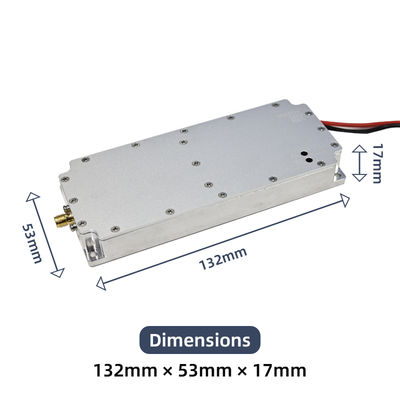

Dimensions	132 × 53 × 17	mm
RF Connector	RF output: SMA female	-
DC Connector	Power supply: Feedthrough capacitor male	-
Cooling Method	External heat sink required	-
