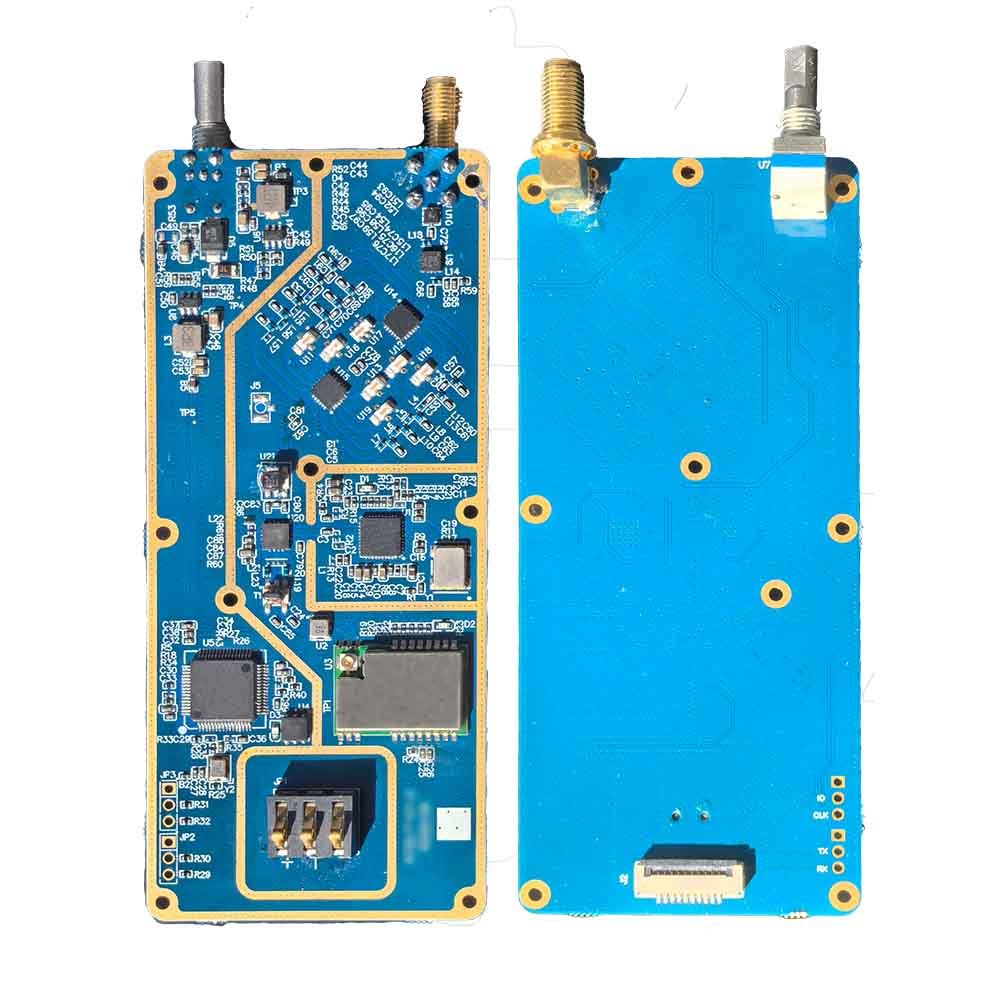

Portable Drone Detector Board 12V AC 1.5km Range 300MHz-6GHz
  • name
  • name
  • name
  • name

Portable Drone Detector Board 12V AC 1.5km Range 300MHz-6GHz

MOQ: 2 piece
Price: $265
Standard Packaging: 80*80*60CM 40KG
Delivery Period: 5-8 workdays
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Capacity: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
LDSK
Power Consumption:
＜2W
External Supply Voltage:
12V AC
Detection Frequency Bands:
845MHz, 915MHz, 1.2GHz, 1.4GHz, 2.4GHz, 3.3Ghz, 5.2GHz, 5.8GHz;
Identification Type::
FPV Analog Image Transmission, OFDM High-definition Image Transmission;
Transport Package:
Carton
Detection Distance::
Detection Distance: ≥1.5km; (relative Line Of Sight Between The Device And The Drone)
Origin:
China
Size:
112.4mmⅹ50.3mm
Customization:
Available | Customized Request
Minimum Order Quantity:
2 piece
Price:
$265
Packaging Details:
80*80*60CM 40KG
Delivery Time:
5-8 workdays
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Ability:
5000pcs per month
Highlight:

12V portable drone detector

,

1.5km range drone detector

,

300MHz-6GHz drone detector board

Product Description
Features

(1) Detection frequency band: 845MHz, 915MHz, 1.2GHz, 1.4GHz, 2.4GHz, 3.3Ghz, 5.2GHz, 5.8GHz;

(2) Identification type: FPV analog image transmission, OFDM high-definition image transmission;

(3) Sensitivity: better than -100dBm;

(4) Dynamic range: 90dB;

(5) Damage level: 3W (10-6000MHz);

(6) Detection distance: Detection distance: ≥1.5km; (relative line of sight between the device and the drone)

(7) Power supply voltage: 12V

(8) Power consumption: <2W

(9) Operating temperature: -40~+60℃

Details Images
Portable Drone Detector Board 12V AC 1.5km Range 300MHz-6GHz 0
Packing&Shipping
Company Introduction
Portable Drone Detector Board 12V AC 1.5km Range 300MHz-6GHz 1

Shenzhen ladasky technology Co,.LTD, specializing in the field of advanced technology. Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.

Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers. The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications. The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.

We pride ourselves on our strong R&D team, composed of experts and engineers with rich experience and professional knowledge in the field. They are constantly exploring and innovating to bring forth new and improved products that stay ahead of the market trends.

Our manufacturing facilities are equipped with state-of-the-art machinery and adhere to international quality standards. This ensures that every product leaving our factory is of the highest quality and reliability.

FAQ

1.Why Choose us?

We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?

First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3. How to contact us?

chrissy@ladaskytech.com
+86 13556865442
