Anti Drone Module
Created with Pixso. 5.2GHz GaN Power Amplifier Module 10W for Anti-Drone Applications

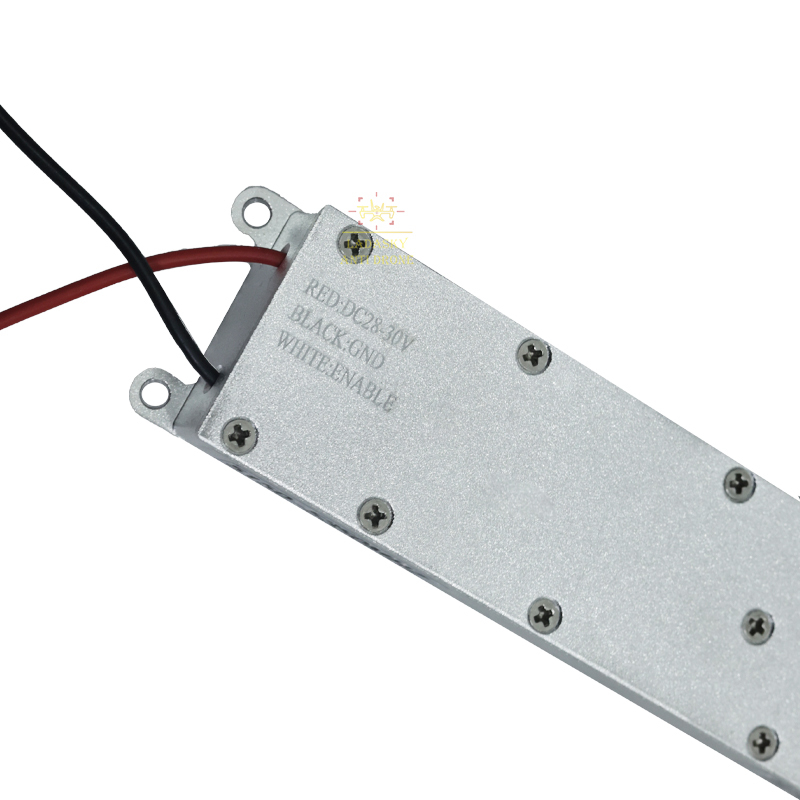

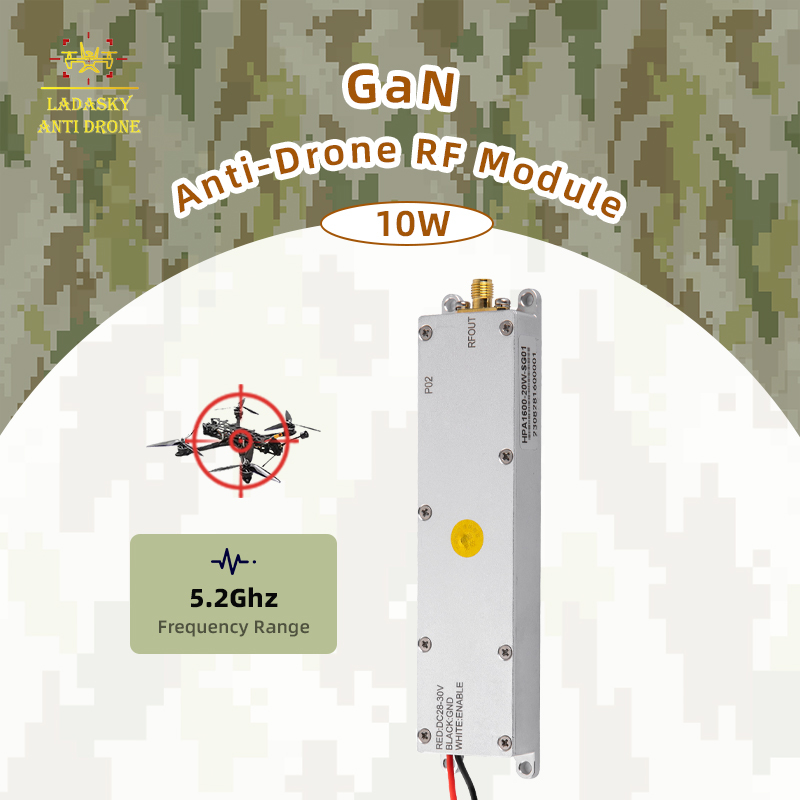

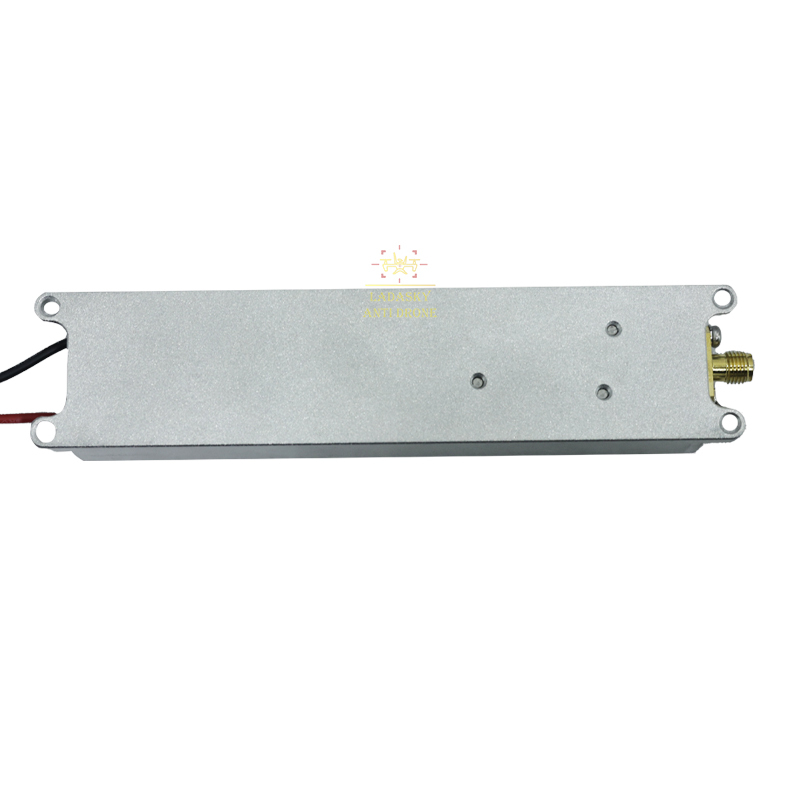

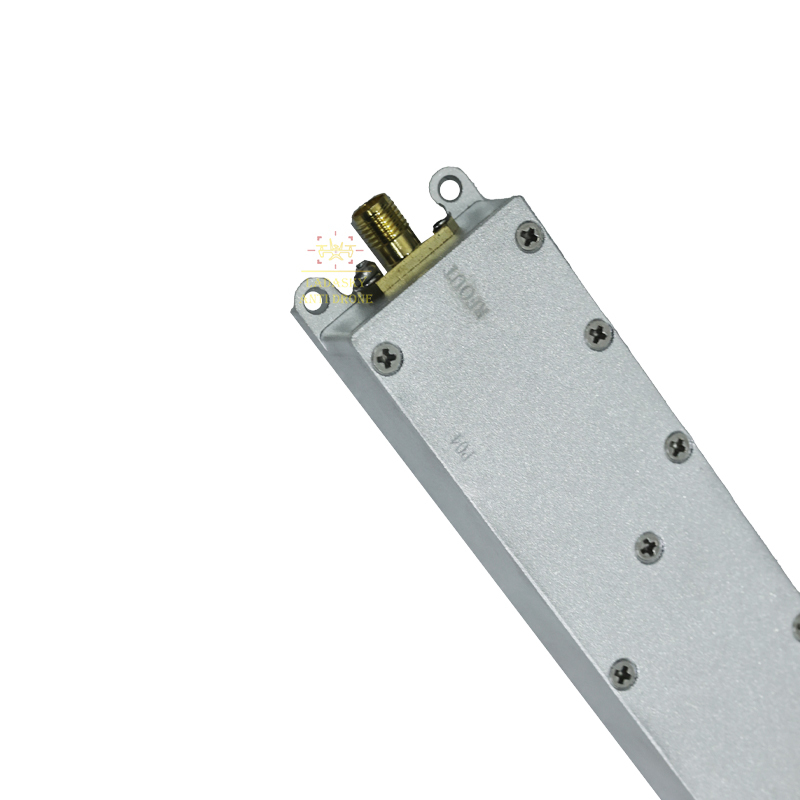

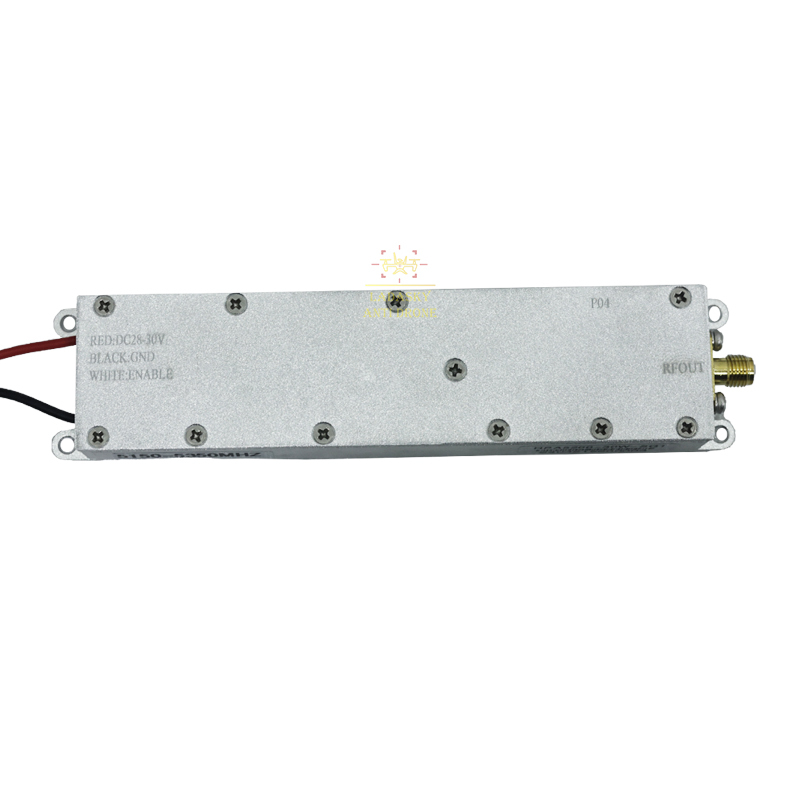

5.2GHz GaN Power Amplifier Module 10W for Anti-Drone Applications
  • name
  • name
  • name
  • name
  • name
  • name

5.2GHz GaN Power Amplifier Module 10W for Anti-Drone Applications

Brand Name: LDSK
MOQ: 1piece
Delivery Time: 5-8 workdays
Payment Terms: D/A,D/P,T/T,Western Union,， Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Trademark:
LDSK
Customization:
Frequency, Power And Logo
Product:
5.8Ghz 10W
Supply Ability:
50000pcs per month
Highlight:

5.2GHz GaN power amplifier module

,

10W GaN module for anti-drone

,

GaN power amplifier with warranty

Product Description
5.2GHz GaN Module 10W 90MHz-5.8G Power Amplifier Module for Anti-Drone Applications
Product Specifications
Attribute Value
Trademark LDSK
Customization Frequency, power and logo
Product 5.8Ghz 10W
Technical Parameters
  • Frequency Range: 5.2GHz (5150-5350/5000-5200/5100-5300MHz)
  • Output Power: 10W (Customizable to 20W, 30W, 40W, 50W, 100W)
  • Frequency Customization: Supports 90MHz-5.8GHz
  • Maximum Gain: 43+0.5 dBm
  • Operating Voltage: 24-32V
  • Dimensions: 29.7×131×15.5mm
  • Weight: 136g
5.2GHz GaN Power Amplifier Module 10W for Anti-Drone Applications 0 5.2GHz GaN Power Amplifier Module 10W for Anti-Drone Applications 1
Customization Options
Item MOQ (PCS)
Logo 1
Frequency 1
Power 1
Packing 1
Production Lead Time
Quantity (PCS) Lead Time (Days)
<100 3
<500 3-5
500-1000 7-12
>1000 To be negotiated
5.2GHz GaN Power Amplifier Module 10W for Anti-Drone Applications 2 5.2GHz GaN Power Amplifier Module 10W for Anti-Drone Applications 3
Frequently Asked Questions
Why Choose LDSK?

We offer professional expertise, sincere service, responsive support, and an excellent technical team to ensure a comfortable purchasing experience.

Order Process
  1. Send us your product requirements
  2. We provide detailed specifications and quotations
  3. Consultation about product details
  4. Order confirmation and payment processing
  5. Product packaging confirmation with photos
  6. Shipping with tracking information
  7. Post-delivery feedback welcome
Contact Information

Phone: +86 13556824863

Email: amber@ladaskytech.com
