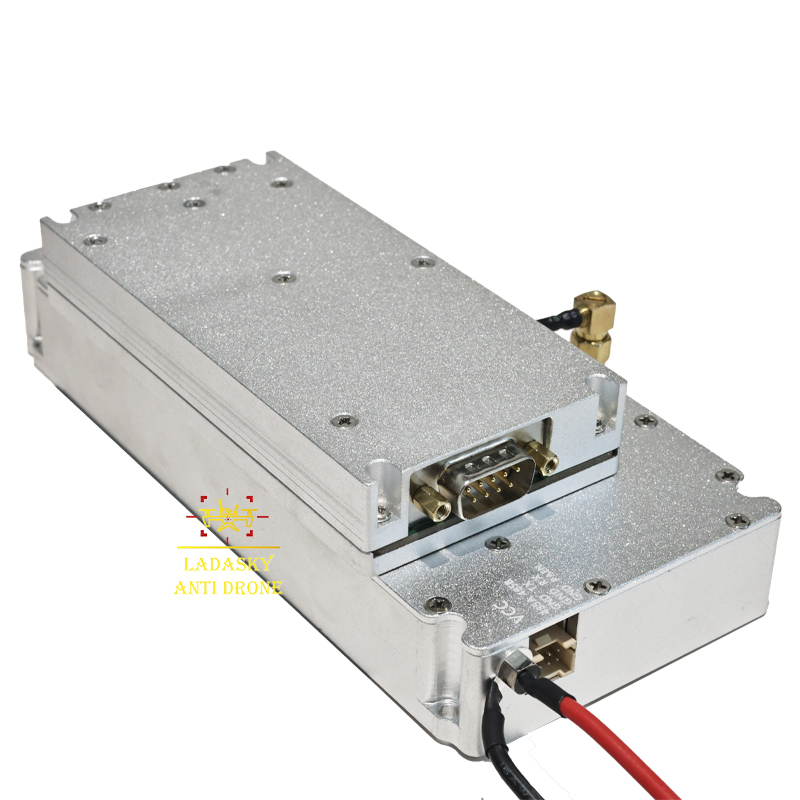

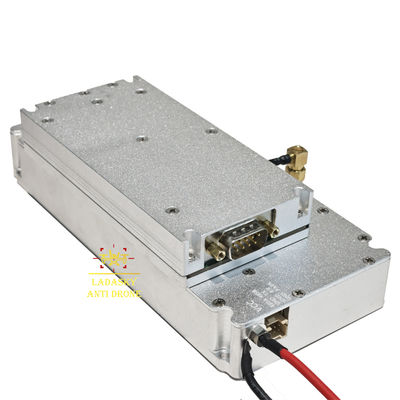

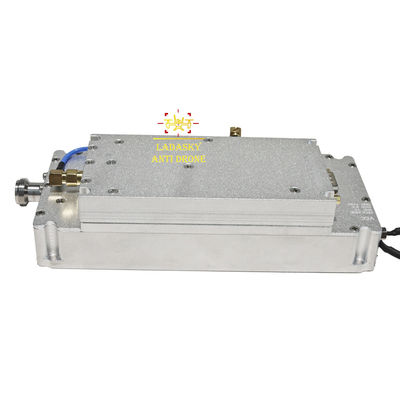

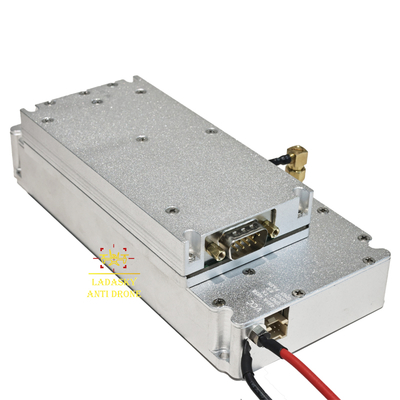

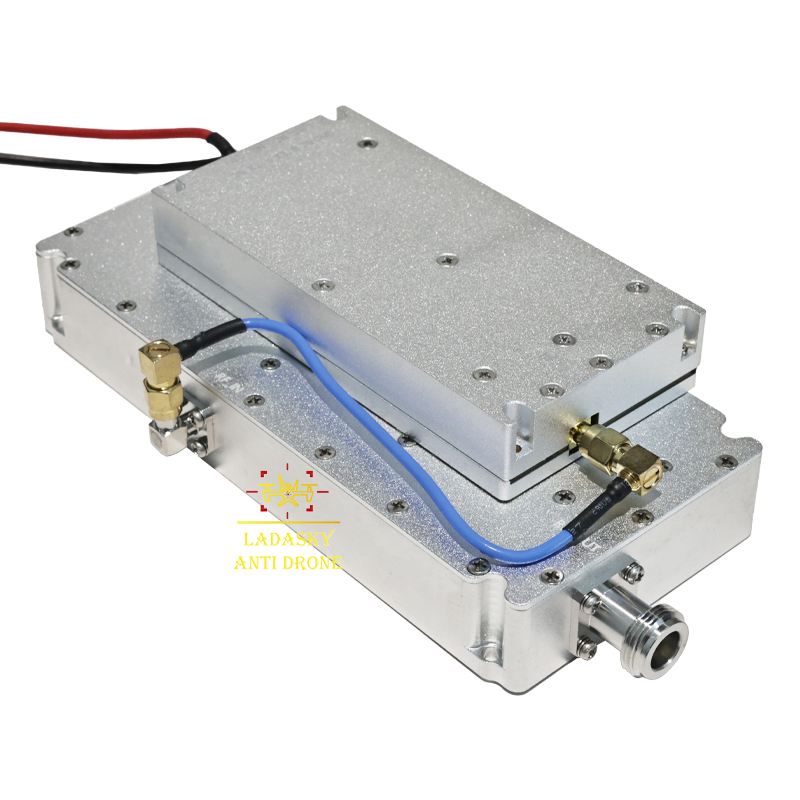

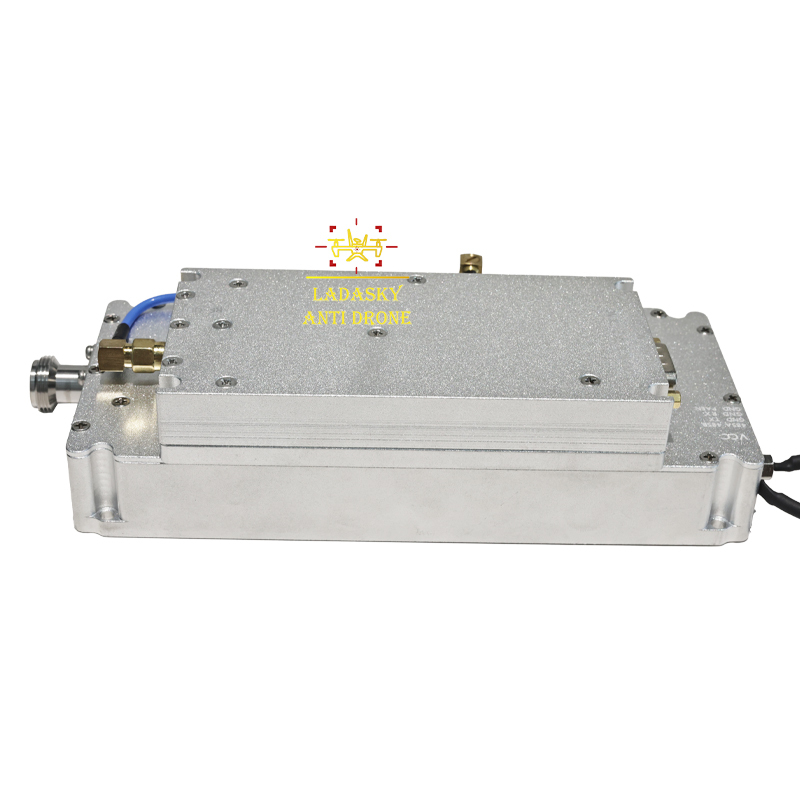

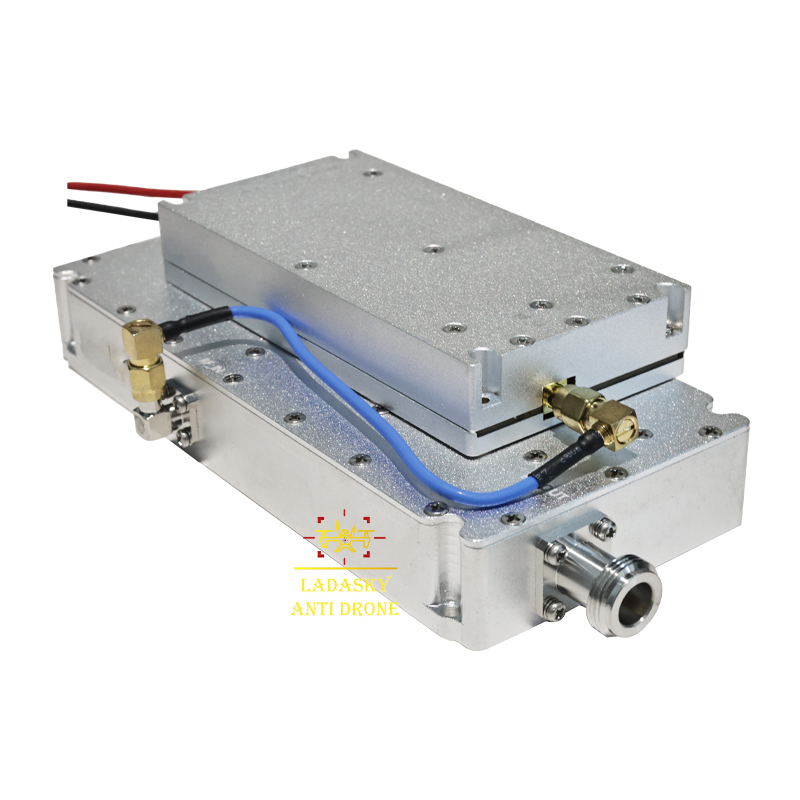

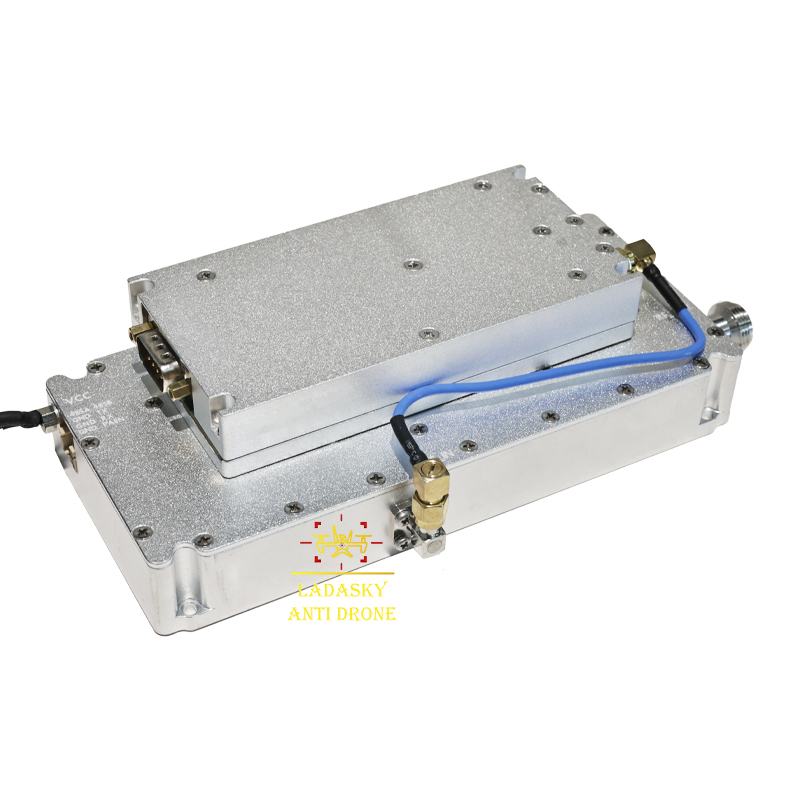

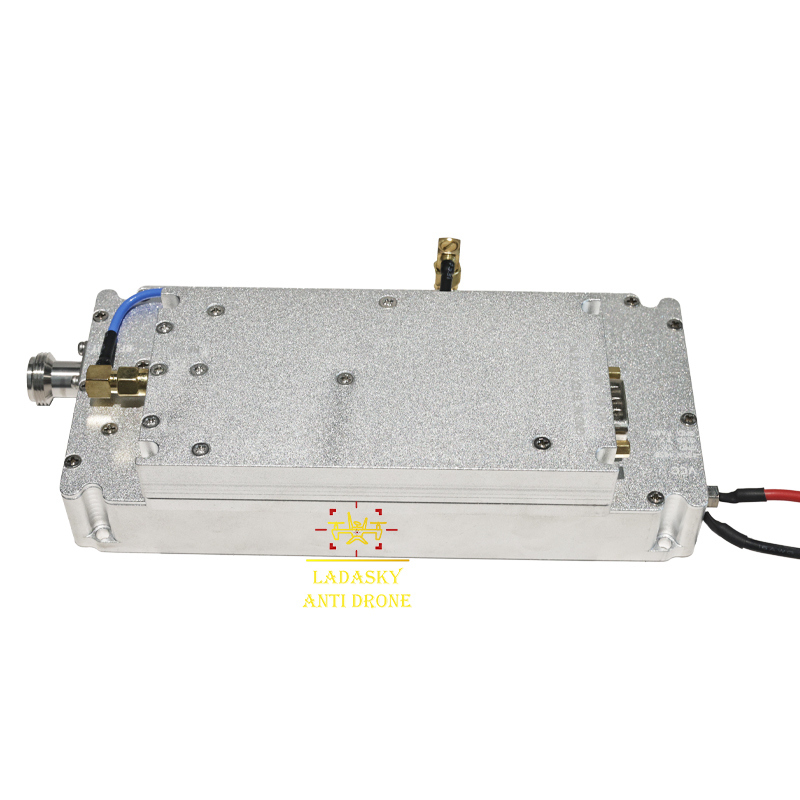

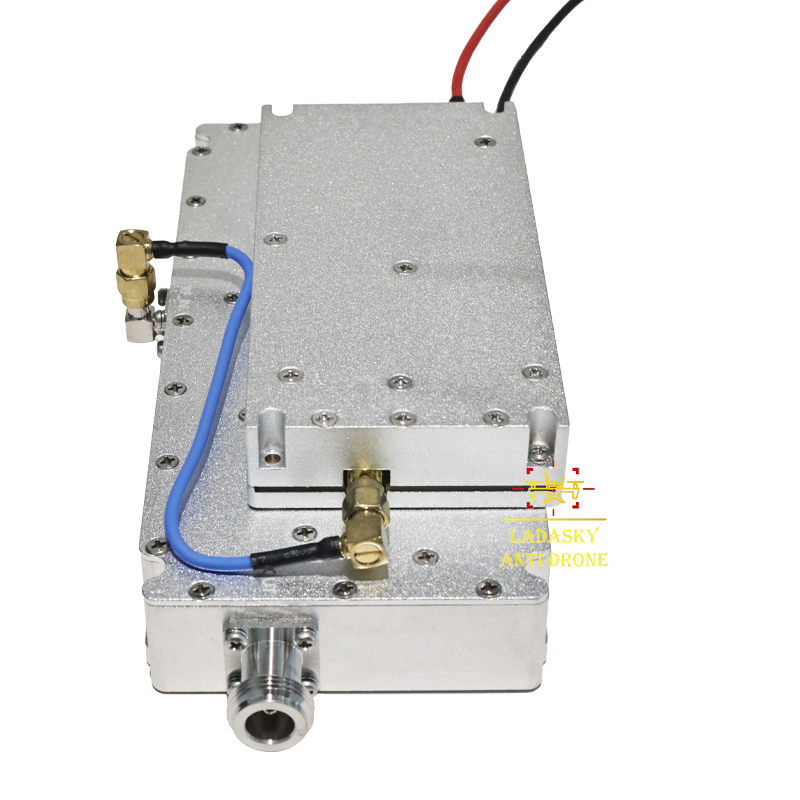

100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems

  • 100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems
Place of Origin China
Brand Name LDSK
Certification Guangdong, China
Model Number LDK-TZ-KPG-KGAN-100W
Minimum Order Quantity 1
Delivery Time 1-3 workdays
Payment Terms D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Ability 50000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency And Power 4000–6000MHz 100W Operating Voltage 28-32V
Operating Ambient Temperature -10～+55℃ Size 170*77*24.5mm
Highlight FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module
Highlight

100W GaN RF power amplifier

,

4000-6000MHz anti-drone amplifier

,

GaN module for RF systems
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
4000-6000MHz 100W GaN Wideband RF Power Amplifier with Built-in Signal Source
Product Overview

High Power GaN RF Power Amplifier 100W with wide frequency coverage (4000-6000MHz) for industrial applications. This ultrawide module features advanced gallium nitride (GaN) technology for high efficiency, high gain, and excellent thermal stability.

Key Attributes
Attribute Value
Frequency And Power 4000–6000MHz 100W
Operating Voltage 28-32V
Operating Ambient Temperature -10～+55℃
Size 170*77*24.5mm
Highlight FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module
Product Features
  • Advanced GaN technology for high efficiency and wide bandwidth
  • Compact design with low temperature start-up capability
  • Supports multi-band coverage and multi-power level output
  • High-reliability metal package with optimized thermal management
  • Stable performance in harsh environments
Applications
  • Industrial RF transmission systems
  • Wireless communication testing
  • Data signal generation and processing
  • Laboratory and R&D RF experiments
Technical Specifications
Item Specification Unit Remarks
Frequency Range 4000-6000 MHz
Working voltage 32 V 28-32
Maximum output power 100 W 100W@10.2A Typical Value
Power amplifier efficiency 31 % @100W
Maximum gain 45 dB Maximum power gain
Gain flatness ≤5 dB
Standard input power 5 dBm
Output Port VSWR ≤2 No power, network score test
Power stability ±1.0@-40℃～+55℃ dB
Size 170*77*24.5 mm
Weight 750 g
Product Image

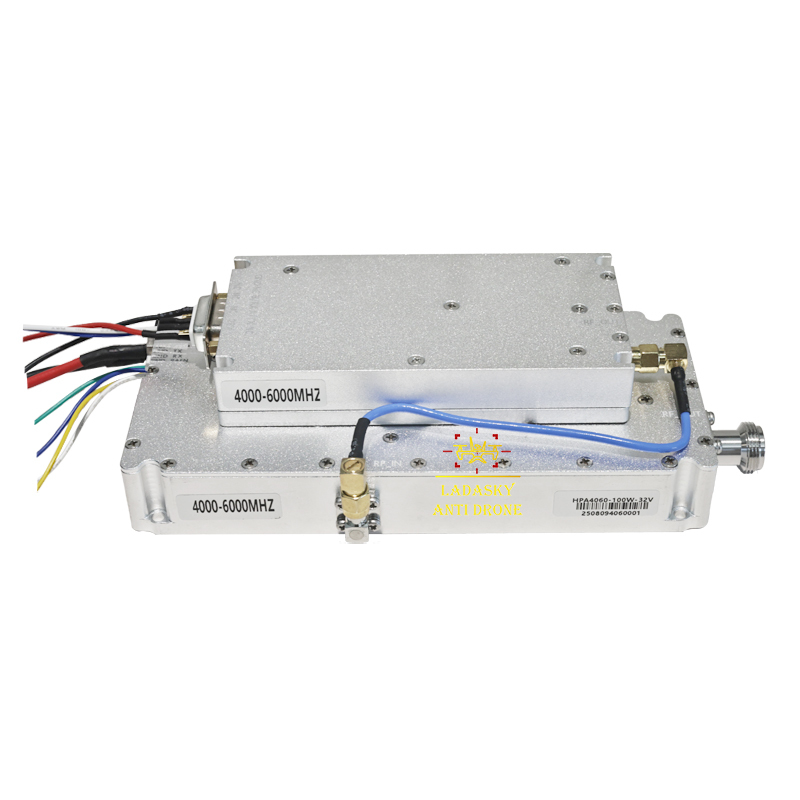

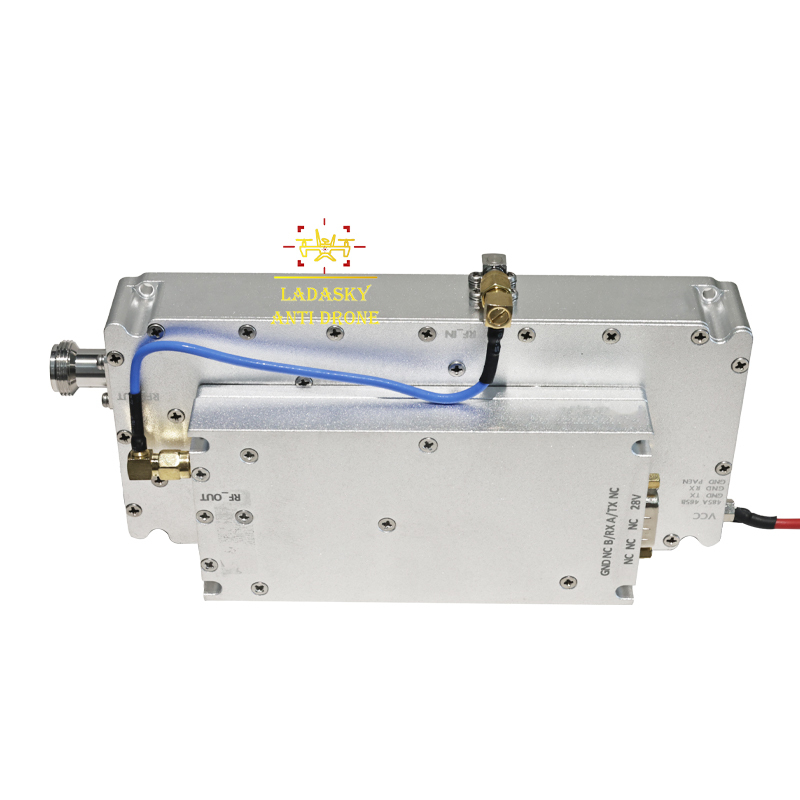

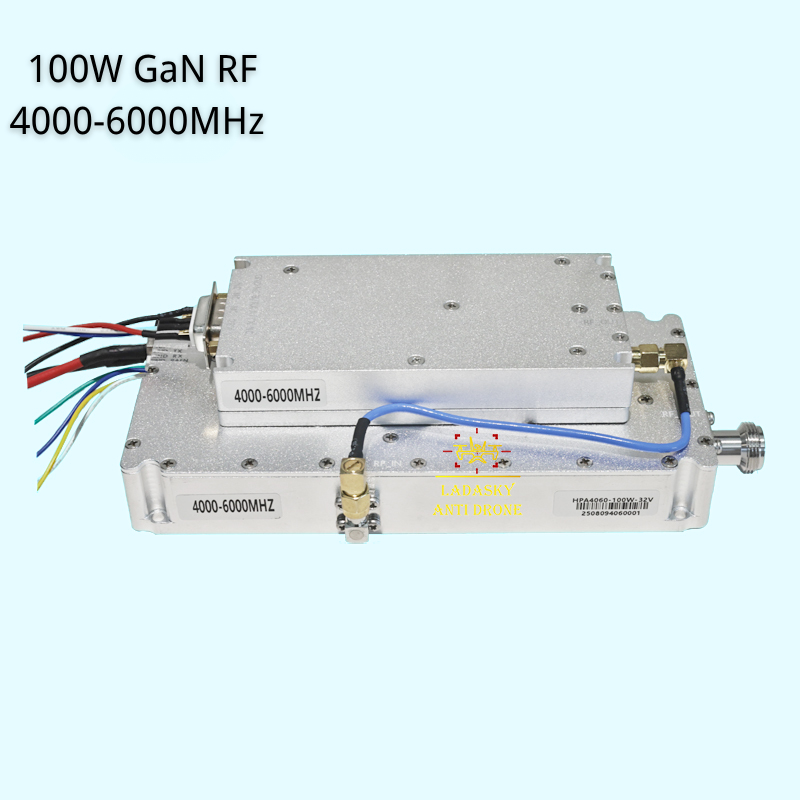

100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems 0
Lead Time
Quantity (PCS) <100pcs <500 500-1000 >1000
Lead time (Days) 3 3-5 7-12 To be negotiated
Customization Options
Item Logo Frequency Power Packing
MOQ (PCS) 1 1 1 1
Company Profile
100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems 1

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions.

Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems. Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions for government agencies, public security, and critical infrastructure protection.

Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.
100W GaN RF Power Amplifier 4000-6000MHz for Anti-Drone Systems 2
