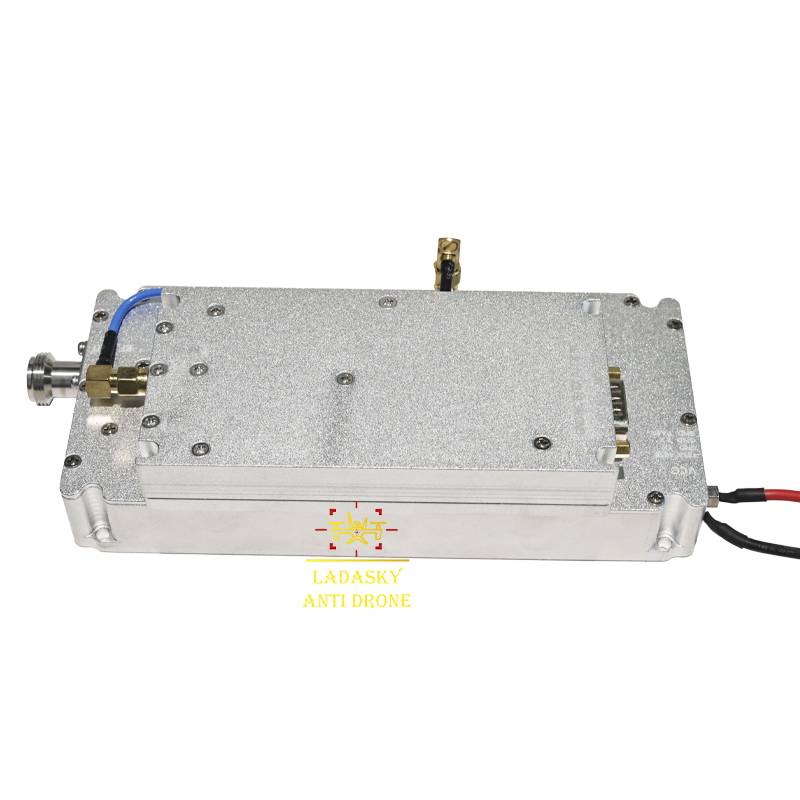

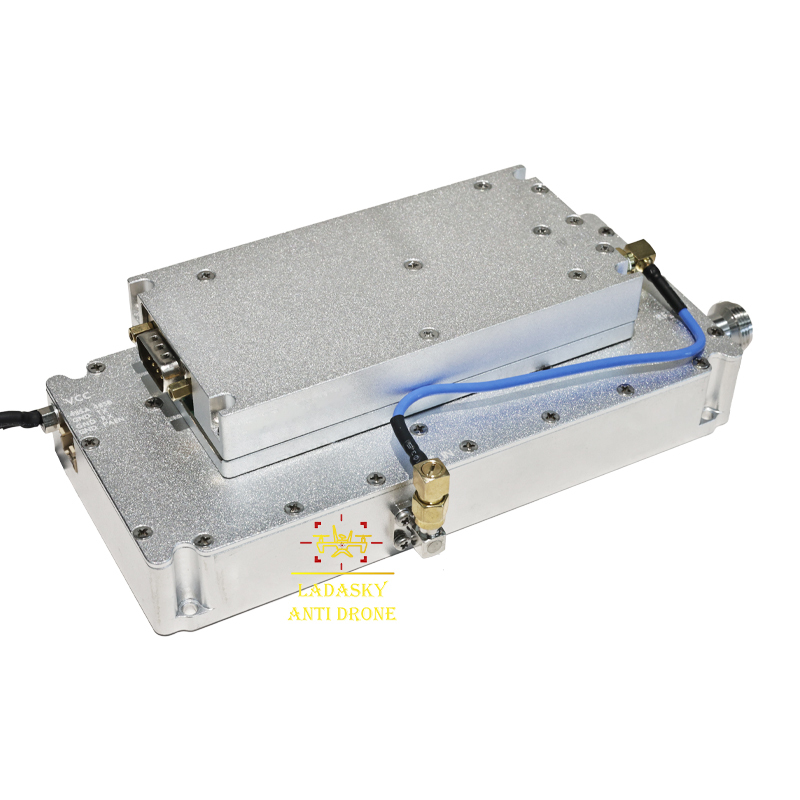

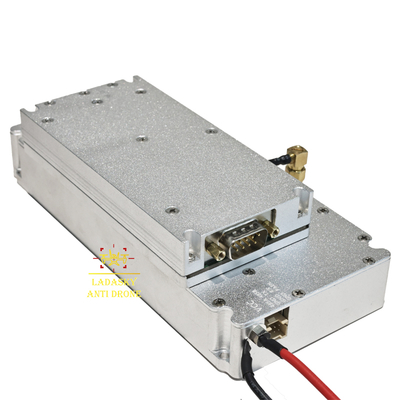

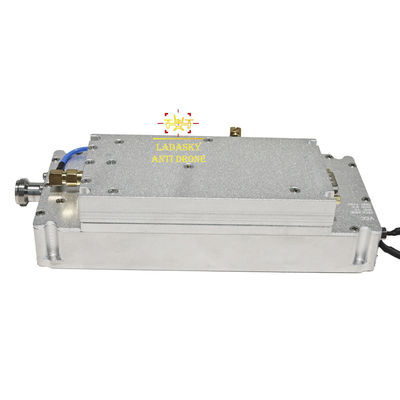

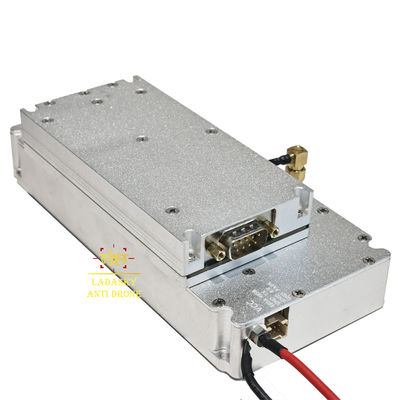

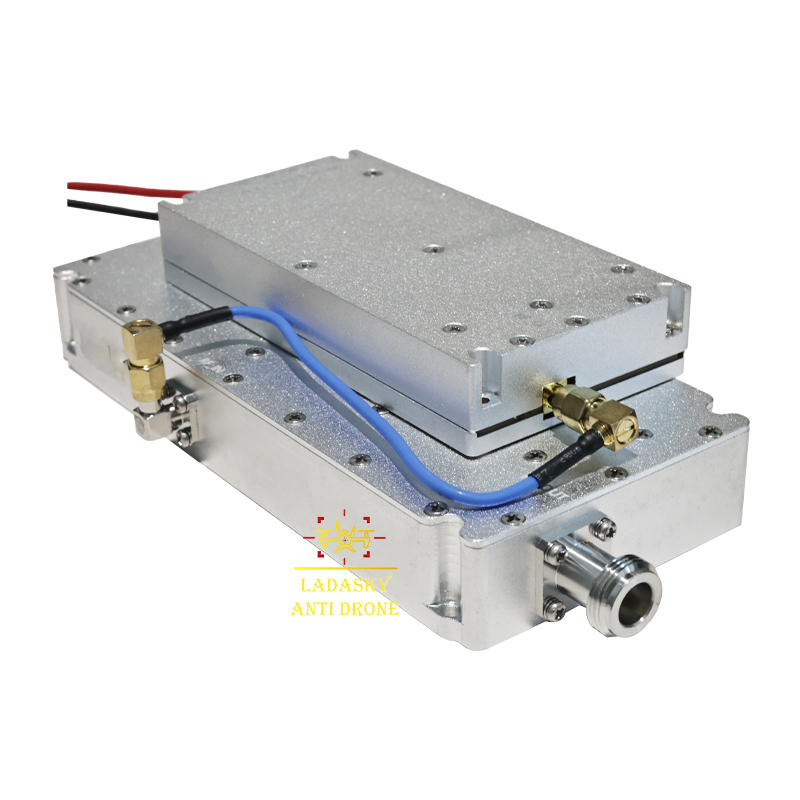

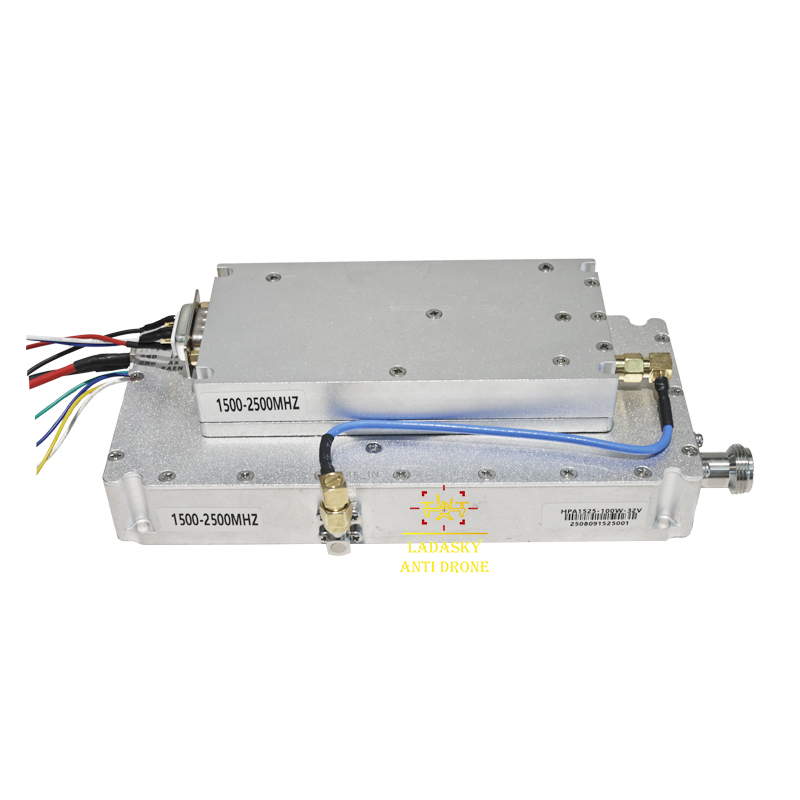

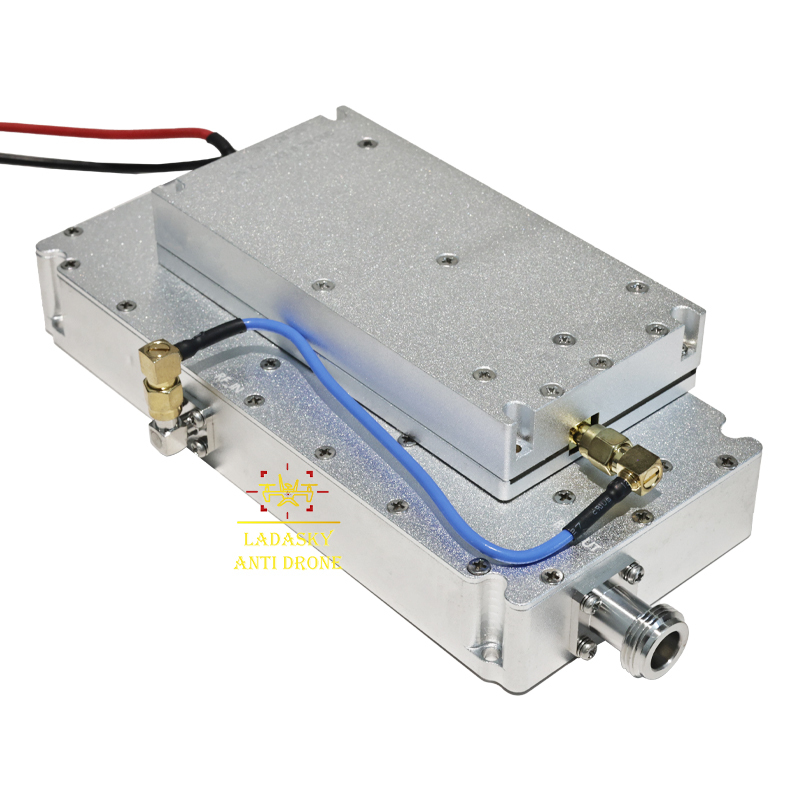

100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems

  • 100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems
  • 100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems
Place of Origin China
Brand Name LDSK
Certification Guangdong, China
Model Number LDK-TZ-KPG-KGAN-100W
Minimum Order Quantity 1
Delivery Time 1-3 workdays
Payment Terms D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Ability 50000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency And Power 1500–2500MHz 100W Operating Voltage 28-32V
Operating Ambient Temperature -10～+55℃ Size 170*77*24.5mm
Highlight FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module
Highlight

100W GaN RF power amplifier

,

1500-2500MHz GaN amplifier module

,

anti-drone RF power amplifier
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
1500–2500 MHz 100W GaN Wideband RF Power Amplifier with Ultra-Wide Frequency Coverage
Key Features
  • Frequency Range: 1500–2500MHz at 100W power output
  • Advanced GaN technology for high efficiency and thermal stability
  • Compact design (170*77*24.5mm) with robust metal housing
  • Wide operating voltage range (28-32V)
  • Excellent performance in harsh environments (-10℃ to +55℃)
  • Applications: FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module
Product Description

This GaN power amplifier module series utilizes advanced gallium nitride technology to deliver high efficiency, high gain, wide bandwidth, and excellent thermal stability. The compact module features low temperature start-up, supports multi-band coverage and multi-power level output, with strong compatibility for easy integration into various terminal devices.

With a wide operating voltage range and housed in a high-reliability metal package with optimized matching networks and thermal management, this module ensures stable performance in harsh environments, providing a robust solution for high-performance RF power amplification needs.

Applications
  • Industrial RF transmission systems
  • Wireless communication testing
  • Data signal generation and processing
  • Laboratory and R&D RF experiments
Technical Specifications
Item Specification Unit Remarks
Frequency Range 1500-2500 MHz
Working voltage 32 V 28-32
Maximum output power 100 W 100W@9A Typical Value
Power amplifier efficiency 35 % @100W
Maximum gain 45 dB Maximum power gain
Gain flatness ≤5 dB
Standard input power 5 dBm
Output Port VSWR ≤2 No power, network score test
High and low temperature test -10～+55℃ ℃
Power stability ±1.0@-40℃～+55℃ dB
Power supply requirements ≥11A@+32V DC Continuous wave output 100W
Control communication interface 485 communication protocol TTL communication Support temperature, current, voltage detection, radio frequency output power detection

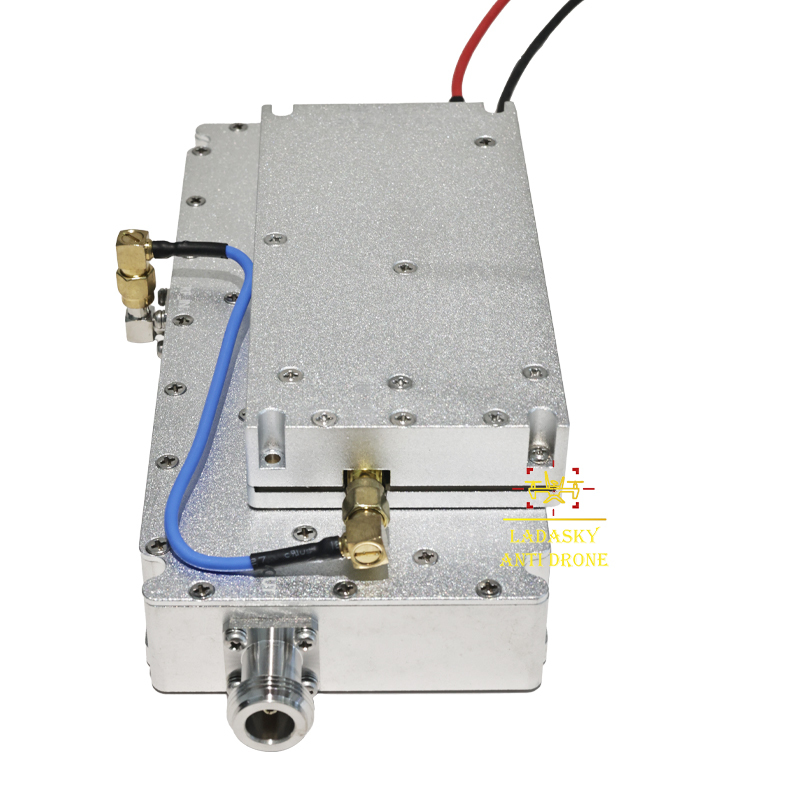

RF output connector Input SMA Output N-Female
Size 170*77*24.5 mm
Weight 750 g
1500–2500 MHz 100W GaN Wideband RF Power Amplifier
Lead Time
Quantity (PCS) <100pcs <500 500-1000 >1000
Lead time (Days) 3 3-5 7-12 To be negotiated
Customization Options

We offer customization for logo, frequency, power, and packing with MOQ of just 1 piece.

100W GaN RF Power Amplifier Module 1500-2500MHz for Anti-Drone Systems 1
About Shenzhen Ladasky Technology Co., Ltd.

We are a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. Our expertise includes RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.

Committed to delivering precise, efficient, and intelligent low-altitude protection solutions, our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.

Packing and Delivery

Each unit is individually packed into a bag and then packed into a carton:

  • Selling Units: Single item
  • Package size: 20*10*5 cm
  • Gross weight: 0.2kg
