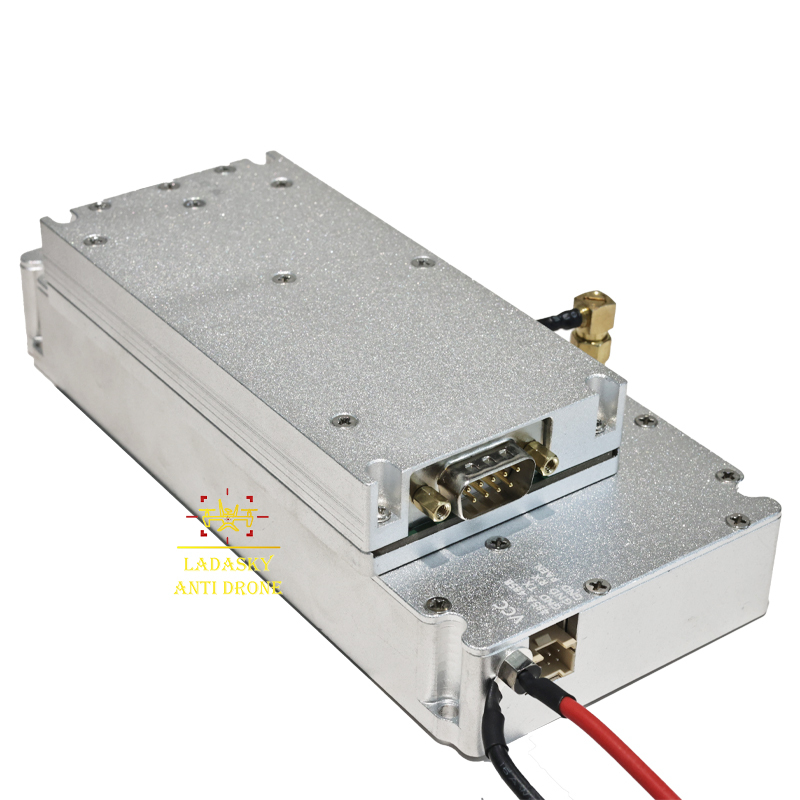

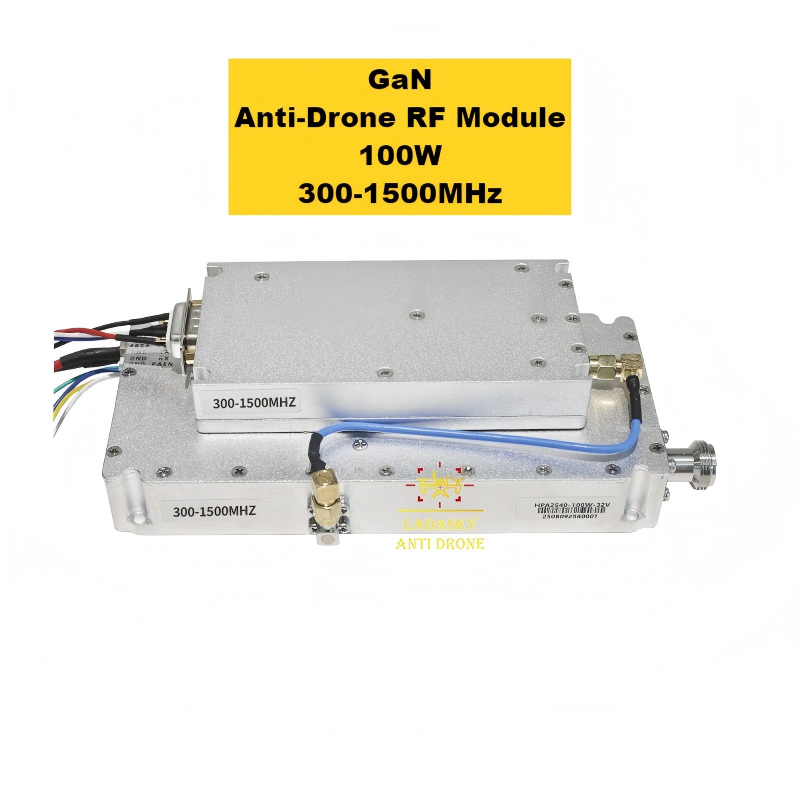

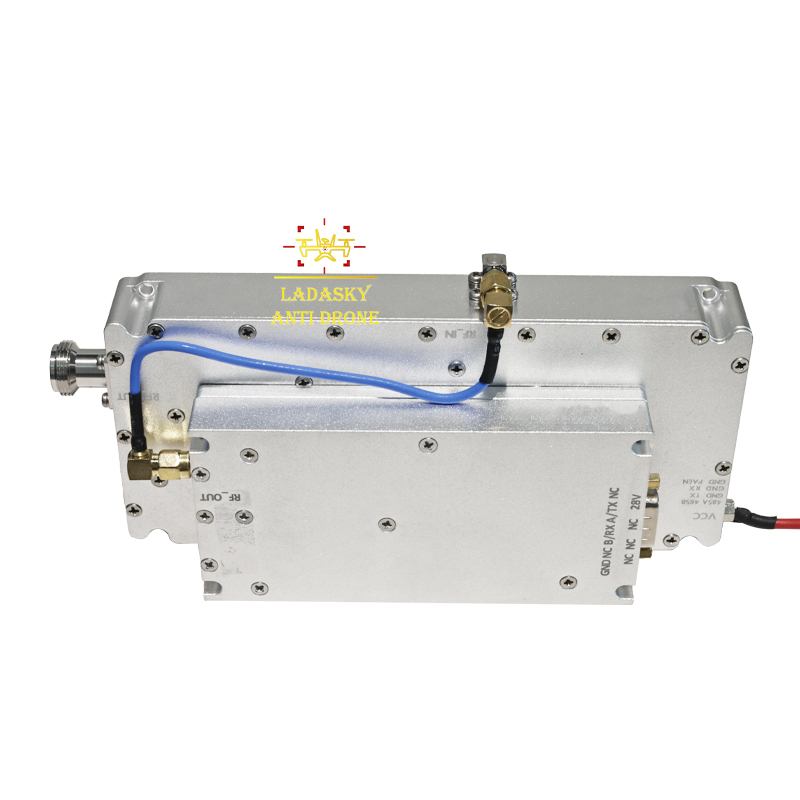

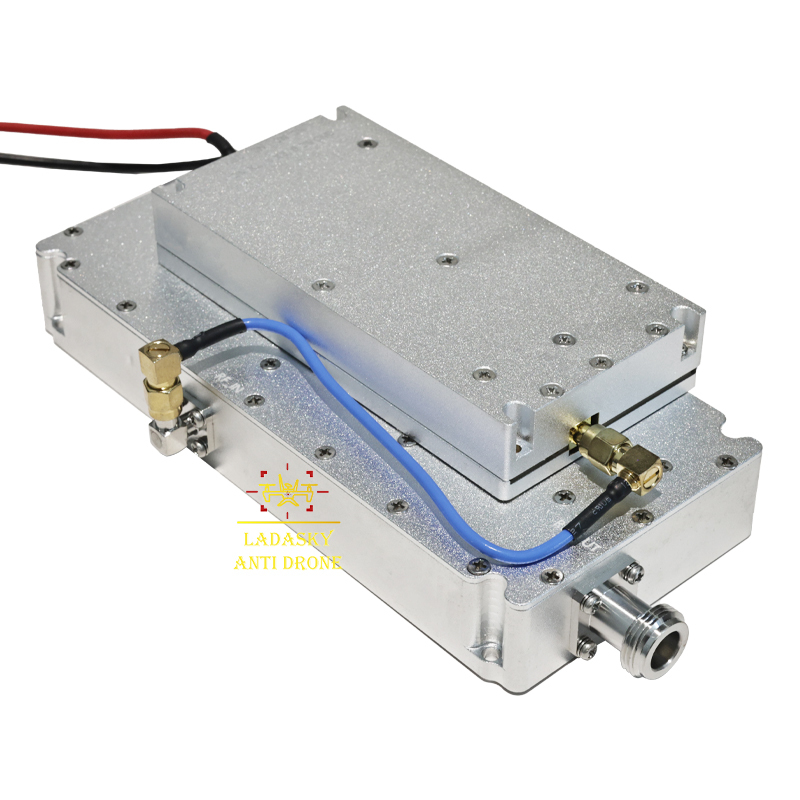

100W GaN RF Power Amplifier 300-1500MHz for Anti-Drone Systems
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

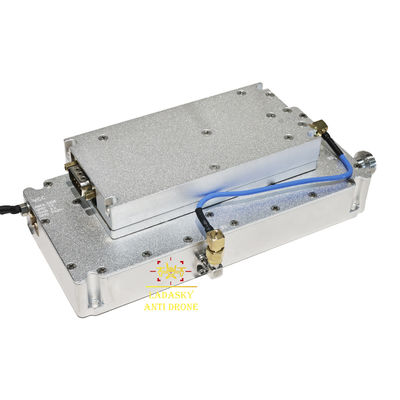

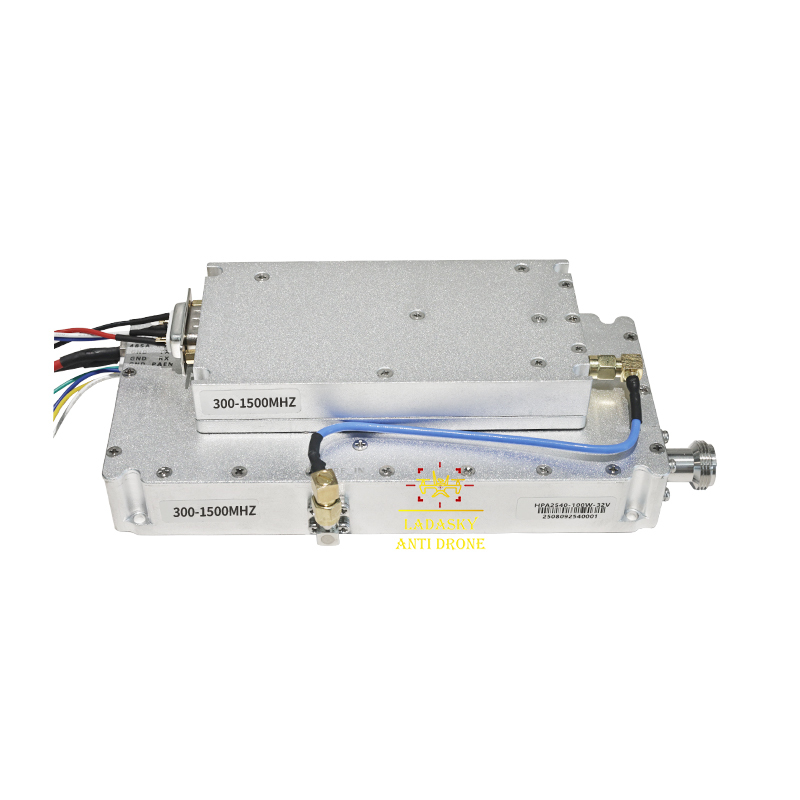

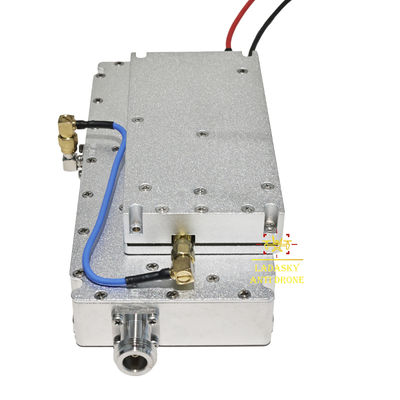

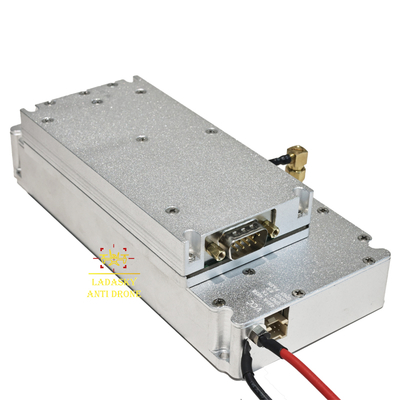

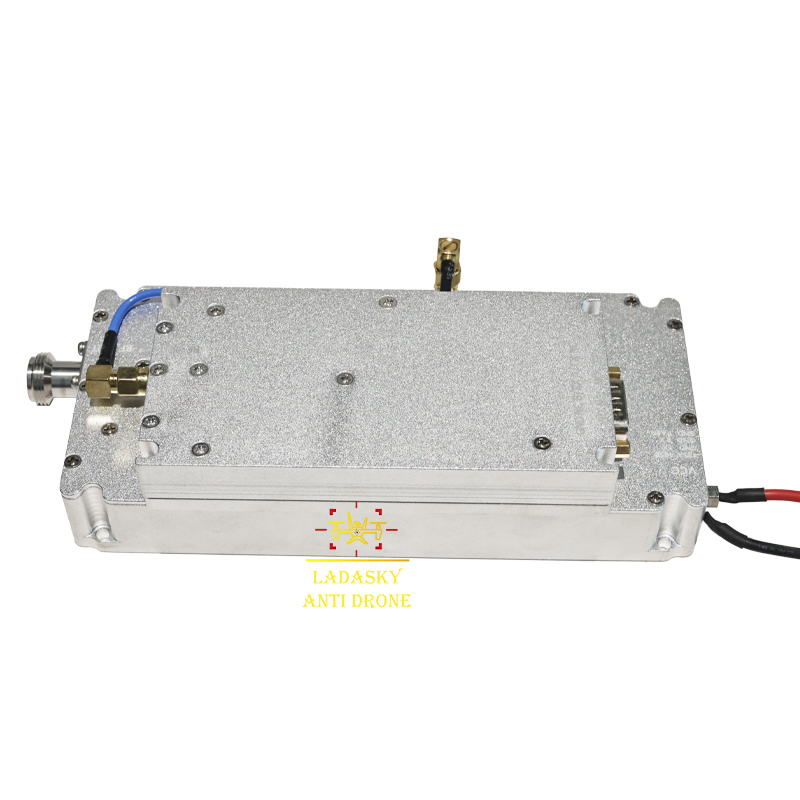

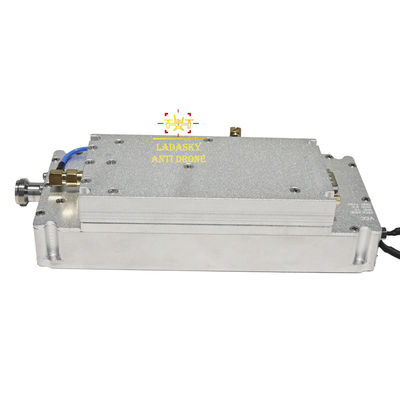

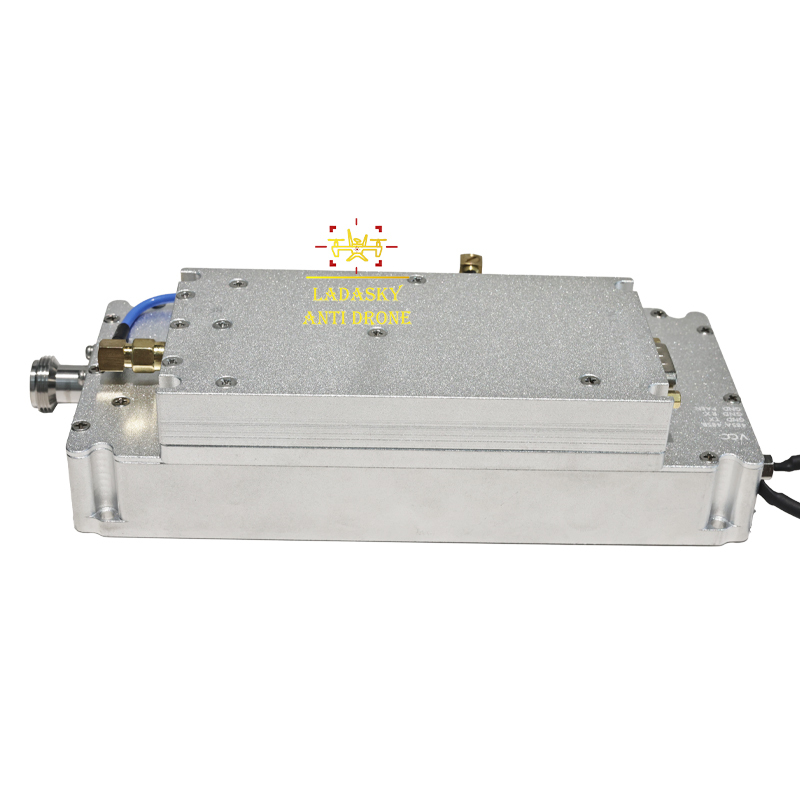

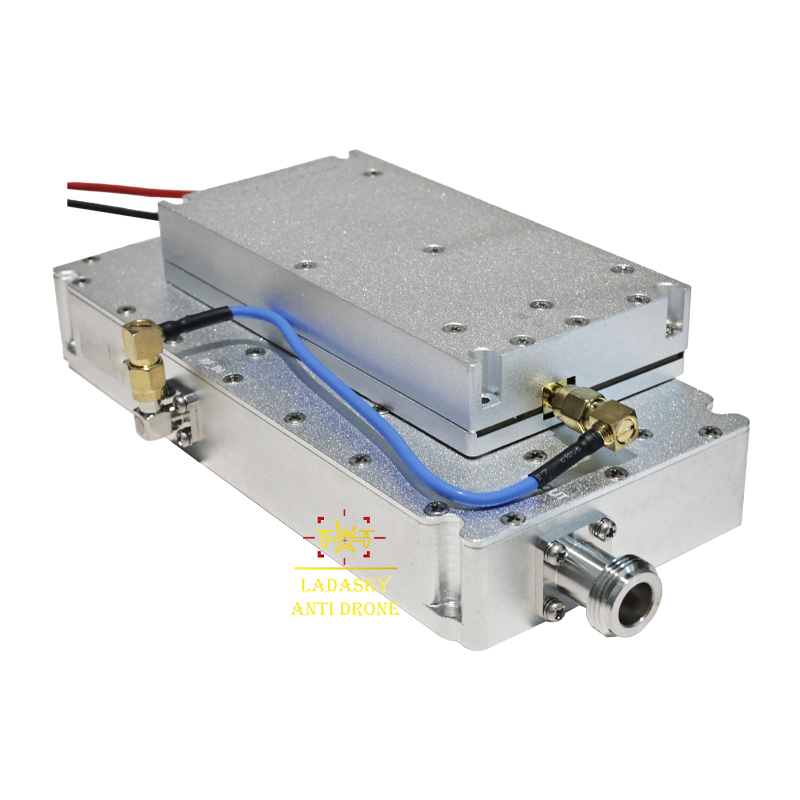

100W GaN RF Power Amplifier 300-1500MHz for Anti-Drone Systems

MOQ: 1
Delivery Period: 1-3 workdays
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Capacity: 50000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
LDSK
Certification
Guangdong, China
Model Number
LDK-TZ-KPG-KGAN-100W
Frequency And Power:
300–1500MHz 100W
Operating Voltage:
28-32V
Operating Ambient Temperature:
-10～+55℃
Size:
170*77*24.5mm
Highlight:
FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module
Minimum Order Quantity:
1
Delivery Time:
1-3 workdays
Payment Terms:
D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Ability:
50000 pcs per month
Highlight:

100W GaN RF power amplifier

,

300-1500MHz anti-drone amplifier

,

GaN module for RF systems

Product Description
300–1500MHz 100W GaN RF Power Amplifier with Wide Frequency Coverage
Key Features:
FPV Anti-Drone Module 100W Anti-Drone Module DJI Anti-Drone Module
Frequency And Power 300–1500MHz 100W
Operating Voltage 28-32V
Operating Ambient Temperature -10～+55℃
Size 170*77*24.5mm
Product Description
High Power GaN RF Power Amplifier 100W with Wide Frequency Coverage | 300-1500MHz Narrowband Module for Industrial Applications
This series of GaN power amplifier modules adopt advanced gallium nitride (GaN) technology, featuring high efficiency, high gain, wide bandwidth and excellent thermal stability. The compact module supports low temperature start-up, multi-band coverage and multi-power level output, with strong compatibility for easy integration into various terminal devices.
Supporting a wide operating voltage range, the module is housed in a high-reliability metal package with optimized matching networks and thermal management. It ensures stable performance in harsh environments and provides a robust solution for high-performance RF power amplification needs.
Applications:
  • Industrial RF transmission systems
  • Wireless communication testing
  • Data signal generation and processing
  • Laboratory and R&D RF experiments
Product Specifications
Item Specification Unit Remarks
Frequency Range 300-1500 MHz
Working voltage 32 V 28-32
Maximum output power 100 W 100W@7.2A Typical Value
Power amplifier efficiency 43 % @100W
Maximum gain 45 dB Maximum power gain
Gain flatness ≤5 dB
Standard input power 5 dBm
Maximum non-damaged power ≤10 dBm
Output Port VSWR ≤2 No power, network score test
High and low temperature test working environment temperature -10～+55℃ ℃
Power stability ±1.0@-40℃～+55℃ dB
Power supply requirements ≥9A@+32V DC Continuous wave output 100W
Power supply interface Feedthrough Capacitor
Control communication interface 485 communication protocol TTL communication Support temperature, current, voltage detection, radio frequency output power detection 2.54mm 2*4 seats TTL communication can communicate with the digital source, set the digital source frequency band and output power
RF output connector Input SMA Output N-Female
Size 170*77*24.5 mm
Weight 900 g
Installation hole 152.3*71.5 mm M3.0*4
100W GaN RF Power Amplifier 300-1500MHz for Anti-Drone Systems 0
Lead Time
Quantity (PCS) Lead time (Days)
<100pcs 3
<500 3-5
500-1000 7-12
>1000 To be negotiated
Customization Options
Item MOQ (PCS)
Logo 1
Frequency 1
Power 1
Packing 1
Company Profile
100W GaN RF Power Amplifier 300-1500MHz for Anti-Drone Systems 1
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.
Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.
100W GaN RF Power Amplifier 300-1500MHz for Anti-Drone Systems 2
Frequently Asked Questions
1. Why Choose us?
We offer professional knowledge, sincere service, prompt replies, and an excellent technical team to ensure a comfortable buying experience.
2. What is the process of placing an order?
  1. Send us products you're interested in
  2. We provide detailed information and quotations
  3. Consult with us about any product questions
  4. Confirm order and receive payment information
  5. Receive package confirmation and tracking number
  6. Provide feedback after receiving goods
3. How to contact us?
Email: emma@ladaskytech.com
