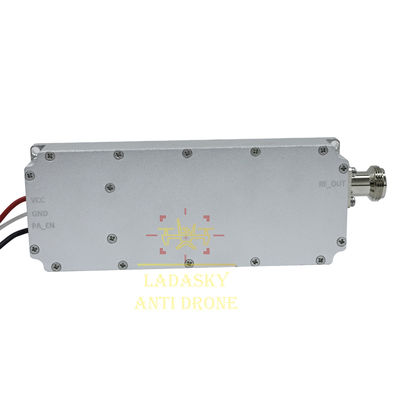

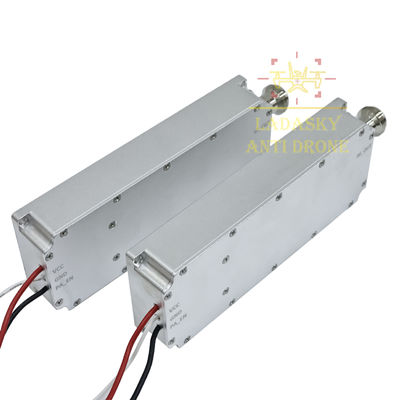

100W GaN RF Power Amplifier Module 400-2400MHz for Anti-Drone Systems
400–2400MHz 100W GaN RF Power Amplifier with Signal Source Key Features FPV Anti-Drone Module 100W Anti-Drone Module DJI Anti-Drone Module Product Attributes Attribute Value Frequency And Power 400–2400MHz 100W Operating Voltage 24-28V Operating Ambient Temperature -40～+55℃ Size 133.8*51.3*22.5mm ...
100W GaN RF power amplifier
,400-2400MHz anti-drone amplifier
,GaN module with high power
- FPV Anti-Drone Module
- 100W Anti-Drone Module
- DJI Anti-Drone Module
| Attribute | Value |
|---|---|
| Frequency And Power | 400–2400MHz 100W |
| Operating Voltage | 24-28V |
| Operating Ambient Temperature | -40～+55℃ |
| Size | 133.8*51.3*22.5mm (Excluding N-F) |
This series of GaN power amplifier modules adopt advanced gallium nitride (GaN) technology, featuring high efficiency, high gain, wide bandwidth and excellent thermal stability. The compact module supports low temperature start-up, multi-band coverage and multi-power level output, with strong compatibility for easy integration into various terminal devices.
With a wide operating voltage range, the module is housed in a high-reliability metal package with optimized matching networks and thermal management. It ensures stable performance in harsh environments, providing a robust solution for high-performance RF power amplification needs.
- Industrial RF transmission systems
- Wireless communication testing
- Data signal generation and processing
- Laboratory and R&D RF experiments
| Item | Specification | Unit | Remarks |
|---|---|---|---|
| Frequency Range | 400-2400 | MHz | Built-in high-efficiency signal generator |
| Working voltage | 28 | V | 24-28V |
| Maximum output power | 50 | dBm | 100W@≤7.8A |
| Power amplifier efficiency | 45 | % | Typical efficiency |
| Maximum gain | 45 | dB | Maximum power gain |
| High and low temperature test | working environment temperature | -40～+55℃ | ℃ |
| Power stability | ±1.5 | dB | -20℃～+75℃ |
| Output port VSWR | ≤1.30 | ||
| Power supply requirements | ≥9A | Continuous wave output 100W | |

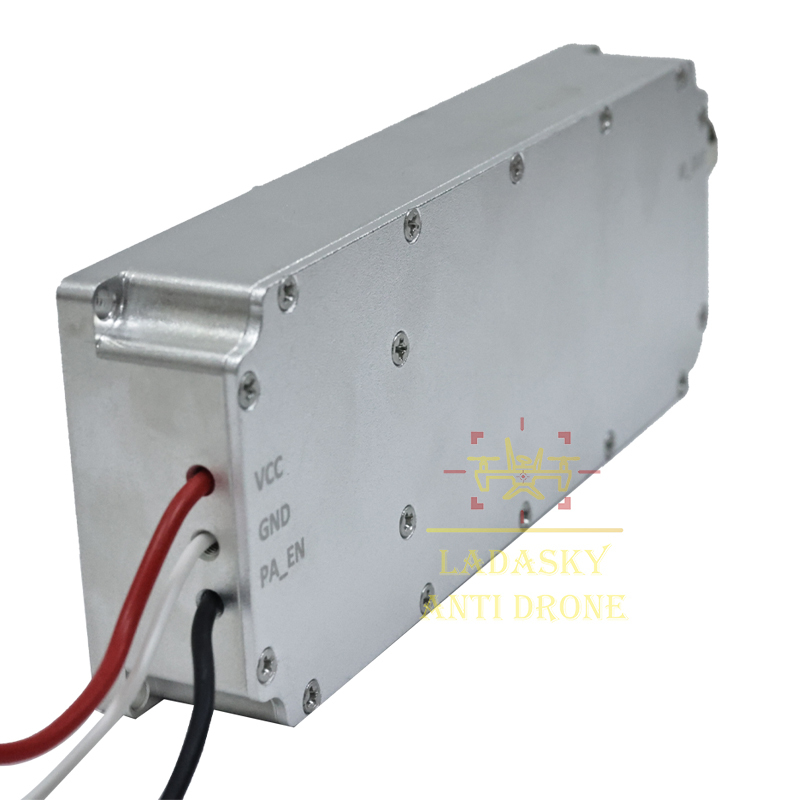

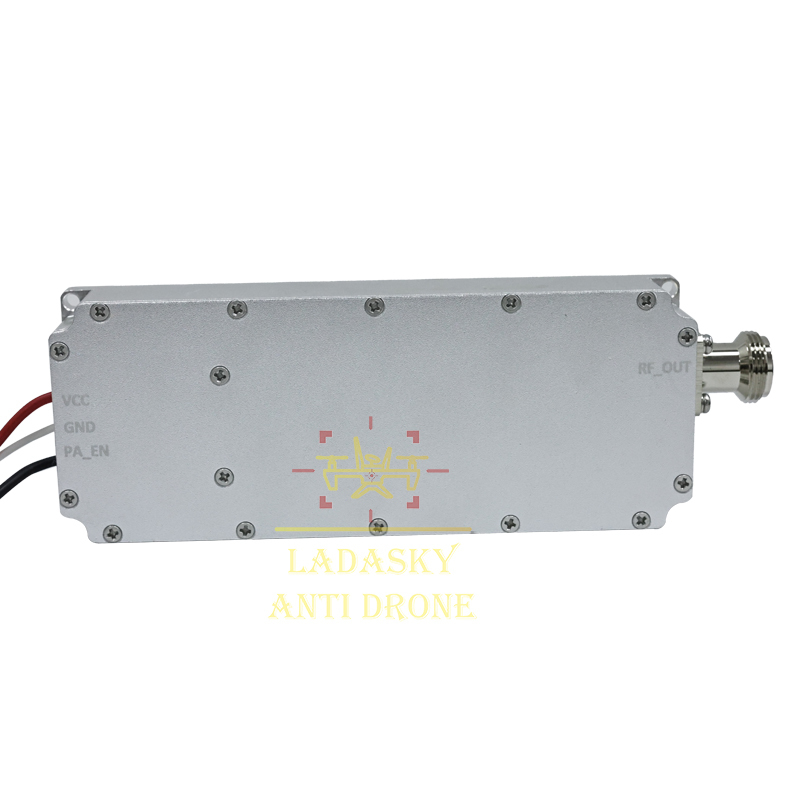

| Power supply interface | Red for positive/B+, Black for negative/B- or Wearing capacitance | ||
| Enable | White wire: Turn on at high level, turn off at low level | ||

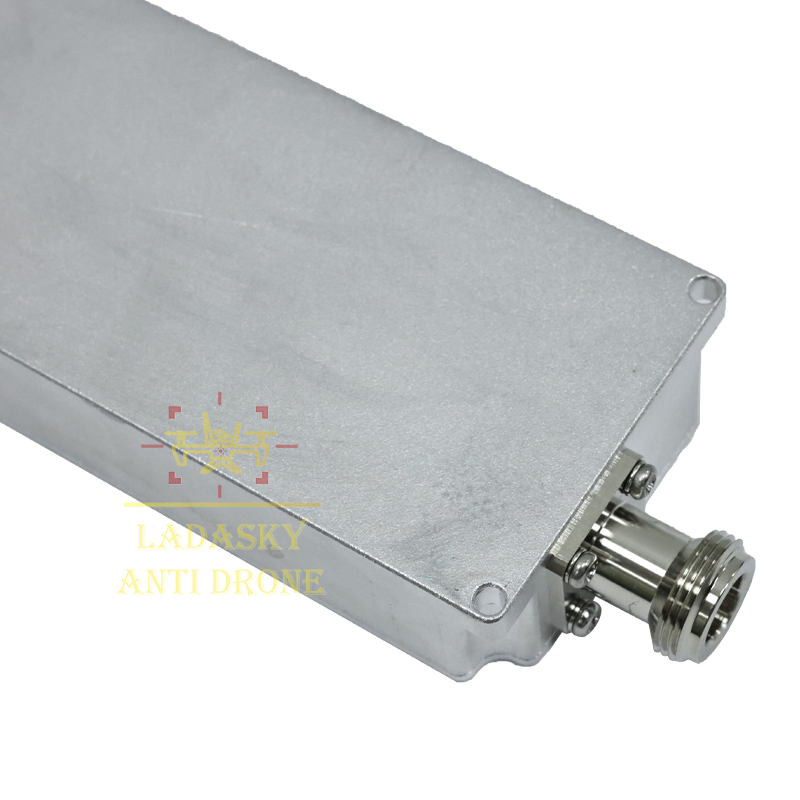

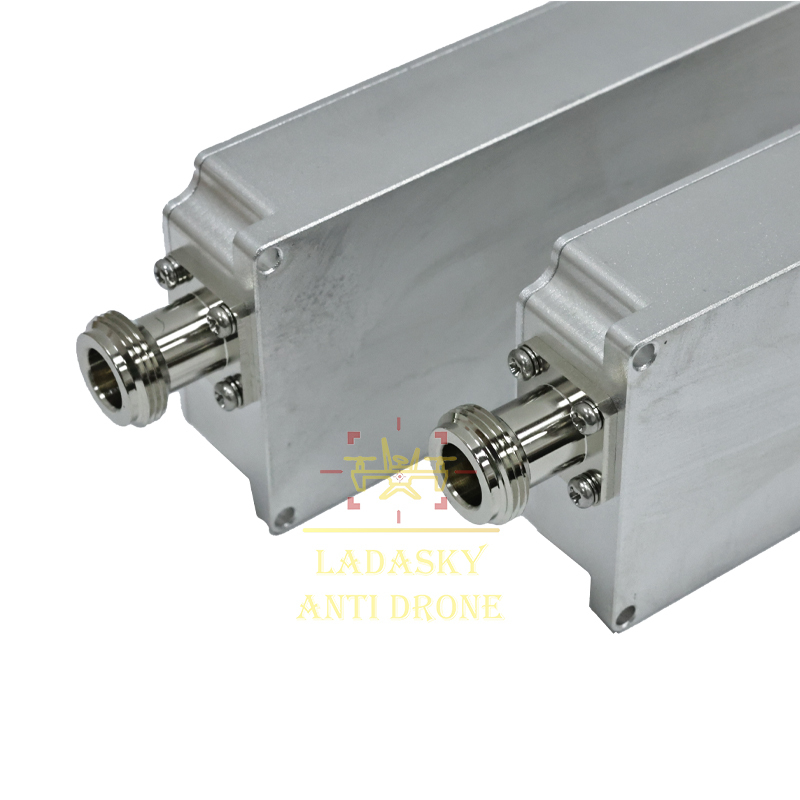

| RF output connector | N | Female | |
| Size | 133.8*51.3*22.5 | mm | Excluding N-F |
| Installation hole | 129.1*46.1 | mm | M3.0*4 |
| Quantity(PCS) | Lead time(Days) |
|---|---|
| <100pcs | 3 |
| <500 | 3-5 |
| 500-1000 | 7-12 |
| >1000 | To be negotiated |
| Item | MOQ(PCS) |
|---|---|
| Logo | 1 |
| Frequency | 1 |
| Power | 1 |
| Packing | 1 |
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.
| Selling Units: | Single item |
|---|---|
| Single package size: | 20X10X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
