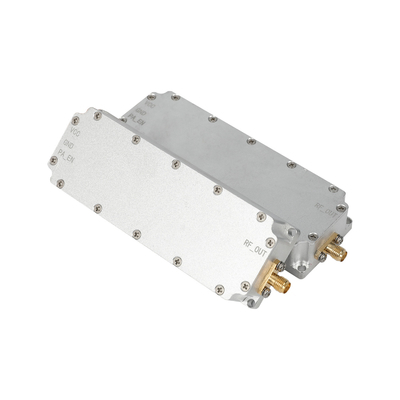

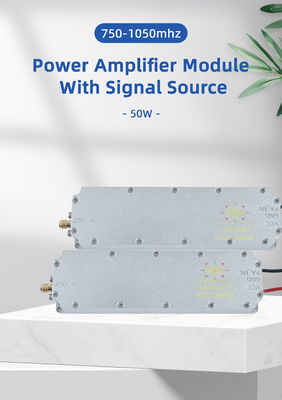

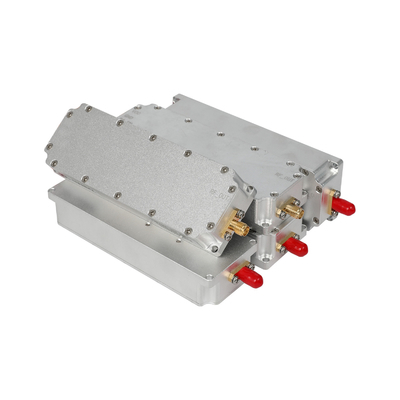

50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor

50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor
50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor

Large Image :  50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor

Product Details:
Place of Origin: Guangdong, China
Brand Name: LDSK
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $80-95
Delivery Time: 1-3 workdays
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Max Output Power: 50W Working Efficiency: More Than 52%
Frequency: 750-1050MHz Peak Gain: 47dBi
Passband Peak To Peak Ripple: Less Than 2dB Working Temperature: -10~+55 Degree Celcius
Weight: 136g Working Voltage: 24-32V
Required Power Supply: More Than 3.7A Highlight: 50W GaN Module, 750-1050MHz GaN Module, 700-1000MHz RF Module
Highlight:

50W GaN RF module

,

750-1050MHz anti-drone suppressor

,

FPV jammer GaN module

Product Parameters

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
--This document stipulates the radio frequency and monitoring technical indicators of the 600-700MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
--This document applies to all aspects of product design, verification, production and quality inspection of the 600-700MHz 50W power amplifier module.
Item name Technical parameters
Working frequency 750-1050MHz
Power 50W
Supply Voltage DC 24-32V
Max Output Power 47 dBm
Working Efficiency ≥60%
Passband Riplpe ≤2dB
Weight 105 g
Operating Temperature -10~+55ºC
Power supply requirements ≥3.7A
RF Connector SMA
Weight 160g
Size 37.3*112*19.5mm (Excluding SMA)
Connect line red DC28-30V
Connect line black GND
Connect line white ENABLE

50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 0


50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 1

50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 2

50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 3

50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 4

50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 5

50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 6


Lead time

Quantity(PCS) <100pcs <500 500-1000 >1000
Lead time(Days) 3 3-5 7-12 To be negotiated


Customization

Item Logo Frequency Power Packing
MOQ(PCS) 1 1 1 1




Company profile

50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 7

Shenzhen ladasky technology Co,.LTD, specializing in the field of advanced technology.

Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.

Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers.

The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications. The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.

We pride ourselves on our strong R&D team, composed of experts and engineers with rich experience and professional knowledge in the field.

They are constantly exploring and innovating to bring forth new and improved products that stay ahead of the market trends.

Our manufacturing facilities are equipped with state-of-the-art machinery and adhere to international quality standards.

This ensures that every product leaving our factory is of the highest quality and reliability.

Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.

50W GaN RF Module 750-1050MHz Anti-Drone FPV Suppressor 8
Frequently Asked Questions
Why Choose Us?

We offer professional expertise, sincere service, prompt responses, and an excellent technical team to ensure a comfortable purchasing experience.

Order Process
  1. Send us products you're interested in
  2. We provide detailed information and quotations
  3. Consult with us about any product questions
  4. Confirm order and receive payment information
  5. We send package confirmation and tracking number
  6. Provide feedback after receiving goods
