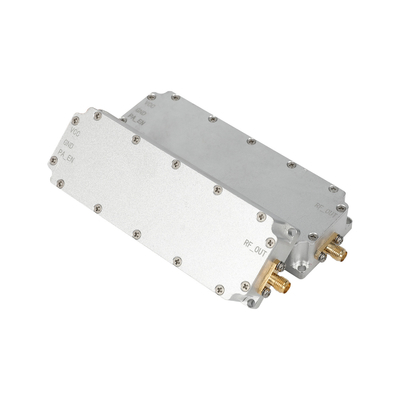

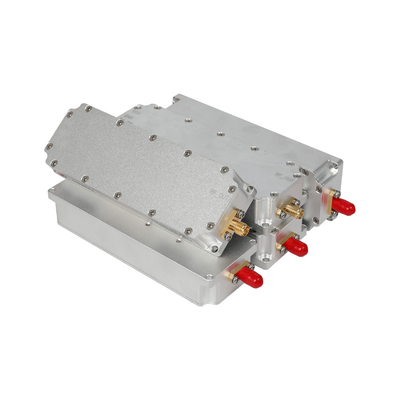

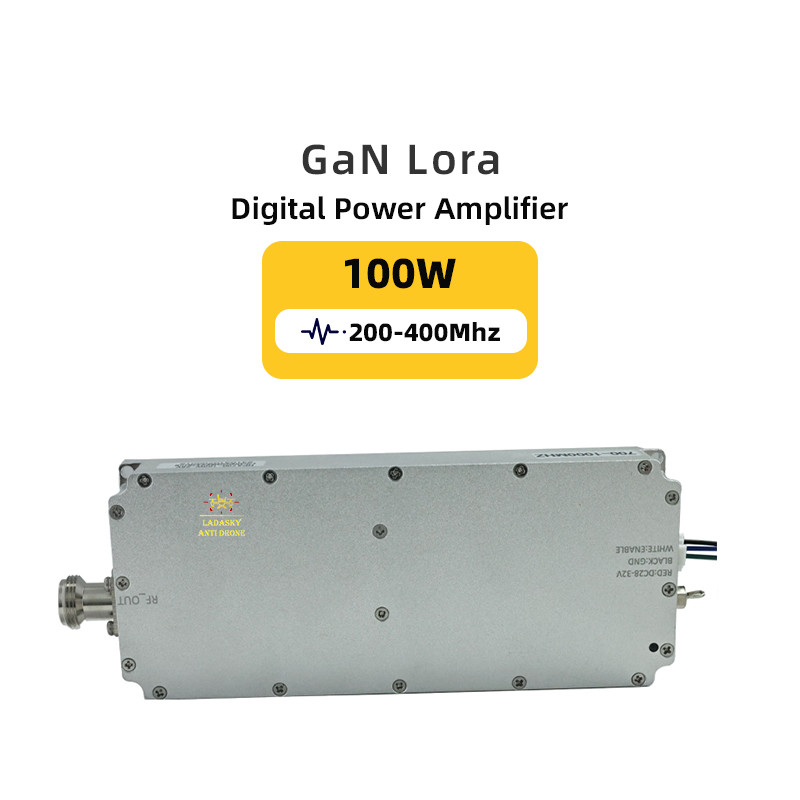

100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor

  • 100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor
  • 100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor
  • 100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor
  • 100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor
  • 100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor
Place of Origin Guangdong, China
Brand Name LDSK
Minimum Order Quantity 1 piece
Price $130-$210
Delivery Time 1-3 workdays
Payment Terms D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Ability 50000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High-Power 100W GaN RF Module Provides Strong RF Output For Long-range Drone Signal Suppression With Low Power Consumption And Excellent Thermal Performance. 200–400MHz Wideband Coverage Ffectively Blocks FPV, LoRa, DJI, And Other UAV Communication Signals.
Reliable Anti-Drone Defense Designed For Military, Border Security, Critical Infrastructure, And Commercial Drone Threat Mitigation. Compact & Easy Integration Suitable For Portable, Vehicle-mounted, Or Fixed Anti-drone Platforms.
Durable & Energy-Efficient Design Ensures Stable Operation Under Harsh Environmental Conditions With Extended Service Life. Customizable Frequency & Power Options Flexible Configuration To Meet Diverse UAV Defense Scenarios And Operational Requirements
Highlight

100W GaN RF module

,

200-400MHz anti-drone suppressor

,

GaN module signal suppressor
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
Product Parameters
  • GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
  • The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
  • This document stipulates the radio frequency and monitoring technical indicators of the 600-700MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
  • This document applies to all aspects of product design, verification, production and quality inspection of the 600-700MHz 50W power amplifier module.
Item name Technical parameters
Working frequency 200-400MHz
Power 100W
Supply Voltage DC 24-32V
Max Output Power 50 dBm
Working Efficiency ≥50%
Passband Riplpe ≤2dB
Weight 450 g
Operating Temperature -10~+55ºC
Power supply requirements ≥3.7A
RF Connector SMA
Weight 160g
Size 156.5*64.7*24.5mm (Excluding SMA)
Connect line red DC28-30V
Connect line black GND
Connect line white ENABLE

100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor 0

100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor 1

100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor 2

100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor 3100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor 4

100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor 5

100W GaN RF Module 200-400MHz Anti-Drone Signal Suppressor 6

Lead time
Quantity(PCS) <100pcs <500 500-1000 >1000
Lead time(Days) 3 3-5 7-12 To be negotiated
Customization
Item Logo Frequency Power Packing
MOQ(PCS) 1 1 1 1
