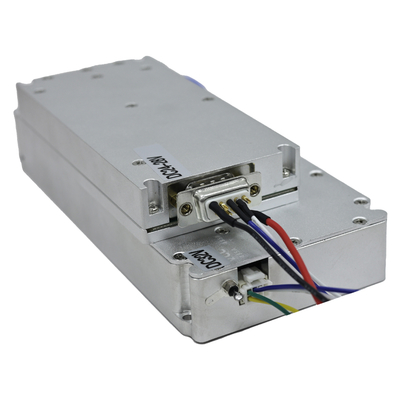

100W GaN RF Power Amplifier Module 2500-4000MHz for Anti-Drone
| Place of Origin | China |
|---|---|
| Brand Name | LDSK |
| Certification | Guangdong, China |
| Model Number | LDK-TZ-KGN-100W |
| Minimum Order Quantity | 1 |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency And Power | 2500–4000MHz 100W | Operating Voltage | 28-32V |
|---|---|---|---|
| Operating Ambient Temperature | -10～+55℃ | Size | 170 × 77 × 24.5mm |
| Highlight | FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module | ||
| Highlight | 100W GaN RF power amplifier,GaN amplifier module 2500-4000MHz,anti-drone RF power amplifier |
||
Product Description
100W Compact GaN RF Power Amplifier Module Wireless Communication for FPV Interference
Key Features
The LDK-TZ-KGN-100W High Power GaN RF Power Amplifier Module delivers:
- Advanced Gallium Nitride (GaN) technology
- 100W continuous output power at 2500-4000MHz
- High efficiency and stable gain performance
- Robust metal housing with optimized thermal management
- Comprehensive protection features (over-temperature, VSWR)
- RS-485 and TTL communication protocols for system integration
Technical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| Model | LDK-TZ-KGN-100W | - |
| Frequency Range | 2500-4000 | MHz |
| Working Voltage | 28-32 | V |
| Max Output Power | 100 | W |
| Power Amplifier Efficiency | 32 | % |
| Maximum Gain | 45 | dB |
| Operating Temperature | -10 to +55 | ℃ |
| Dimensions | 170 × 77 × 24.5 | mm |
| Weight | 750 | g |
Applications
- Industrial RF transmission systems
- Wireless communication equipment testing
- RF laboratory and research projects
- Data transmission and signal processing systems
- FPV and drone interference applications

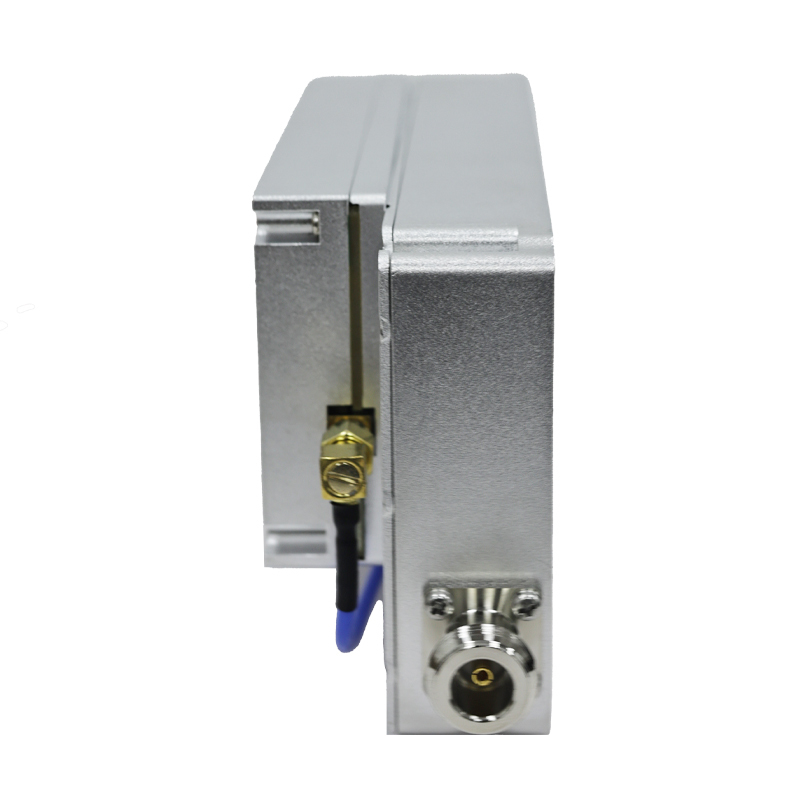

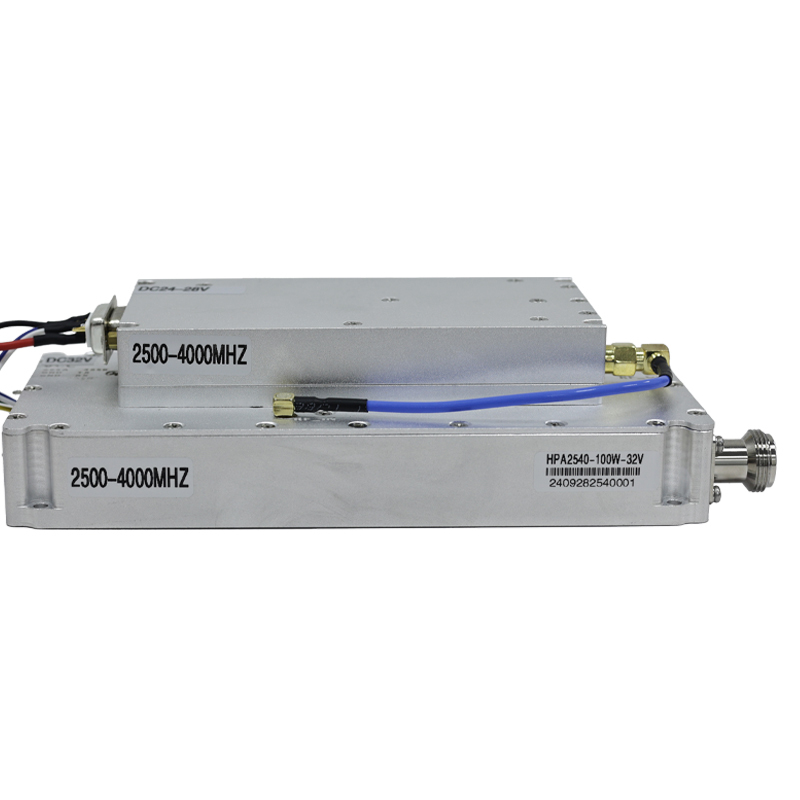

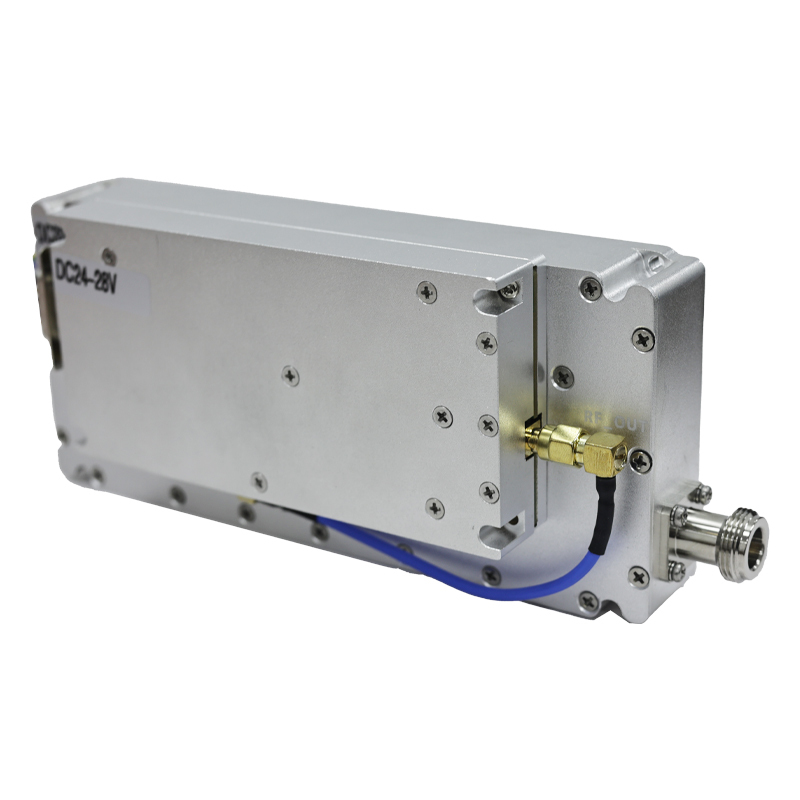

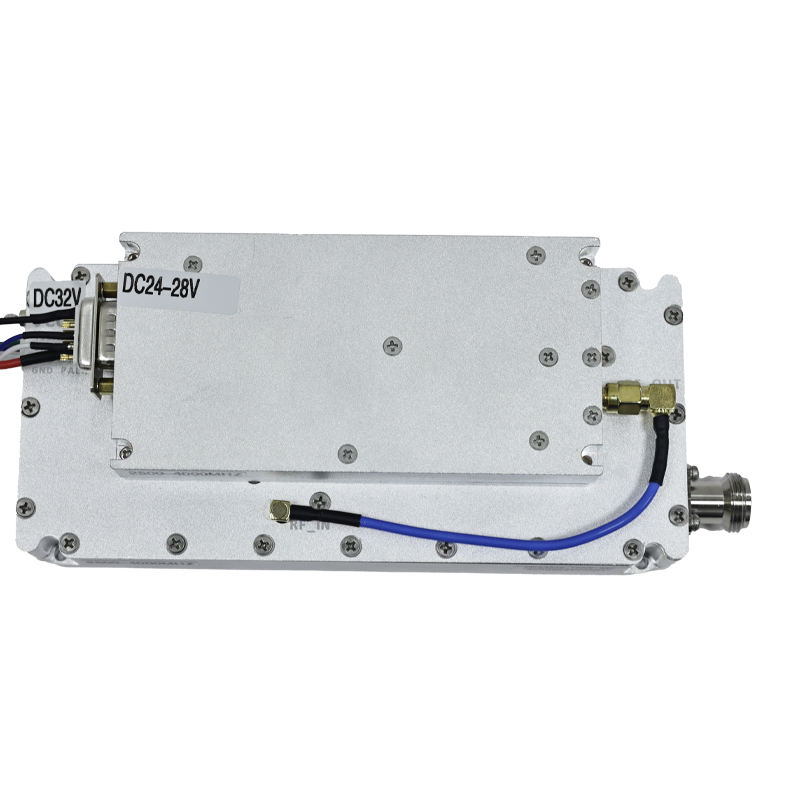

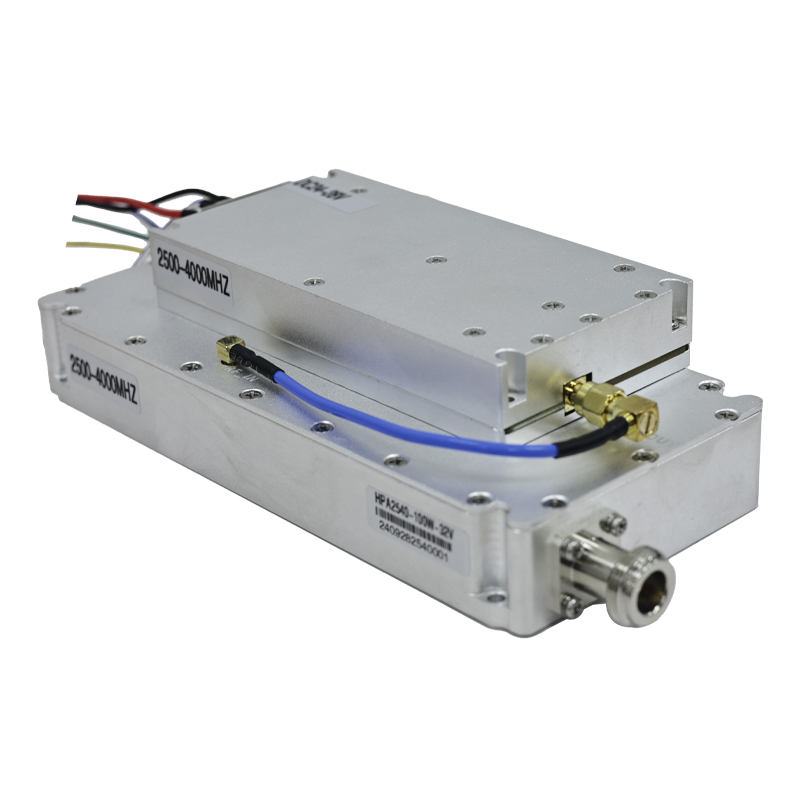

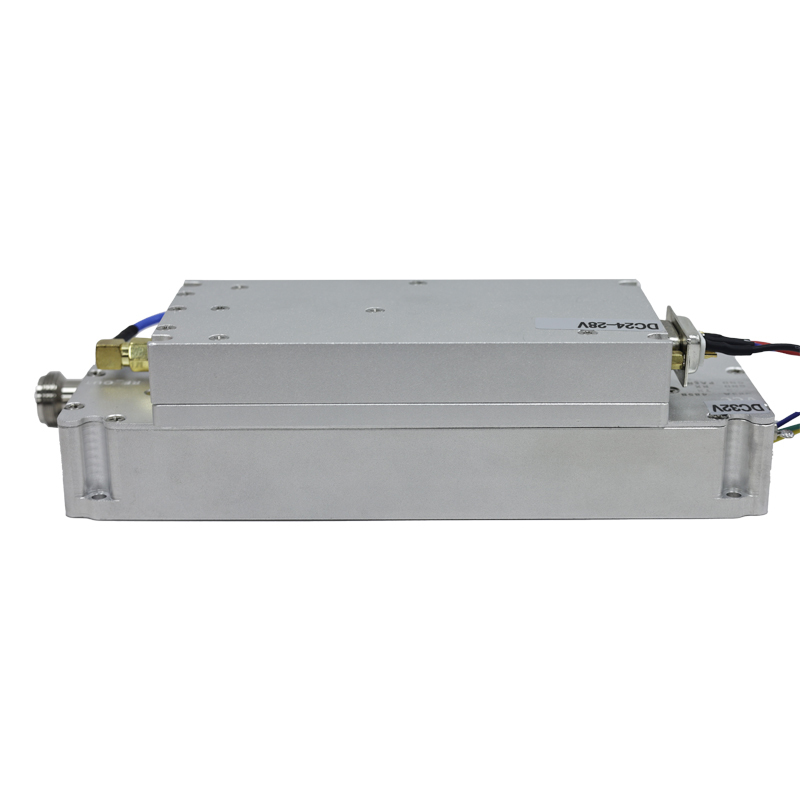

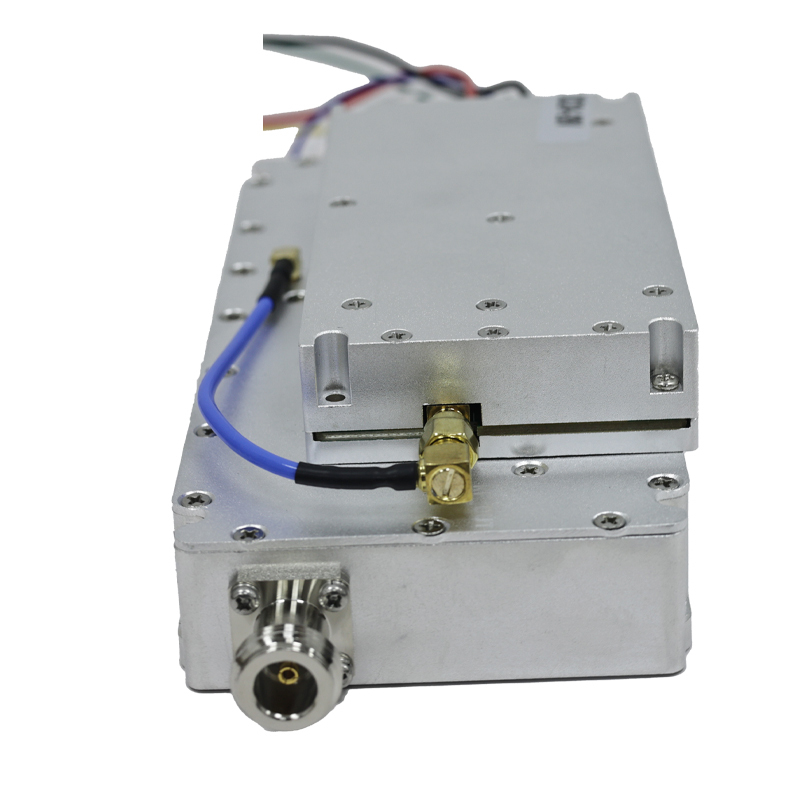

Product Image
Lead Time
| Quantity (PCS) | Lead Time (Days) |
|---|---|
| <100 | 3 |
| <500 | 3-5 |
| 500-1000 | 7-12 |
| >1000 | To be negotiated |
Customization Options
Minimum order quantity of 1 piece available for:
- Logo customization
- Frequency adjustment
- Power modification
- Packing requirements
Packing Information
Package Type: Individual bag + carton
Package Size: 20×10×5 cm
Gross Weight: 0.2kg
Company Profile
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. Our expertise includes RF sensing, signal analysis, and active interference solutions.
We provide precise, efficient, and intelligent low-altitude protection solutions for government agencies, public security, and critical infrastructure protection.
Frequently Asked Questions
Why choose us? Professional knowledge, sincere service, and excellent team support ensure a comfortable buying experience.
Order process: Product inquiry → quotation → confirmation → payment → shipment → delivery confirmation.
Contact: emma@ladaskytech.com
