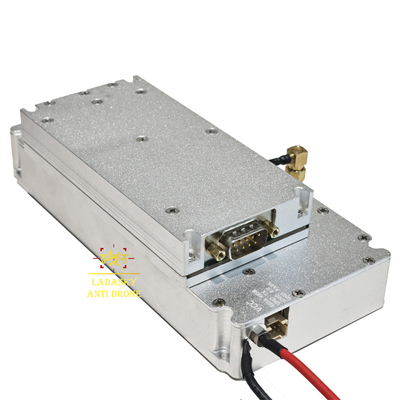

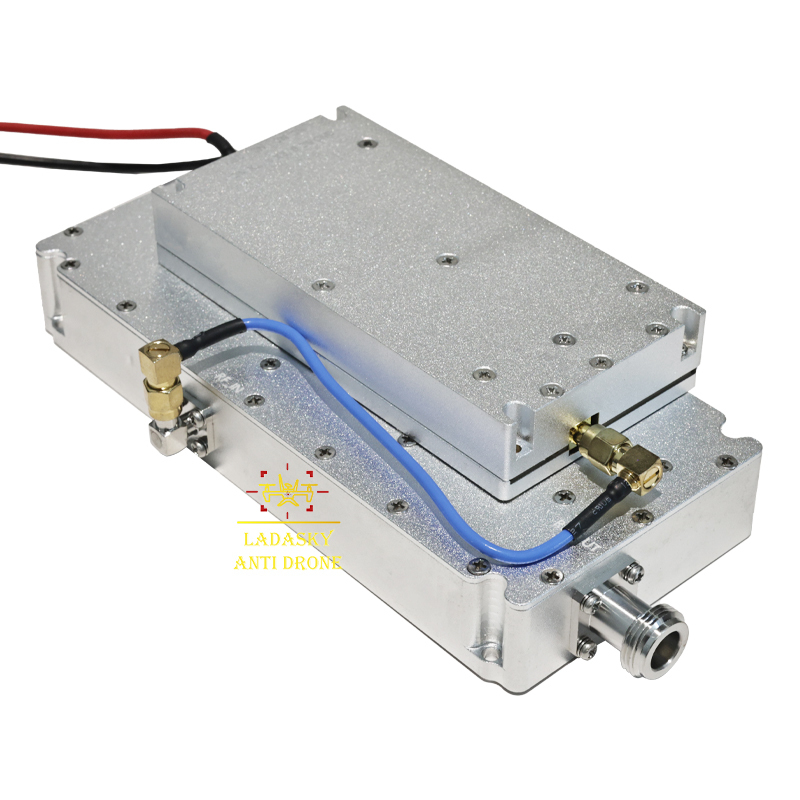

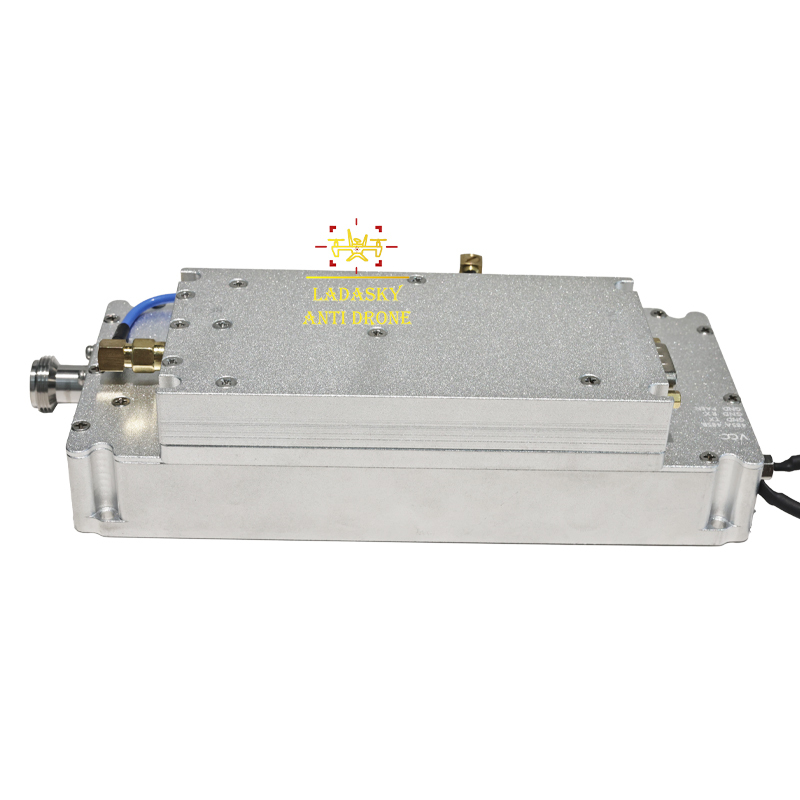

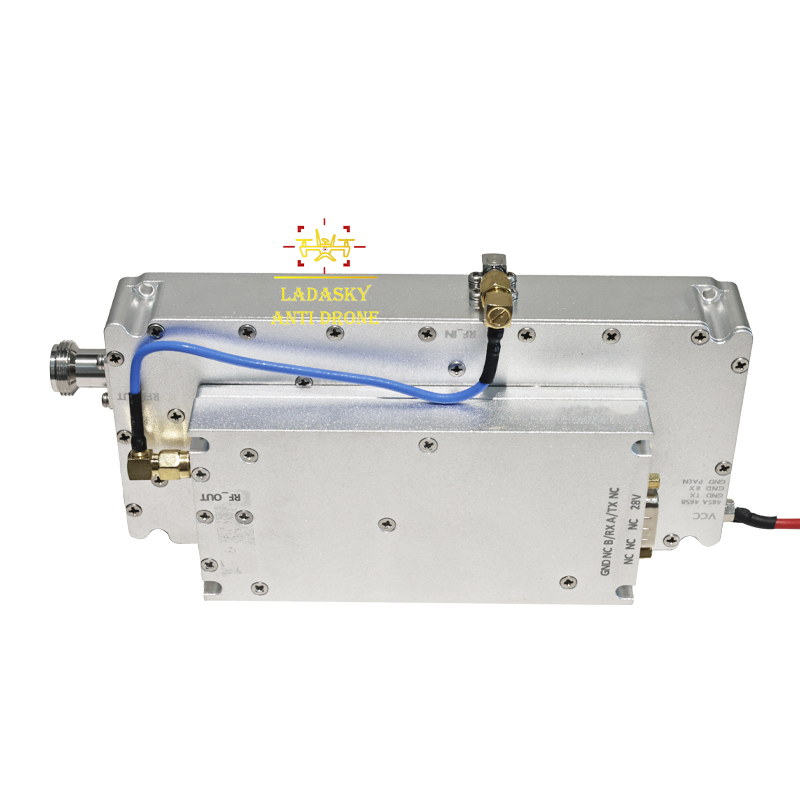

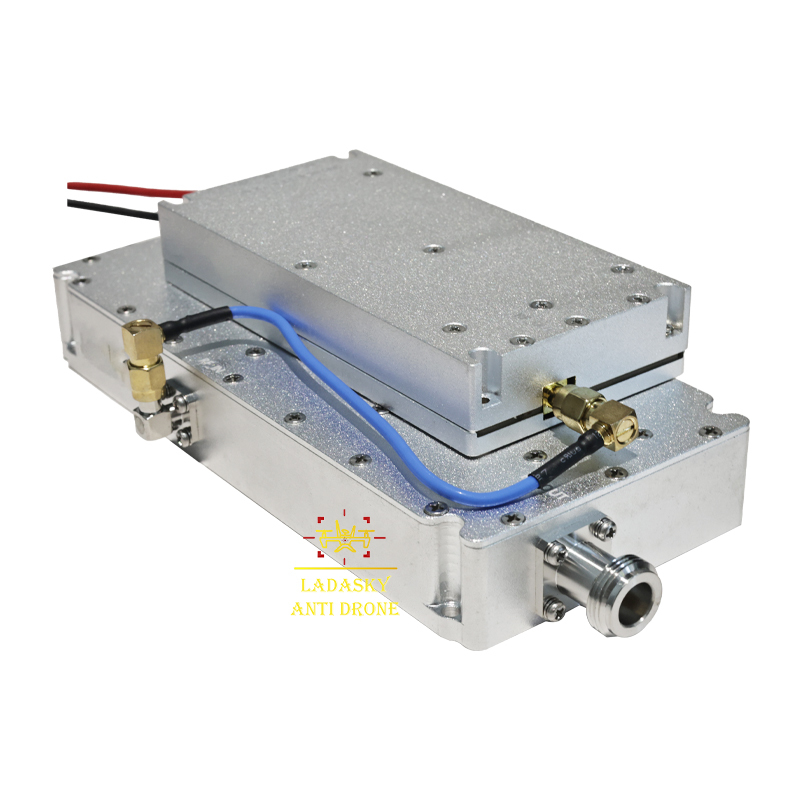

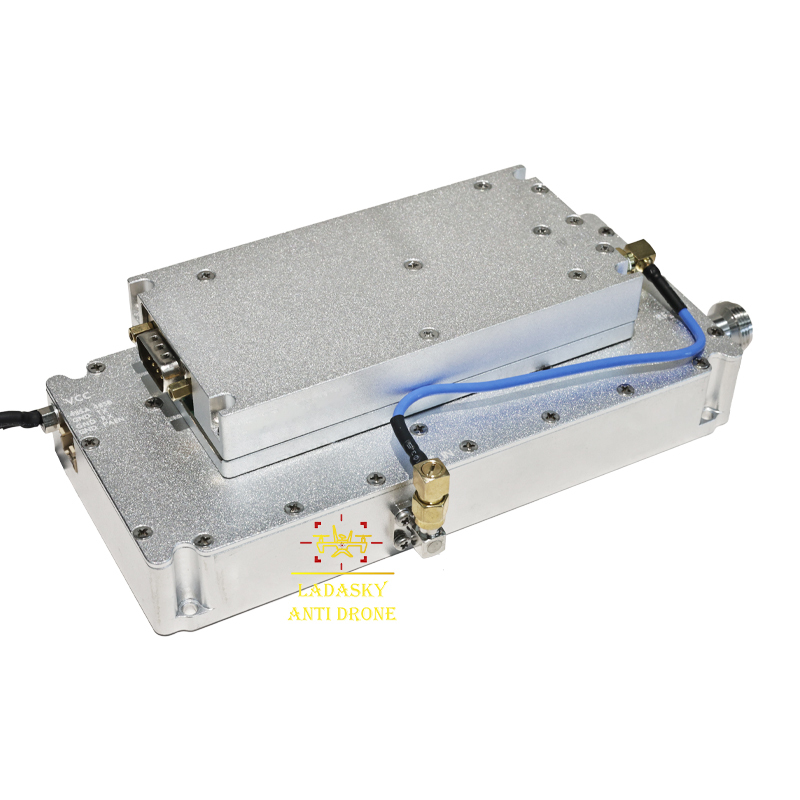

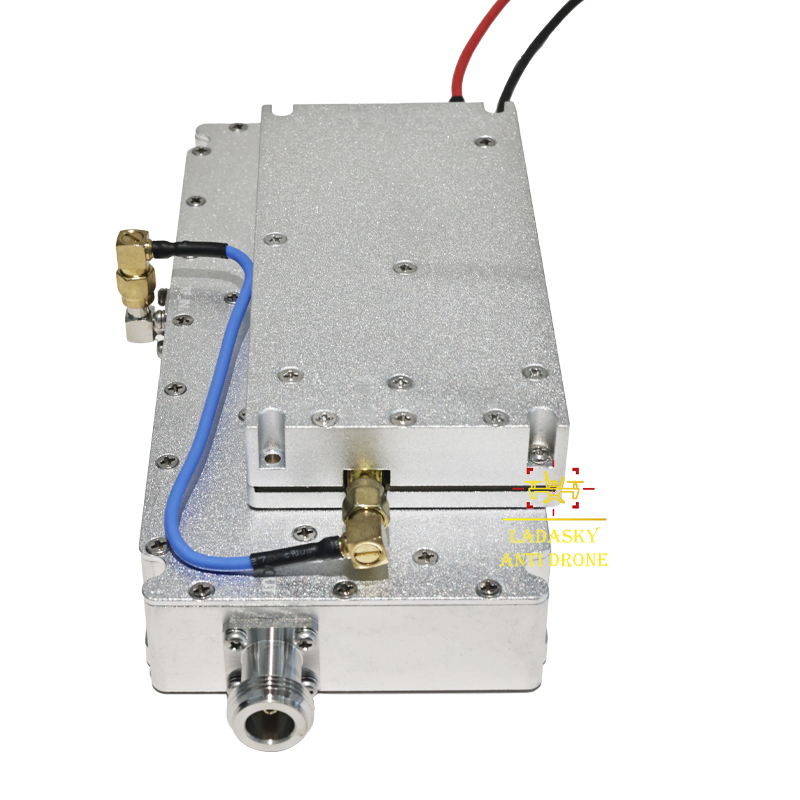

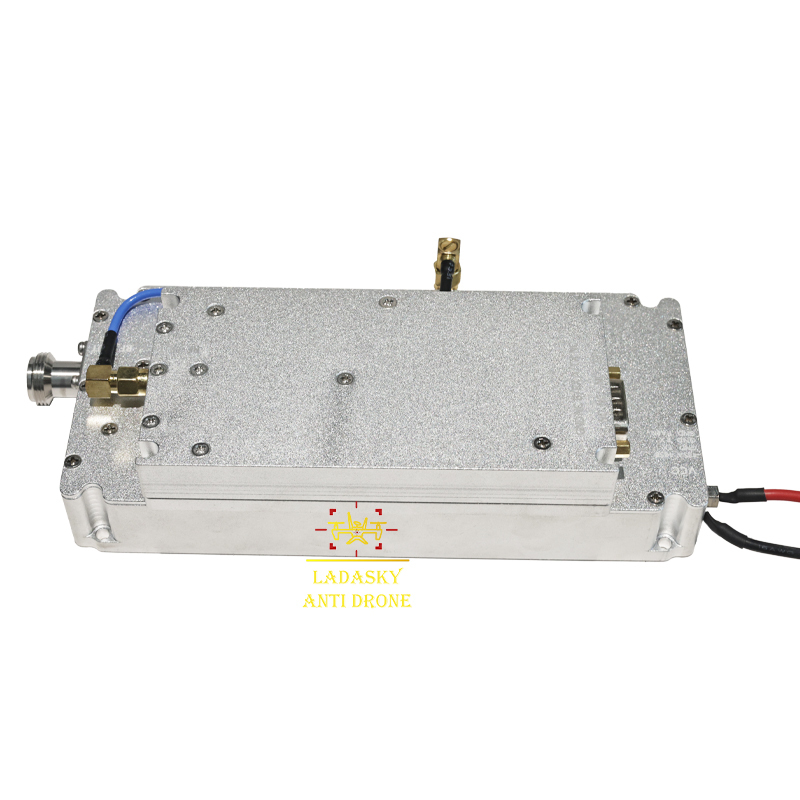

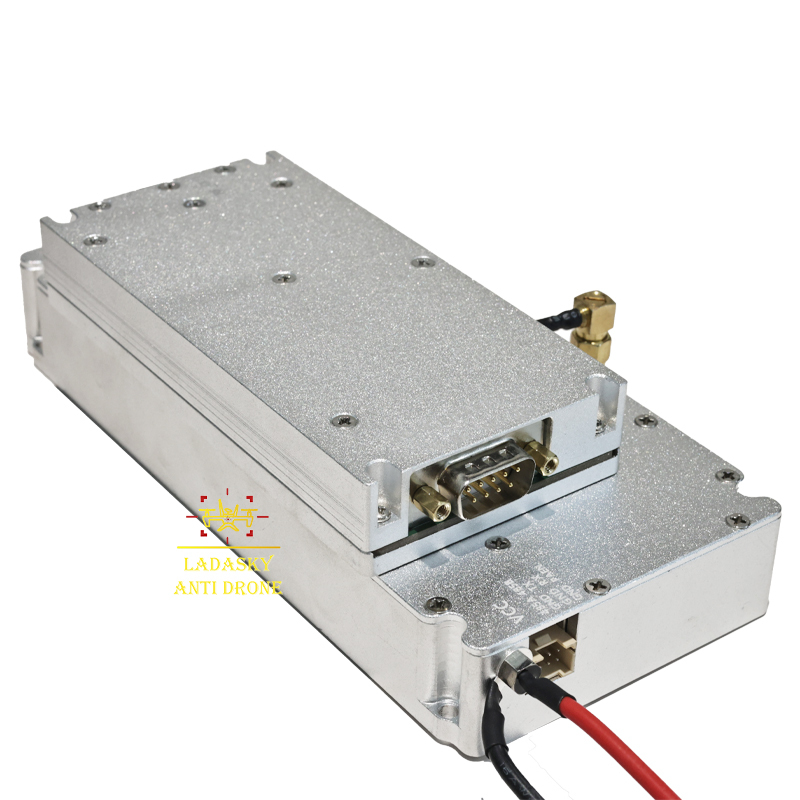

100W GaN RF Amplifier Module 1500-2500MHz for Anti-Drone Systems
| Place of Origin | China |
|---|---|
| Brand Name | LDSK |
| Certification | Guangdong, China |
| Model Number | LDK-TZ-KGN-100W |
| Minimum Order Quantity | 1 |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency And Power | 1500–2500MHz 100W | Operating Voltage | 28-32V |
|---|---|---|---|
| Operating Ambient Temperature | -10～+55℃ | Size | 170 × 77 × 24.5mm |
| Highlight | FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module | ||
| Highlight | 100W GaN RF amplifier module,GaN amplifier for anti-drone systems,1500-2500MHz RF amplifier module |
||
Product Description
100 W Wideband 1500-2500MHz GaN RF Amplifier Module for Countering UAV
Key Features
FPV Anti-Drone Module
100W Anti-Drone Module
DJI Anti-Drone Module
Product Description
The LDK-TZ-KGN-100W High Power GaN RF Power Amplifier Module is designed with advanced Gallium Nitride (GaN) technology, delivering high efficiency, wide bandwidth, and stable gain across the 1500-2500MHz frequency range. Its compact, high-reliability metal housing ensures durability and consistent performance even in challenging environments.
With 100W continuous output power and integrated over-temperature and VSWR protection, this amplifier is ideal for industrial and communication systems. It supports both RS-485 and TTL communication protocols, enabling real-time monitoring of temperature, current, voltage, and RF output power, along with flexible control over operating frequency and power settings.
Applications
- Industrial RF transmission systems
- Wireless communication equipment testing
- RF laboratory and research projects
- Data transmission and signal processing systems
Technical Specifications
| Parameter | Specification | Unit | Remarks |
|---|---|---|---|
| Model | LDK-TZ-KGN-100W | - | - |
| Frequency Range | 1500-2500 | MHz | - |
| Working Voltage | 32 | V | Range: 28-32V |
| Max Output Power | 100 | W | 100W @ 9A Typical |
| Power Amplifier Efficiency | 35 | % | @100W |
| Maximum Gain | 45 | dB | - |
| Gain Flatness | ≤5 | dB | - |
| Standard Input Power | 5 | dBm | - |
| Max Non-Damaged Power | ≤10 | dBm | - |
| Output Port VSWR | ≤2 | - | No power, network score test |
| Operating Temperature | -10 to +55 | ℃ | - |
| Power Stability | ±1.0 | dB | -40℃ to +55℃ |
| Power Supply Requirement | ≥11A @ +32Vdc | - | 100W CW output |
| Control Interface | RS-485 / TTL | - | 2.54mm 2×4 pin |
| Monitoring Functions | Temp, current, voltage, RF output power | - | - |
| RF Connectors | Input: SMA, Output: N-F | - | - |
| Dimensions | 170 × 77 × 24.5 | mm | - |
| Weight | 750 | g | - |
| Mounting Hole Size | 152.3 × 71.5 | mm | M3.0 × 4 |
| Housing Material | Metal | - | High reliability |
Lead Time
| Quantity (PCS) | <100pcs | <500 | 500-1000 | >1000 |
|---|---|---|---|---|
| Lead time (Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization Options
| Item | Logo | Frequency | Power | Packing |
|---|---|---|---|---|
| MOQ (PCS) | 1 | 1 | 1 | 1 |
About Shenzhen Ladasky Technology Co., Ltd.
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.
Packaging Information
| Selling Units: | Single item |
|---|---|
| Single package size: | 20X10X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
