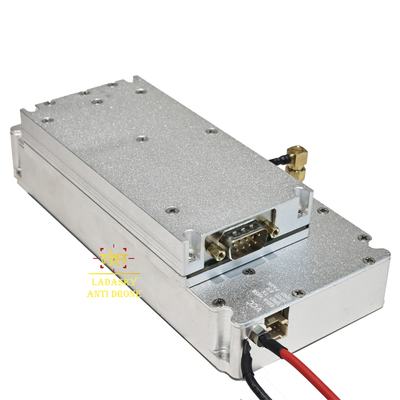

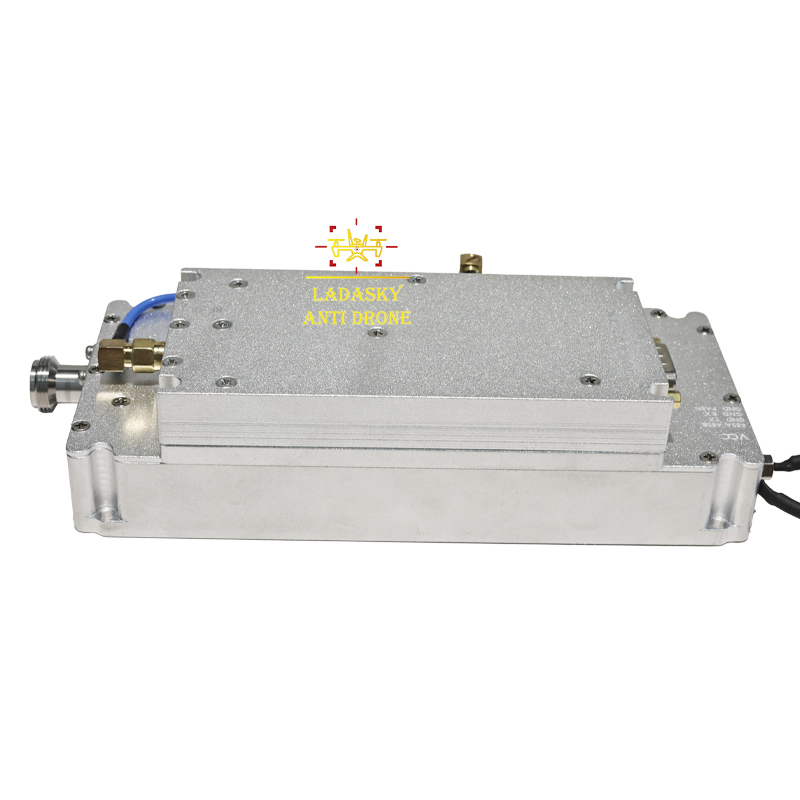

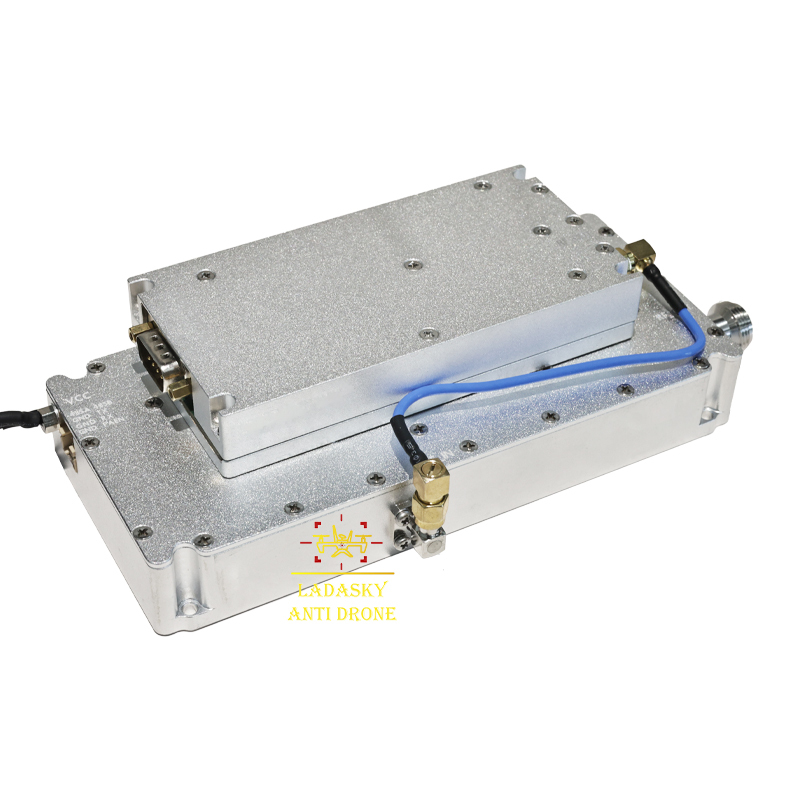

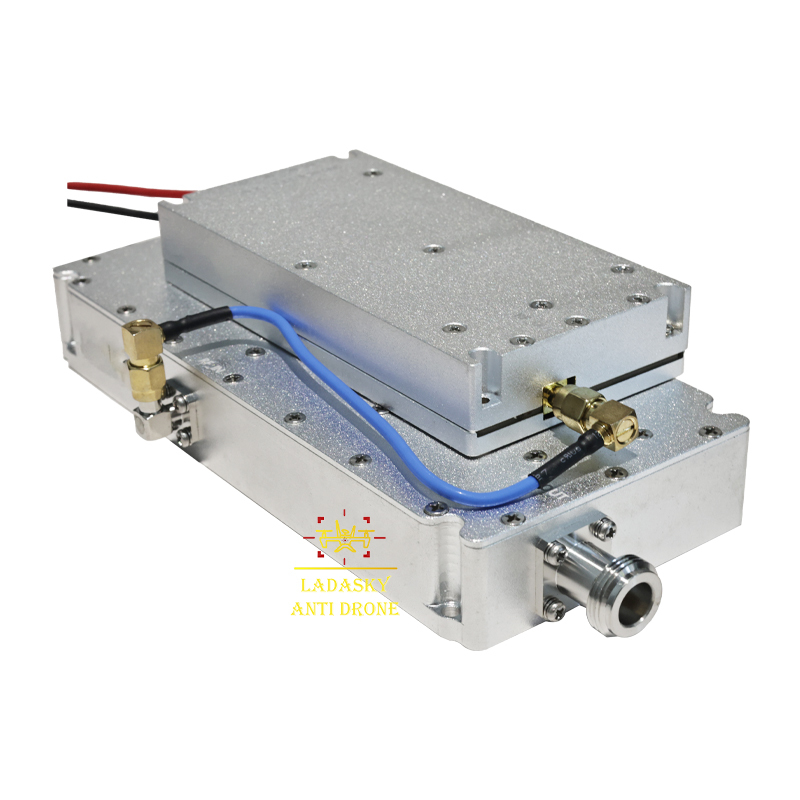

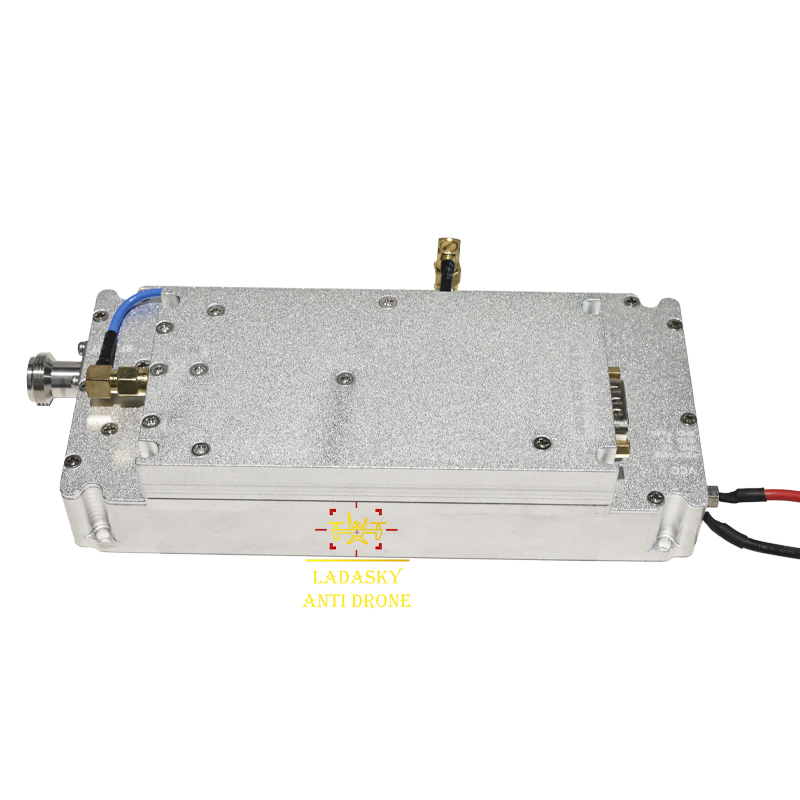

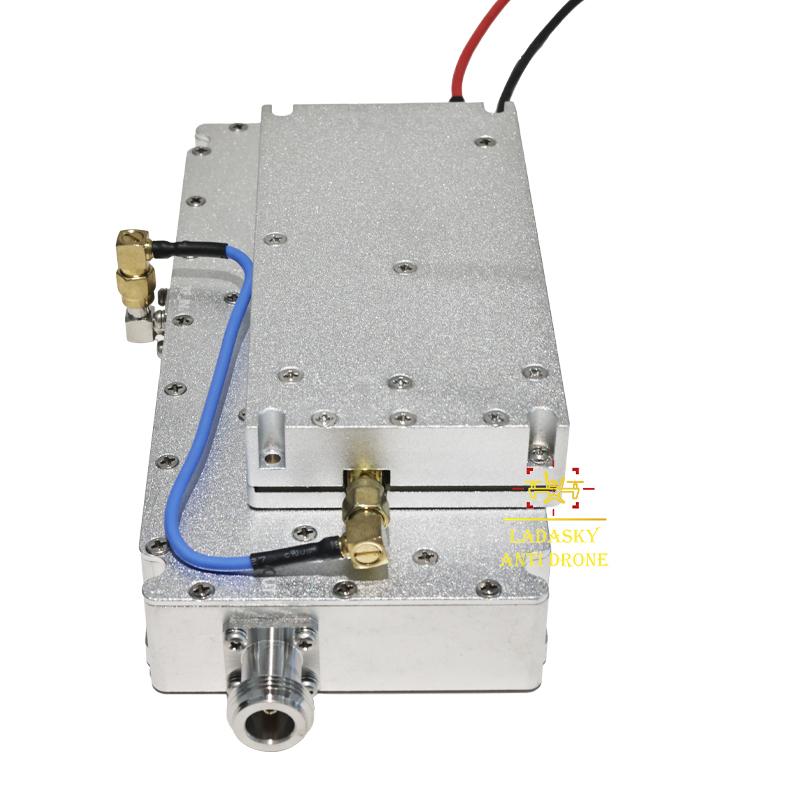

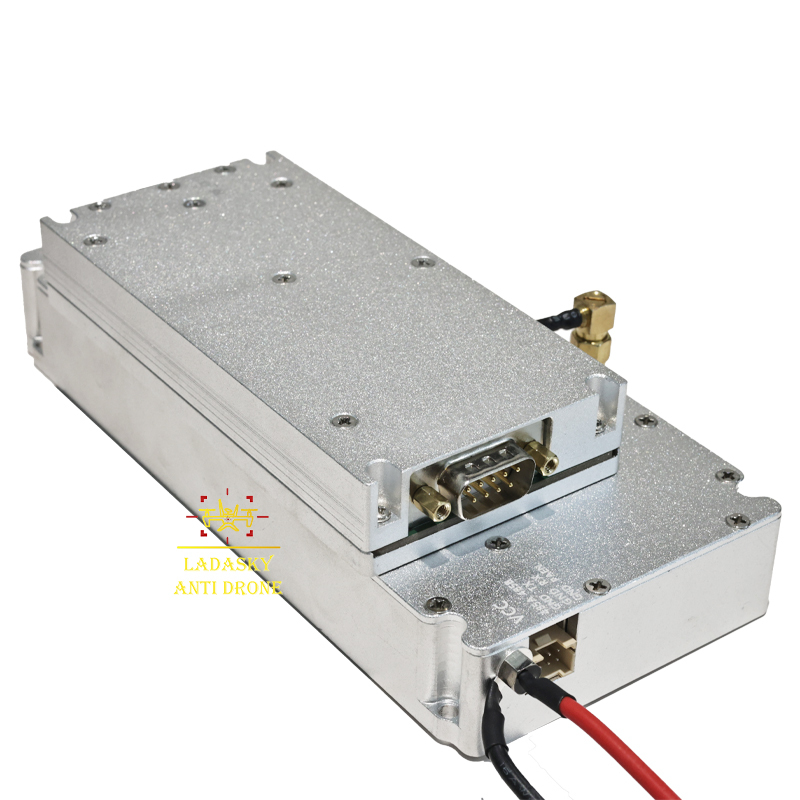

100W GaN RF Power Amplifier 300-1500MHz for Anti-Drone Systems
| Place of Origin | China |
|---|---|
| Brand Name | LDSK |
| Certification | Guangdong, China |
| Model Number | LDK-TZ-KGN-100W |
| Minimum Order Quantity | 1 |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency And Power | 300–1500MHz 100W | Operating Voltage | 28-32V |
|---|---|---|---|
| Operating Ambient Temperature | -10～+55℃ | Size | 170 × 77 × 24.5mm |
| Highlight | FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module | ||
| Highlight | 100W GaN RF power amplifier,300-1500MHz anti-drone amplifier,GaN module for RF systems |
||
Product Description
100W High Efficiency GaN RF Power Amplifier 300-1500MHz Broadband Signal Boost Module for Anti-drone Use
Key Features
- Frequency Range: 300–1500MHz at 100W power
- Operating Voltage: 28-32V DC
- Compact dimensions: 170 × 77 × 24.5mm
- Advanced GaN technology for high efficiency and thermal stability
- Robust metal housing with thermal management
- Integrated protection circuits (over-temperature, VSWR)
- RS-485 and TTL control interfaces
Product Description
The LDK-TZ-KGN-100W High Power GaN RF Power Amplifier Module utilizes advanced Gallium Nitride (GaN) technology to deliver exceptional performance across the 300-1500MHz frequency range. This industrial-grade amplifier provides 100W continuous output power with outstanding thermal stability and gain flatness.

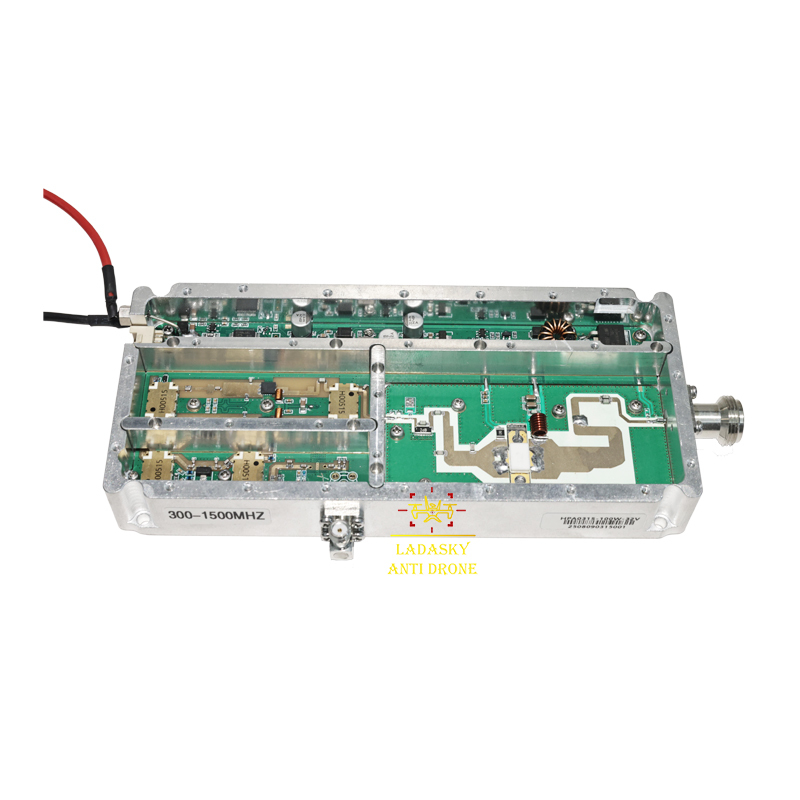

The module features optimized matching networks, comprehensive thermal management, and protection circuits in a compact, rugged metal enclosure. With support for RS-485 and TTL communication protocols, it enables real-time monitoring of temperature, current, voltage, and RF output power.
Applications
- Industrial RF transmission systems
- Wireless communication testing
- Research and development projects
- RF laboratory applications
- Anti-drone signal boosting
Technical Specifications
| Parameter | Specification | Unit | Remarks |
|---|---|---|---|
| Model | LDK-TZ-KGN-100W | - | - |
| Frequency Range | 300-1500 | MHz | - |
| Working Voltage | 32 | V | Range: 28-32V |
| Max Output Power | 100 | W | 100W @ 7.2A Typical |
| Power Amplifier Efficiency | 43 | % | @100W |
| Maximum Gain | 45 | dB | - |
| Gain Flatness | ≤5 | dB | - |
| Operating Temperature | -10 to +55 | ℃ | - |
| RF Connectors | Input: SMA, Output: N-F | - | - |
| Dimensions | 170 × 77 × 24.5 | mm | - |
| Weight | 900 | g | - |
Lead Time
| Quantity (PCS) | Lead Time (Days) |
|---|---|
| <100 | 3 |
| <500 | 3-5 |
| 500-1000 | 7-12 |
| >1000 | To be negotiated |
Customization Options
| Item | MOQ (PCS) |
|---|---|
| Logo | 1 |
| Frequency | 1 |
| Power | 1 |
| Packing | 1 |
Packing Information
- Selling Units: Single item
- Package dimensions: 20×10×5 cm
- Gross weight: 0.2kg
- Packaging: Individually packed in protective bags within cartons
