6-8GHz 50W GaN RF Power Amplifier Module for FPV and Anti-Drone

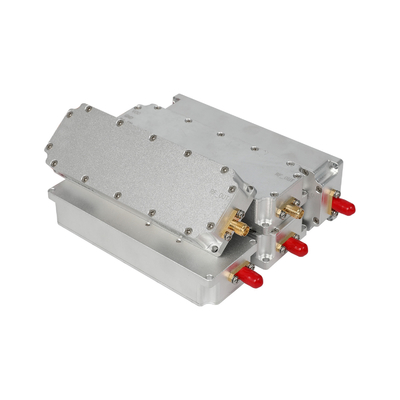

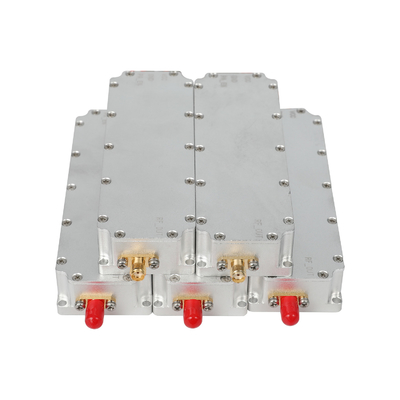

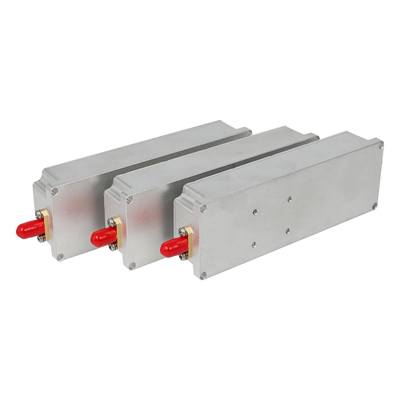

Large Image : 6-8GHz 50W GaN RF Power Amplifier Module for FPV and Anti-Drone

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LDSK

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$2500~$2860
Delivery Time:	10-12 workdays
Payment Terms:	D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Working Frequency:	6000-8000mhz	Working Bandwidth:	2000MHZ
Output Power:	47±1dB	Efficiency:	≤35%
In-band Fluctuatio:	≤3.0dB	Working Environment Temperature:	-40～+55℃
Relative Humidity:	5%～95%，No Condensation	Storage Temperature:	-40～+85℃
RF IN:	SMA	Highlight:	RF Power Amplifier Module 100W, RF Power Amplifier Module For FPV
Highlight:	6-8GHz RF power amplifier module , 50W GaN amplifier for FPV , Anti-drone RF amplifier module

6-8GHz 50W RF Power Amplifier Module for FPV and Anti-Drone Systems

Product Specifications

Attribute	Value
Working Frequency	6000-8000MHz
Working Bandwidth	2000MHz
Output Power	47±1dB
Efficiency	≤35%
In-band Fluctuation	≤3.0dB
Working Environment Temperature	-40～+55℃
Relative Humidity	5%～95%, No Condensation
Storage Temperature	-40～+85℃
RF IN	SMA
Highlight	RF Power Amplifier Module 100W, RF Power Amplifier Module For FPV

Product Description

The 6-8GHz 50W RF Power Amplifier Module (6000-8000MHz) is designed for FPV systems and anti-drone applications, boosting FPV range and signal strength. This high-performance module delivers 50W output power for enhanced signal transmission.

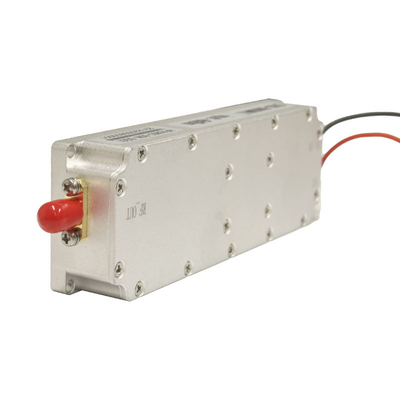

Interface Definition

No.	Interface Name	Remark
1	Amplifier Switch	Amplifier high level turns on, low level turns off 3.3-5V, white line
2	GND	Black Cable
3	GND	Black Cable
4	28V	Red Cable
5	28V	Red Cable
6	28V	Red Cable
