Anti Drone Antenna
Created with Pixso. 18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems
  • name
  • name
  • name
  • name
  • name

18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems

Brand Name: LDSK
MOQ: 1 piece
Price: $2285
Delivery Time: 5-8 workdays
Payment Terms: D/A,D/P,T/T,Western Union,， Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Wide Frequency Range (2–8GHz):
Supports Multiple RF Bands For Drone Detection, Radar, And Spectrum Monitoring.
High Gain (18dBi)::
Provides Strong Directional Performance, Ensuring Precise Signal Targeting And Long-range Coverage.
Directional Radiation Pattern:
Ideal For Anti-drone And Counter-UAV Systems Requiring Focused Signal Transmission Or Reception.
Versatile Applications::
Perfect For Drone Defense Systems, EMC Testing, Radar Calibration, RF Measurement, And Research Labs.
Supply Ability:
5000pcs per month
Highlight:

18dBi horn antenna SMA-Female

,

2-8GHz horn antenna for anti-drone

,

UAV communication horn antenna with warranty

Product Description
18dBi Horn Antenna 2-8GHz SMA-Female for Anti-Drone UAV Communication
Product Specifications
Attribute Value
Frequency Range 2-8Ghz
Gain 18 DBi
VSWR 1.4 Typ.
Polarization Linear
Cross Pol. Isolation 50Typ.
3dB Beamwidth H-Plane: 29-17
Connector SMA-Female
Finishing Paint Black
Material Al
Size 765.99*439.92*439.92mm
Weight 7.415KG
Product Highlights
  • UAV Communication Fiberglass Omni Antenna
  • Uav Defense Antenna 60cm
  • Anti Uav Fiberglass Omni Antenna
Detailed Specifications
Parameters Specifications Units
Frequency Range 2-8 GHz
Gain 18 Typ. dBi
VSWR 1.4 Typ.
Polarization Linear
Cross Pol. Isolation 50Typ. dB
3dB Beamwidth E-Plane: 29-12
H-Plane: 29-17		 deg

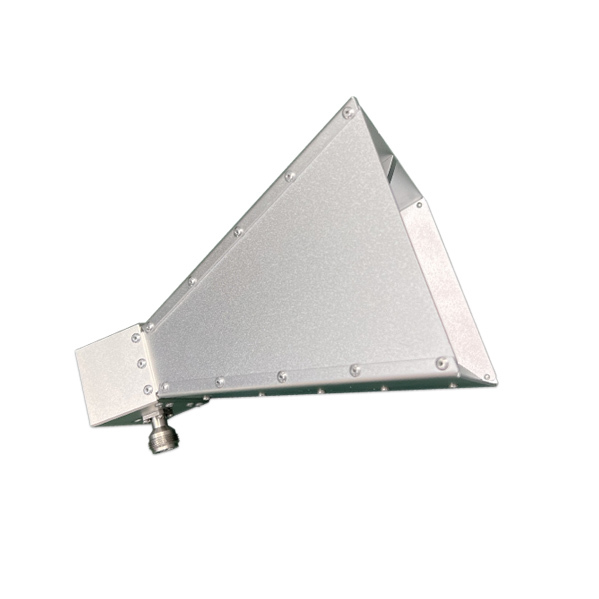

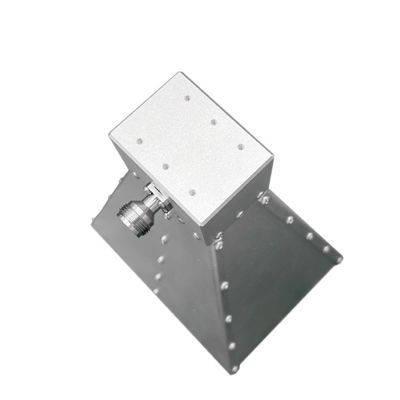

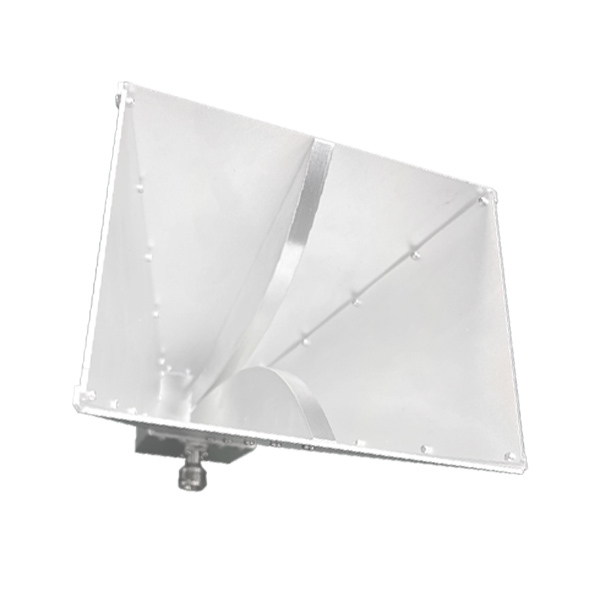

Product Visuals
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems 0
Simulated Data
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems 1  18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems 2

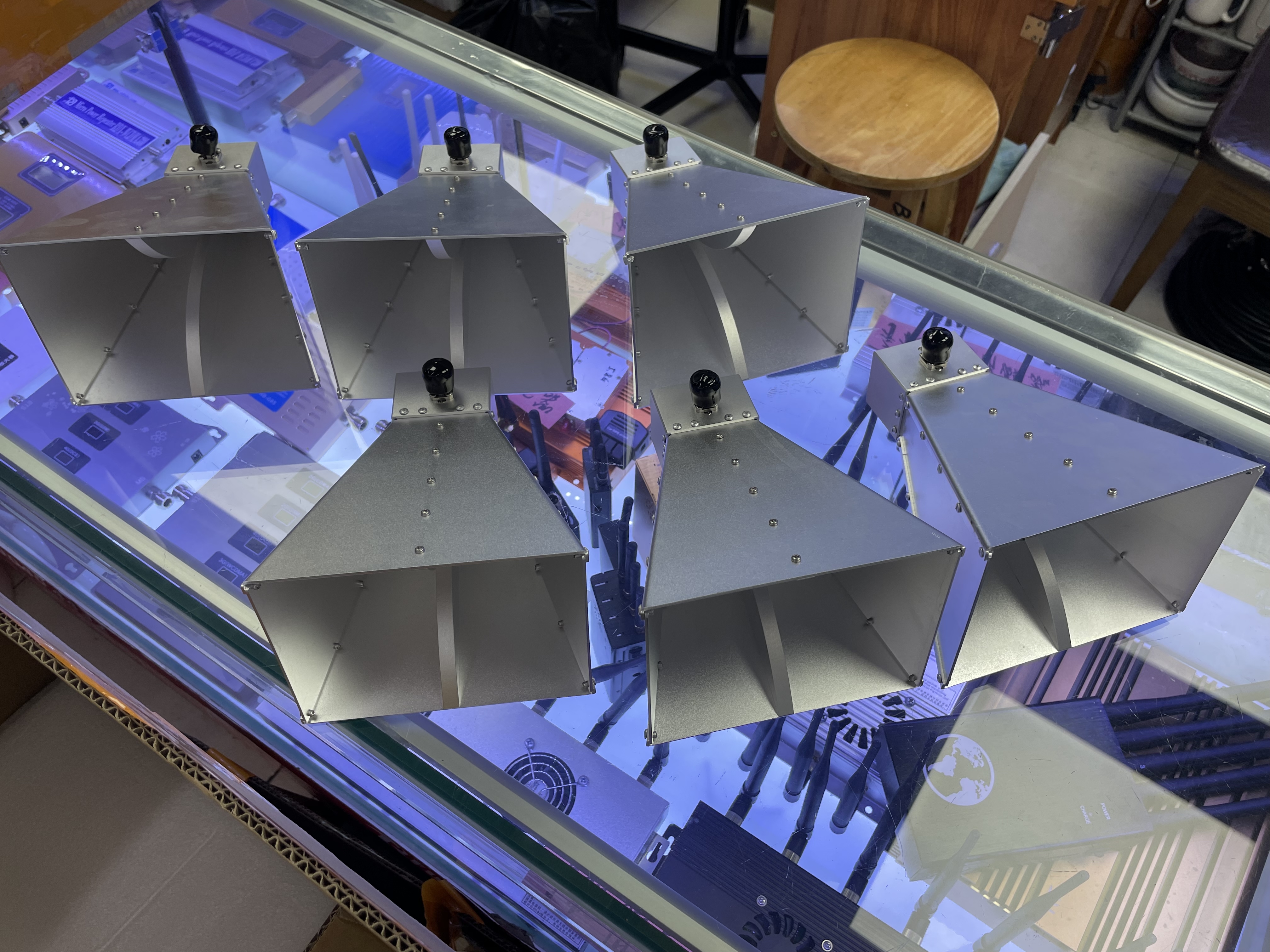

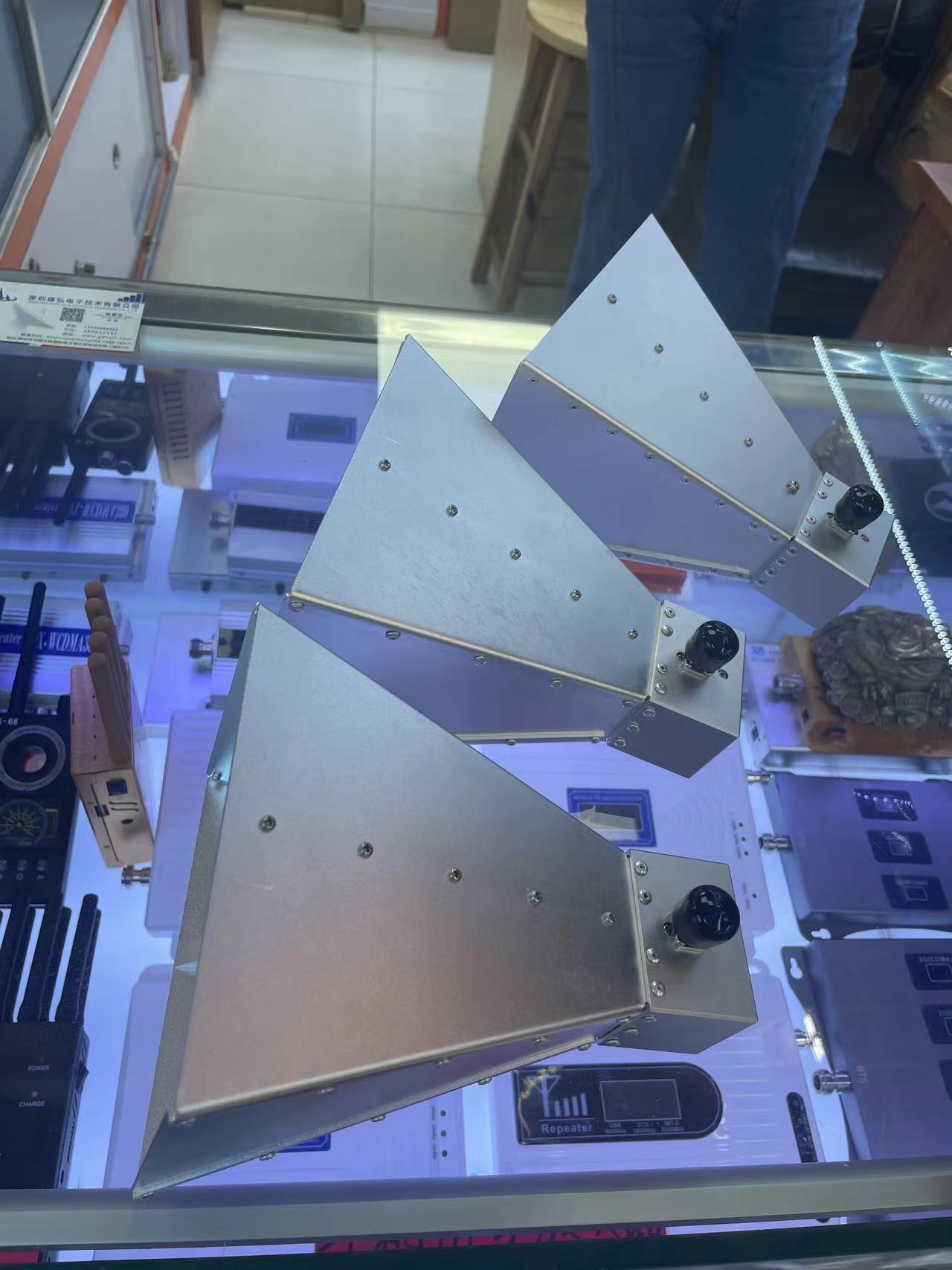

Company Product
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems 3
Packing and Delivery
18dBi Horn Antenna 2–8GHz SMA-Female | High-Gain Wideband Directional Antenna for Anti-Drone, UAV Detection, Radar, and Wireless Communication Systems 4
