20dBi High Gain Horn Antenna 4–8GHz SMA-Female | Wideband Directional Antenna for Anti-Drone, Radar, RF Testing, and Wireless Communication Systems

Brand Name:	LDSK
MOQ:	1 piece
Price:	$1800
Delivery Time:	5-8 workdays
Payment Terms:	D/A,D/P,T/T,Western Union,， Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Wide Frequency Coverage (4–8GHz):

Supports Broad-band Signal Transmission And Reception For Radar, Drone Detection, And Communication Systems.

High Gain 20dBi Performance:

Delivers Exceptional Directional Focus And Long-range Capability For Precise Target Tracking And Anti-drone Operations.

Compact Size:

Easy To Integrate Into Mobile Or Fixed Anti-drone And Radar Systems.

Versatile Applications:

Ideal For UAV Countermeasure Systems, Electronic Warfare, RF Measurement, Spectrum Analysis, And Defense Communication Setups.

SMA-Female Connector:

Provides Stable, Low-loss Connection Compatible With Various RF Modules, Amplifiers, And Analyzers.

Supply Ability:

500pcs per month

Highlight:

4-8GHz horn antenna SMA-Female

high gain horn antenna 20dBi

anti-drone horn antenna SMA

Product Description

Horn antenna 4G-8G/4000-8000MHZ 20dBi high gain antenna 4-8Ghz antenna anti drone antenna

Product Description

Item	Specification	Units
Horn antenna-BDHA48-20
Frequency Range	4-8	GHz
Gain	20 Typ.	dBi
VSWR	1.5:1 Typ.
Polarization	Linear
Connector	SMA-F
Material	Al
Surface Treatment	Paint
Size	585.40284.10234.09	mm
Weight	3.779	kg

Outline Drawing(size:mm)

20dBi High Gain Horn Antenna 4–8GHz SMA-Female | Wideband Directional Antenna for Anti-Drone, Radar, RF Testing, and Wireless Communication Systems 0

20dBi High Gain Horn Antenna 4–8GHz SMA-Female | Wideband Directional Antenna for Anti-Drone, Radar, RF Testing, and Wireless Communication Systems 1

Simulated Data

20dBi High Gain Horn Antenna 4–8GHz SMA-Female | Wideband Directional Antenna for Anti-Drone, Radar, RF Testing, and Wireless Communication Systems 2

20dBi High Gain Horn Antenna 4–8GHz SMA-Female | Wideband Directional Antenna for Anti-Drone, Radar, RF Testing, and Wireless Communication Systems 3

20dBi High Gain Horn Antenna 4–8GHz SMA-Female | Wideband Directional Antenna for Anti-Drone, Radar, RF Testing, and Wireless Communication Systems 4

20dBi High Gain Horn Antenna 4–8GHz SMA-Female | Wideband Directional Antenna for Anti-Drone, Radar, RF Testing, and Wireless Communication Systems 5

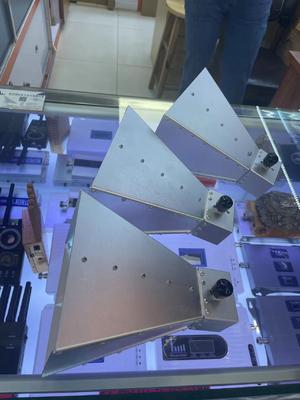

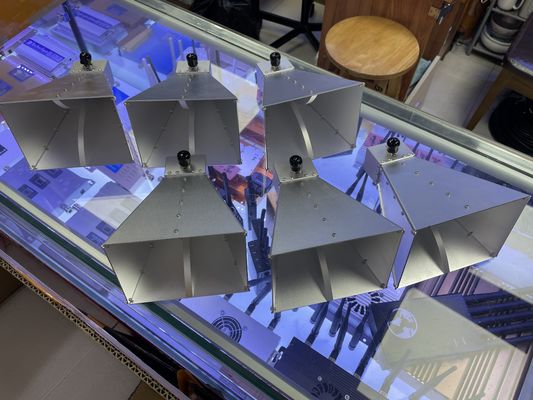

Company Product

20dBi High Gain Horn Antenna 4–8GHz SMA-Female | Wideband Directional Antenna for Anti-Drone, Radar, RF Testing, and Wireless Communication Systems 6

Packing and Delivery

20dBi High Gain Horn Antenna 4–8GHz SMA-Female | Wideband Directional Antenna for Anti-Drone, Radar, RF Testing, and Wireless Communication Systems 7
