2000–2700MHz 100W GaN RF Module | High Power, Wideband, and Reliable Amplifier for Anti-Drone Systems and Wireless Security Applications

2000–2700MHz 100W GaN RF Module | High Power, Wideband, and Reliable Amplifier for Anti-Drone Systems and Wireless Security Applications
Basic Properties
Country Of Origin
Guangdong, China
Brand Name
LDSK
Trading Properties
MOQ
1 piece
Unit Price
$155-175
Payment Method
D/A,D/P,T/T,Western Union,， Paypal
Supply Capacity
50000 pcs per month
Product Summary

100W GaN RF Module 2000-2700MHz for Anti-Drone Systems Product Overview 2000-2700MHz 100W Wideband GaN Anti-Module for FPV Anti Drone System Key Features Frequency Range: 2000-2700MHz High Power Output: 100W GaN Technology for High Efficiency Compact Size: 156.5×64.7×24.5mm Designed for FPV Anti...

Product Details
Highlight:

100W GaN RF module

,

2000-2700MHz GaN module

,

anti-drone RF module
Wide Frequency Range: 2000–2700 MHz Coverage Ideal For 2–2.7 GHz UAV Control, Communication, And Signal Management Systems.
High Output Power (100 W): Provides Strong And Stable Signal Transmission Suitable For Both Fixed And Mobile Platforms.
GaN Technology: Ensures High Efficiency, Low Heat, And Excellent Linearity Compared To Conventional LDMOS Designs.
Compact & Durable: Lightweight And Robust Construction For Easy Integration Into Anti-drone Or Communication Equipment.
Table Gain & Low Distortion: Maintains Clean Amplification With Minimal Signal Degradation, Ensuring Reliability In Mission-critical Use.
Versatile Applications: Perfect For Anti-drone Systems, RF Test Benches, Wireless Communication Enhancement, And Surveillance Networks.
Product Description
100W GaN RF Module 2000-2700MHz for Anti-Drone Systems
Product Overview

2000-2700MHz 100W Wideband GaN Anti-Module for FPV Anti Drone System

Key Features
  • Frequency Range: 2000-2700MHz
  • High Power Output: 100W
  • GaN Technology for High Efficiency
  • Compact Size: 156.5×64.7×24.5mm
  • Designed for FPV Anti-Drone Systems
  • Poland RF Module Compatibility
  • Customization Options Available
Technical Specifications
Working Frequency 2000-2700MHz
Power 100W
Supply Voltage DC 24-32V
Max Output Power 50 dBm
Working Efficiency ≥50%
Passband Ripple ≤2dB
Weight 450 g
Operating Temperature -10~+55°C
Power Supply Requirements ≥10A
RF Connector N Type
Product Description

This high-performance GaN power amplifier module delivers exceptional efficiency and output power for anti-drone applications. Designed with domestic core components, it maintains stable operation across a wide temperature range (-10 to +55°C). The module features precise technical specifications for RF and monitoring performance, with clear port definitions and robust construction.

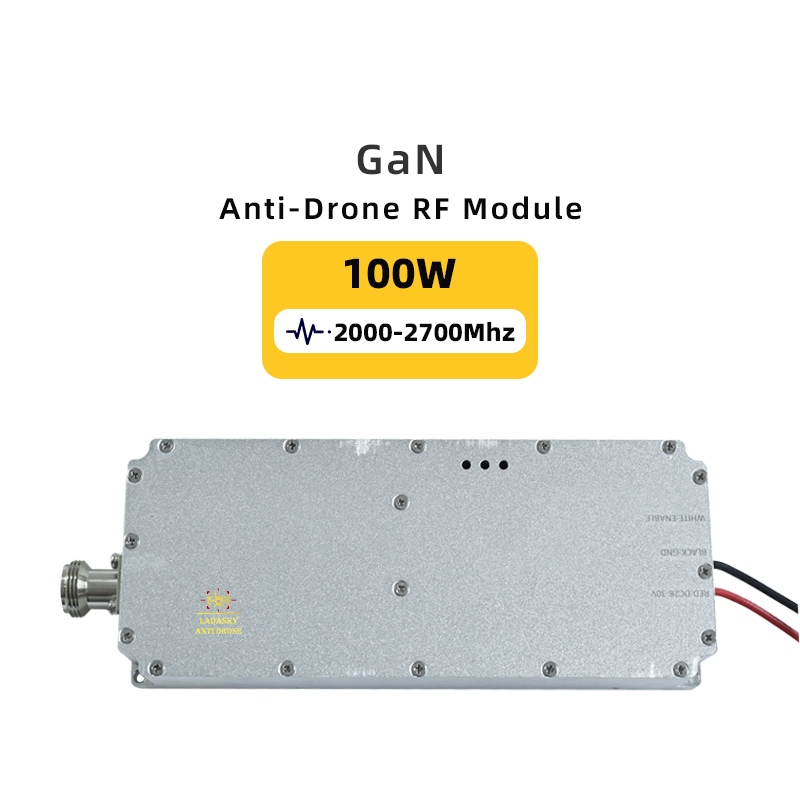

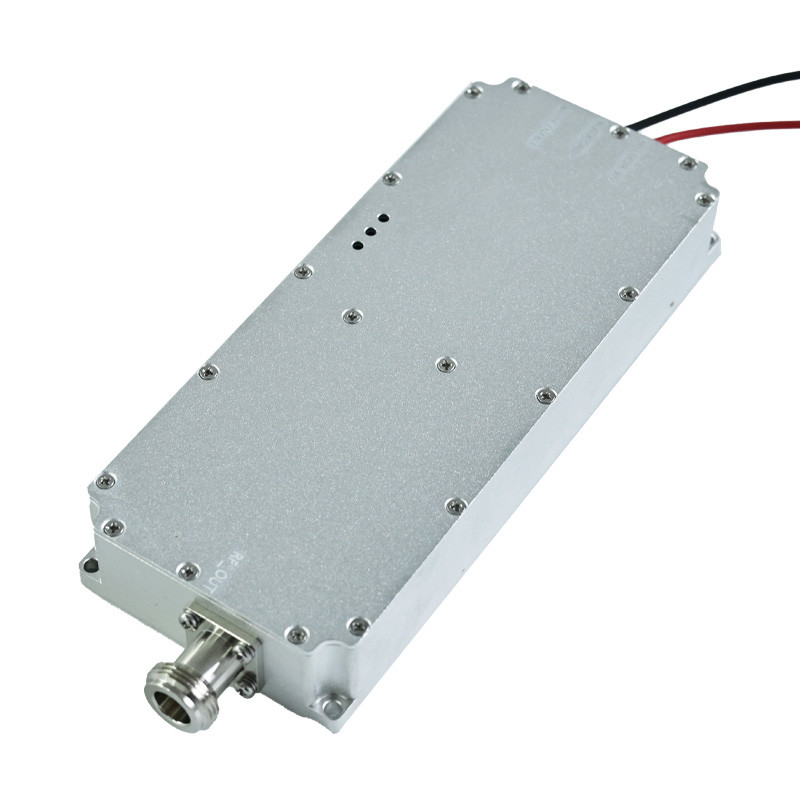

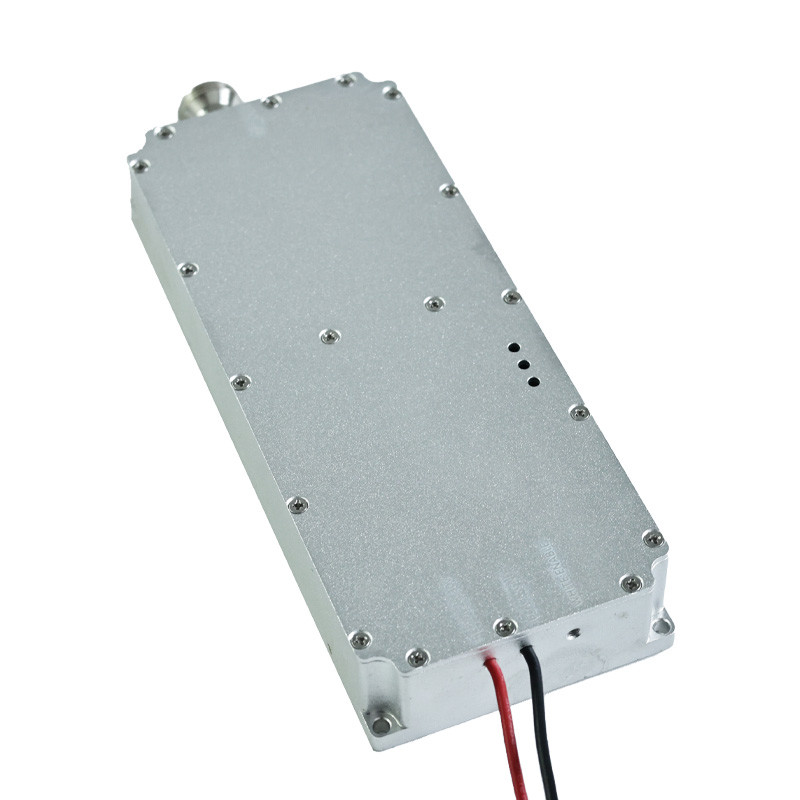

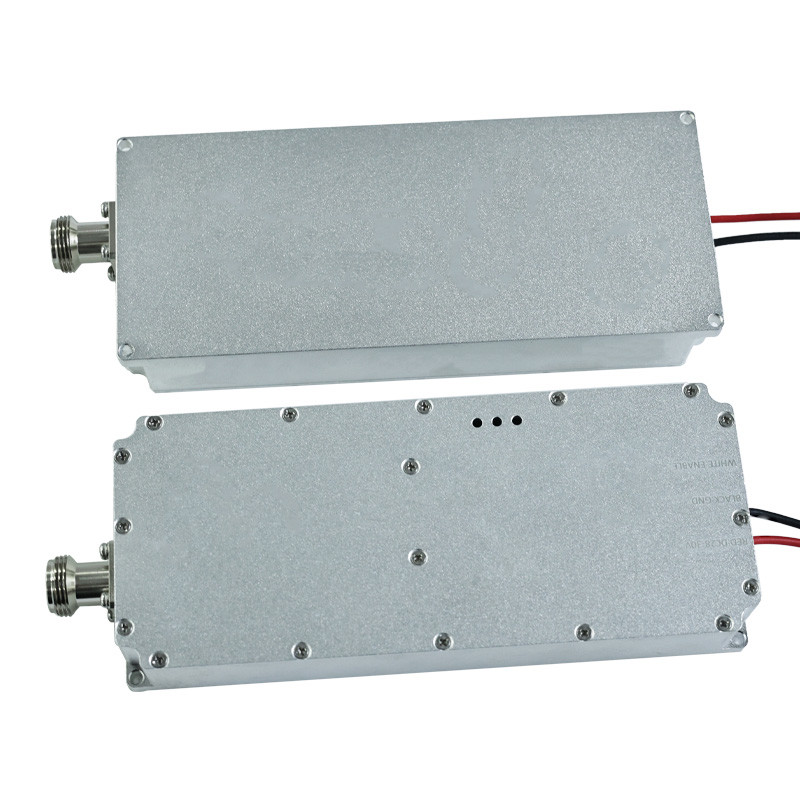

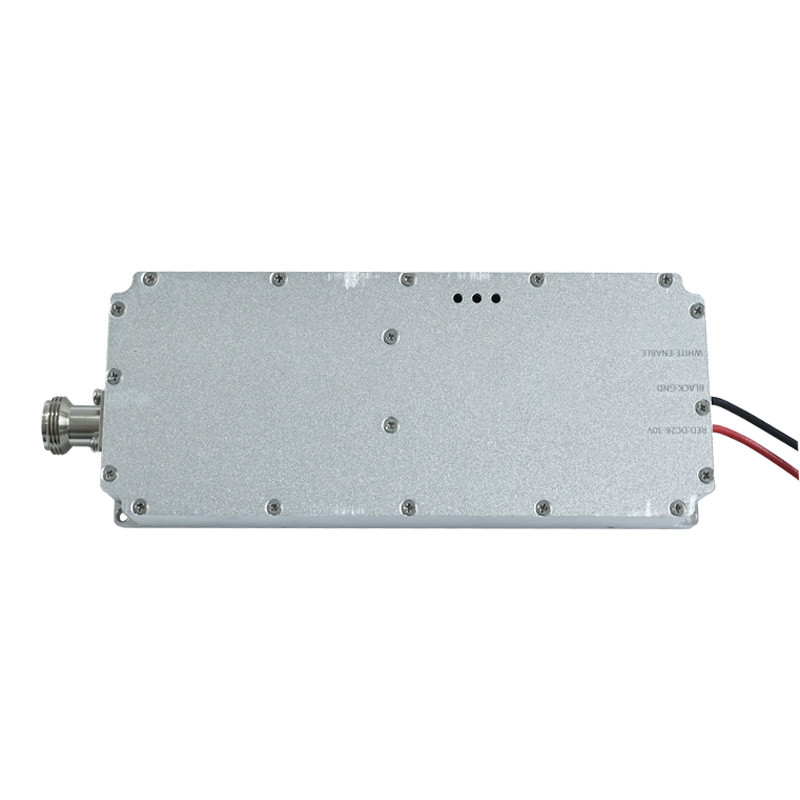

2000-2700MHz 100W GaN RF Module for Anti-Drone Systems front view 2000-2700MHz 100W GaN RF Module for Anti-Drone Systems side view 2000-2700MHz 100W GaN RF Module for Anti-Drone Systems top view 2000-2700MHz 100W GaN RF Module for Anti-Drone Systems rear view 2000-2700MHz 100W GaN RF Module for Anti-Drone Systems detailed view
Lead Time
Quantity (PCS) Lead Time (Days)
<100 3
<500 3-5
500-1000 7-12
>1000 To be negotiated
Customization Options
Item MOQ (PCS)
Logo 1
Frequency 1
Power 1
Packing 1
Packing Information
Selling Units Single item
Package Size 20×10×5 cm
Gross Weight 0.2kg
Package Type Individually packed in bag and carton
2000-2700MHz 100W GaN RF Module for Anti-Drone Systems packaging
