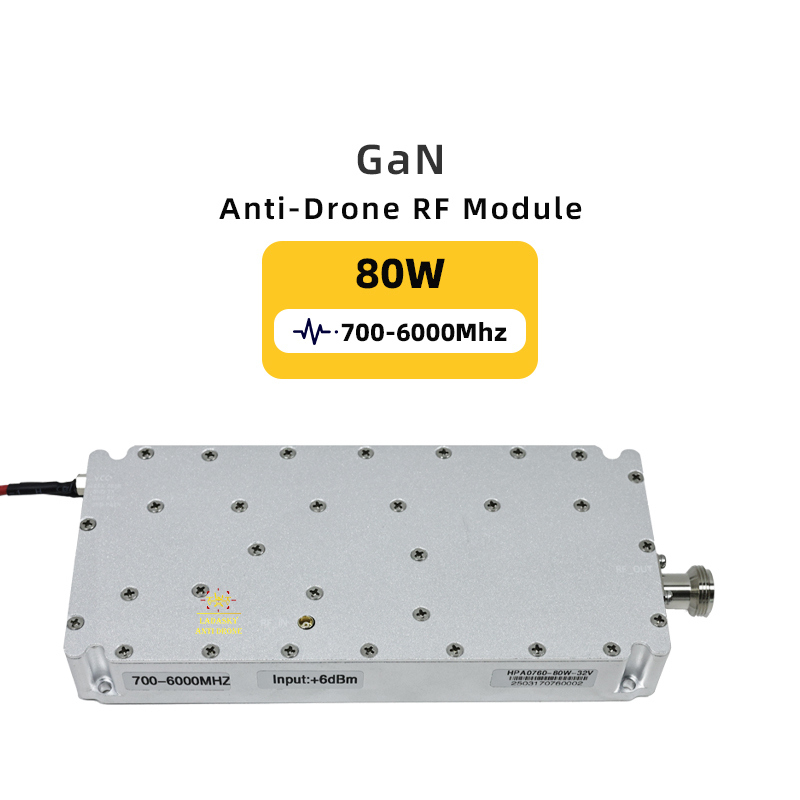

80W 700-6000MHz GaN RF Anti-Drone Module for DJI & Autel
| Place of Origin | China |
|---|---|
| Brand Name | LDSK |
| Certification | Guangdong, China |
| Model Number | LDSK-TZ-GAN-10 |
| Minimum Order Quantity | 1 |
| Price | $330-$350 |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Customization | Customization From 10 To 6700MHZ，10-200W | Frequency And Power | 700-6000MHZ 80W |
|---|---|---|---|
| Gain | 45dBm | Dimensions | 170*77*24.5MM |
| Weight | 750g | Operating Voltage | 28-32 V |
| Operating Ambient Temperature | -10～+55℃ | Highlight | FPV Anti-Drone Module, 80W Anti-Drone Module, DJI Anti-Drone Module |
| Highlight | 80W GaN RF anti-drone module,700-6000MHz anti-drone module,DJI Autel RF interference module |
||
Product Description
80W 700-6000MHz GaN RF Module for FPV, DJI & Autel Signal Control and Interference Mitigation
Product Specifications
| Attribute | Value |
|---|---|
| Customization | Customization From 10 To 6700MHZ,10-200W |
| Frequency And Power | 700-6000MHZ 80W |
| Gain | 45dBm |
| Dimensions | 170*77*24.5MM |
| Weight | 750g |
| Operating Voltage | 28-32 V |
| Operating Ambient Temperature | -10～+55℃ |
Technical Details
This 700-6000MHz 80W anti-drone module is designed for advanced drone interference systems. The GaN technology enables high efficiency and output power. The module uses domestic core components and operates reliably in temperatures ranging from -10 to +55°C.
| Item Name | Technical Parameters |
|---|---|
| Working Frequency | 700-6000MHz (Support customization from 10 to 6700MHZ) |
| Power | 80W (Support customization from 10W to 200W) |
| Supply Voltage | DC 28-32V |
| Max Output Power | 45 dBm |
| Working Efficiency | ≥45% |
| Passband Ripple | ≤5dB |
| Operating Temperature | -10~+55ºC |
| Power Supply Requirements | ≥9A |
| RF Connector | SMA, output N-master adapts to different needs |
| Size | 170*77*24.5mm (Excluding Connector) |
| Weight | 750g |
Lead Time
| Quantity (PCS) | Lead Time (Days) |
|---|---|
| <100pcs | 3 |
| <500pcs | 3-5 |
| 500-1000pcs | 7-12 |
| >1000pcs | To be negotiated |
Customization Options
| Item | MOQ (PCS) |
|---|---|
| Logo | 1 |
| Frequency | 1 |
| Power | 1 |
| Packing | 1 |
Packing & Delivery
| Selling Units | Single item |
|---|---|
| Single Package Size | 20*10*5 cm |
| Single Gross Weight | 0.2kg |
| Package Type | Each piece is individually packed into a bag and then packed into a carton |
About Manufacturer
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.
