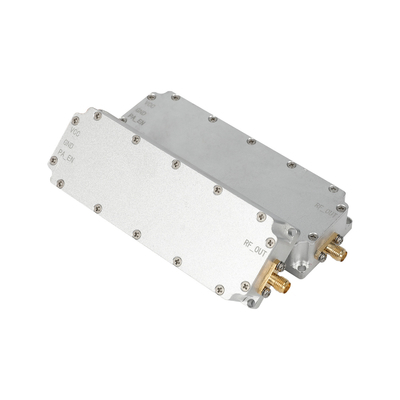

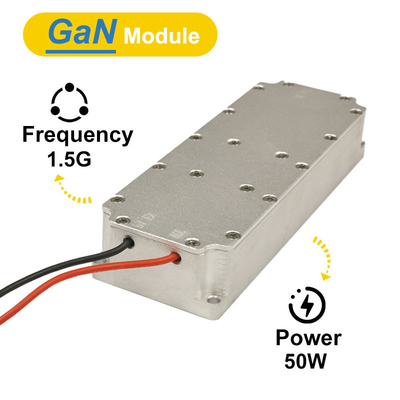

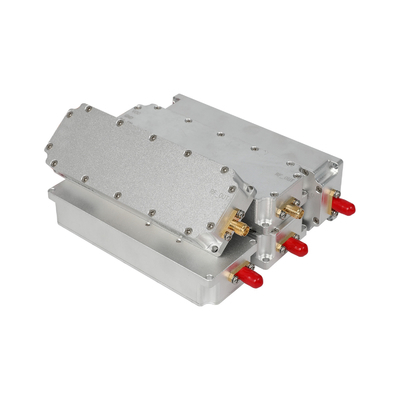

1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems

  • 1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems
  • 1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems
  • 1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems
  • 1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems
  • 1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems
  • 1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems
Place of Origin Guangdong, China
Brand Name LDSK
Minimum Order Quantity 1 piece
Price $65-98
Delivery Time 1-3 workdays
Supply Ability 50000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency & Power Operates At 1.5GHz With 50W Output For Effective FPV And UAV Signal Suppression. Anti-Drone Capability Disrupts Unauthorized Drone Communications, Including FPV Control Signals.
High-Efficiency GaN Module Provides Stable, High-power RF Output With Low Distortion. Precision Interference Targets Drones Accurately While Minimizing Interference To Surrounding Systems.
Versatile Applications Ideal For Protecting Airports, Industrial Zones, Government Facilities, And Public Events. Compact & Reliable Lightweight Module Designed For Easy Integration Into Existing Anti-drone Systems.
Durable & Long-Lasting Military-grade Design Ensures Consistent Performance In Harsh Conditions.
Highlight

1.5GHz GaN RF power amplifier

,

50W GaN module for anti-drone

,

custom GaN power amplifier module
Leave a Message
Product Description
Product Parameters

1.5GHz 50W anti drone module for anti drone system

Power and Frequnecy support Customzation form 90MHZ- 6700mhz, 10W,20W,30W, 40W, 50w,100W,150W,200W

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

--This document stipulates the radio frequency and monitoring technical indicators of the 1.5GHZ 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 1.5GHz 50W power amplifier module/Anti drone module.

Item name Technical parameters
Working frequency 1.5GHz (Support customization from 10 to 6700MHZ )
Power 50W (Support customization from 10W to 200MHZ )
Supply Voltage DC 24-32V
Max Output Power 47 dBm
Working Efficiency ≥60%
Passband Riplpe ≤2dB
Operating Temperature -10~+55ºC
Power supply requirements ≥3.7A
RF Connector SMA
Size 37.3*112*19.5mm (Excluding SMA)
Weight 186g
Connect line red DC28-30V
Connect line black GND
Connect line white ENABLE
Product Description

1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems 0

1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems 1

1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems 2

1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems 3

1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems 4

1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems 5

Lead time
Quantity(PCS) <100pcs <500 500-1000 >1000
Lead time(Days) 3 3-5 7-12 To be negotiated
Customization
Item Logo Frequency Power Packing
MOQ(PCS) 1 1 1 1
Company profile

1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems 6

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise focusing on core technologies for counter-UAV systems/anti drone systems. We specialize in RF sensing, signal processing, and active jamming systems. Our product portfolio covers detection, jamming, and GNSS spoofing modules.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude defense solutions. Our systems have been widely deployed in government agencies, law enforcement, and critical infrastructure. We are driven by innovation and dedicated to building industry-leading counter-drone technology platforms.

Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.
1.5GHz 50W GaN Module for Anti-Drone Counter FPV Systems 7
