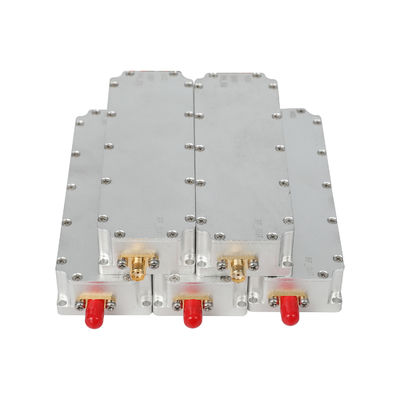

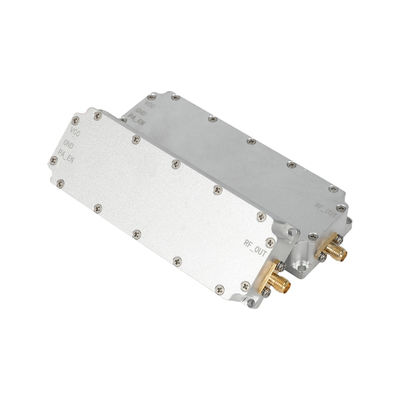

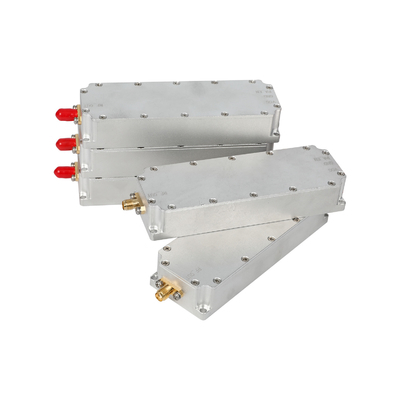

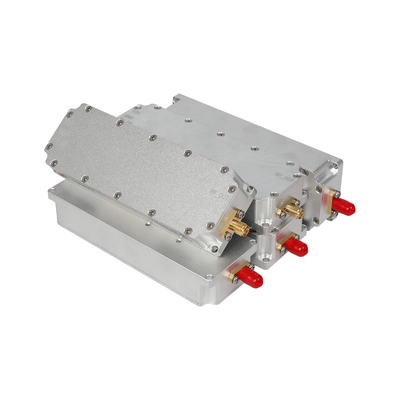

50W 100-150MHz GaN RF Power Amplifier Module for Anti-Drone Systems
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 1 piece |
| Price | $65-98 |
| Delivery Time | 1-3 workdays |
| Supply Ability | 50000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency & Power | Operates At 100–150MHz With 50W Output For Effective UAV And FPV Drone Signal Suppression. | Anti-Drone Capability | Blocks Unauthorized Drone Communications And FPV Control Signals To Secure Airspace. |
|---|---|---|---|
| High-Efficiency GaN Module | Provides Strong, Stable RF Output With Minimal Distortion For Reliable Performance. | Precision Interference | Targets Drones Accurately, Reducing Unwanted Interference To Nearby Systems. |
| Versatile Applications | Perfect For Airports, Industrial Areas, Public Events, And Government Facilities. | Compact & Durable | Easy To Integrate Into Existing Anti-drone Setups, Designed For Robust Performance. |
| Military-Grade Design | Ensures Long-lasting Operation Under Harsh Environmental Conditions. | ||
| Highlight | 50W RF power amplifier module,Anti drone RF amplifier,100-150MHz power amplifier module |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Parameters
100-150MHz 50W anti drone module for anti drone system
Power and Frequnecy support Customzation form 90MHZ- 6700mhz, 10W,20W,30W, 40W, 50w,100W,150W,200W
- GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
- The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
- This document stipulates the radio frequency and monitoring technical indicators of the 100-150MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
- This document applies to all aspects of product design, verification, production and quality inspection of the 100-150MHz 50W power amplifier module/Anti drone module.
| Item name | Technical parameters |
|---|---|
| Working frequency | 100-150MHz (Support customization from 10 to 6700MHZ ) |
| Power | 50W (Support customization from 10W to 200MHZ ) |
| Supply Voltage | DC 24-32V |
| Max Output Power | 47 dBm |
| Working Efficiency | ≥60% |
| Passband Riplpe | ≤2dB |
| Operating Temperature | -10~+55ºC |
| Power supply requirements | ≥3.7A |
| RF Connector | SMA |
| Size | 37.3*112*19.5mm (Excluding SMA) |
| Weight | 186g |
| Connect line red | DC28-30V |
| Connect line black | GND |
| Connect line white | ENABLE |
Product Description
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
|---|---|---|---|---|
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Company profile
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise focusing on core technologies for counter-UAV systems/anti drone systems. We specialize in RF sensing, signal processing, and active jamming systems. Our product portfolio covers detection, jamming, and GNSS spoofing modules. Ladasky is committed to delivering precise, efficient, and intelligent low-altitude defense solutions. Our systems have been widely deployed in government agencies, law enforcement, and critical infrastructure. We are driven by innovation and dedicated to building industry-leading counter-drone technology platforms.
Packing and Delivery
| Selling Units: | Single item |
| Single package size: | 20X10X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
