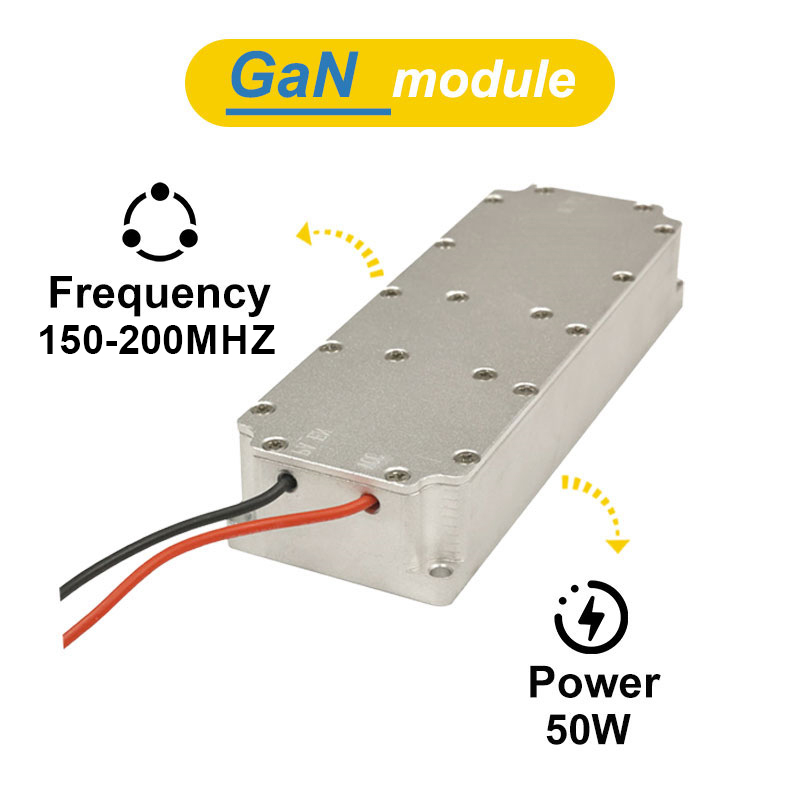

50W GaN Power Amplifier 150-200MHz for Anti-Drone Systems

Large Image : 50W GaN Power Amplifier 150-200MHz for Anti-Drone Systems

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LDSK

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$65-98
Delivery Time:	1-3 workdays
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Customization:	Customization From 10 To 6700MHZ，10-200W	Frequency And Power:	150-200MHZ 50W
Gain:	47dBm	Voltage:	24-32V
Working Efficiency:	>60%	Size:	3811219.5mm
Highlight:	5.2g GaN Power Amplifier, Uav Defence GaN Power Amplifier, 50W GaN Power Amplifier
Highlight:	50W GaN power amplifier module , 150-200MHz GaN amplifier , anti-drone system amplifier module

150-200MHz 50W UAV Defense RF Power Amplifier

GaN Anti-FPV Module for Counter Drone Systems

Key Specifications

Attribute	Value
Customization Range	10-6700MHz, 10-200W
Frequency & Power	150-200MHz 50W
Gain	47dBm
Voltage	24-32V
Working Efficiency	>60%
Size	38×112×19.5mm

Product Features

High-efficiency GaN technology for superior RF performance
Wide customization options for frequency (10-6700MHz) and power (10-200W)
Robust operation in temperatures from -10°C to +55°C
Compact design (37.3×112×19.5mm) with SMA connectors
Designed specifically for counter-drone defense systems

Technical Parameters

Parameter	Specification
Working Frequency	150-200MHz (Customizable 10-6700MHz)
Output Power	50W (Customizable 10-200W)
Supply Voltage	DC 24-32V
Max Output Power	47 dBm
Working Efficiency	≥60%
Passband Ripple	≤2dB
Operating Temperature	-10°C to +55°C
