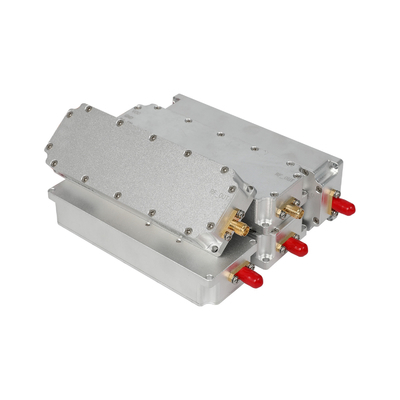

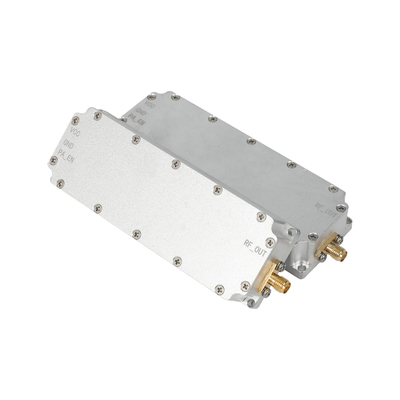

50W GaN Anti Drone Module 200-250MHz UAV Jamming
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 1 piece |
| Price | $65-98 |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram， Paypal |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High-Power 50W Output | Quickly Suppresses UAV And FPV Drone Signals Within 200-250MHz. | Optimized Frequency 200-250MHz | Perfect For Low-frequency Drone Telemetry And Control Signals. |
|---|---|---|---|
| Precision Jamming | Targets Drone Signals Effectively, Ensuring No Interference To Nearby Devices. | Compact & Lightweight | Easy To Integrate Into Mobile, Vehicle-mounted, Or Fixed Anti-drone Systems. |
| Versatile Applications | Ideal For Security, Military, Surveillance, And Critical Infrastructure Protection. | Reliable Operation | Designed For Continuous Performance And Durability In Harsh Environments. |
| FPV Drone Interference | Specially Engineered To Block FPV Drone Video Transmission And Control. | Flexible Deployment | Supports Both Portable And Stationary Counter-drone Setups. |
| Highlight | 50W GaN anti-drone module,customizable frequency GaN module,200-250MHz anti-drone module |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Parameters

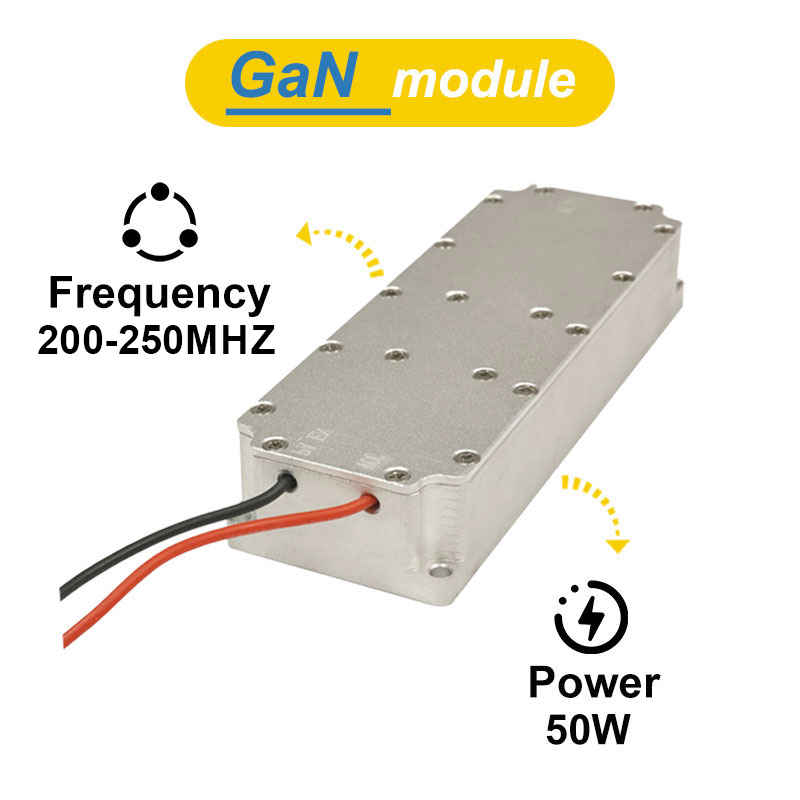

200-250MHz 50W anti drone module for anti drone system
Power and Frequnecy support Customzation form 90MHZ- 6700mhz, 10W,20W,30W, 40W, 50w,100W,150W,200W
--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
--This document stipulates the radio frequency and monitoring technical indicators of the 200-250MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
--This document applies to all aspects of product design, verification, production and quality inspection of the 200-250MHzHz 50W power amplifier module/Anti drone module.
| Item name | Technical parameters |
|---|---|
| Working frequency | 200-250MHZ (Support customization from 10 to 6700MHZ ) |
| Power | 50W (Support customization from 10W to 200MHZ ) |
| Supply Voltage | DC 24-32V |
| Max Output Power | 47 dBm |
| Working Efficiency | ≥60% |
| Passband Riplpe | ≤2dB |
| Operating Temperature | -10~+55ºC |
| Power supply requirements | ≥3.7A |
| RF Connector | SMA |
| Size | 37.3*112*19.5mm (Excluding SMA) |
| Weight | 186g |
| Connect line red | DC28-30V |
| Connect line black | GND |
| Connect line white | ENABLE |
Product Description
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
|---|---|---|---|---|
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
| Item | Logo | Frequency | Power | Packing |
|---|---|---|---|---|
| MOQ(PCS) | 1 | 1 | 1 | 1 |
Company profile
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise focusing on core technologies for counter-UAV systems/anti drone systems. We specialize in RF sensing, signal processing, and active jamming systems. Our product portfolio covers detection, jamming, and GNSS spoofing modules.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude defense solutions. Our systems have been widely deployed in government agencies, law enforcement, and critical infrastructure. We are driven by innovation and dedicated to building industry-leading counter-drone technology platforms.
Packing and Delivery
| Selling Units: | Single item |
| Single package size: | 20X10X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
