50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier

50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier
50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier
video play

Large Image :  50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier

Product Details:
Place of Origin: Guangdong, China
Brand Name: LDSK
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $65-98
Delivery Time: 1-3 workdays
Payment Terms: D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Customization: 47dBm Voltage: 24-32V
Working Efficiency: >60% Size: 37.3*112*19.5mm
Highlight: 30V Drone Jamming Module, 50W Drone Defense RF Module, Anti Drone GaN Power Modules
Highlight:

50W GaN power amplifier

,

anti-drone RF module

,

200-300MHz GaN module

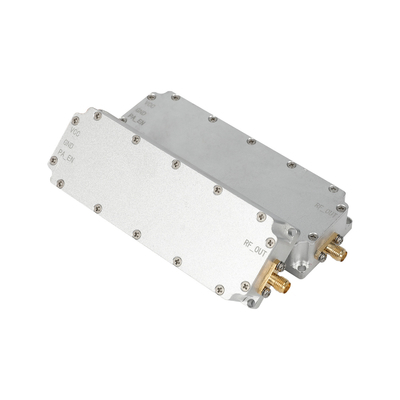

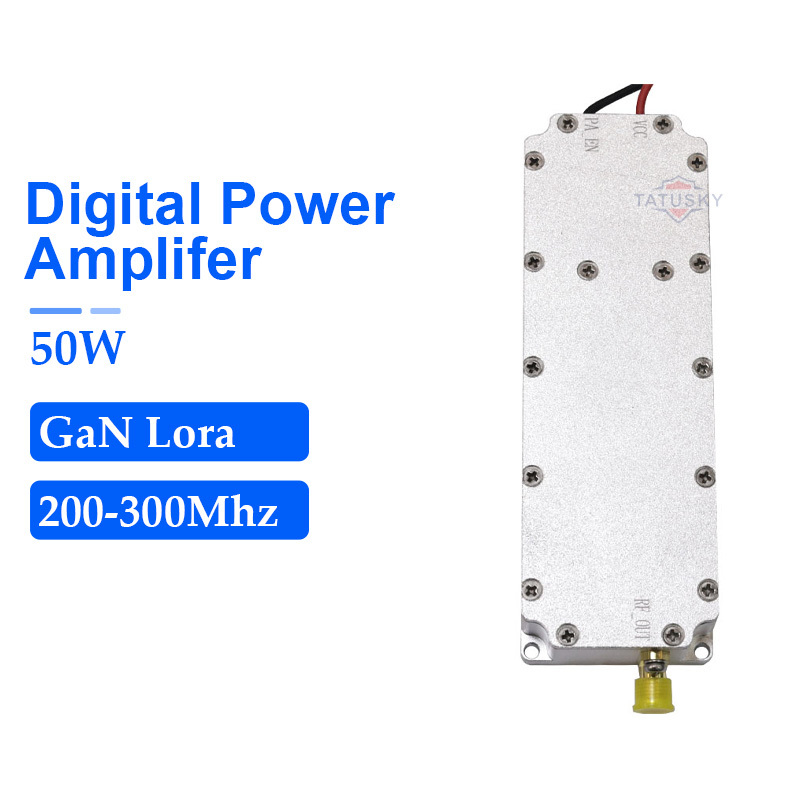

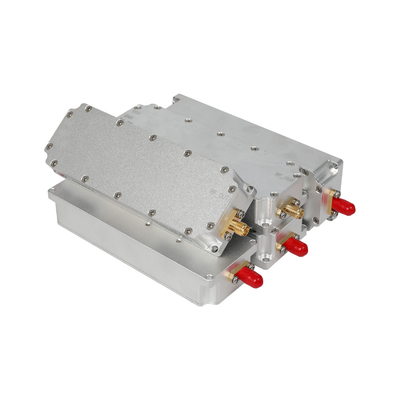

50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier
Key Features
  • High-power 50W GaN RF module for anti-drone systems
  • Frequency range: 200-300MHz (customizable from 10MHz to 6700MHz)
  • Maximum output power: 47dBm
  • Working efficiency: ≥60%
  • Compact size: 37.3×112×19.5mm (excluding SMA connector)
  • Operational temperature range: -10°C to +55°C
Technical Specifications
Parameter Value
Working Frequency 200-300MHz (customizable 10-6700MHz)
Output Power 50W (customizable 10W-200W)
Supply Voltage DC 24-32V
Max Output Power 47 dBm
Working Efficiency ≥60%
Passband Ripple ≤2dB
Operating Temperature -10°C to +55°C
Power Supply Requirements ≥3.7A
RF Connector SMA
Weight 186g
Connection Details
Red wire: DC28-30V
Black wire: GND
White wire: ENABLE
Product Images
50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier 0 50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier 1 50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier 2 50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier 3 50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier 4 50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier 5
Lead Time
Quantity (PCS) Lead Time (Days)
<100 3
<500 3-5
500-1000 7-12
>1000 To be negotiated
Customization Options
Minimum order quantity of 1 piece for logo, frequency, power, and packing customizations.
Packaging Details
Parameter Value
Selling Units Single item
Package Size 20×10×5 cm
Gross Weight 0.2kg
Package Type Individually packed in bags and cartons
50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier 6
Why Choose Us?
We offer professional expertise, sincere service, prompt responses, and an excellent technical team to ensure a comfortable purchasing experience.
Order Process
  1. Send us products you're interested in
  2. We provide detailed information and quotations
  3. Consult with us about any product questions
  4. Confirm order and receive payment information
  5. We send package confirmation and tracking number
  6. Provide feedback after receiving goods
Contact Information
Email: jess@ladaskytech.com
Ladasky Technology
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in counter-UAV systems. We focus on RF sensing, signal processing, and active jamming technologies, offering detection, jamming, and GNSS spoofing modules for government, law enforcement, and critical infrastructure protection.
50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier 7
