200–300MHz 50W GaN RF Module for Anti-Drone Systems | High-Efficiency UAV Signal Suppression, FPV Drone Interference, Military & Commercial Security

200–300MHz 50W GaN RF Module for Anti-Drone Systems | High-Efficiency UAV Signal Suppression, FPV Drone Interference, Military & Commercial Security

Brand Name:	LDSK
MOQ:	1 piece
Price:	$65-98
Delivery Time:	1-3 workdays
Payment Terms:	D/A,D/P,T/T,Western Union,， Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Frequency & Power:

Operates At 200–300MHz With 50W Output, Delivering Strong 47dBm RF Amplification For Effective Drone Signal Suppression.

Anti-Drone Capability:

Blocks Unauthorized UAV And FPV Drone Communications To Protect Sensitive Areas.

GaN High-Efficiency Module:

Provides Stable, High-power Output With Minimal Distortion For Reliable Performance.

Precision Interference:

Accurately Targets Drones, Reducing Interference To Other Devices In The Environment.

Versatile Applications:

Ideal For Airports, Industrial Facilities, Public Events, And Government Protection Zones.

Compact & Robust Design:

Easy To Deploy And Integrate Into Fixed Or Mobile Anti-drone Systems.

Rugged & Military-Grade:

Ensures Durability And Long-term Operation In Harsh Conditions.

Supply Ability:

50000 pcs per month

Highlight:

50W GaN power amplifier

anti-drone RF module

200-300MHz GaN module

Product Description

50W GaN Anti-Drone RF Module 200-300MHz 47dBm Power Amplifier

Key Features

High-power 50W GaN RF module for anti-drone systems
Frequency range: 200-300MHz (customizable from 10MHz to 6700MHz)
Maximum output power: 47dBm
Working efficiency: ≥60%
Compact size: 37.3*112*19.5mm (excluding SMA connector)
Operational temperature range: -10°C to +55°C

Technical Specifications

Parameter	Value
Working Frequency	200-300MHz (customizable 10-6700MHz)
Output Power	50W (customizable 10W-200W)
Supply Voltage	DC 24-32V
Max Output Power	47 dBm
Working Efficiency	≥60%
Passband Ripple	≤2dB
Operating Temperature	-10°C to +55°C
Power Supply Requirements	≥3.7A
RF Connector	SMA
Weight	186g

Connection Details

Red wire: DC28-30V
Black wire: GND
White wire: ENABLE

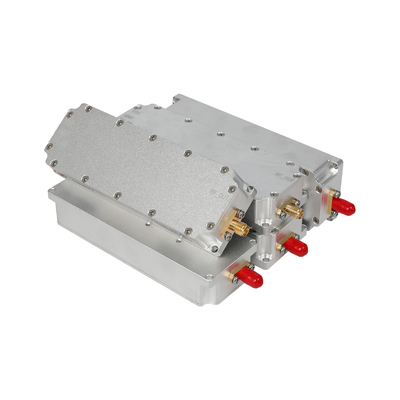

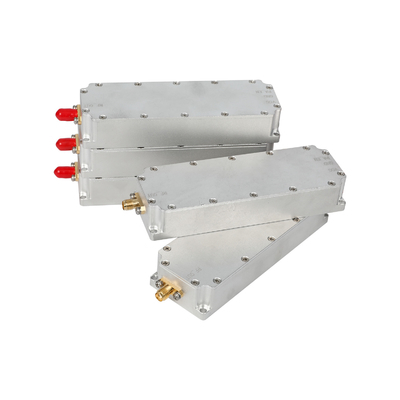

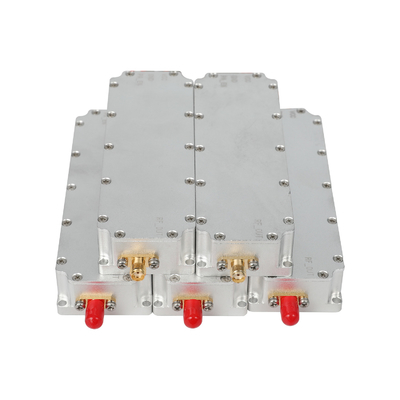

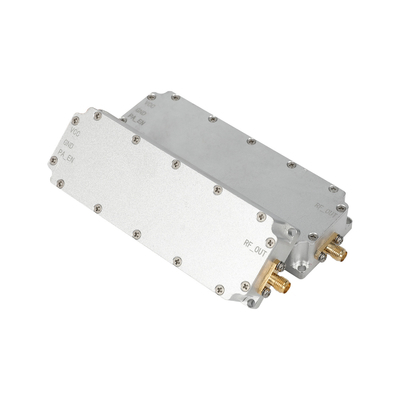

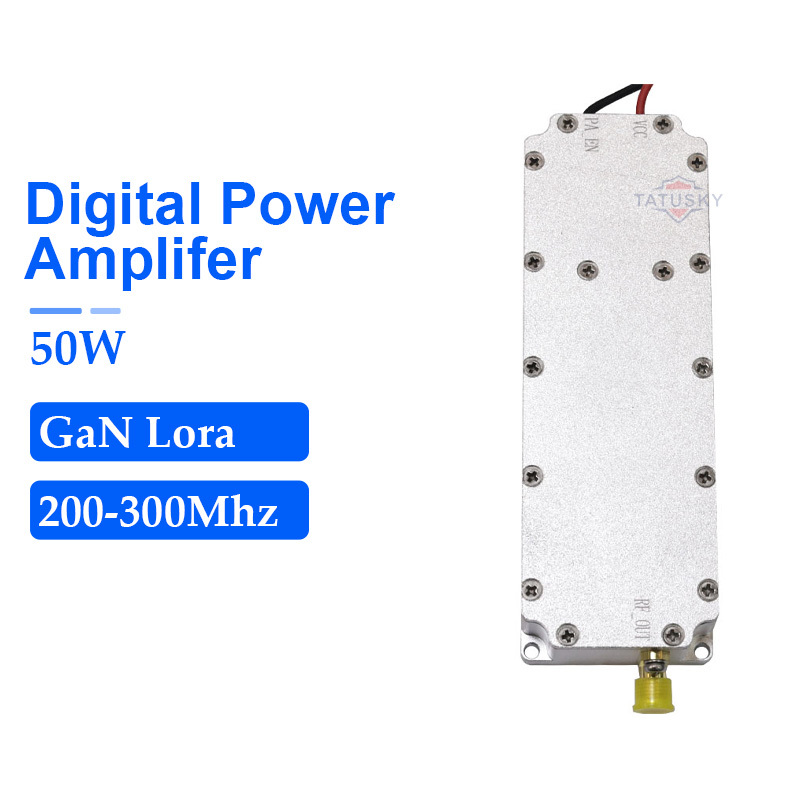

Product Images

Lead Time

Quantity (PCS)	Lead Time (Days)
<100	3
<500	3-5
500-1000	7-12
>1000	To be negotiated

Customization Options

Minimum order quantity of 1 piece for logo, frequency, power, and packing customizations.

Packaging Details

Parameter	Value
Selling Units	Single item
Package Size	20105 cm
Gross Weight	0.2kg
Package Type	Individually packed in bags and cartons

Why Choose Us?

We offer professional expertise, sincere service, prompt responses, and an excellent technical team to ensure a comfortable purchasing experience.

Order Process

Send us products you're interested in

We provide detailed information and quotations

Consult with us about any product questions

Confirm order and receive payment information

We send package confirmation and tracking number

Provide feedback after receiving goods

Ladasky Technology
Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in counter-UAV systems. We focus on RF sensing, signal processing, and active jamming technologies, offering detection, jamming, and GNSS spoofing modules for government, law enforcement, and critical infrastructure protection.
