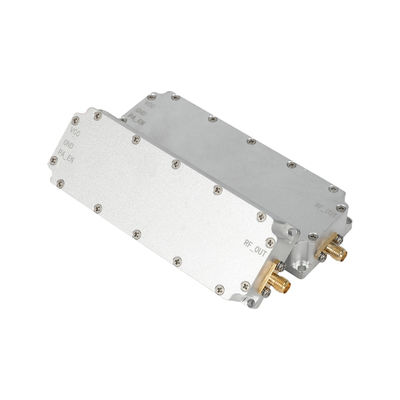

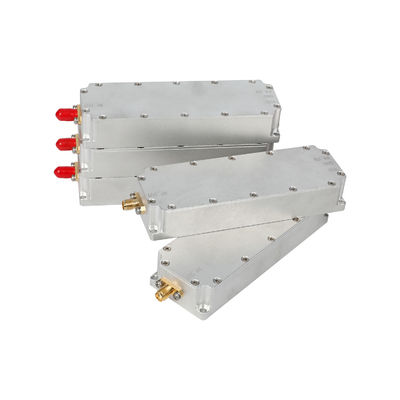

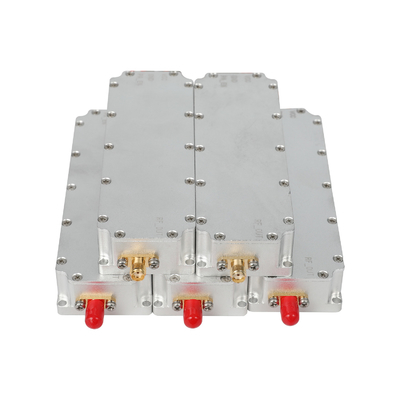

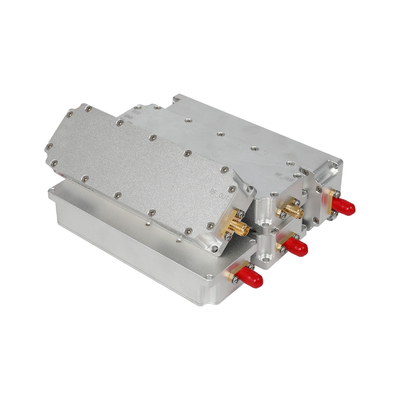

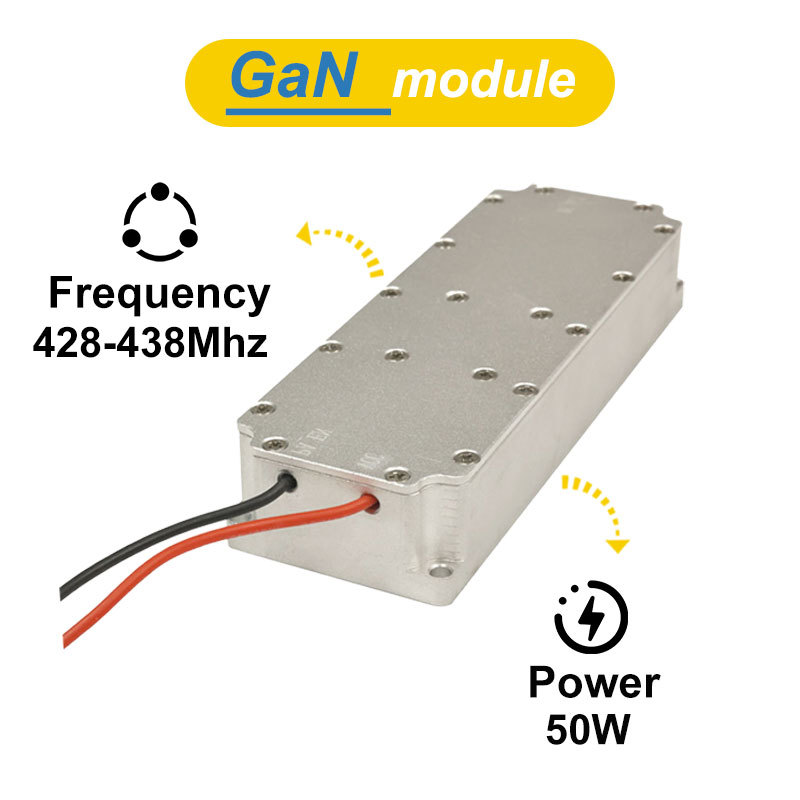

50W GaN RF Power Amplifier Module 428-438MHz for Anti-Drone Systems
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Model Number | GaN 50W |
| Minimum Order Quantity | 1 piece |
| Price | $65-98 |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram， Paypal |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High-Power 50W GaN RF Amplifier | Delivers Strong RF Output For Effective Long-range Drone Signal Suppression With Low Power Consumption And Superior Thermal Performance. | 428–438MHz Targeted Coverage | Efficiently Blocks FPV, LoRa, DJI, And Other UAV Communication Signals Within This Key Frequency Range. |
|---|---|---|---|
| Reliable Anti-Drone Defense | Ideal For Military, Border Security, Critical Infrastructure, And Commercial Drone Threat Mitigation. | Compact & Easy Integration | Suitable For Portable, Vehicle-mounted, Or Fixed Anti-drone Platforms. |
| Durable & Energy-Efficient Design | Ensures Stable Operation In Harsh Environmental Conditions With Extended Operational Life. | Customizable Frequency & Power Options | Flexible Configuration To Meet Diverse UAV Defense Scenarios And Operational Requirements. |
| Highlight | 50W GaN RF power amplifier,GaN amplifier module for anti-drone,428-438MHz RF power amplifier module |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Parameters
428-438MHz 50W anti drone module for anti drone system
Power and Frequnecy support Customzation form 90MHZ- 6700mhz, 10W,20W,30W, 40W, 50w,100W,150W,200W
--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
--This document stipulates the radio frequency and monitoring technical indicators of the 428-438MHZ 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
--This document applies to all aspects of product design, verification, production and quality inspection of the 428-438MHz 50W power amplifier module/Anti drone module.
| Item name | Technical parameters |
| Working frequency | 428-438MHz (Support customization from 10 to 6700MHZ ) |
| Power | 50W (Support customization from 10W to 200MHZ ) |
| Supply Voltage | DC 24-32V |
| Max Output Power | 47 dBm |
| Working Efficiency | ≥60% |
| Passband Riplpe | ≤2dB |
| Operating Temperature | -10~+55ºC |
| Power supply requirements | ≥3.7A |
| RF Connector | SMA |
| Size | 37.3*112*19.5mm (Excluding SMA) |
| Weight | 186g |
| Connect line red | DC28-30V |
| Connect line black | GND |
| Connect line white | ENABLE |
Product Description
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
| Item | Logo | Frequency | Power | Packing |
| MOQ(PCS) | 1 | 1 | 1 | 1 |
Company profile
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude defense solutions. Our systems have been widely deployed in government agencies, law enforcement, and critical infrastructure. We are driven by innovation and dedicated to building industry-leading counter-drone technology platforms.
Packing and Delivery
| Selling Units: | Single item |
| Single package size: | 20X10X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
Frequently Asked Questions
Why Choose Us?
We offer professional expertise, sincere service, prompt responses, and an excellent technical team to ensure a comfortable purchasing experience.
Order Process
- Send us products you're interested in
- We provide detailed information and quotations
- Consult with us about any product questions
- Confirm order and receive payment information
- We send package confirmation and tracking number
- Provide feedback after receiving goods
