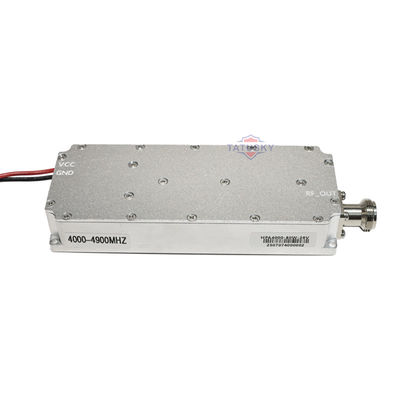

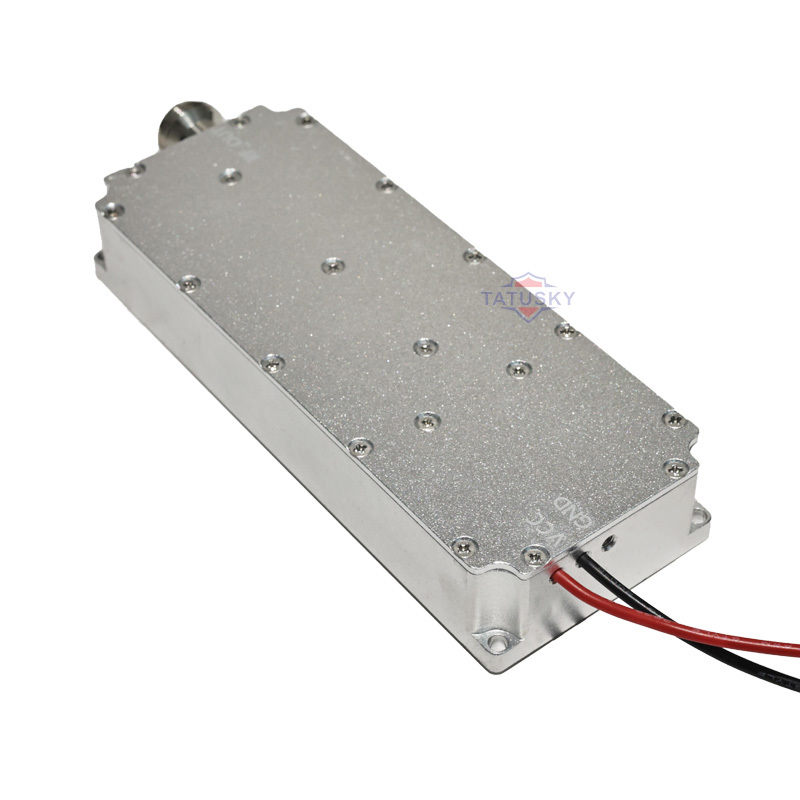

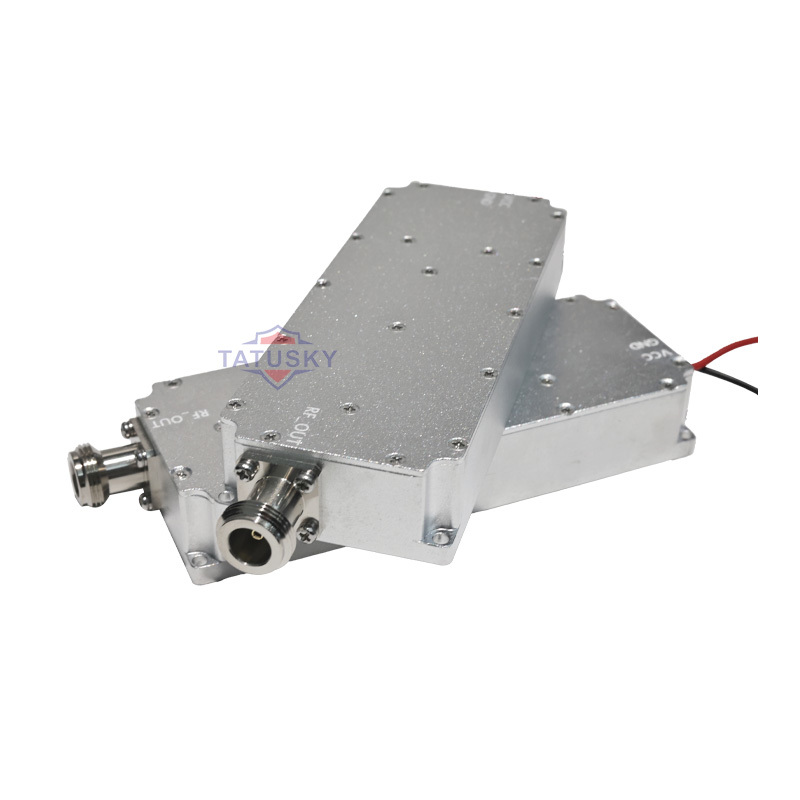

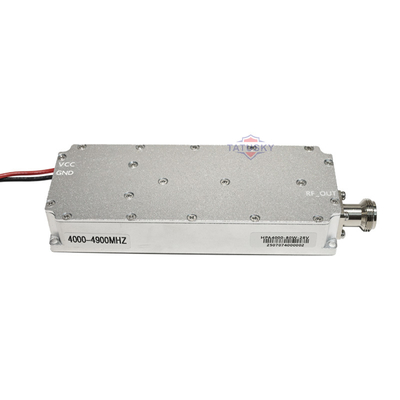

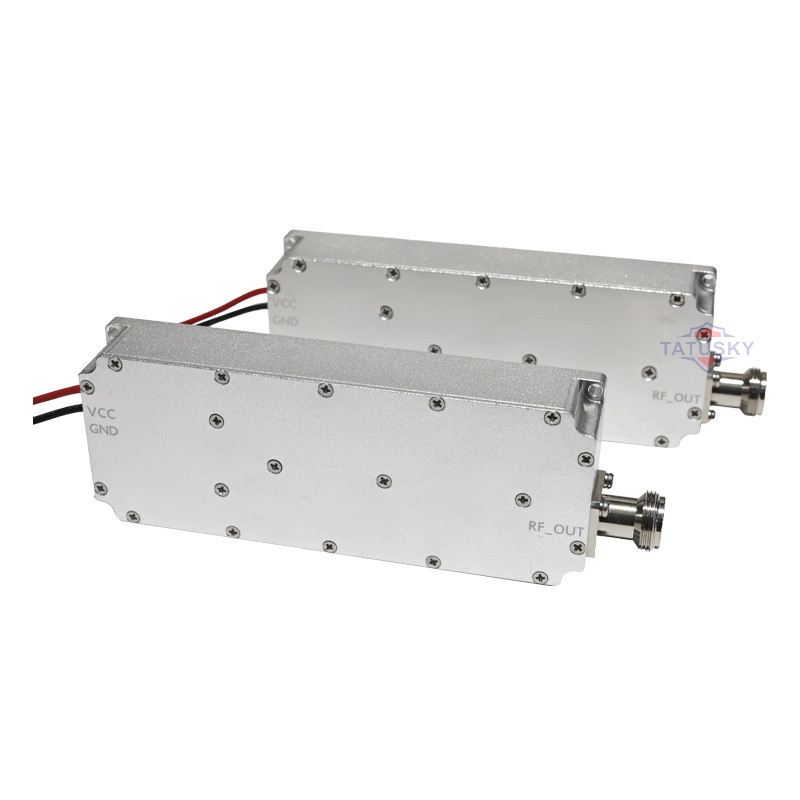

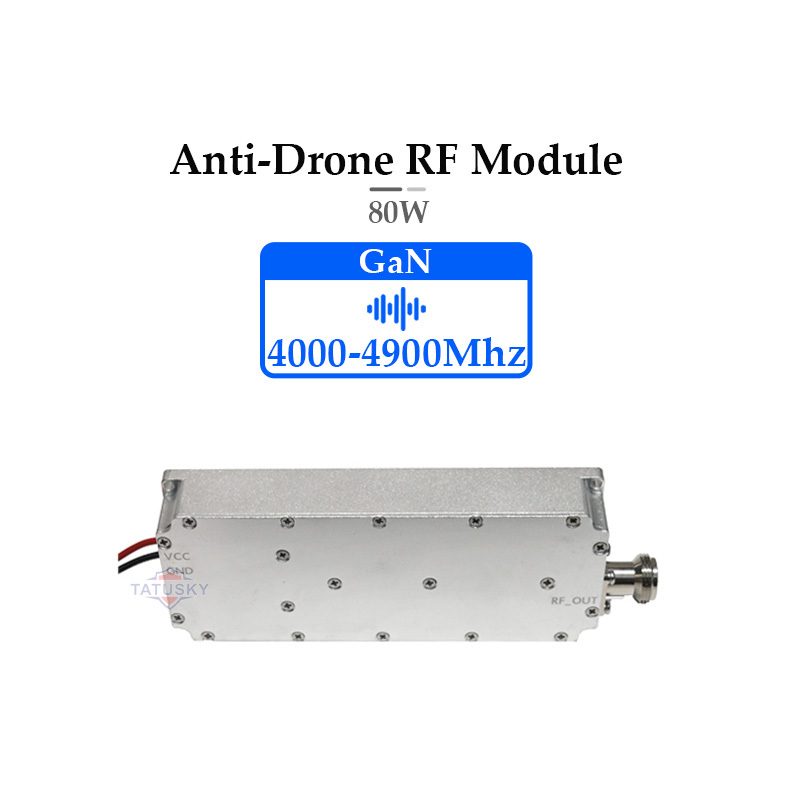

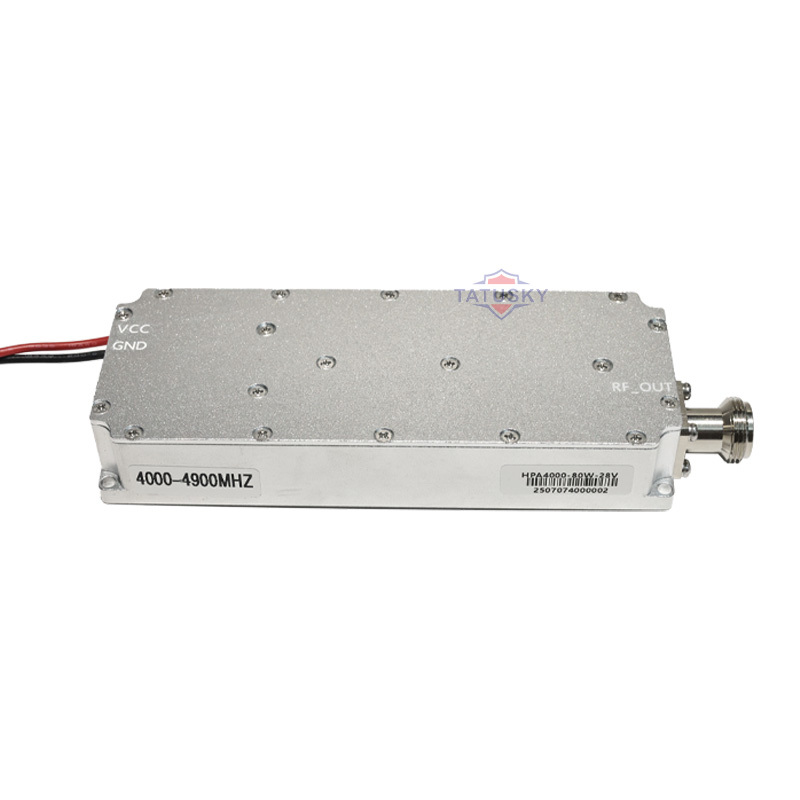

80W GaN Anti-Drone Module 4000-4900MHz for DJI FPV
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Model Number | 80W |
| Minimum Order Quantity | 1 |
| Price | $330-$350 |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A,D/P,T/T,Western Union,MoneyGram， Paypal |
| Supply Ability | 50000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High-Power 80W GaN Module | Delivers Strong RF Output For Effective Long-range Drone Signal Suppression With Low Power Consumption And Superior Thermal Performance. | 4000–4900MHz Wideband Coverage | Efficiently Blocks DJI FPV, LoRa, And Other UAV Communication Signals Within This High-frequency Range. |
|---|---|---|---|
| Reliable Anti-Drone Defense | Ideal For Military, Border Security, Critical Infrastructure, And Commercial Drone Threat Mitigation. | Compact & Easy Integration | Suitable For Portable, Vehicle-mounted, Or Fixed Anti-drone Platforms. |
| Durable & Energy-Efficient Design | Ensures Stable Operation Under Harsh Environmental Conditions For Long-term Use. | Customizable Frequency & Power Options | Flexible Configuration To Meet Diverse UAV Defense Scenarios And Operational Requirements. |
| Highlight | 80W anti-drone interference module,FPV drone suppression system,DJI Autel anti-drone module |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Parameters
4000-4900MHz 80W anti drone module for anti drone system
Power and Frequnecy support Customzation form 90MHZ- 6700mhz, 10W,20W,30W, 40W, 50w,100W,150W,200W
- GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
- The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
- This document stipulates the radio frequency and monitoring technical indicators of the 420-460MHZ 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
- This document applies to all aspects of product design, verification, production and quality inspection of the 420-460MHz 50W power amplifier module/Anti drone module.
| Item name | Technical parameters |
|---|---|
| Working frequency | 4000-49000MHz (Support customization from 10 to 6700MHZ ) |
| Power | 80W (Support customization from 10W to 200MHZ ) |
| Supply Voltage | DC 24-32V |
| Max Output Power | 49 dBm |
| Working Efficiency | ≥45% |
| Passband Riplpe | ≤2dB |
| Operating Temperature | -10~+55ºC |
| Power supply requirements | ≥9A |
| RF Connector | SMA |
| Size | 37.3*112*19.5mm (Excluding SMA) |
| Weight | 330g |
| Connect line red | DC24-32V |
| Connect line black | GND |
| Connect line white | ENABLE |
Product Description
Packing and Delivery
Frequently Asked Questions
Why Choose Us?
We offer professional expertise, sincere service, prompt responses, and an excellent technical team to ensure a comfortable purchasing experience.
Order Process
- Send us products you're interested in
- We provide detailed information and quotations
- Consult with us about any product questions
- Confirm order and receive payment information
- We send package confirmation and tracking number
- Provide feedback after receiving goods
