700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier
  • name
  • name
  • name
  • name
  • name
  • name

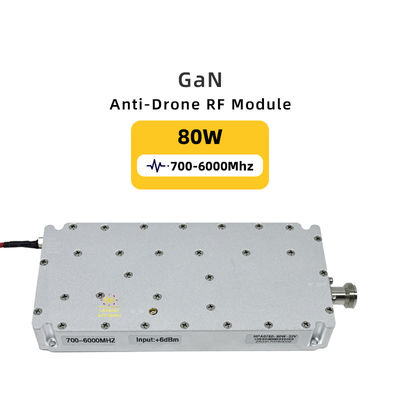

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier

MOQ: 1 piece
Delivery Period: 1-3 workdays
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Capacity: 50000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
LDSK
Model NO.:
LDSK
Product Weight:
24-32V
Frequency:
700-6000MHz
Power:
80W
Size:
170*77*24.5mm (Excluding Connectors)
Samples:
US$ 1330/Piece
Customization:
Available | Customized Request
Minimum Order Quantity:
1 piece
Delivery Time:
1-3 workdays
Payment Terms:
D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability:
50000 pcs per month
Highlight:

700-6000MHz RF module power amplifier

,

80W RF module power amplifier

,

Wideband GaN Anti-Module

Product Description
Product Parameters

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

--This document stipulates the radio frequency and monitoring technical indicators of the 600-700MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 600-700MHz 50W power amplifier module.
Item name Technical parameters
Working frequency 700-6000MHz
Power 80W
Supply Voltage DC 24-32V
Max Output Power 50 dBm
Working Efficiency ≥50%
Passband Riplpe ≤2dB
Weight 900g
Operating Temperature -10~+55ºC
Power supply requirements ≥10A
RF Connector N output, SMA input
Size 177*77*24.5mm (Excluding N )
Connect line red DC24-32V
Connect line black GND
Connect line white ENABLE



Product Description

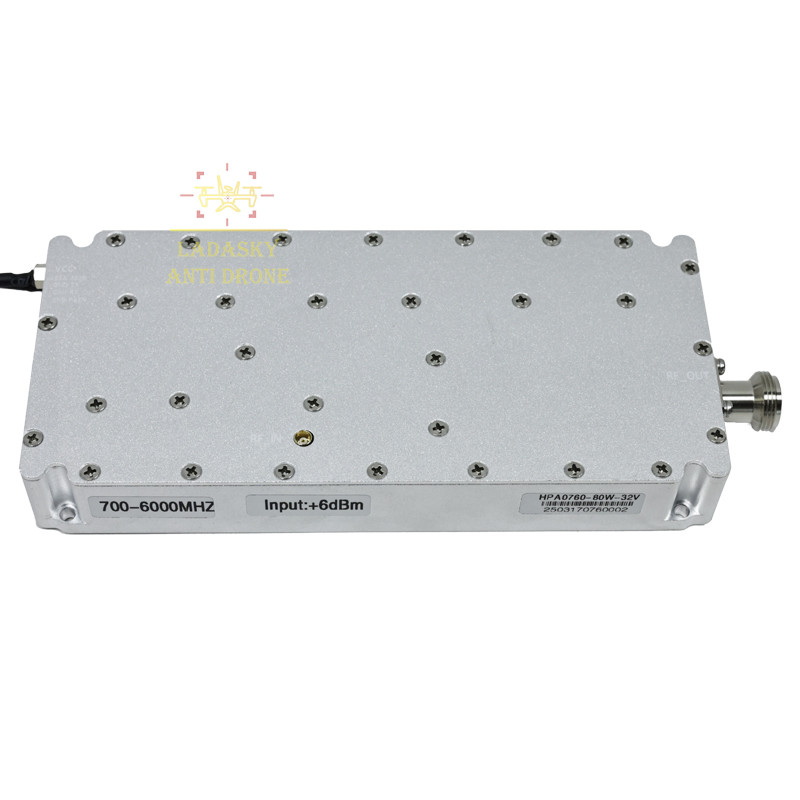

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 0

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 1

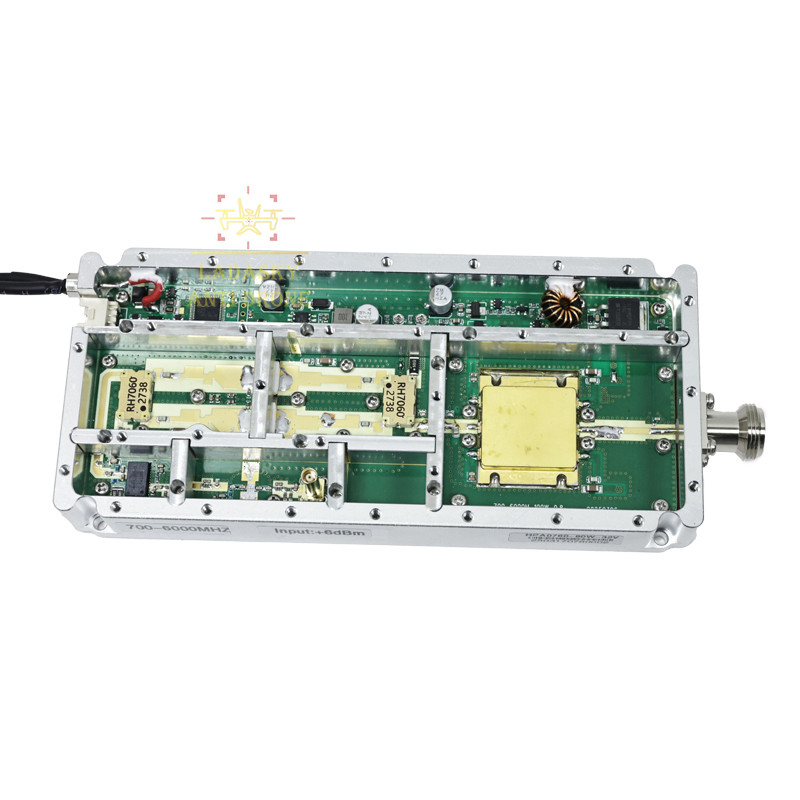

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 2

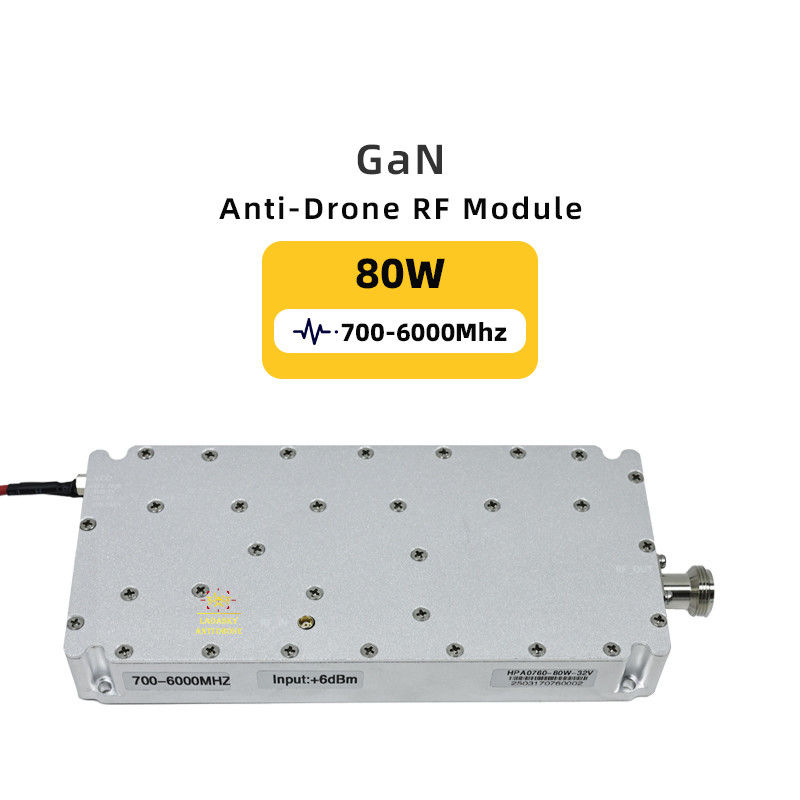

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 3

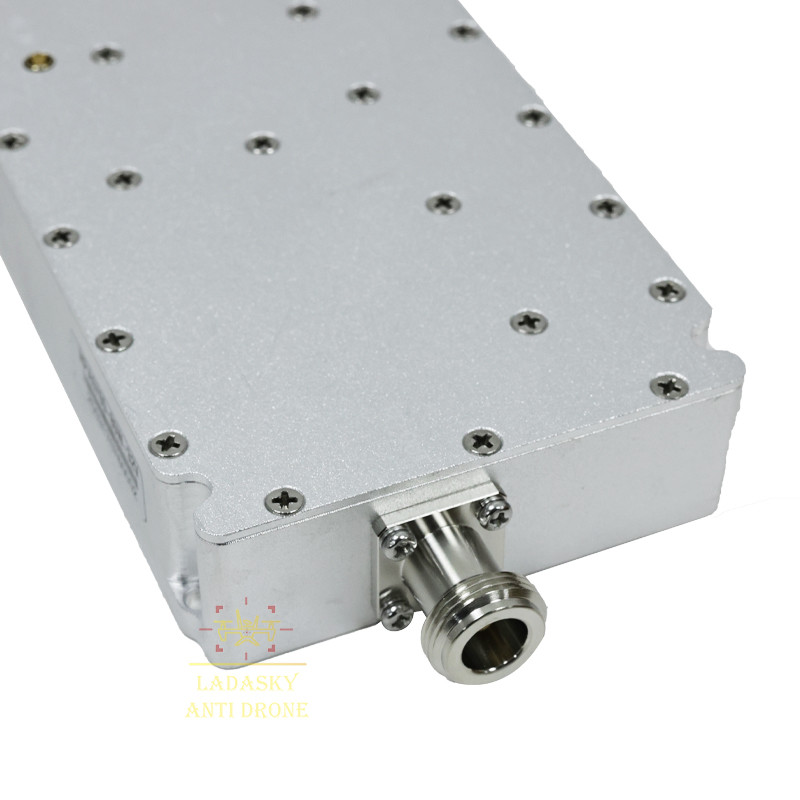

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 4

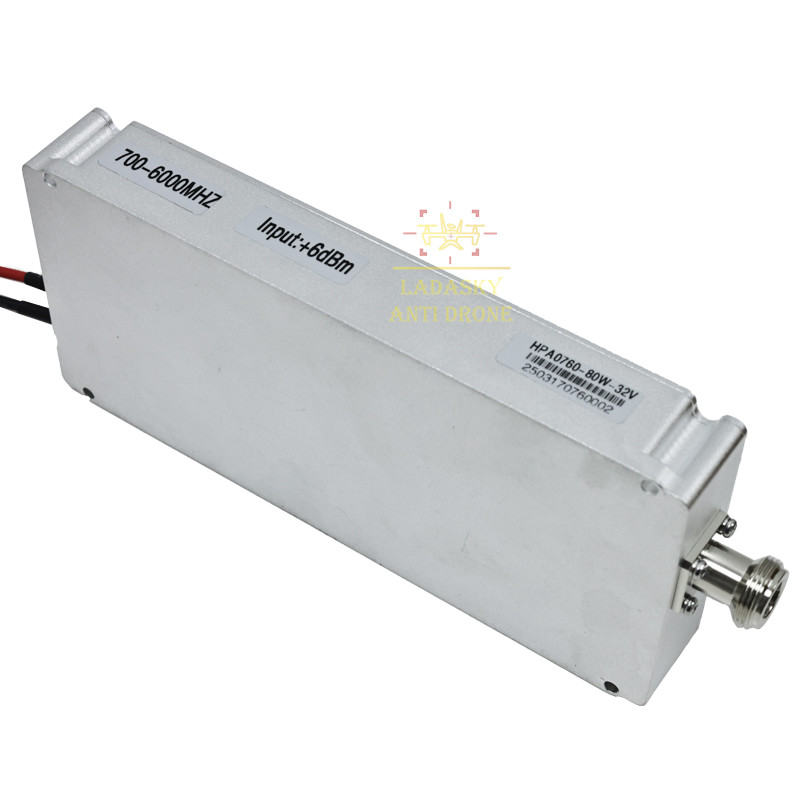

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 5









Lead time

Quantity(PCS) <100pcs <500 500-1000 >1000
Lead time(Days) 3 3-5 7-12 To be negotiated


Customization

Item Logo Frequency Power Packing
MOQ(PCS) 1 1 1 1




Company profile

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 6

Shenzhen ladasky technology Co,.LTD, specializing in the field of advanced technology. Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.



Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers. The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications. The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.



We pride ourselves on our strong R&D team, composed of experts and engineers with rich experience and professional knowledge in the field. They are constantly exploring and innovating to bring forth new and improved products that stay ahead of the market trends.

Our manufacturing facilities are equipped with state-of-the-art machinery and adhere to international quality standards. This ensures that every product leaving our factory is of the highest quality and reliability.




Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.

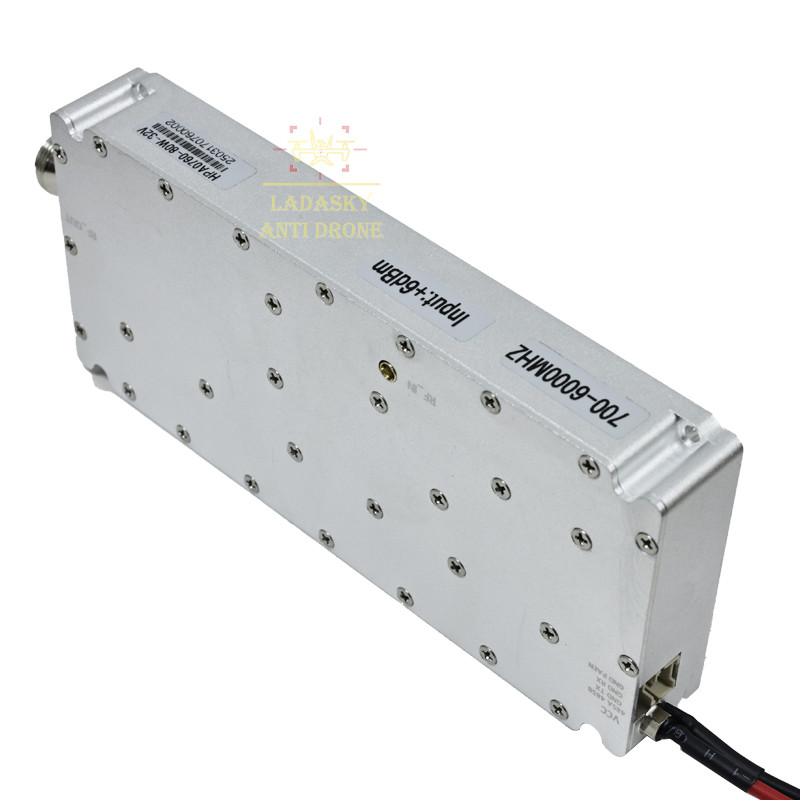

700-6000MHz 80W Wideband GaN Anti-Module RF Module Power Amplifier 7

FAQ

1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3. How to contact us?
amber@ladaskytech.com

+86 13556824863
