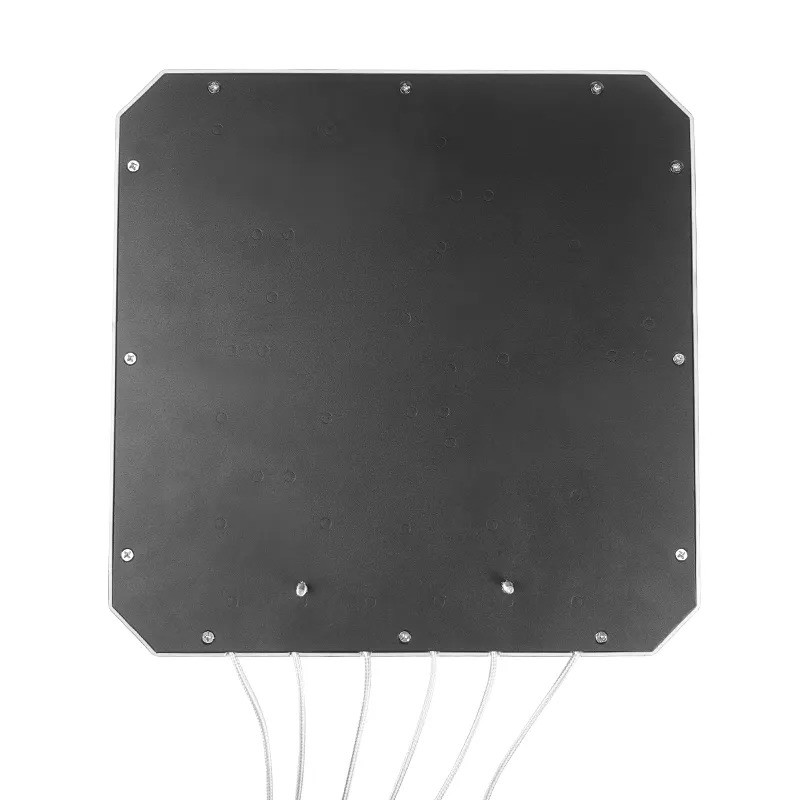

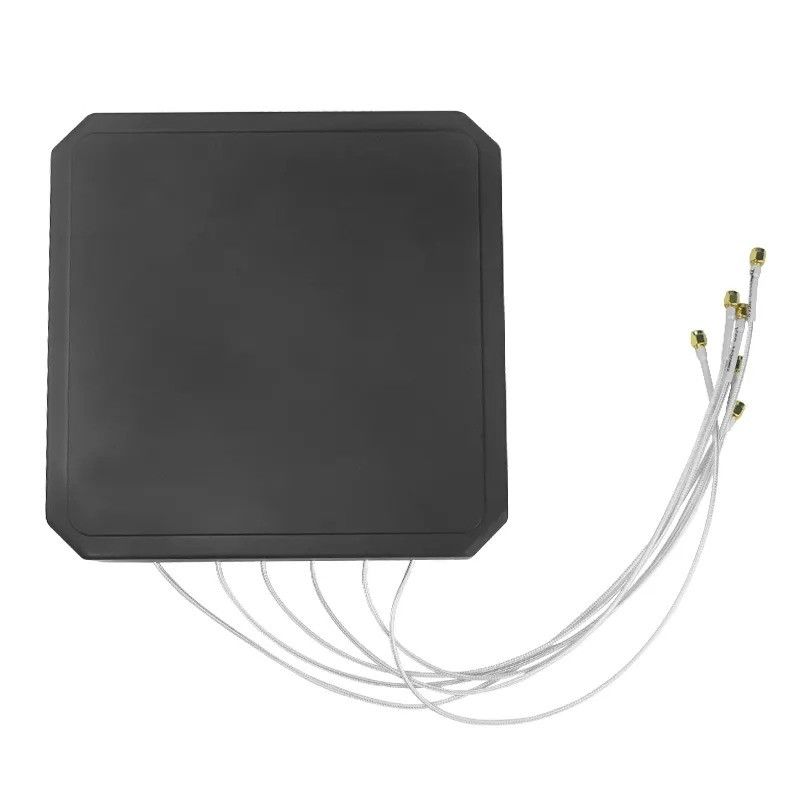

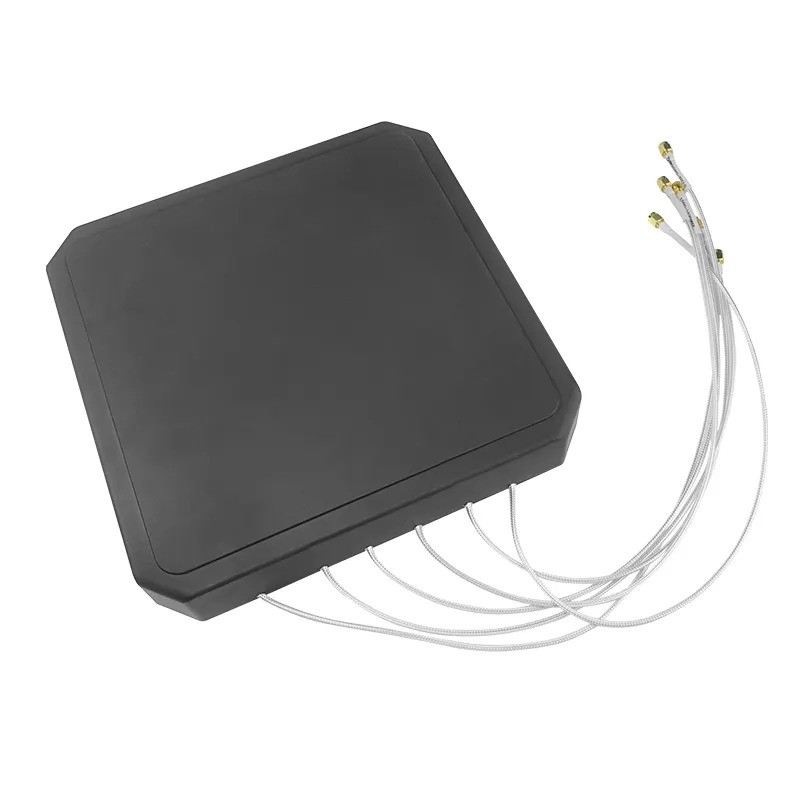

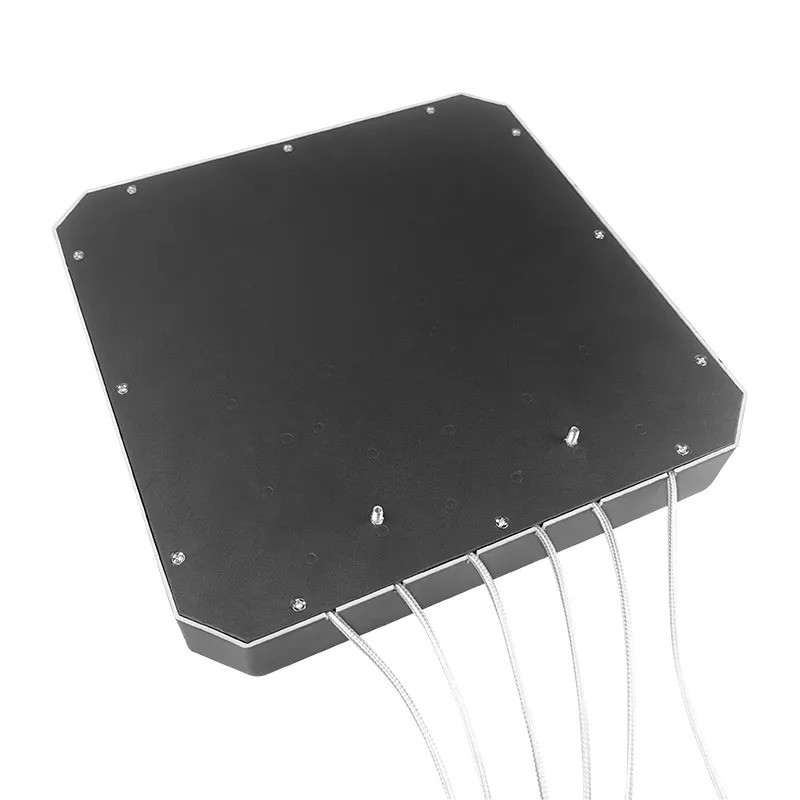

Anti Drone System Waterproof Panel Antenna 6 Band 26CM 17dBi MIMO 260x260x40mm
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 2 piece |
| Price | $110.00/sets 2-49 sets |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 840-5900 Mhz | Gain | 8-17 DBi |
|---|---|---|---|
| VSWR | ≤1.5 | Maximum Input Power | 50w |
| Inpur Connector Type | N*J Or Customized (Wire Length Customized Too ) | Size | 260*260*40mm |
| Pack Size | 300*300*50mm | Weight | 0.885KG |
| Color | Black Or White | Material | ABS |
| Highlight | Anti Drone Waterproof Panel Antenna,17dBi UAV defense antenna,Anti Drone 6 Band Antenna |
||
Product Description
Product Description
Specification
|
Frequency
|
840-920MHz 8dbi
|
|
|
1100-1300MHz 12dbi (410-485MHz 7dbi)
|
|
|
1560-1620MHz 12dbi
|
|
|
2400-2500MHz 14.5dbi
|
|
|
5150-5350MHz 17dbi
|
|
|
5700-5900MHz 17dbi
|
|
VSWR
|
≤1.5
|
|
Maximum input power(W)
|
50W (100W is customized not standard )
|
|
Input connector type
|
N*J or customized (Wire length customized too )
|
|
Lightning Protection
|
DC Ground
|
|

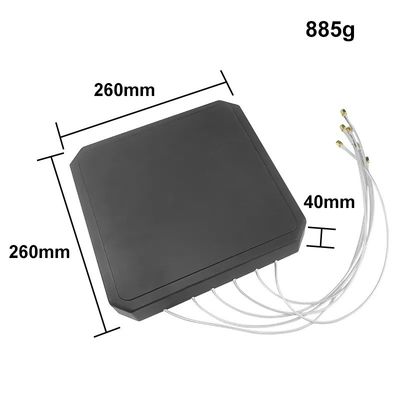

Dimensionsmm(Height/Width/Depth)
|
260*260*40mm
|
|
Antenna weight(kg)
|
885g
|
|
Rated Wind Velocity(m/s)
|
60m/s
|
|
Operational Humidity(％)
|
10- 95
|
|
Radome Color
|
Black color
|
|
Radome material
|
ABS
|
|
Operating temperature(ºC)
|
-30～70 º
|
|
Installution Method
|
Handheld
|
|
Mounting hardware(mm)
|
￠30～￠75
|
|
Mechanical tilt(º)
|
0-10º
|
