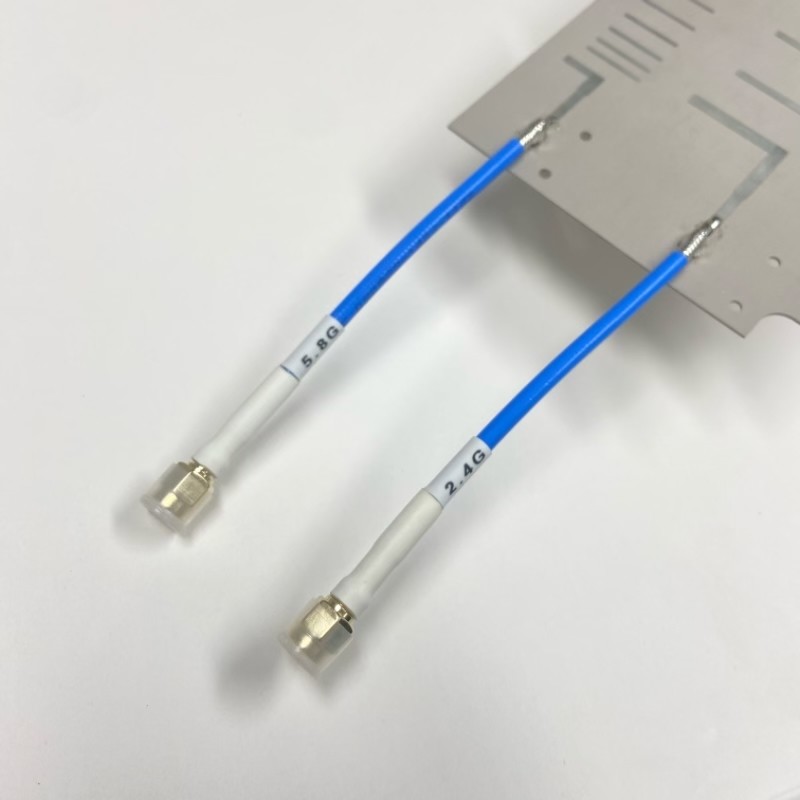

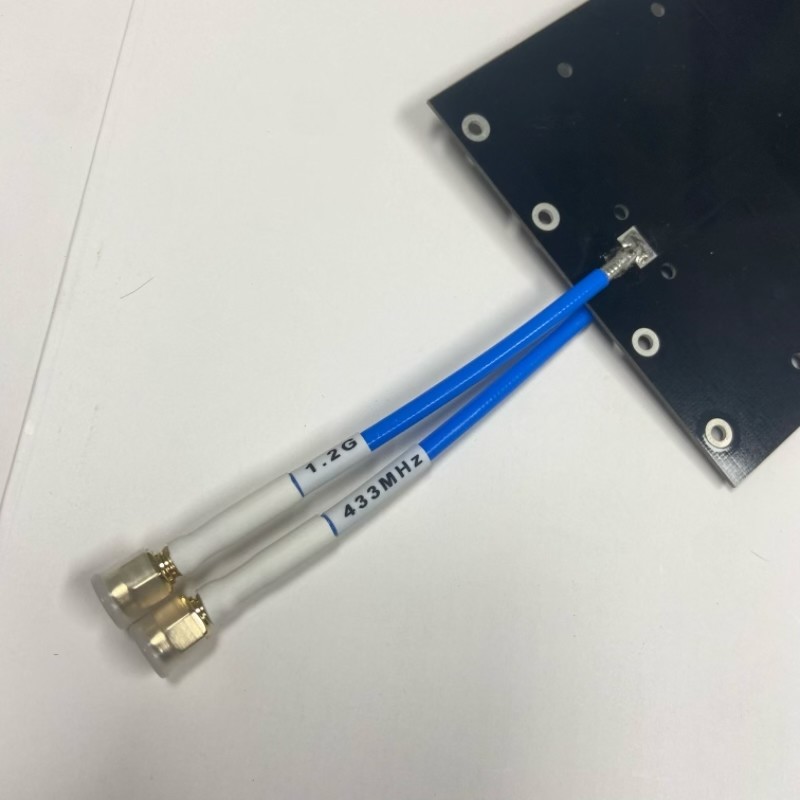

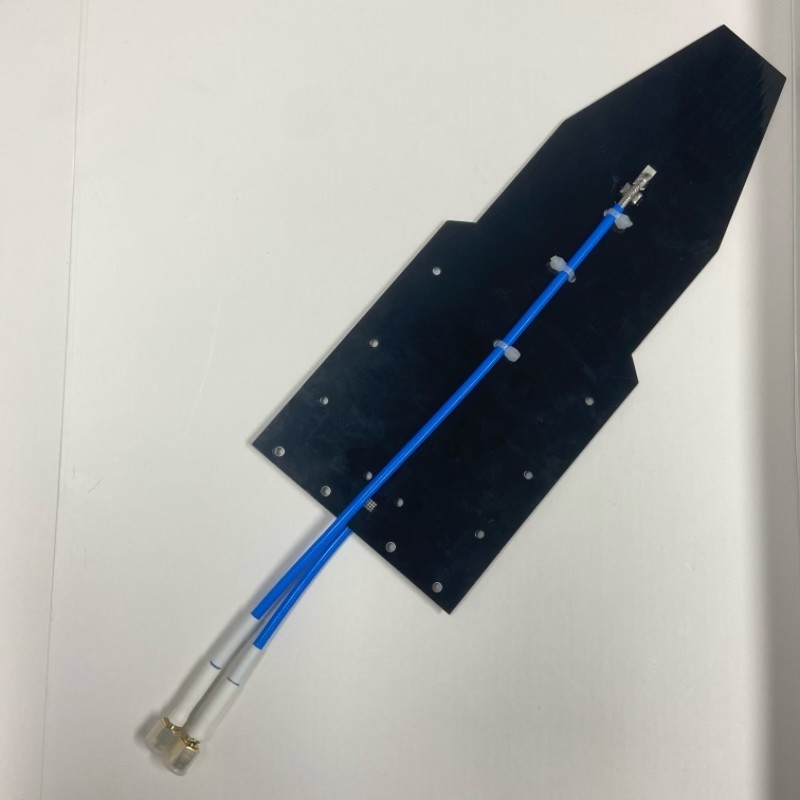

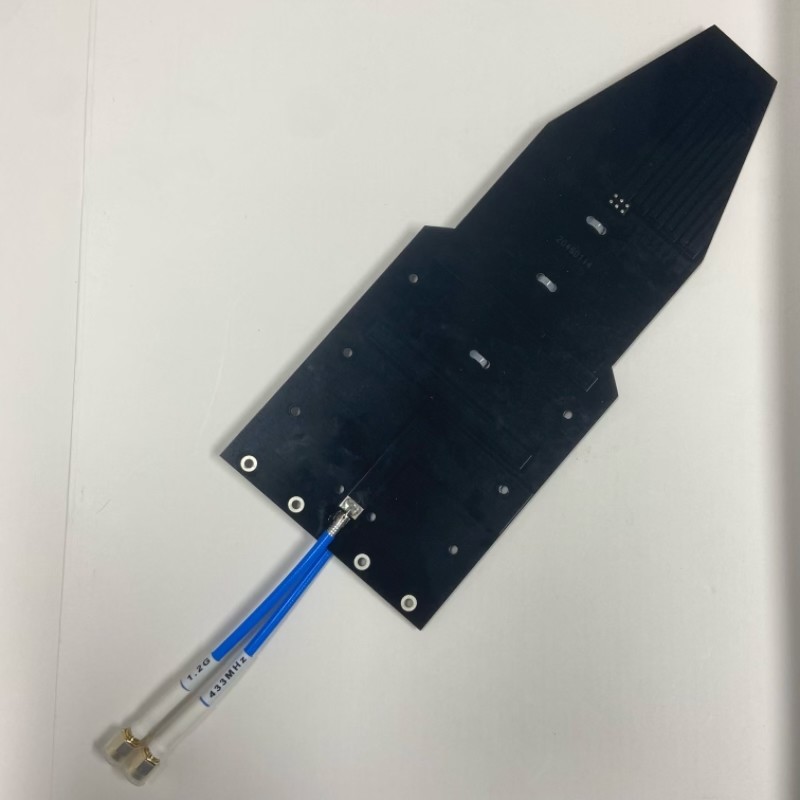

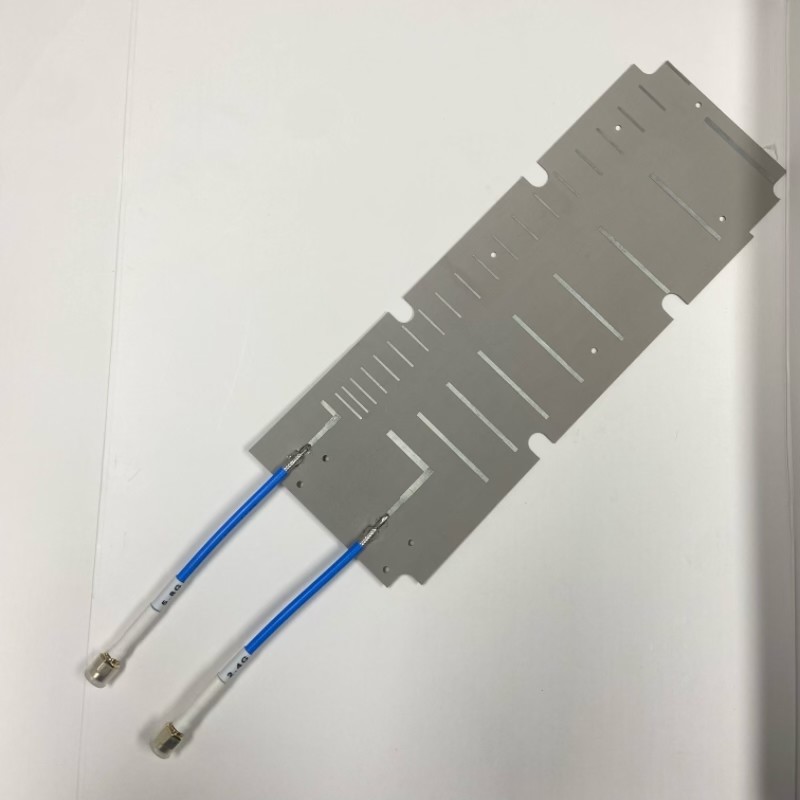

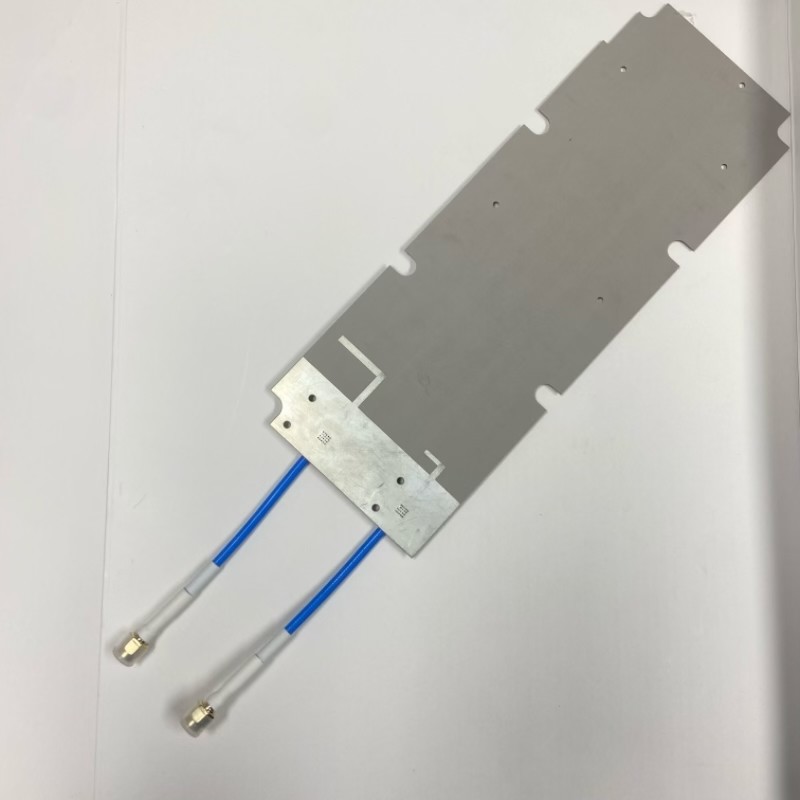

120mm Long SMA-J Counter Drone PCB Antenna With Lead Out RG141 Cable
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 2 piece |
| Price | $50.00/sets 2-49 sets |
| Packaging Details | Each one is packed in bubble bag and put into carton |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 2.4G/5.8G | Gain | 2-10 DBi |
|---|---|---|---|
| VSWR | ≤2.0 | Maximum Input Power | 50w |
| Inpur Connector Type | Lead Out RG141 Cable 120mm Long With SMA-J | Size | 250*100*1mm |
| Pack Size | 250*100*1mm | Weight | 0.18KG |
| Color | Custom | Material | PTFE Double-sided Copper Clad Laminate |
| Highlight | 120mm Counter Drone PCB Antenna,Counter Drone Antenna with RG141 Cable,Counter Unmanned Aerial Vehicle Antenna |
||
Product Description
Product Description
Specification
Frequency | 2.4G/5.8G |
Gain | 15.5 dBi |
VSWR | ≤2.0 |
Maximum input power | 50w |
Inpur connector type | Lead out RG141 cable 120mm long with SMA-J |
Size | 250*100*1mm |
Pack size | 250*100*1mm |
Weight | 0.18KG |
Color | Customized |
Material | PTFE double-sided copper clad laminate |
Antenna | Frequency Range | 433mhz,900mhz,1.2G,1.5G,2.4G,5.2G,5.8G |
Gain | 2-18 dBi | |
VSWR | ≤2.0 | |
Inpendance | 50 Ω | |
Antenna size | Customize | |
Polarization | Vertical | |
Mechanical | Inner Material | PCB |
Connector type | IPEX or Customizable | |
Mounting Method | IPEX Connector | |
Environmental | Operating Temperature | -20ºC~+60ºC |
Storage Temperature | -20ºC~+65ºC | |
Environmentally Friendly | ROHS Compliant |
