Anti Drone Antenna
Created with Pixso. Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone

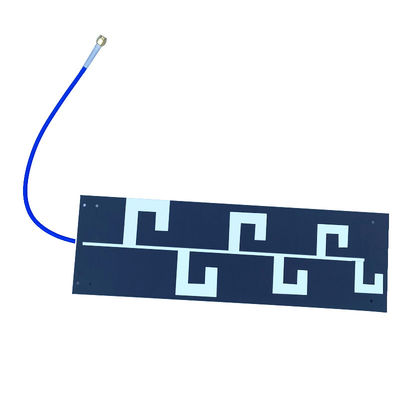

Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone
  • name
  • name
  • name
  • name
  • name
  • name

Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone

Brand Name: LDSK
MOQ: 2 piece
Price: $18.00/sets 2-49 sets
Delivery Time: 5-8 workdays
Payment Terms: D/A, D/P, T/T, Western Union， Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Frequency:
5700-5900Mhz
Gain:
15.5 DBi
VSWR:
≤2.0
Maximum Input Power:
50w
Inpur Connector Type:
Lead Out RG141 Cable 120mm Long With SMA-J
Size:
350*150*1mm
Pack Size:
370*28*1mm
Weight:
0.18KG
Color:
Custom
Material:
PTFE Double-sided Copper Clad Laminate
Packaging Details:
Each one is packed in bubble bag and put into carton
Supply Ability:
5000pcs per month
Highlight:

0.18KG Anti UAV Antenna

,

Anti Drone Directional PCB Antenna

,

900mhz drone defense module

Product Description
Product Description
Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone 0
Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone 1
Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone 2
Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone 3
Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone 4
Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone 5
Specification
Frequency
5700-5900Mhz
Gain
15.5 dBi
VSWR
≤2.0
Maximum input power
50w
Inpur connector type
Lead out RG141 cable 120mm long with SMA-J
Size
350*150*1mm
Pack size
380*280*2mm
Weight
0.18KG
Color
Customized
Material
PTFE double-sided copper clad laminate





Antenna
Frequency Range
433mhz,900mhz,1.2G,1.5G,2.4G,5.2G,5.8G

Gain
2-18 dBi

VSWR
≤2.0

Inpendance
50 Ω

Antenna size
Customize

Polarization
Vertical
Mechanical
Inner Material
PCB

Connector type
IPEX or Customizable

Mounting Method
IPEX Connector
Environmental
Operating Temperature
-20ºC~+60ºC

Storage Temperature
-20ºC~+65ºC

Environmentally Friendly
ROHS Compliant
Lightweight 0.18KG Directional PCB Antenna 900mhz 1.5G 2.4G 5.8G for Anti Drone 6
