700Mhz 100W GaN Amplifier Drone Counter Module for Anti Drone System Anti Autel RF Power Amplifier ANTI FPV ANTI DRONE
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 1 piece |
| Price | $230 |
| Packaging Details | Each piece is individually packed into a bag and then packed into a carton. |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | LDSK GaN Module | Frequency | 700MHZ 700-800MHZ 720-800MHZ 650-750MHZ |
|---|---|---|---|
| Out Power | 100w | Product Size | 170*94*26.5mm (excluding Connectors) |
| Intra-band Fluctuations | ≤2.5 (peak-to-peak Value) | In-band Group Delay | ≤1us |
| Input Voltage Standing Wave Ratio | ≤1.35 | ||
| Highlight | 100W GaN Amplifier Drone Counter Module,Anti Drone System GaN Amplifier Module,700Mhz GaN Amplifier Drone Counter Module |
||
Product Description
Product Description

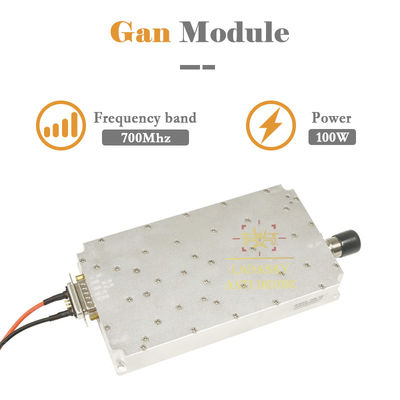

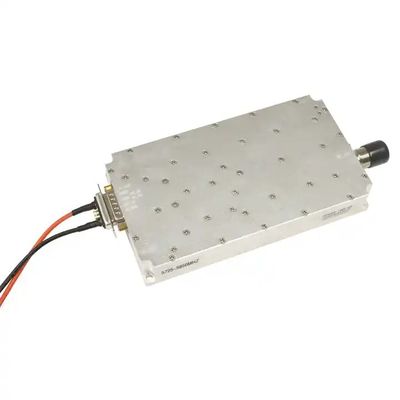

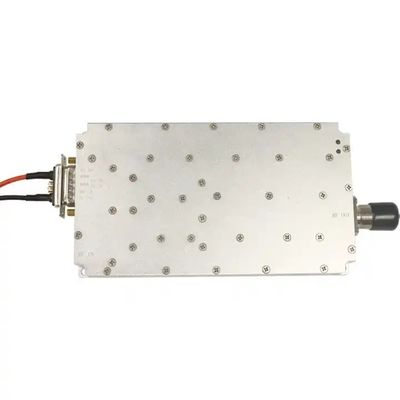

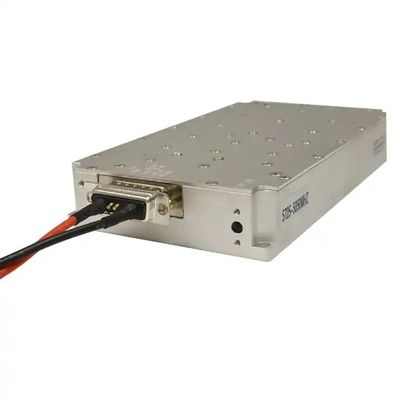

700Mhz 100W GaN Amplifier Module
Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:

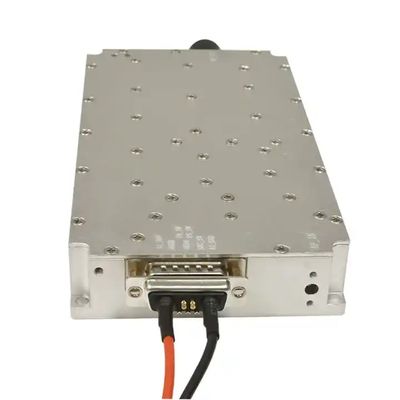

① Power supply conditions: +30V power supply: 7W2 (male)1. Overall dimensions: 170*94*26.5mm
2. Interface form:
②RF input interface: SMA-KFD (optional)

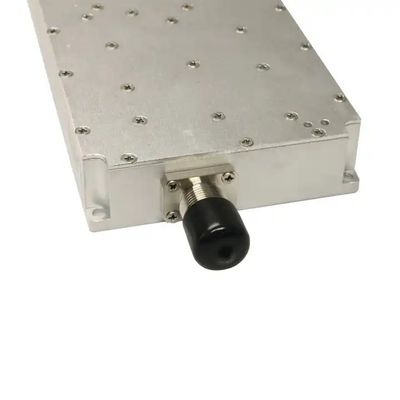

③RF output interface: N-KFD
④Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
|
Frequency
|
700Mhz
|
|
Output Power(dBm)
|
100W(50dBm)
|
|
In-band group delay
|
≤1us
|
|
Gain
|
45±1.0,45±1.0 (external input 5dbm, power amplifier output 50dbm)
|
|
In-band fluctuation (dB)
|
≤2.5 (peak-to-peak value)
|
|
Input voltage standing wave ratio
|
≤1.35
|
|
Output voltage standing wave ratio
|
≤1.3
|
|
Supply voltage Typical
|
+30Vdc Range: 24-36V
|
|
Supply current
|
+30Vdc@100W≤5.5A
|
|
Output RF connector
|
N-50KFD
|
|
Size
|
170×94×26.5mm (excluding connectors)
|
|
Input signal source
|
Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
|
|
1 7W2 male socket
2 Feedthrough capacitors (from top to bottom) |
1: A1 is the 30V power input, and A2 is GND;
2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source; |
