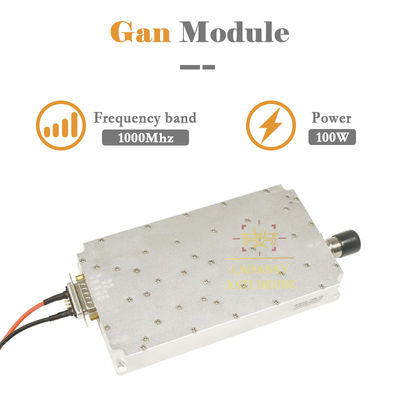

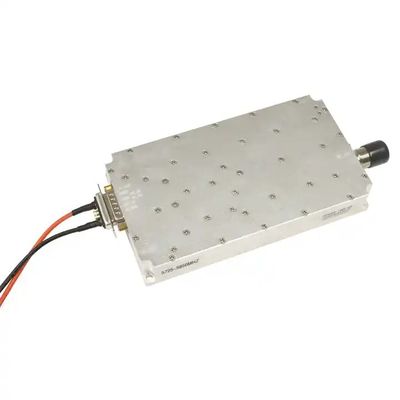

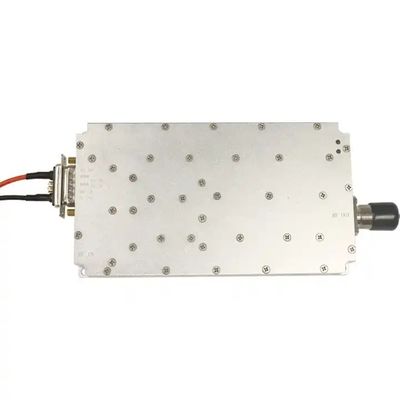

1000MHZ 100WAnti Drone System Autel RF Power Amplifier 1G 100W GaN Amplifier Drone Counter Module
1000MHZ 100WAnti Drone System Autel RF Power Amplifier 1G 100W GaN Amplifier Drone Counter Module
Basic Properties
Country Of Origin
Guangdong, China
Brand Name
LDSK
Trading Properties
MOQ
1 piece
Unit Price
$230
Payment Method
D/A, D/P, T/T, Western Union， Paypal
Supply Capacity
5000pcs per month
Product Summary
Product Description 1000Mhz 100W GaN Amplifier Module Appearance and installation instructions: 1. Overall dimensions: 170*94*26.5mm 2. Interface form: ① Power supply conditions: +30V power supply: 7W2 (male) ②RF input interface: SMA-KFD (optional) ③RF output interface: N-KFD ④Control interface: a...
Product Details
Highlight:
1000MHZ GaN Amplifier
,1G GaN Amplifier
Product Name:
LDSK GaN Module
Frequency:
1000Mhz
Out Power:
100w
Voltage:
30Vdc Range: 24-36V
Product Size:
170*94*26.5mm (excluding Connectors)
Product Weight:
1.5kg
Intra-Band Fluctuations:
≤2.5 (peak-to-peak Value)
In-Band Group Delay:
≤1us
Input Voltage Standing Wave Ratio:
≤1.35
Product Description
Product Description
1000Mhz 100W GaN Amplifier Module
Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:
① Power supply conditions: +30V power supply: 7W2 (male)1. Overall dimensions: 170*94*26.5mm
2. Interface form:
②RF input interface: SMA-KFD (optional)

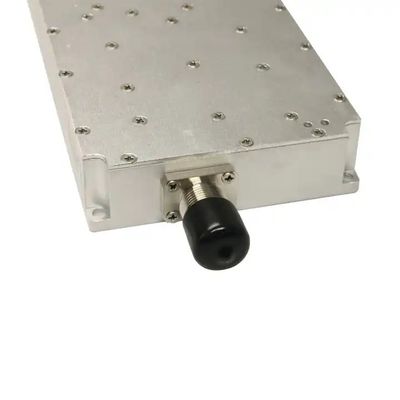

③RF output interface: N-KFD
④Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
|
Frequency
|
1000Mhz
|
|
Output Power(dBm)
|
100W(50dBm)
|
|
In-band group delay
|
≤1us
|
|
Gain
|
45±1.0,45±1.0 (external input 6dbm, power amplifier output 50dbm)
|
|
In-band fluctuation (dB)
|
≤2.5 (peak-to-peak value)
|
|
Input voltage standing wave ratio
|
≤1.35
|
|
Output voltage standing wave ratio
|
≤1.3
|
|
Supply voltage Typical
|
+30Vdc Range: 24-36V
|
|
Supply current
|
+30Vdc@100W≤5.5A
|
|
Output RF connector
|
N-50KFD
|
|
Size
|
170×94×26.5mm (excluding connectors)
|
|
Input signal source
|
Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
|
|

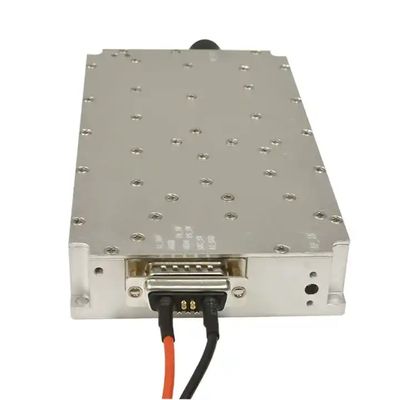

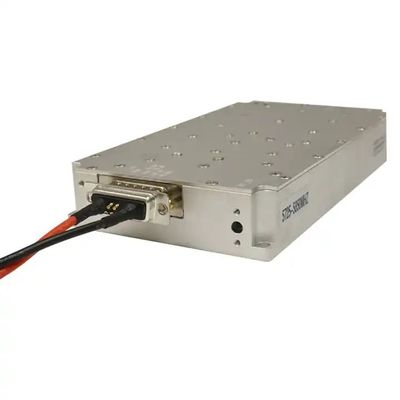

1 7W2 male socket
2 Feedthrough capacitors (from top to bottom) |
1: A1 is the 30V power input, and A2 is GND;
2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source; |
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
| Item | Logo | Frequency | Power | Packing |
| MOQ(PCS) | 1 | 1 | 1 | 1 |
Company profile
Packing and Delivery
| Selling Units: | Single item |
| Single package size: | 20X10X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
