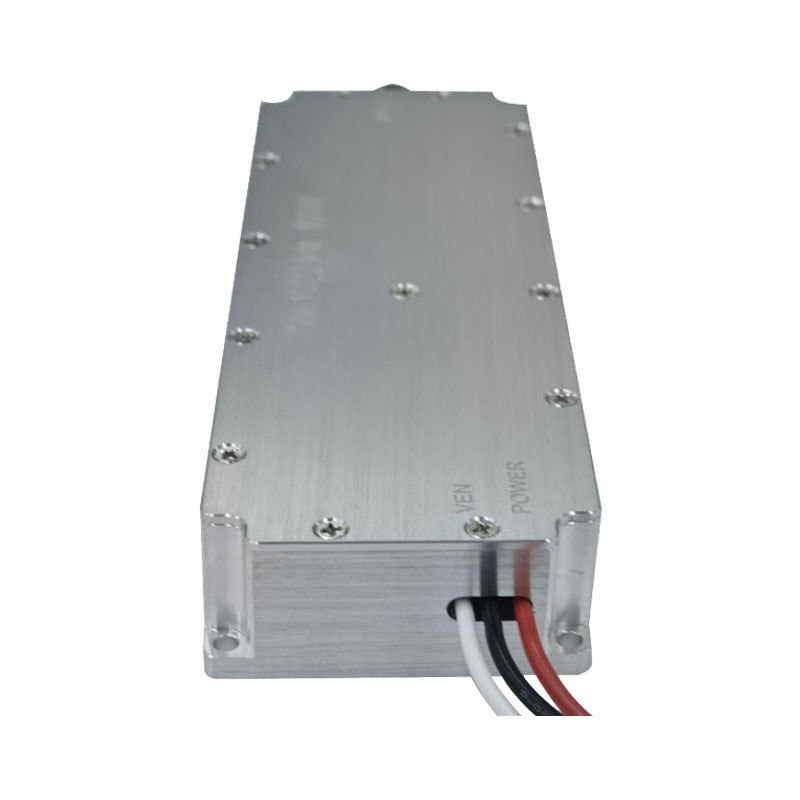

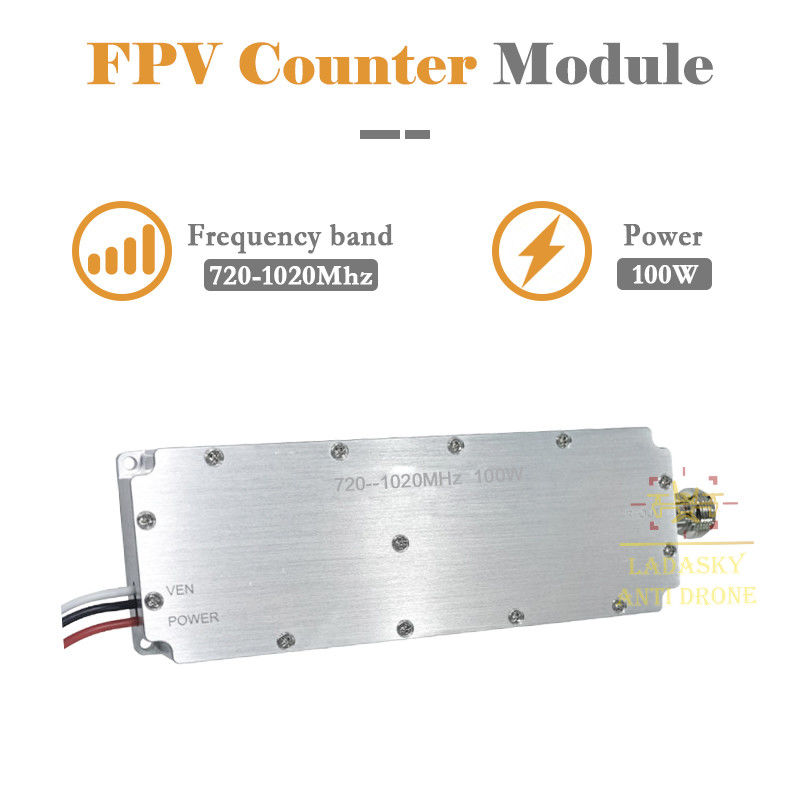

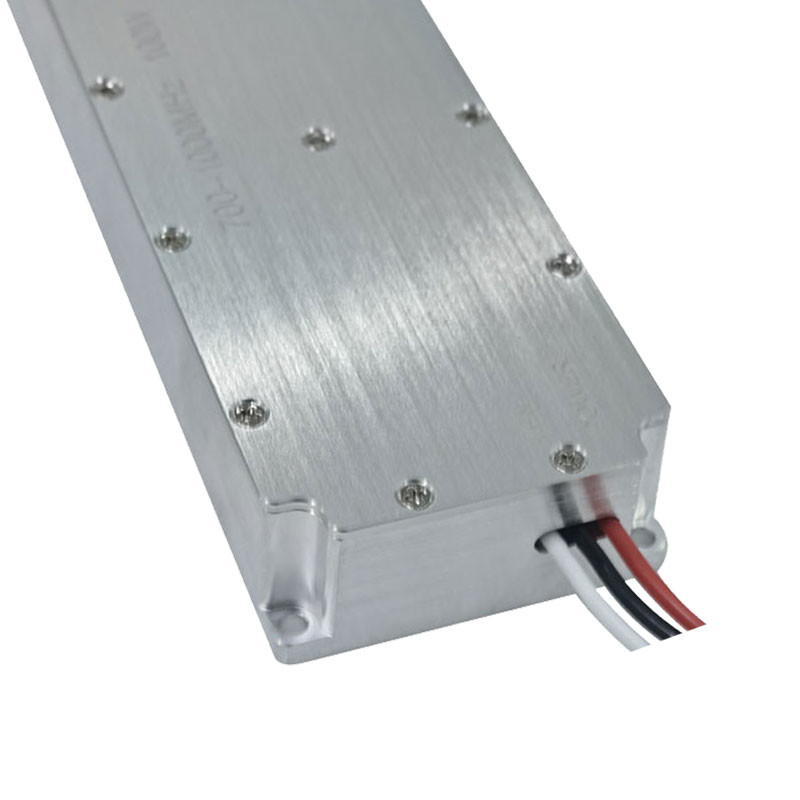

720-1020MHz 100W Lora Counter FPV Module
  • name
  • name
  • name
  • name

720-1020MHz 100W Lora Counter FPV Module

MOQ: 2 piece
Price: $160-$180 1-1000pcs
Standard Packaging: 20*10*5cm 0.5KG, carton
Delivery Period: 5-8 workdays
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Capacity: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
LDSK
Frequency:
720-1020MHz
Power:
100w 50W-100W Optional
Operating Voltage:
24-28V
Current:
8-10A
Product Name:
Anti FPV Module
Size:
155*54*24mm
Special:
Digital Source
Temperature:
-40℃+80℃
Minimum Order Quantity:
2 piece
Price:
$160-$180 1-1000pcs
Packaging Details:
20*10*5cm 0.5KG, carton
Delivery Time:
5-8 workdays
Payment Terms:
D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability:
5000pcs per month
Highlight:

FPV Lora Counter Module

,

100W Lora Counter FPV Module

Product Description
Product Description

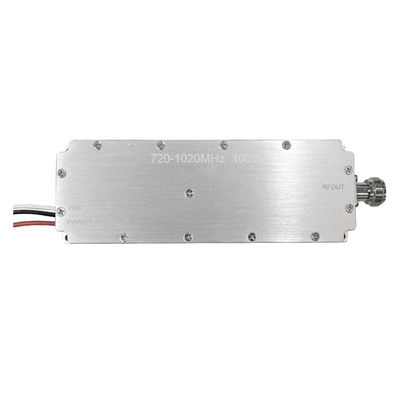

720-1020MHz 100W Lora Counter FPV Module 0







Specification

1.Overview


700-1000Mhz/720-1020Mhz 150w 100W-160w

The traversing machine countermeasures digital modulation power amplifier module is a traversing machine countermeasure module that includes a countermeasure signal source and a power amplifier. It can be used directly after connecting to the antenna.

The module uses an FPGA logic chip as the main control, combined with the excellent frequency stability of the frequency-locked VCO to create an anti-travel machine digital modulation signal plus power amplifier module.

The digital modulation signal is generated internally by the FPGA, modulated on the carrier with the VCO as the oscillation
frequency, and is emitted through the countermeasures process of the antenna.

The module uses a 50Ω SMA radio frequency interface output, which can be easily connected to the SMA interface power amplifier module.

2.Performance Characteristics


1)Supported frequency: 300-1200MHz, 2.4GHz, etc.
2)Output power: 150w 100W-160w optional
3)Small size, convenient for user integration
4)Industrial-grade application design, using industrial-grade chips, suitable for industrial-grade applications
5)Can effectively and accurately counter FPV drones

3.Basic functions


Set the digital modulation signal parameters of the counter source according to the remote control frequency band of the FPV , and modulate to the customized frequency band. The modulated counter signal is filtered through the RF front stage and output to the antenna through power amplification, forming the wireless signal of the remote control signal of the counter crossing machine.

4.Application instructions


The module power source is 24~28V, the module design is small for machine integration; the RF output SMA port of digital modulation amplifier counter module is impedance 50 Ω interface, the output transmission antenna, and the interface impedance must be consistent.The integrated working temperature should not exceed the working temperature of the module, and ensure good heat dissipation.

5.Use frequency range


The customized frequency band corresponds to the remote control signal of the F P V DR O N E , and the countermeasures over the frequency range has no effect.

6.Interference distance and output power configurati


The interference distance is related to the output power of the power amplifier and the transmitting antenna. The greater the antenna gain, the greater the output power, and the farther the counter distance. At the same time, the best effect is in the unshielding environment, that is, no shielding between the counter signal and the FPV drone
Item
Parameters
Remark
Operating Voltage
24V-28V

Output Power
100W
30W-100W
Frequency
300~1200MHz,2.4GHz ISM
Full frequency band can be customized
Current
8-10A

RF interface
N
RF output
RF interface impedance
50Ω

Size
156*54*23mm

Temperature
-40℃+80℃
Industrial grade
Packing & Delivery
720-1020MHz 100W Lora Counter FPV Module 1
Company Profile

720-1020MHz 100W Lora Counter FPV Module 2



FAQ

1.Why Choose us?

We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
Tags:

Counter Fpv Lora Module,

Lora Anti UAV Module,

Anti Drone Lora Module
