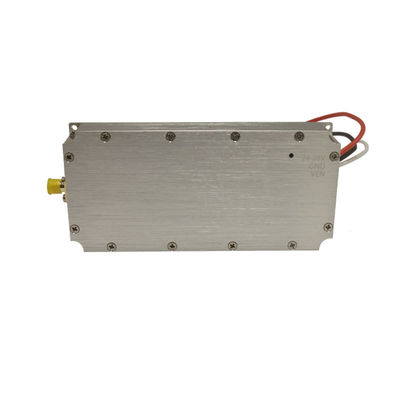

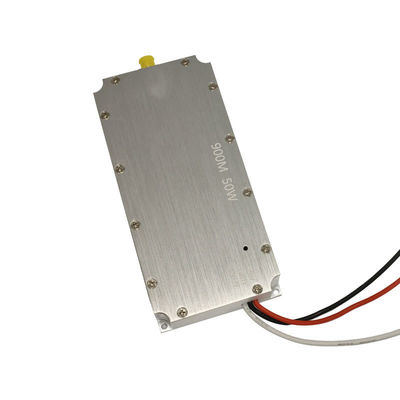

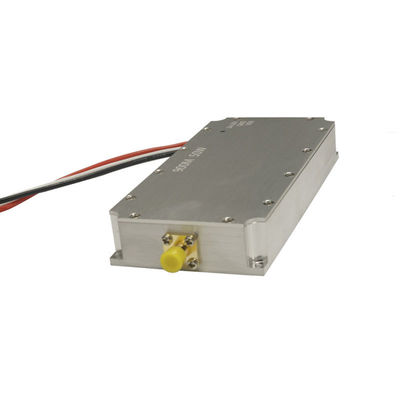

Anti UAV 50W Portable RF Power Amplifier Module with RS485 Communication at -20C-80C
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 2 piece |
| Price | $105.00/sets 2-99 sets |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 900mhz 50W Module | Frequency | 900Mhz |
|---|---|---|---|
| Power | 50W(47dbm) | Weight | 248 G |
| Input/Output VSWR | 1.5dB | Product Size | 135*50*20mm |
| Supply Voltage | DC 24-28V | Operating Temperature | -20℃-80℃ |
| RF Connector | SMA | ||
| Highlight | Portable RF Power Amplifier Module |
||
Product Description
Product Description
Company Profile
Tatusky Technology Co.,Ltd
We bring over a decade of expertise as custom manufacturers in the counter UAV industry, backed by 6 years of specialized experience. With nearly 6 years dedicated to counter drone production and over 10 years successfully operating overseas, we've delivered hundreds of products globally. Leveraging our established reputation and robust presence in the counter drone sector, we've forged extensive partnerships with anti-drone companies and factories. Drawing from our team's accumulated decade-long expertise in counter drone technology and project management, we deliver products and services tailored to the evolving needs of drone countermeasures.
Summarize
1.The power amplifier uses domestic core key components and can operate normally at low temperatures of -40°C.
2.This document stipulates the radio frequency and monitoring technical indicators of the 900Mhz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
3.This document applies to all aspects of product design, verification, production and quality inspection of the 900Mhz 50W power amplifier module.
2.This document stipulates the radio frequency and monitoring technical indicators of the 900Mhz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
3.This document applies to all aspects of product design, verification, production and quality inspection of the 900Mhz 50W power amplifier module.
Product Overview
Frequency | 900mhz |
Power | 50W(47dbm) |
Supply Voltage | DC 24-28V |
Power Flatness | 1-1.5dB |
Input/Output VSWR | 1.5dB |
Supply Current | 3.5A |
Size | 125*60*20mm |
Weight | 248 g |
Operating Temperature | -20℃-80℃ |
RF Connector | SMA |
Connect line | RED:DC24-28V BLACK:GND WHITE:ENABLE |
PACKING AND DELIVERY
Each piece is individually packed into a bag and then packed into a carton.
Lead Time
Quantity (sets) | >500 | >1000 | Others |
Lead time (days） | 5 days | about 7-14 days | Negociation |
