4000-8000MHz 100W GaN Technology PA Module for Anti-Drone Systems RF Power Amplifier Module

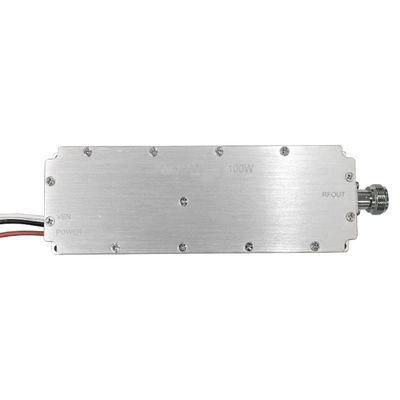

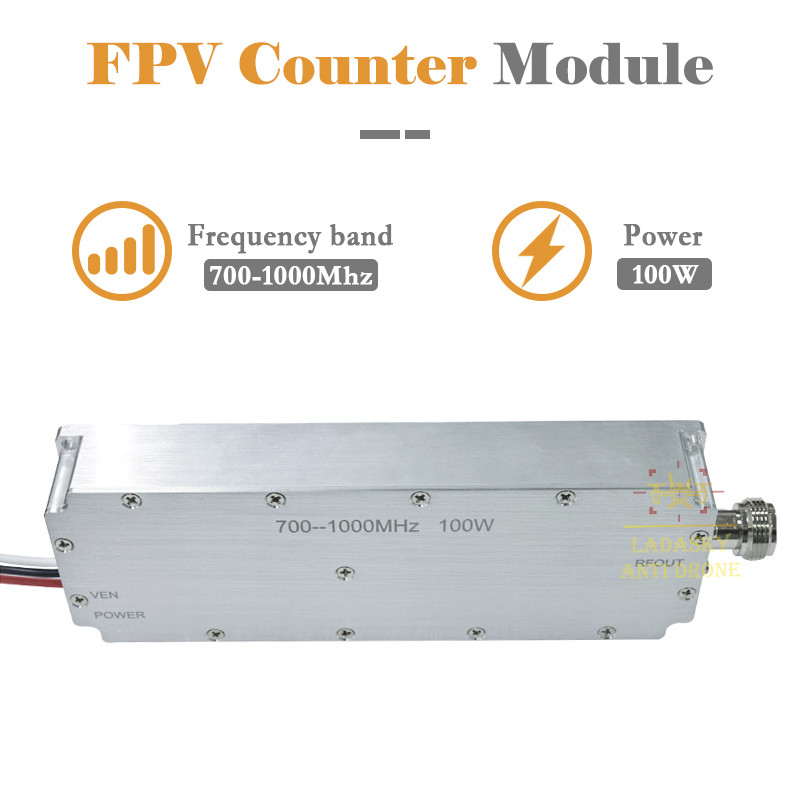

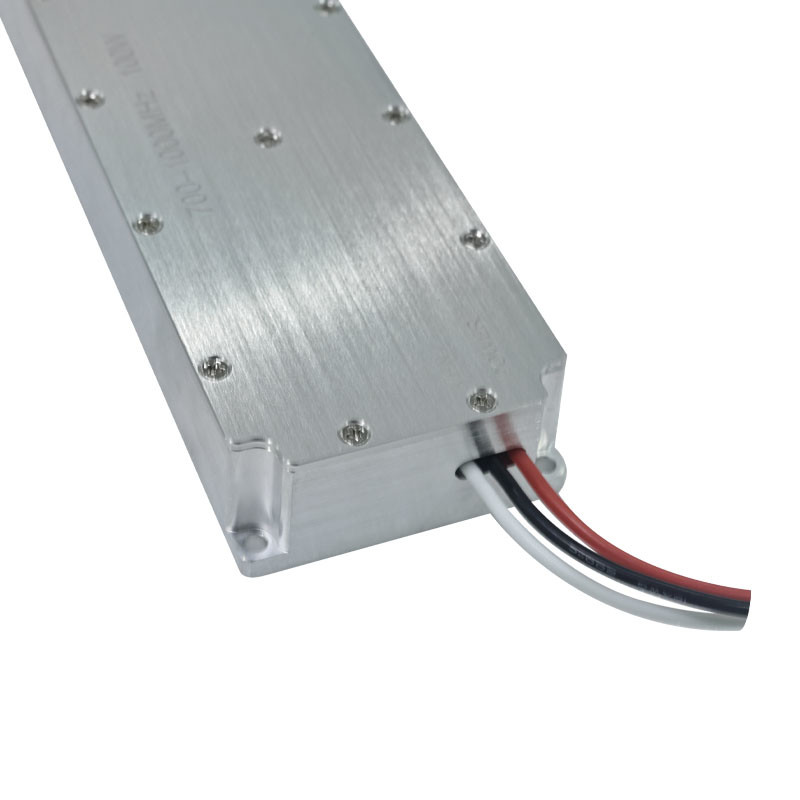

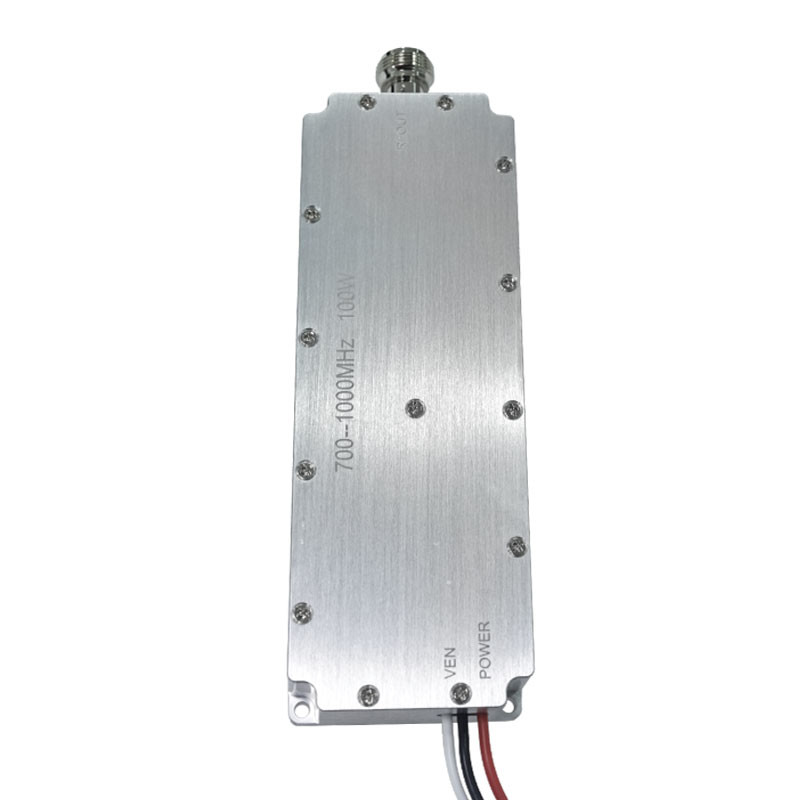

4000-8000MHz 100W PA Module for Anti-Drone System Product Overview LDK-4000-8000MHz 100W PA Module Power Amplifier for portable anti-drone RF applications. This module operates without an internal signal source, supporting external signal input while maintaining stable 100W output power. This series ...
100W Anti FPV Lora Module
,Fpv Counter Power Amplifier Module
,Lora Anti FPV Module
LDK-4000-8000MHz 100W PA Module Power Amplifier for portable anti-drone RF applications. This module operates without an internal signal source, supporting external signal input while maintaining stable 100W output power.
This series of GaN power amplifier modules utilizes advanced gallium nitride technology, featuring high efficiency, high gain, wide bandwidth, and excellent thermal stability. The compact design supports multi-band coverage and multiple power levels, offering strong compatibility and easy integration into various end devices.
| Item | Specification | Unit | Remarks |
|---|---|---|---|
| Frequency Range | 300-2700 | MHz | |
| Working Voltage | 32 | V | |
| Max Output Power | 50±0.5 | dBm | 100W@≤9A Typical value |
| Power Amplifier Efficiency | 35 | % | @100W |
| Max Gain | 50 | dB | Max power gain |
| Gain Flatness | ≤5 | dB | |
| Standard Input Power | 5 | dBm | |
| Maximum Non-damaging Power | ≤10 | dBm | |
| Output Standing Waves | ≤2 | Network split test without power | |
| High and Low Temperature Test | Working Temperature | -10～+55 | ℃ |
| Power Stability | ±1.0@-40℃～+55℃ | dB | |
| Power Supply | ≥15A@+32Vdc | V | Continuous wave output 100W |
| Power Interface | Feedthrough capacitor | ||
| Control Communication Interface | 485 communication protocol TTL communication | Supports temperature, current, voltage detection, and RF output power detection. 2.54mm 2*4 connector. TTL communication allows communication with digital sources, enabling setting of digital source frequency band and output power. | |
| RF Output Connector | Input: SMA Output: N | ||
| Size | 170×78×24.5 | mm | |
| Mounting Holes | 164.3*72.5 | mm | M3.0 screws |
The TTSK-TZ-KPG-100W operates across 4000 MHz to 8000 MHz (4-8 GHz).
It delivers up to 100 watts of RF output power.
It uses GaN (Gallium Nitride) technology for high efficiency and reliability.
SMA connector for input, N-type connector for output. Custom options available.
It supports both forced air cooling and conductive heat sink cooling via the bottom-mounted heat sink.
