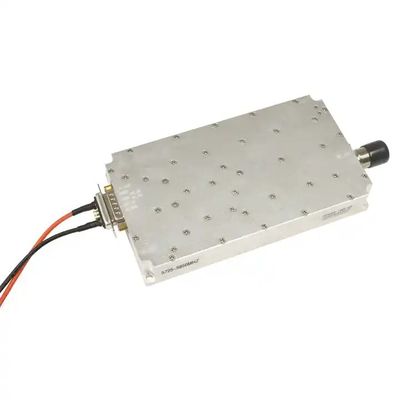

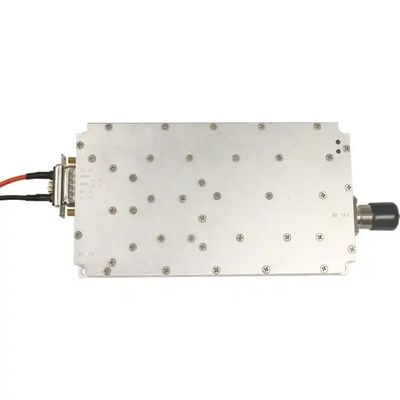

5.2G 100W GaN Amplifier Drone Counter Module for Anti Drone System and Autel RF Power
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 2 piece |
| Price | $650.00/pieces 2-49 pieces |
| Packaging Details | Each piece is individually packed into a bag and then packed into a carton. |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | GaN Module | Frequency | 5150-5350Mhz |
|---|---|---|---|
| Out Power | 100w | Gain | 45±1dB |
| Voltage | 30Vdc Range: 24-36V | Product Size | 170*94*26.5mm (excluding Connectors) |
| Product Weight | 1.5kg | Intra-band Fluctuations | ≤2.5 (peak-to-peak Value) |
| In-band Group Delay | ≤1us | Input Voltage Standing Wave Ratio | ≤1.35 |
| Highlight | 5.2G Drone Counter Module,5.2G Anti Drone Module,100W Anti Drone Module |
||
Product Description
Product Description

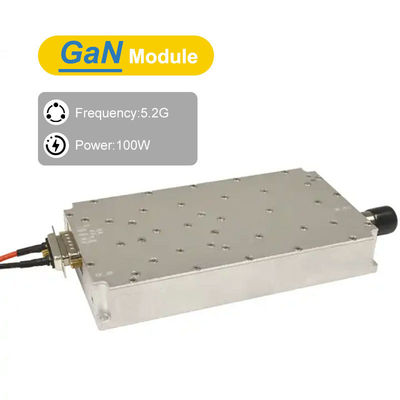

5150-5350Mhz 100W GaN Amplifier Module
Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:
① Power supply conditions: +30V power supply: 7W2 (male)1. Overall dimensions: 170*94*26.5mm
2. Interface form:
②RF input interface: SMA-KFD (optional)

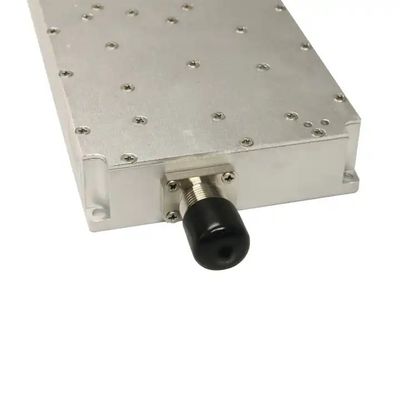

③RF output interface: N-KFD

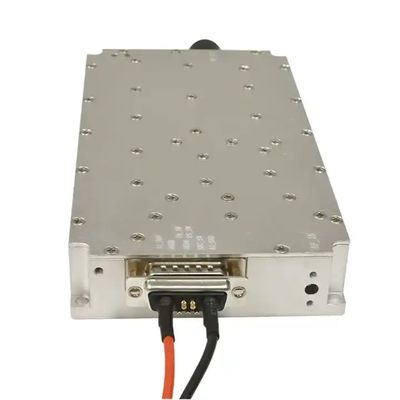

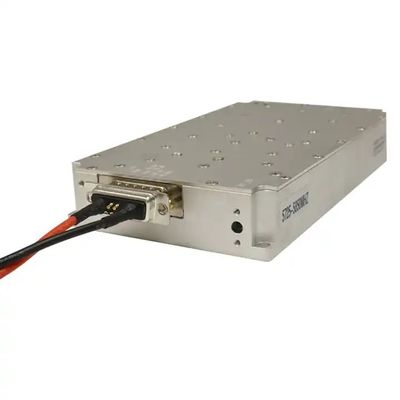

④Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
Frequency | 5150-5350Mhz |
Output Power(dBm) | 100W(50dBm) |
In-band group delay | ≤1us |
Gain | 45±1.0,45±1.0 (external input 9dbm, power amplifier output 50dbm) |
In-band fluctuation (dB) | ≤2.5 (peak-to-peak value) |
Input voltage standing wave ratio | ≤1.35 |
Output voltage standing wave ratio | ≤1.3 |
Supply voltage Typical | +30Vdc Range: 24-36V |
Supply current | +30Vdc@100W≤6.5A |
Output RF connector | N-50KFD |
Size | 170×94×26.5mm (excluding connectors) |
Input signal source | Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources |
1 7W2 male socket 2 Feedthrough capacitors (from top to bottom) | 1: A1 is the 30V power input, and A2 is GND; 2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source; |
Packing & Delivery
Each piece is individually packed into a bag and then packed into a carton.
