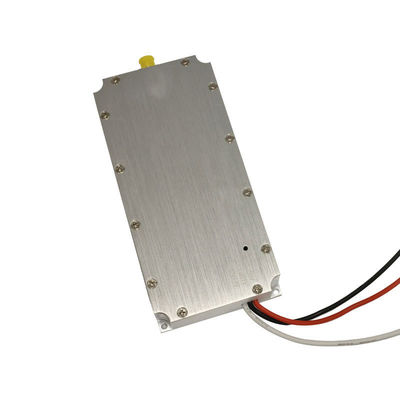

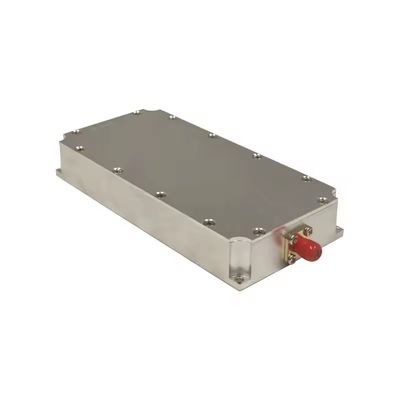

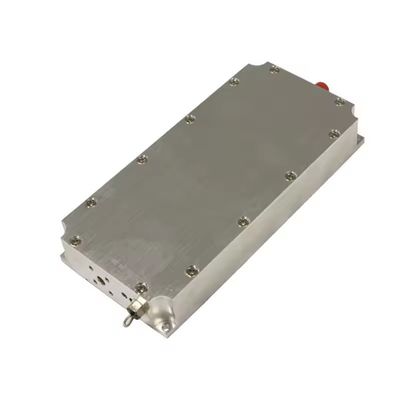

Portable RF Power Amplifier Module with RS485 Communication for anti UAV 433mhz 428-438MHZ 50W
Portable RF Power Amplifier Module with RS485 Communication for anti UAV 433mhz 428-438MHZ 50W
Basic Properties
Country Of Origin
Guangdong, China
Brand Name
LDSK
Trading Properties
MOQ
2 piece
Unit Price
$105.00/sets 2-99 sets
Payment Method
D/A, D/P, T/T, Western Union， Paypal
Supply Capacity
5000pcs per month
Product Summary
Product Description Company Profile Tatusky Technology Co.,Ltd We bring over a decade of expertise as custom manufacturers in the counter UAV industry, backed by 6 years of specialized experience. With nearly 6 years dedicated to counter drone production and over 10 years successfully operating ...
Product Details
Highlight:
50W RF Power Amplifier Module
,433mhz RF Power Amplifier Module
,RS485 RF Power Amplifier Module
Product Name:
RF Power Amplifier Module
Frequency:
433mhz
Out Power:
50W
Power Flatness:
1-1.5dB
Product Size:
125*60*20mm
Voltage:
DC 24-28V
Product Weight:
248 G
Supply Current:
3.5A
Connect Line:
RED:DC24-28V BLACK:GND WHITE:ENABLE
Product Description
Product Description
Company Profile
Tatusky Technology Co.,Ltd
We bring over a decade of expertise as custom manufacturers in the counter UAV industry, backed by 6 years of specialized experience. With nearly 6 years dedicated to counter drone production and over 10 years successfully operating overseas, we've delivered hundreds of products globally. Leveraging our established reputation and robust presence in the counter drone sector, we've forged extensive partnerships with anti-drone companies and factories. Drawing from our team's accumulated decade-long expertise in counter drone technology and project management, we deliver products and services tailored to the evolving needs of drone countermeasures.
Summarize
1.The power amplifier uses domestic core key components and can operate normally at low temperatures of -40°C.
2.This document stipulates the radio frequency and monitoring technical indicators of the 433Mhz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
3.This document applies to all aspects of product design, verification, production and quality inspection of the 433Mhz 50W power amplifier module.
2.This document stipulates the radio frequency and monitoring technical indicators of the 433Mhz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
3.This document applies to all aspects of product design, verification, production and quality inspection of the 433Mhz 50W power amplifier module.
Product Overview
Frequency | 433Mhz |
Power | 50W(47dbm) |
Supply Voltage | DC 24-28V |
Power Flatness | 1-1.5dB |
Input/Output VSWR | 1.5dB |
Supply Current | 3.5A |
Size | 125*60*20mm |
Weight | 248 g |
Operating Temperature | -20℃-80℃ |
RF Connector | SMA |
Connect line | RED:DC24-28V BLACK:GND WHITE:ENABLE |
PACKING AND DELIVERY
Each piece is individually packed into a bag and then packed into a carton.
Lead Time
Quantity (sets) | >500 | >1000 | Others |
Lead time (days） | 5 days | about 7-14 days | Negociation |
Recommand product
FAQ
1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.
2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.
