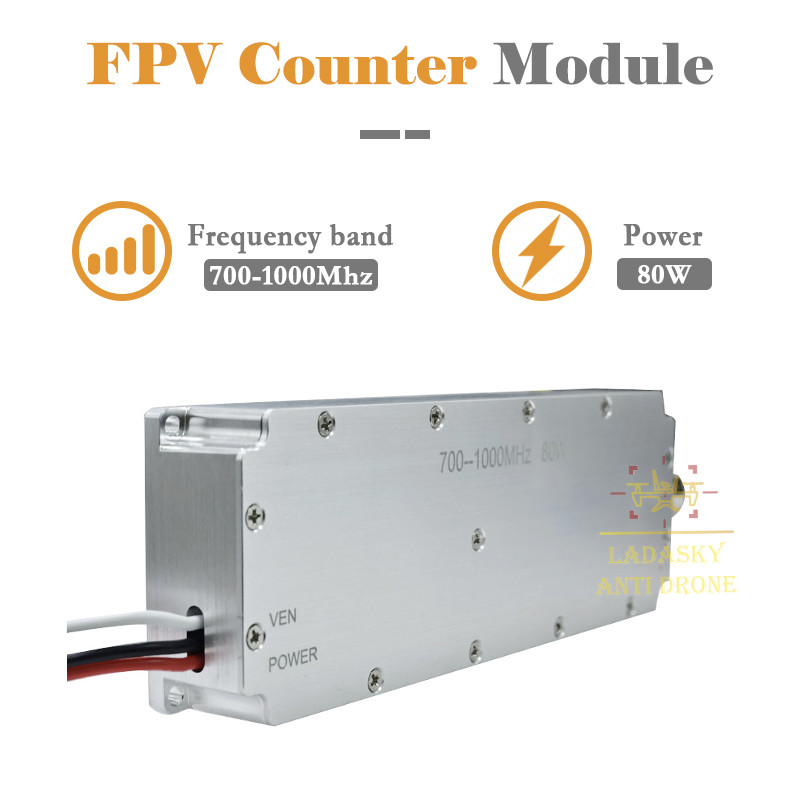

80W Anti FPV Digital Modulation Power Amplifier Module
  • name
  • name
  • name
  • name

80W Anti FPV Digital Modulation Power Amplifier Module

MOQ: 2 piece
Price: $135-$180 1-1000pcs
Standard Packaging: 20*10*5cm carton
Delivery Period: 5-8 workdays
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Capacity: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
LDSK
Work Frequency Band:
700-1000MHz, 2.4GHz ISM,Support Customization
Frequency:
700-1000mhz
Power:
80W 50W-100W Optional
Operating Voltage:
24-28V
Current:
4.5A-7A
RF Interface&RF Interface:
N Type
Size:
156*54*24mm
Special:
Lora Digital Source
Temperature:
-40℃+80℃
Minimum Order Quantity:
2 piece
Price:
$135-$180 1-1000pcs
Packaging Details:
20*10*5cm carton
Delivery Time:
5-8 workdays
Payment Terms:
D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability:
5000pcs per month
Highlight:

Digital Modulation Power Amplifier Module

,

Anti FPV Power Amplifier Module

Product Description
Product Description

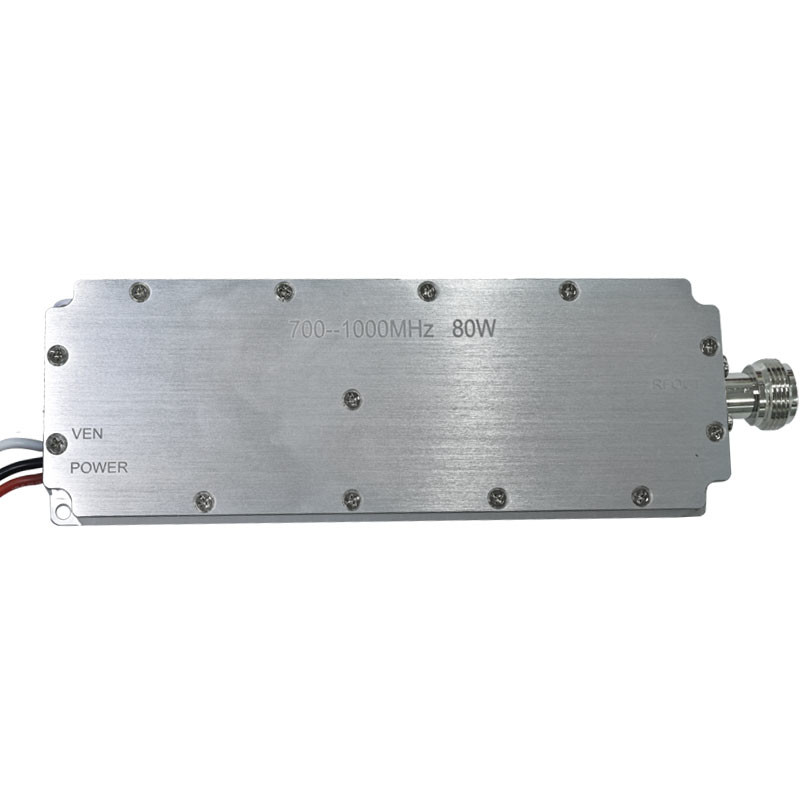

80W Anti FPV Digital Modulation Power Amplifier Module 0

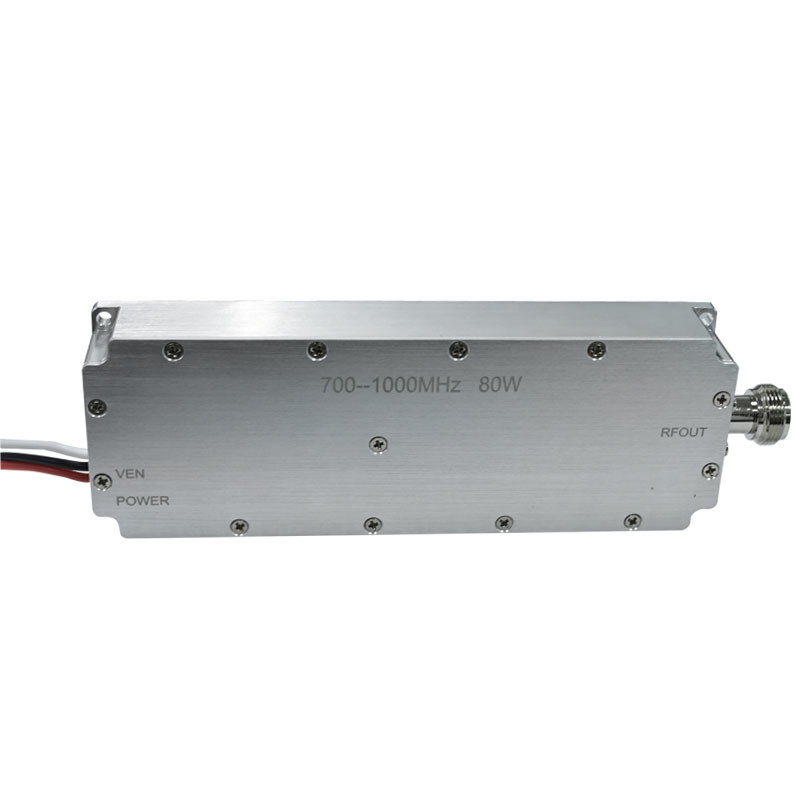

80W Anti FPV Digital Modulation Power Amplifier Module 1

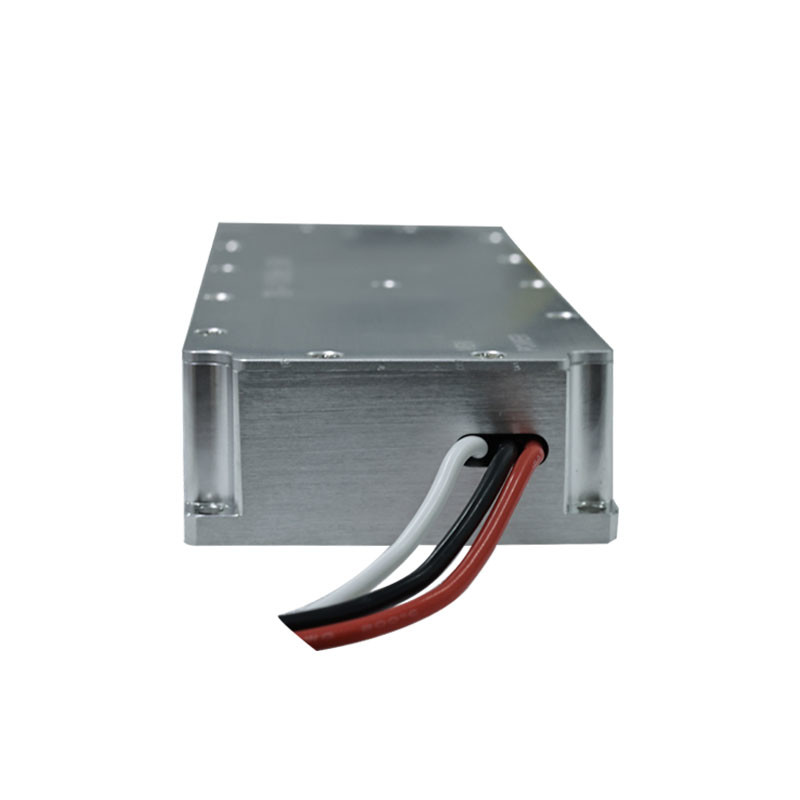

80W Anti FPV Digital Modulation Power Amplifier Module 2






Specification

1.Overview


700-1000Mhz/720-1020Mhz 50W-100W

The traversing machine countermeasures digital modulation power amplifier module is a traversing machine countermeasure module that includes a countermeasure signal source and a power amplifier. It can be used directly after connecting to the antenna.

The module uses an FPGA logic chip as the main control, combined with the excellent frequency stability of the frequency-locked VCO to create an anti-travel machine digital modulation signal plus power amplifier module.

The digital modulation signal is generated internally by the FPGA, modulated on the carrier with the VCO as the oscillation
frequency, and is emitted through the countermeasures process of the antenna.

The module uses a 50Ω SMA radio frequency interface output, which can be easily connected to the SMA interface power amplifier module.

2.Performance Characteristics


1)Supported frequency: 300-1200MHz, 2.4GHz, etc.
2)Output power: 80w 50W-100W optional
3)Small size, convenient for user integration
4)Industrial-grade application design, using industrial-grade chips, suitable for industrial-grade applications
5)Can effectively and accurately counter FPV drones

3.Basic functions


Set the digital modulation signal parameters of the counter source according to the remote control frequency band of the FPV , and modulate to the customized frequency band. The modulated counter signal is filtered through the RF front stage and output to the antenna through power amplification, forming the wireless signal of the remote control signal of the counter crossing machine.

4.Application instructions


The module power source is 24~28V, the module design is small for machine integration; the RF output SMA port of digital modulation amplifier counter module is impedance 50 Ω interface, the output transmission antenna, and the interface impedance must be consistent.The integrated working temperature should not exceed the working temperature of the module, and ensure good heat dissipation.

5.Use frequency range


The customized frequency band corresponds to the remote control signal of the F P V DR O N E , and the countermeasures over the frequency range has no effect.

6.Interference distance and output power configurati


The interference distance is related to the output power of the power amplifier and the transmitting antenna. The greater the antenna gain, the greater the output power, and the farther the counter distance. At the same time, the best effect is in the unshielding environment, that is, no shielding between the counter signal and the FPV drone
Item
Parameters
Remark
Operating Voltage
24-28V

Output Power
50W-100W
Customize
Frequency
300~1200MHz,2.4GHz ISM
Full frequency band can be customized
Current
5-7A

RF interface
SMA
RF output
RF interface impedance
50Ω

Size
156*54*24mm

Temperature
-40℃+80℃
Industrial grade
Packing & Delivery
80W Anti FPV Digital Modulation Power Amplifier Module 3
Company Profile
Ladasky Technology Co.,Ltd
Shenzhen Ladasky Technology Co.,LTD. specializes incutting-edge anti-drone modules and integrated solutions. With our own state-of-the-art factory, we offer highly competitivepricing and exceptional product quality, garnering widespreadacclaim from our international clientele.
80W Anti FPV Digital Modulation Power Amplifier Module 4
FAQ
1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3.How to contact us?
amber@ladaskytech.com

Tags:

Counter Fpv Lora Module,

Lora Anti UAV Module,

Anti Drone Lora Module
