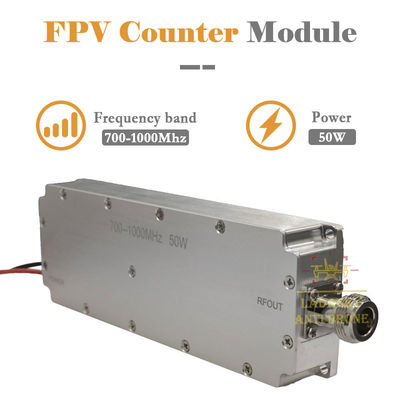

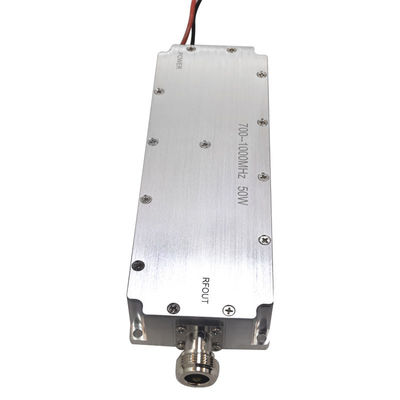

50W Digital Modulation Power Amplifier Lora Module Anti FPV 700-1000MHz 720-1020MHz

Brand Name:	LDSK
MOQ:	2 piece
Price:	$135-$180 1-1000pcs
Delivery Time:	5-8 workdays
Payment Terms:	D/A, D/P, T/T, Western Union， Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Product Name:

RF LDMOS Lora Anti FPV Module

Frequency&Power:

700-1000MHz 50w

Current:

4.5A-7A

RF Input/output Connector:

N TAYP

Dimensions(mm):

156*54*24mm

Supply Voltage:

DC 24-28V

RF Interface Impedance:

50Ω

TEMPERATURE RANGE:

-40℃+80℃

Special:

Digital Source Lora Module

Packaging Details:

20*10*5cm carton

Supply Ability:

5000pcs per month

Highlight:

Digital Modulation Lora Module

Lora Module Anti FPV

50W Lora Module Anti FPV

Product Description

50W Digital Modulation Power Amplifier Lora Module Anti-FPV Module 700-1000MHz 720-1020MHz

Product Description

Product Name	Ladasky 700-1000MHz 50W Digital Modulation Power Amplifier Lora Module Anti-FPV Module
Out Power	50W
Frequency	700-1000MHz (Support customized)
RF interface	N
RF interface impedance	50Ω
Weight	436G
Size	1565424mm
Circulator	Yes
Connect line	RED: DC 28V BLACK: GND WHITE: ENABLE
Special	Lora module, digital source module

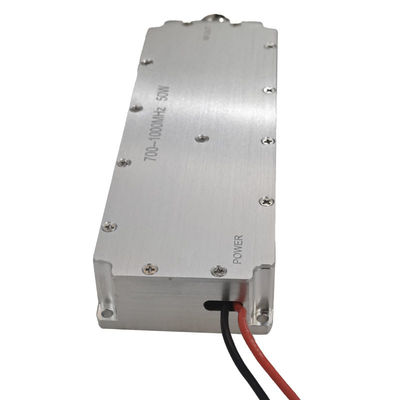

Details Images

Overview

1. Brief Introduction

The traversing machine countermeasures digital modulation power amplifier module is a traversing machine countermeasure module
that includes a countermeasure signal source and a power amplifier. It can be used directly after connecting to the antenna.

The module uses an FPGA logic chip as the main control, combined with the excellent frequency stability of the frequency-locked VCO to create an anti-travel machine digital modulation signal plus power amplifier module.

The digital modulation signal is generated internally by the FPGA, modulated on the carrier with the VCO as the oscillation
frequency, and is emitted through the countermeasures process of the antenna.

The module uses a 50Ω SMA radio frequency interface output, which can be easily connected to the SMA interface power amplifier module.

2.Performance Characteristics

1)Supported frequency: 300-1200MHz, 2.4GHz, etc.
2)Output power: 50W
3)Small size, convenient for user integration
4)Industrial-grade application design, using industrial-grade chips, suitable for industrial-grade applications
5)Can effectively and accurately counter FPV drones

3.Basic functions

Set the digital modulation signal parameters of the counter source according to the remote control frequency band of the FPV , and modulate to the customized frequency band. The modulated counter signal is filtered through the RF front stage and output to the antenna through power amplification, forming the wireless signal of the remote control signal of the counter crossing machine.

4.Application instructions

The module power source is 24~28V, the module design is small for machine integration; the RF output SMA port of digital modulation amplifier counter module is impedance 50 Ω interface, the output transmission antenna, and the interface impedance must be consistent.The integrated working temperature should not exceed the working temperature of the module, and ensure good heat dissipation.

5.Use frequency range

The customized frequency band corresponds to the remote control signal of the FPV DRONE , and the countermeasures over the frequency range has no effect.

6.Interference distance and output power configuration

The interference distance is related to the output power of the power amplifier and the transmitting antenna. The greater the antenna gain, the greater the output power, and the farther the counter distance. At the same time, the best effect is in the unshielding environment, that is, no shielding between the counter signal and the FPV drone.

Packing&Shipping

Company Introduction

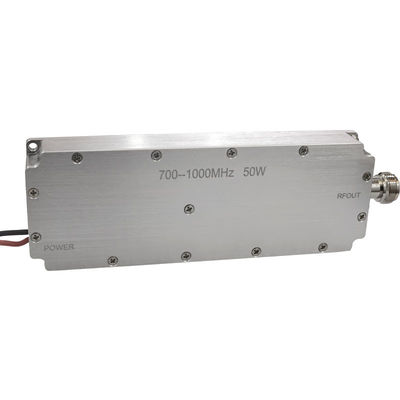

50W Digital Modulation Power Amplifier Lora Module Anti FPV 700-1000MHz 720-1020MHz 4

FAQ

Q1: Are you a factory or trading company?

A1: We are a factory, which locates in Shenzhen City, China. Welcome to visit us:)

Q2: How about the shipping method?
A2: DHL/UPS/TNT/FedEx and other air shipments and sea shipment are all workable. In one words, we support do any shipments you want.

Q3: How about the delivery date?
A3: In general, the delivery date will be 5-7 working days for normal buy quantity. But if bulk order, please allow us check
further.

Q4: How about the label and logo?
A4: Customize label and logo are workable.

Q5: How about the MOQ?
A5: 1 PCS

Q6: How to do if the product I received is defective?
A6: Our strict quality control ensures 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a part or product.

Q7: How to contact us?
A7:amber@ladaskytech.com
