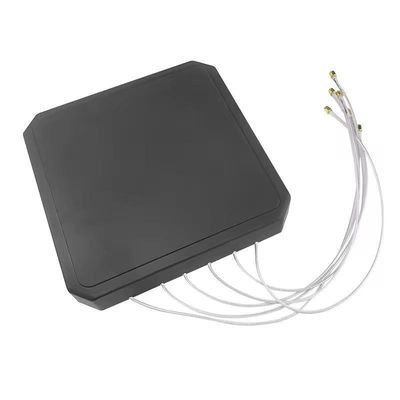

6 Band 26cm 17dBi MIMO Directional Panel Antenna Waterproof for Drone System
6 Band 26cm 17dBi MIMO Directional Panel Antenna Waterproof for Drone System
Basic Properties
Country Of Origin
Guangdong, China
Brand Name
LDSK
Trading Properties
MOQ
2 piece
Payment Method
D/A, D/P, T/T, Western Union， Paypal
Supply Capacity
5000pcs per month
Product Summary
Parameters Frequency 840-920MHz 8dbi 1100-1300MHz 12dbi (410-485MHz 7dbi) 1560-1620MHz 12dbi 2400-2500MHz 14.5dbi 5150-5350MHz 17dbi 5700-5900MHz 17dbi VSWR ≤1.5 Maximum input power(W) 50W (100W is customized not standard ) Input connector type N*J or customized (Wire length customized too ) ...
Product Details
Highlight:
MIMO Directional Panel Antenna
,Waterproof Drone System Panel Antenna
,Panel Drone Defense Antenna
Inpur Connector Type:
N*J Or Customized (Wire Length Customized Too )
Size:
260*260*40mm
Weight:
0.885kg
Material:
ABS
Transport Package:
Carton
Trademark:
TTSK
Origin:
Guangdong, China
Package Gross Weight:
2.000kg
Gain:
8-17 DBi
Frequency:
840-5900 MHz
Vswr:
<1.5A
Samples:
US$ 50/Piece
Customization:
Available | Customized Request
Product Description
|
Frequency
|
840-920MHz 8dbi
|
|
1100-1300MHz 12dbi (410-485MHz 7dbi)
|
|
|
1560-1620MHz 12dbi
|
|
|
2400-2500MHz 14.5dbi
|
|
|
5150-5350MHz 17dbi
|
|
|
5700-5900MHz 17dbi
|
|
|
VSWR
|
≤1.5
|
|
Maximum input power(W)
|
50W (100W is customized not standard )
|
|

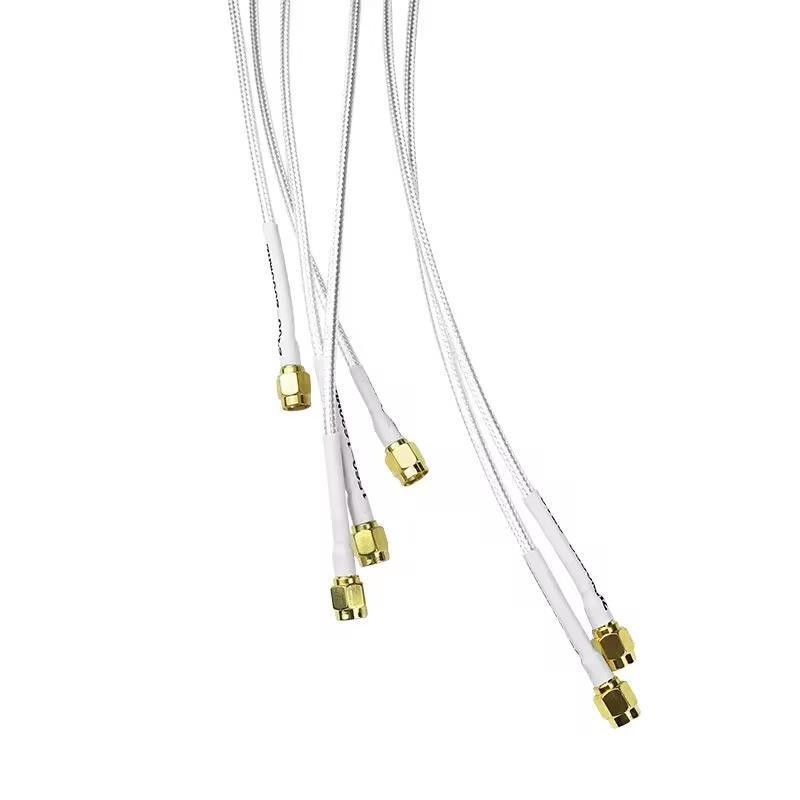

Input connector type
|
N*J or customized (Wire length customized too )
|
|
Lightning Protection
|
DC Ground
|
|

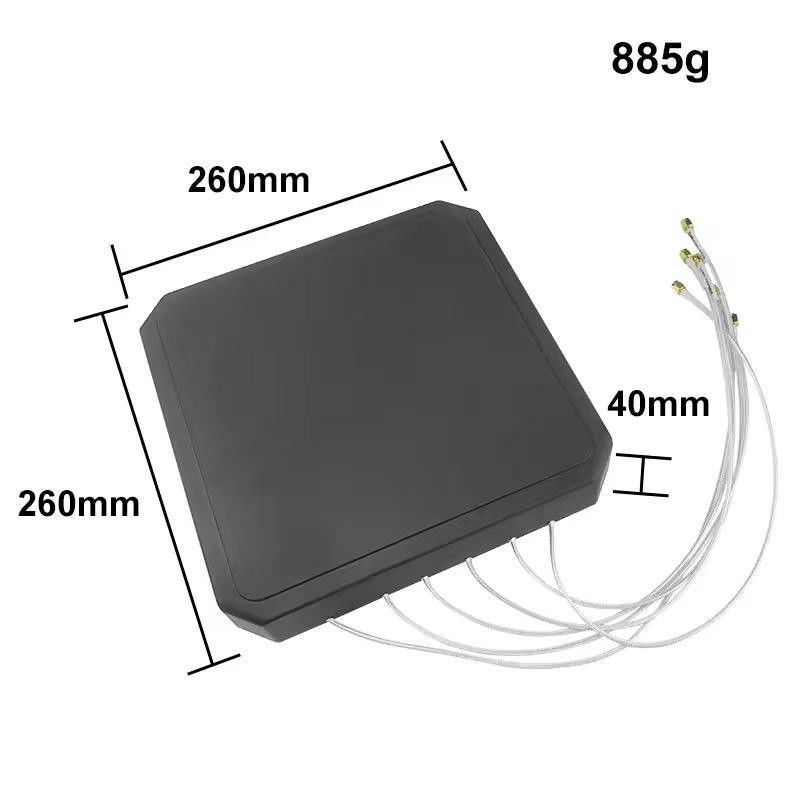

Dimensionsmm(Height/Width/Depth)
|
260*260*40mm
|
|
Antenna weight(kg)
|
885g
|
|
Rated Wind Velocity(m/s)
|
60m/s
|
|
Operational Humidity(%)
|
10- 95
|
|
Radome Color
|
Black color
|
|
Radome material
|
ABS
|
|
Operating temperature(ºC)
|
-30~70 º
|
|
Installution Method
|
Handheld
|
|
Mounting hardware(mm)
|
¢30~¢75
|
|
Mechanical tilt(º)
|
0-10º
|
|
Quantity (sets)
|
1-50
|
> 50
|
|
Lead time (days)
|
less than 7 days
|
7-14days
|
