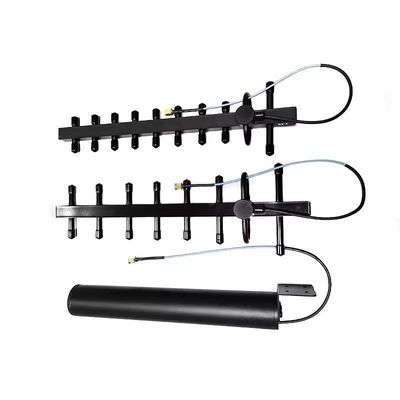

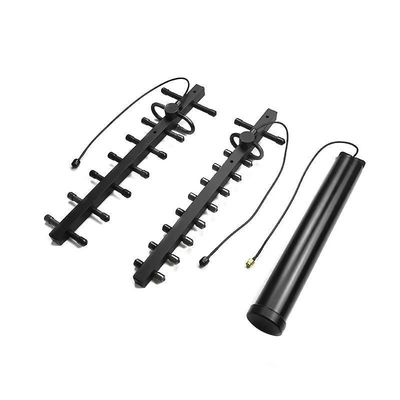

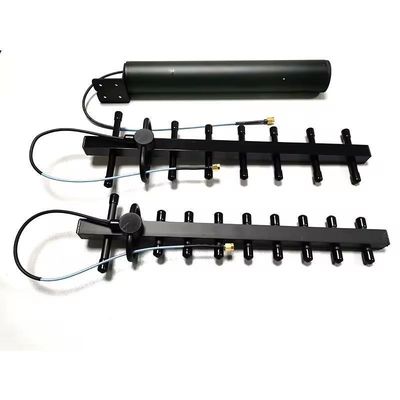

Silver 2.4G High Gain Yagi Antenna Outdoor Counter UAV Vswr 2.0A 2400-2500MHz
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 2 piece |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connect | SMA | Working Temperature | -40~90 °c |
|---|---|---|---|
| Colour | Silver | Weight | 0.5kg |
| Material | Aluminum | Transport Package | Carton |
| Origin | Guangdong, China | Gain | 10 DBi |
| Frequency | 2.4GHz | Vswr | <2.0A |
| Samples | US$ 28/Piece | Customization | Available | Customized Request |
| Highlight | 2.4G High Gain Yagi Antenna,Outdoor Counter UAV Antenna,10 dBi Counter UAV Yagi Antenna |
||
Product Description
|
Electrical Specifications
|
|
|
Frequency Range
|
2400-2500MHz
|
|
Gain(dBi)
|
13±1dBi
|
|
VSWR
|
≤2.0
|
|
Polarization
|
Vertical
|
|
Horizontal Beamwidth(0º)
|
40±10º
|
|
Vertical Beamwidth(0º)
|
35±8º
|
|
Input Impedance(Ω)
|
50Ω
|
|
Maximum input power(W)
|
50W
|
|
Input connector type
|
SMA-J leads to RG141 feeder 5CM
|
|
Lightning Protection
|
DC Ground
|
|

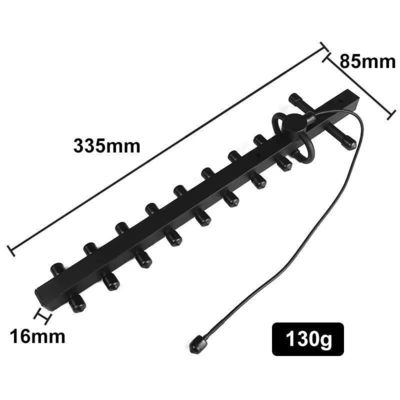

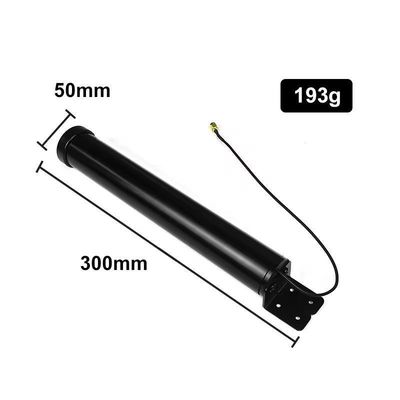

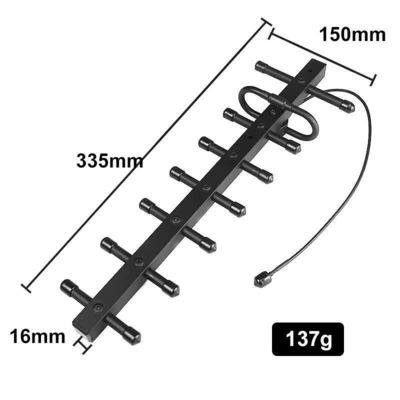

Mechanical Specifications
|
|
|
Dimensionsmm(Height/Width/Depth)
|
370*63*20.5MM
|
|
Packing size(mm)
|
480*350*110MM
|
|
Antenna weight(kg)
|
0.1KG
|
|
Operating temperature(ºC)
|
-30~65º
|
|
Installution Method
|
Machine installation
|
|
Quantity (sets)
|
1-50
|
> 50
|
|
Lead time (days)
|
less than 7 days
|
7-14days
|
