Product Details:
Payment & Shipping Terms:
|
Connect: | SMA | Working Temperature: | -40~90 °c |
---|---|---|---|
Colour: | Silver | Weight: | 0.5kg |
Material: | Aluminum | Transport Package: | Carton |
Origin: | Guangdong, China | Gain: | 10 DBi |
Frequency: | 2.4GHz | Vswr: | <2.0A |
Samples: | US$ 28/Piece | Customization: | Available | Customized Request |
Highlight: | Vertical Polarization Anti FPV Device,Anti FPV Device Yagi Antenna,Drone Defense Yagi Antenna |

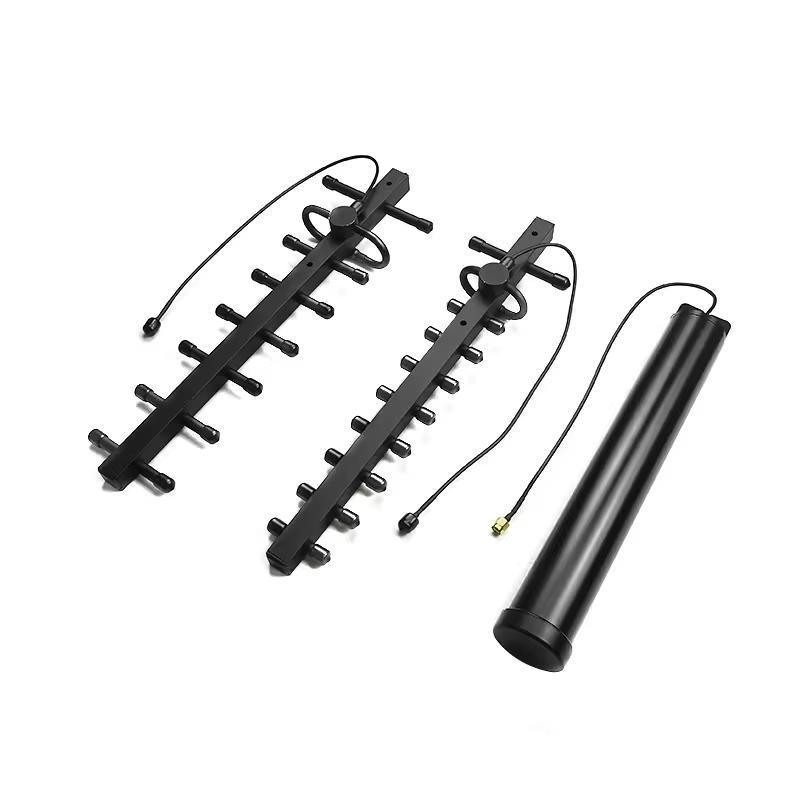

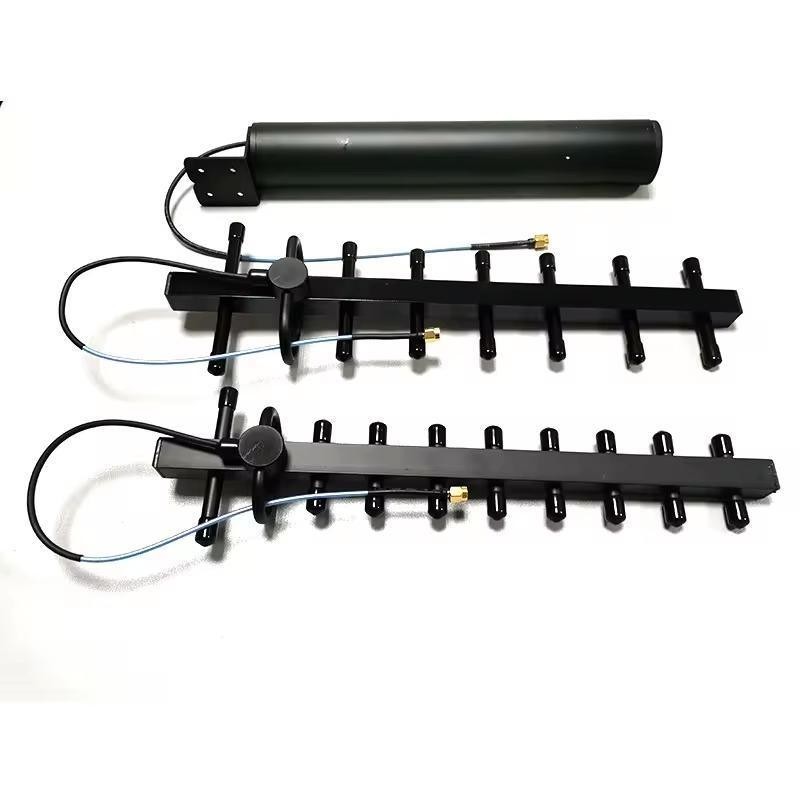

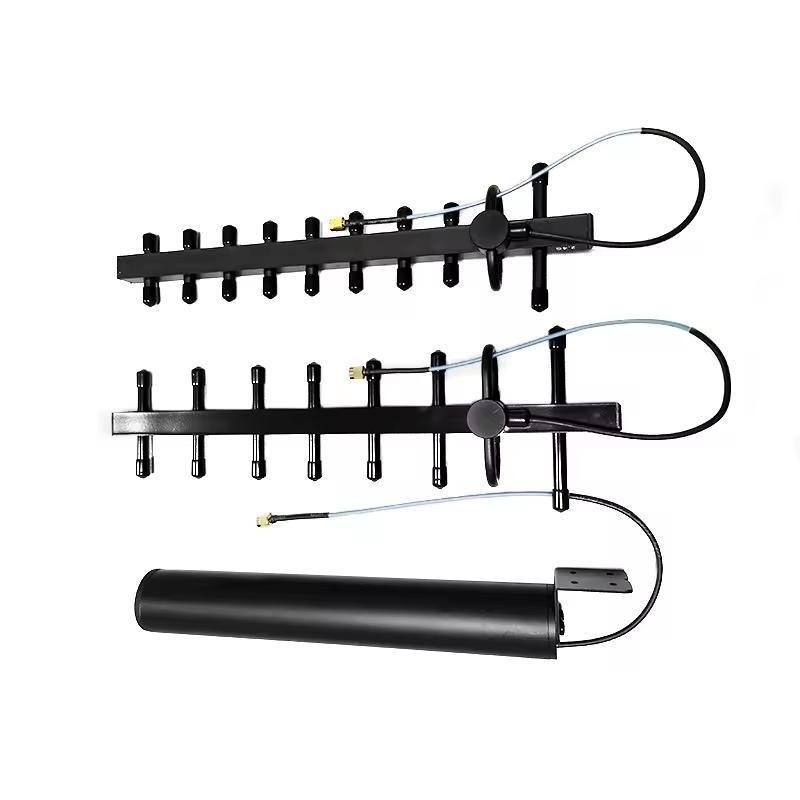

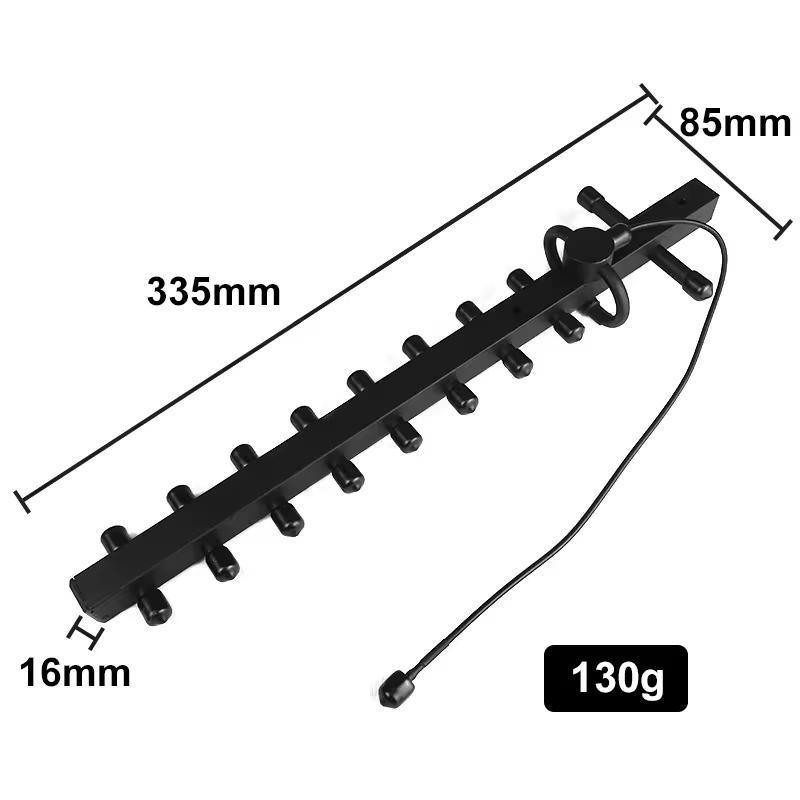

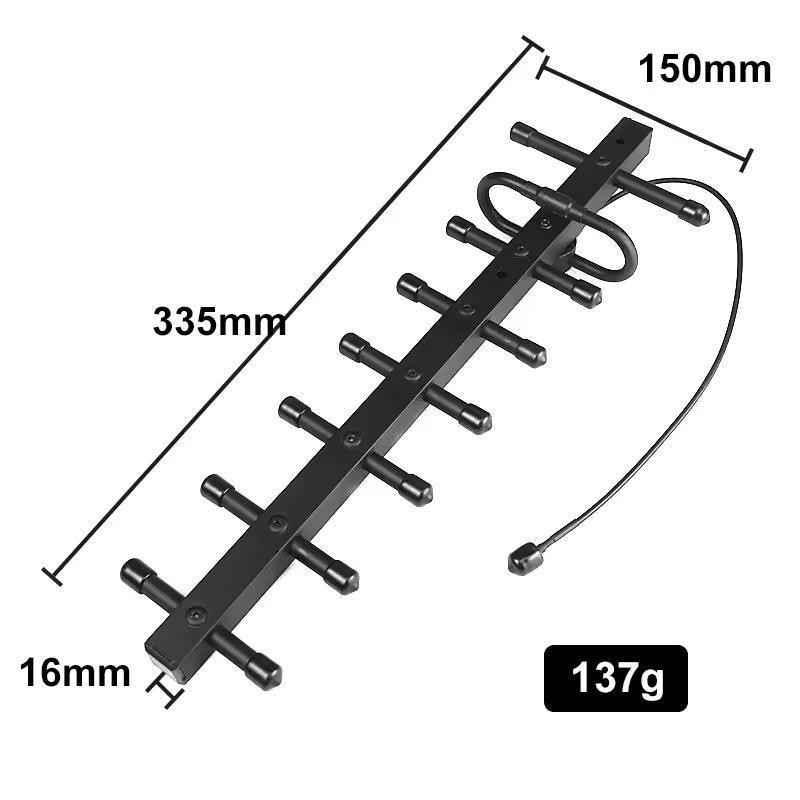

2400-2500MHz Anti FPV Device High Gain Yagi Antenna Aluminum Vertical Polarization
Electrical Specifications
|
|
Frequency Range
|
2400-2500MHz
|
Gain(dBi)
|
13±1dBi
|
VSWR
|
≤2.0
|
Polarization
|
Vertical
|
Horizontal Beamwidth(0º)
|
40±10º
|
Vertical Beamwidth(0º)
|
35±8º
|
Input Impedance(Ω)
|
50Ω
|
Maximum input power(W)
|
50W
|
Input connector type
|
SMA-J leads to RG141 feeder 5CM
|
Lightning Protection
|
DC Ground
|
Mechanical Specifications
|
|
Dimensionsmm(Height/Width/Depth)
|
370*63*20.5MM
|
Packing size(mm)
|
480*350*110MM
|
Antenna weight(kg)
|
0.1KG
|
Operating temperature(ºC)
|
-30~65º
|
Installution Method
|
Machine installation
|
Quantity (sets)
|
1-50
|
> 50
|
Lead time (days)
|
less than 7 days
|
7-14days
|
