Horn antenna 2G-8G/2000-8000MHZ 18dBi high gain antenna 2-8Ghz antenna anti drone antenna wideband

Brand Name:	LDSK
MOQ:	1 piece
Price:	$2285
Delivery Time:	5-8 workdays
Payment Terms:	D/A, D/P, T/T, Western Union， Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Frequency Range:

2-8Ghz

Gain:

18 DBi

VSWR:

1.4 Typ.

Polarization:

Linear

Cross Pol. Isolationn:

50Typ.

3dB Beamwidth:

H-Plane: 29-17

Connector:

SMA-Female

Finishing:

Paint Black

Material:

Size (L*W*H):

765.99*439.92*439.92mm

Weight:

7.415KG

Supply Ability:

500pcs per month

Highlight:

UAV Communication Fiberglass Omni Antenna

Uav Defense Antenna 60cm

Anti Uav Fiberglass Omni Antenna

Product Description

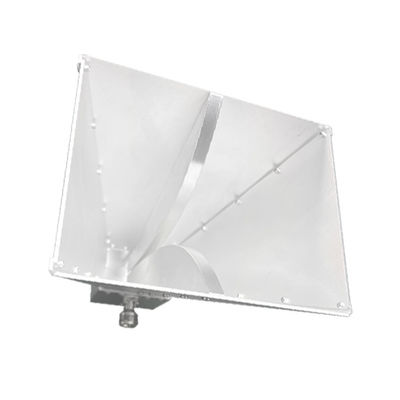

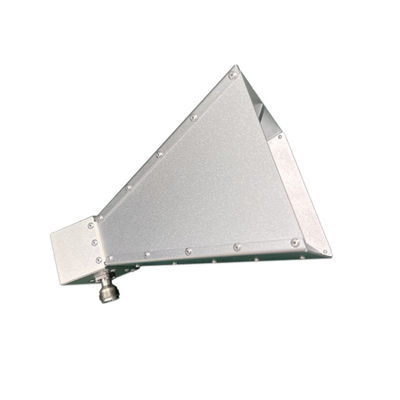

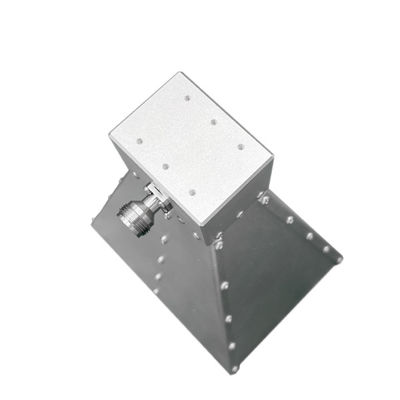

Horn antenna 2G-8G/2000-8000MHZ 18dBi high gain antenna 2-8Ghz antenna anti drone antenna

Product Description

Horn-BDHA28-18
Parameters	Specifications	Units
Frequency Range	2-8	GHz
Gain	18 Typ.	dBi
VSWR	1.4 Typ.
Polarization	Linear
Cross Pol. Isolation	50Typ.	dB
3dB Beamwidth	E-Plane: 29-12	deg
	H-Plane: 29-17
Connector	SMA-Female
Finishing	Paint Black
Material	Al
Size (LWH)	765.99439.92439.92	mm
Weight	7.415	kg

Outline Drawing(size:mm)

Horn antenna 2G-8G/2000-8000MHZ 18dBi high gain antenna 2-8Ghz antenna anti drone antenna wideband 0

Simulated Data

Horn antenna 2G-8G/2000-8000MHZ 18dBi high gain antenna 2-8Ghz antenna anti drone antenna wideband 1

Horn antenna 2G-8G/2000-8000MHZ 18dBi high gain antenna 2-8Ghz antenna anti drone antenna wideband 2

Horn antenna 2G-8G/2000-8000MHZ 18dBi high gain antenna 2-8Ghz antenna anti drone antenna wideband 3

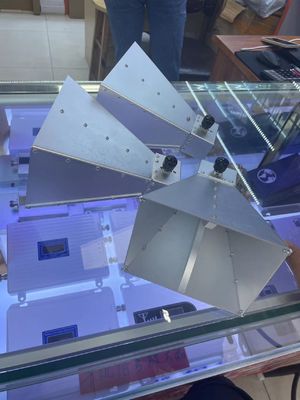

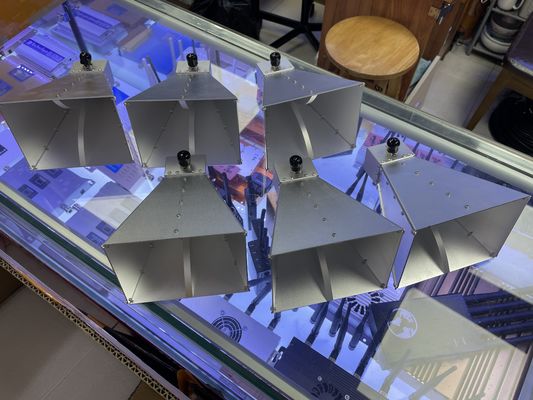

Company Product

Horn antenna 2G-8G/2000-8000MHZ 18dBi high gain antenna 2-8Ghz antenna anti drone antenna wideband 4

Packing and Delivery

Horn antenna 2G-8G/2000-8000MHZ 18dBi high gain antenna 2-8Ghz antenna anti drone antenna wideband 5
