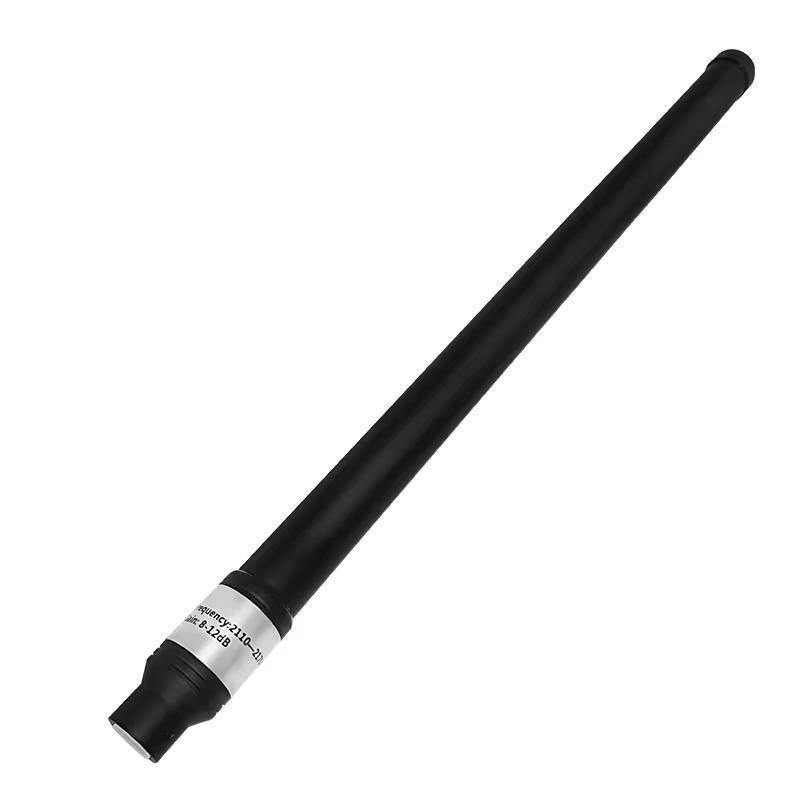

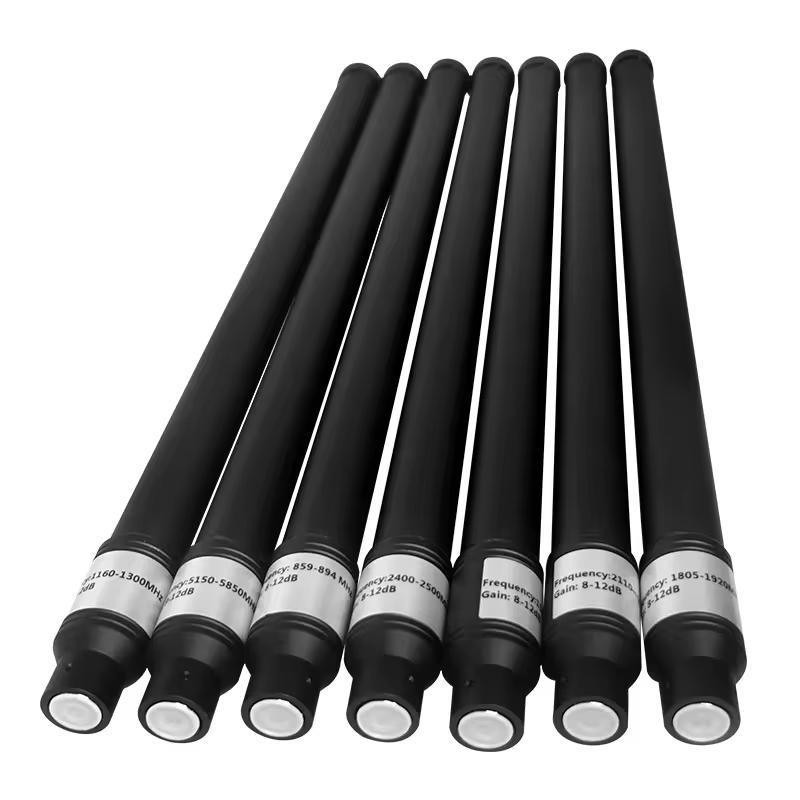

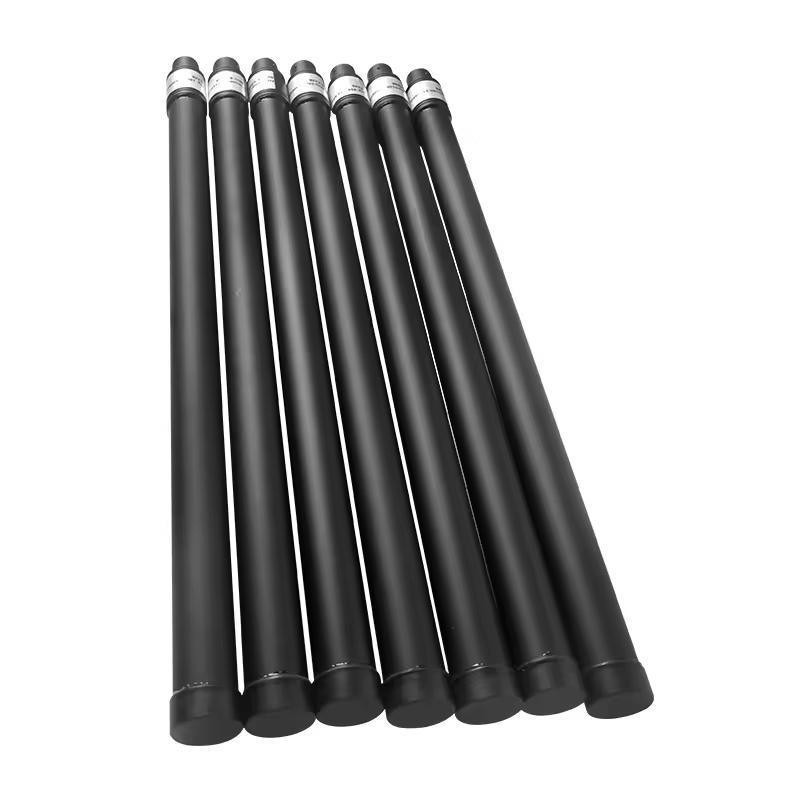

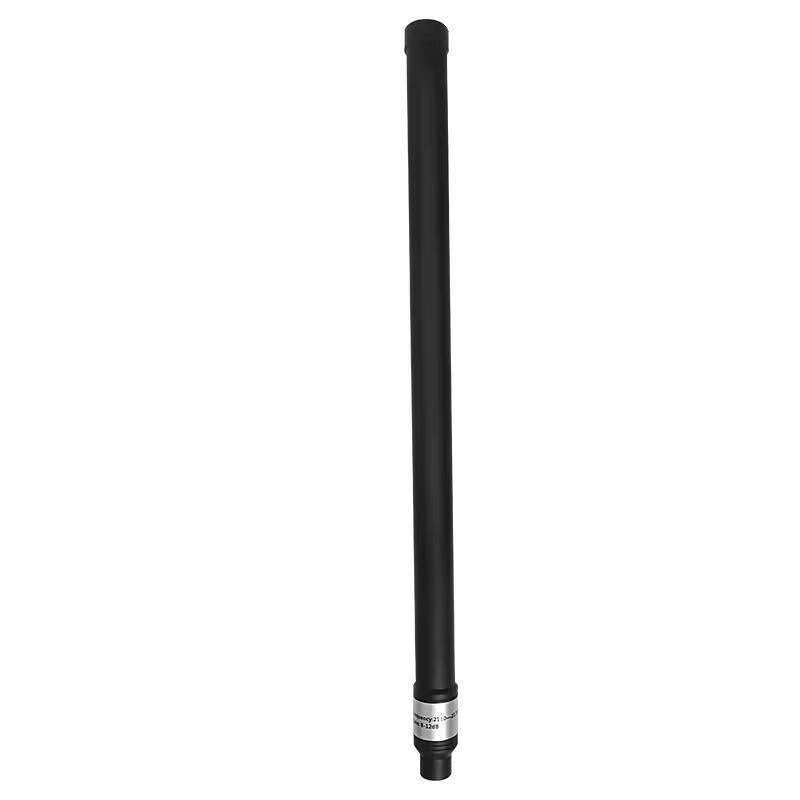

Uav Fiberglass Antenna 930-1060MHz 1170-1300MHz 1400-1620MHz 50W 32*600mm Waterproof

Detail Information

Place of Origin:

Guangdong, China

Inpur Connector Type:

N-J (Embedded)

Size:

32(Diameter)*600mm

Pack Size:

660*360*340mm

Weight:

0.5+0.1kg

Material:

Fiberglass

Transport Package:

Carton

Specification:

660*360*340mm

Origin:

Guangdong, China

Package Size:

20.00cm * 20.00cm * 20.00cm

Package Gross Weight:

1.000kg

Gain:

6 DBi

Frequency:

930-1620MHz

Vswr:

<2.0A

Samples:

US$ 35/Piece

Customization:

Available | Customized Request

Initial Payment Full Payment

Supply Ability:

5000pcs per month

Highlight:

50w fiberglass antenna

Product Description

Frequency Range	930-1620Mhz
Gain	6±1dBi
VSWR	≤2.0
Polarization	Vertical
Horizontal Beam width(0º)	360º
Vertical Beam width(0º)	23±3º
Ovality(dB)	±2dB
Input Impedance(Ω)	50Ω
Maximum input power(W)	100W

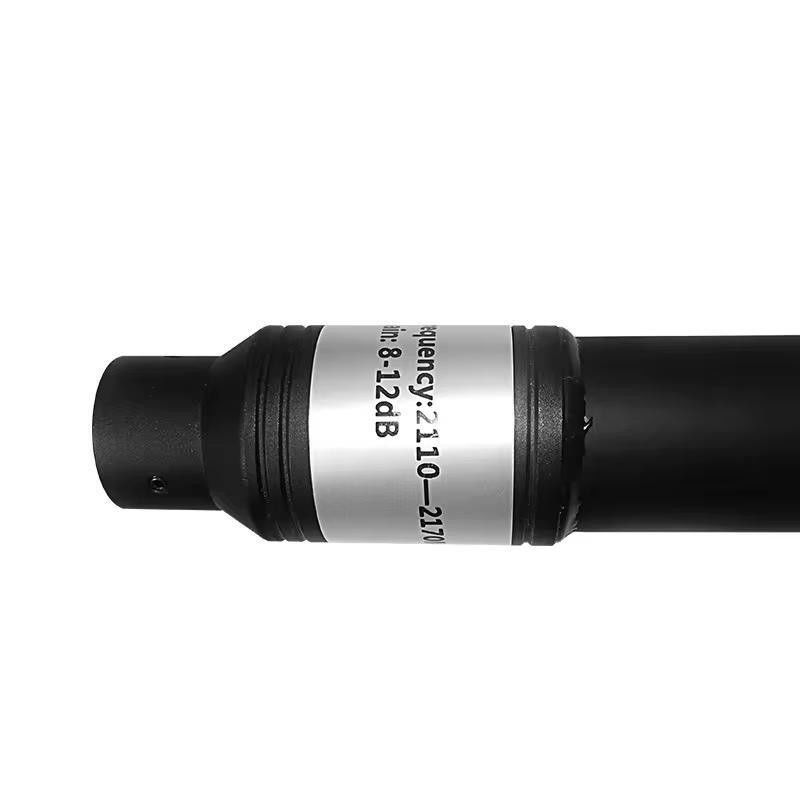

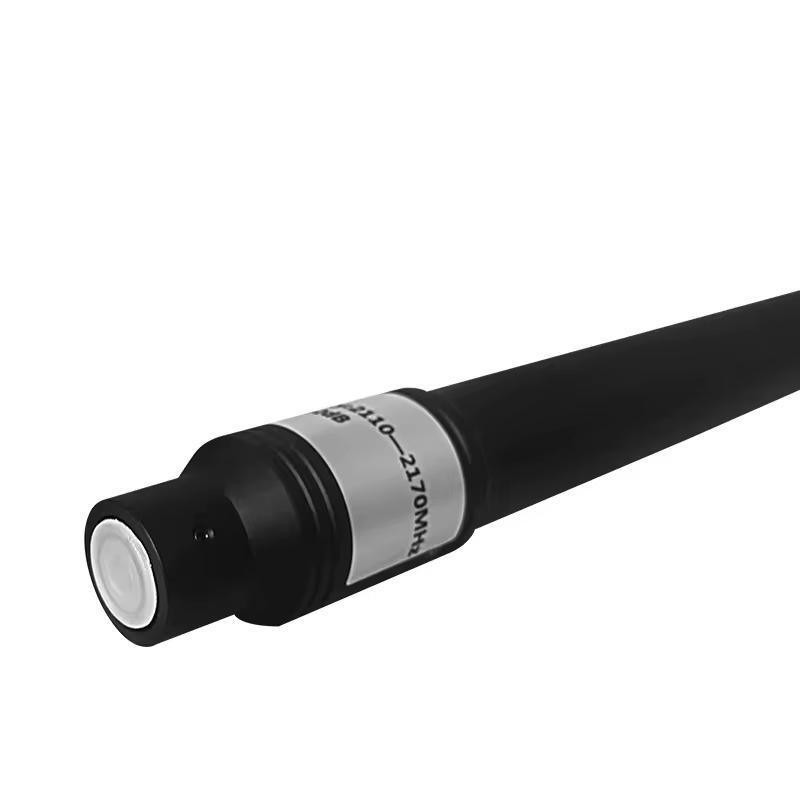

Inpur connector type	N-J (embedded)
Lightning Protection	DC Grounding
Dimensionsmm(Diameter * Length)	32*600mm
Packing size(mm)	660360340mm
Antenna weight(kg)	0.5±0.1KG
Rated Wind Velocity(m/s)	36.9m/s
Radome Color	Black
Radome material	Fiberglass
Operating temperature(ºC)	-30~65º
Installation Method	Machine mounting
