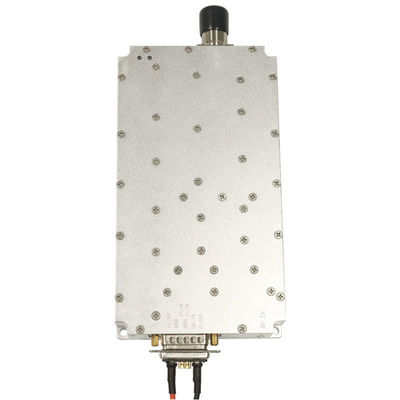

170*94*26.5mm excluding SMA 860-930MHz 100W GaN Anti-Module for Autel Anti Drone System
  • name
  • name
  • name
  • name
  • name
  • name

170*94*26.5mm excluding SMA 860-930MHz 100W GaN Anti-Module for Autel Anti Drone System

MOQ: 1 piece
Delivery Period: 1-3 workdays
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Capacity: 50000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
LDSK
Trademark:
LDSK
Out Power:
100W
Frequency:
860-930MHz
Product Weight:
136g
Working Efficiency:
Over 60%
Transport Package:
Carton Box
Specification:
170*94*26.5mm(excluding SMA)
Origin:
China
Supply Ability:
50000 PCS/Month
Package Size:
10.00cm * 10.00cm * 5.00cm
Package Gross Weight:
1.000kg
Gain:
50 DBm
Voltage:
30V
Samples:
US$ 760/Piece 1 Piece(Min.Order) |
Customization:
Available | Customized Request
Minimum Order Quantity:
1 piece
Delivery Time:
1-3 workdays
Payment Terms:
D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability:
50000 pcs per month
Highlight:

930MHz GaN Anti-Module

,

GaN Anti-Module for Autel

,

100W GaN Anti-Module

Product Description

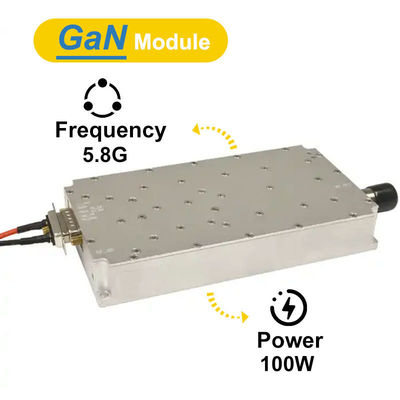

860-930MHz 100W anti-drone gan module

Power and Frequnecy support Customzation form 380MHZ- 5.8G, 10W,20W,30W, 40W, 50W,100W

--The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module



860-930Mhz 100W GaN Amplifier Module


Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:
① Power supply conditions: +30V power supply: 7W2 (male)
②RF input interface: SMA-KFD (optional)
③RF output interface: N-KFD
④Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
Frequency
860-930Mhz
Output Power(dBm)
100W(50dBm)
In-band group delay
≤1us
Gain
45±1.0,45±1.0 (external input 6dbm, power amplifier output 50dbm)
In-band fluctuation (dB)
≤2.5 (peak-to-peak value)
Input voltage standing wave ratio
≤1.35
Output voltage standing wave ratio
≤1.3
Supply voltage Typical
+30Vdc Range: 24-36V
Supply current
+30Vdc@100W≤5.5A
Output RF connector
N-50KFD
Size
170×94×26.5mm (excluding connectors)
Input signal source
Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
1 7W2 male socket
2 Feedthrough capacitors (from top to bottom)
1: A1 is the 30V power input, and A2 is GND;
2: The first pin of 7W2 is the PA_SW power amplifier enable;
3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off;
4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;









170*94*26.5mm excluding SMA 860-930MHz 100W GaN Anti-Module for Autel Anti Drone System 0
Lead time
Quantity(PCS) <100pcs <500 500-1000 >1000
Lead time(Days) 3 3-5 7-12 To be negotiated


Customization

Item Logo Frequency Power Packing
MOQ(PCS) 1 1 1 1




Company profile

170*94*26.5mm excluding SMA 860-930MHz 100W GaN Anti-Module for Autel Anti Drone System 1

Shenzhen ladasky technology Co,.LTD, specializing in the field of advanced technology. Our company is located in the vibrant city of Shenzhen, known as a hub of innovation and technology in China.



Our main products include RF module and anti FPV, which are designed with cutting-edge technology and strict quality control to meet the diverse needs of our customers. The RF module offers high-performance and stable signal transmission, enabling seamless communication in various applications. The anti FPV solution provides effective protection against unauthorized interference and ensures the security and privacy of video transmission.



We pride ourselves on our strong R&D team, composed of experts and engineers with rich experience and professional knowledge in the field. They are constantly exploring and innovating to bring forth new and improved products that stay ahead of the market trends.

Our manufacturing facilities are equipped with state-of-the-art machinery and adhere to international quality standards. This ensures that every product leaving our factory is of the highest quality and reliability.




Packing and Delivery
Selling Units: Single item
Single package size: 20X10X5 cm
Single gross weight: 0.2kg
Package Type: Each piece is individually packed into a bag and then packed into a carton.

170*94*26.5mm excluding SMA 860-930MHz 100W GaN Anti-Module for Autel Anti Drone System 2

FAQ

1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3. How to contact us?
amber@ladaskytech.com
