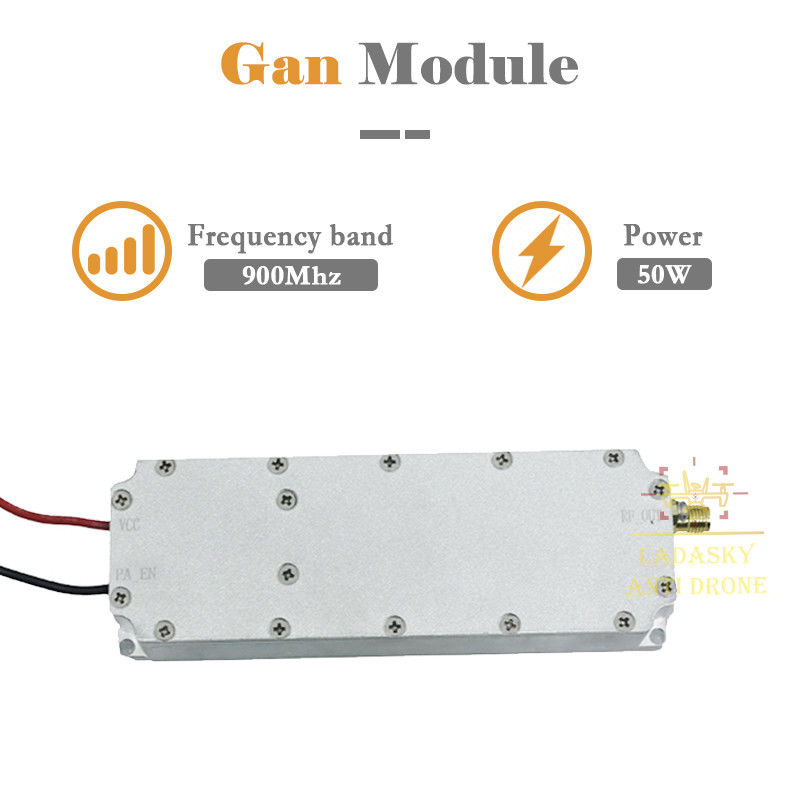

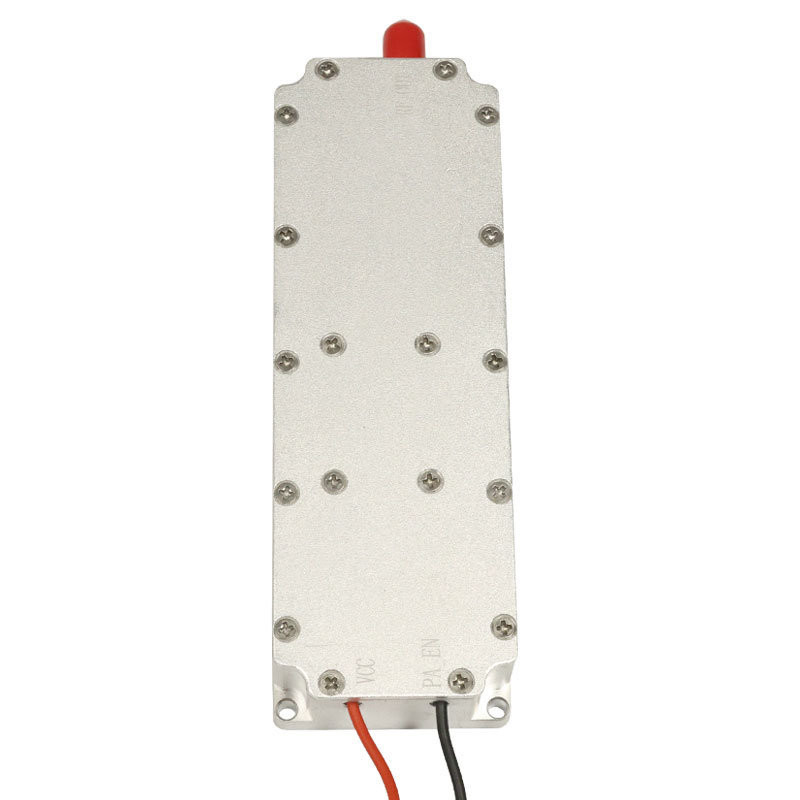

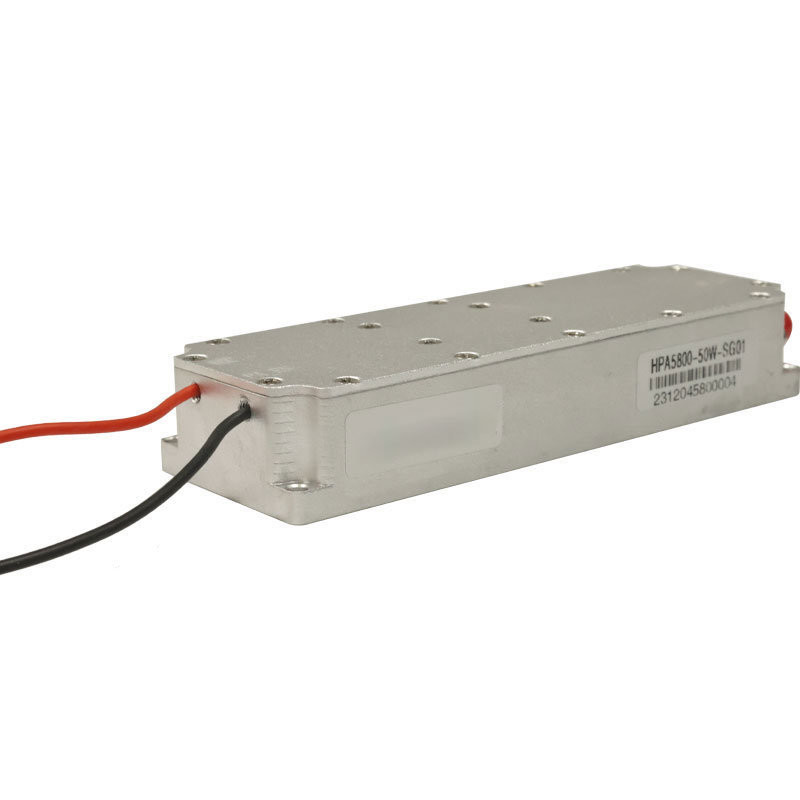

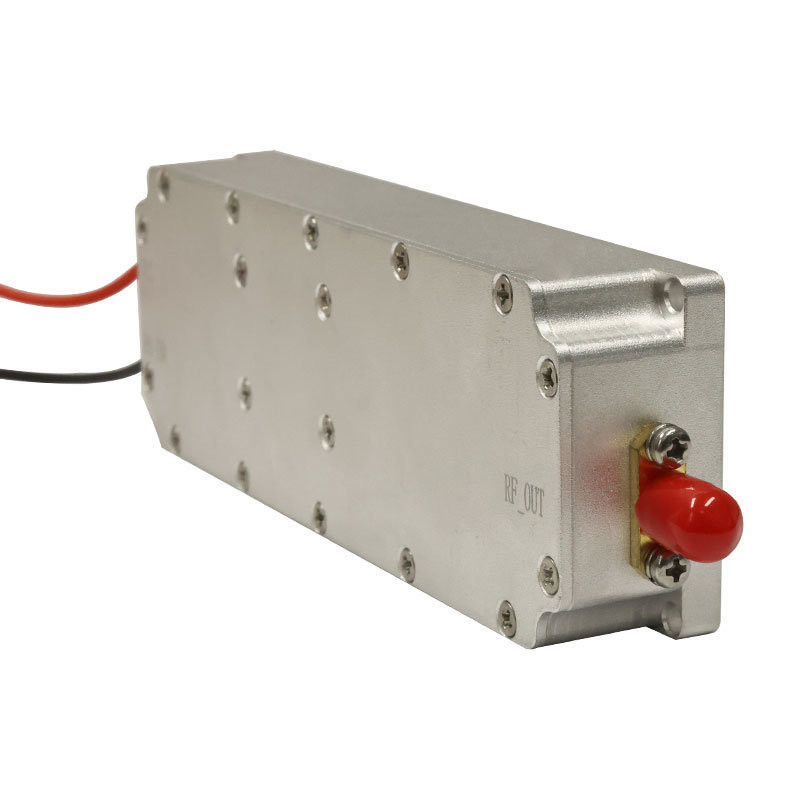

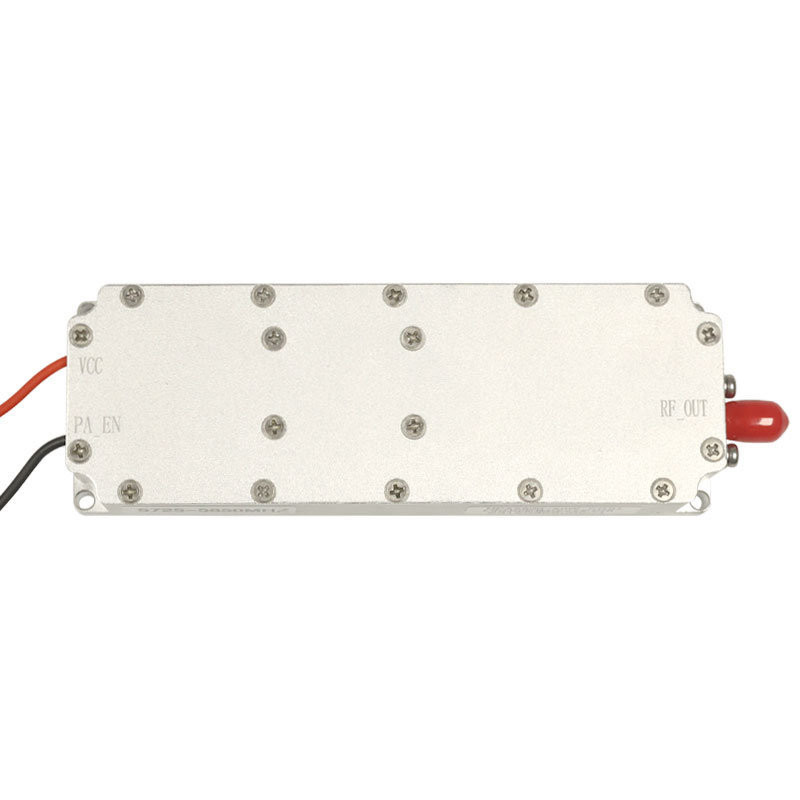

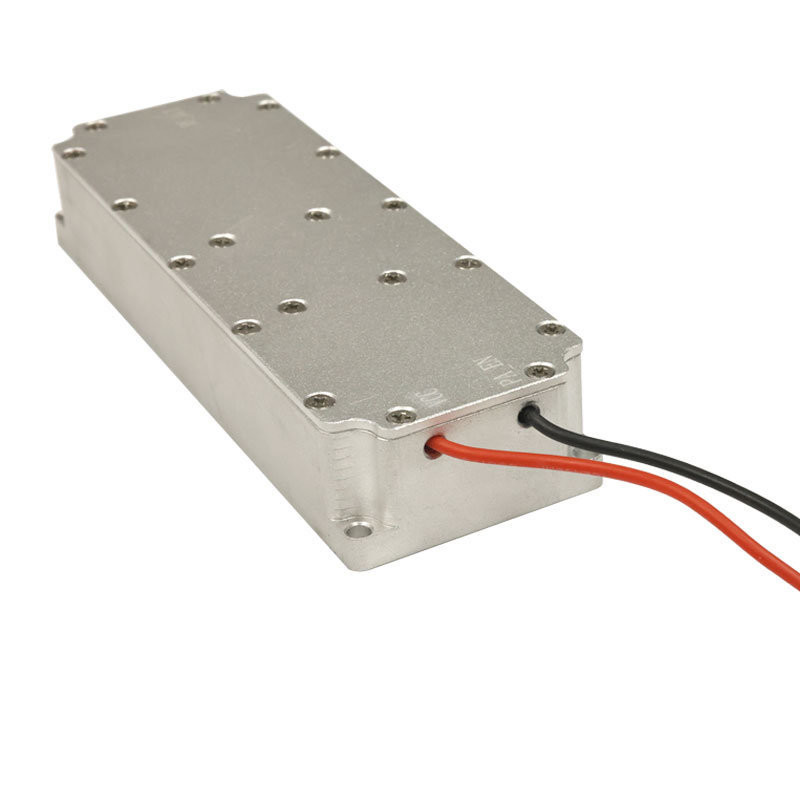

850-930MHz 50W GaN Anti UAV RF Power Amplifier Module
850-930MHz 50W GaN Anti UAV RF Power Amplifier Module
Basic Properties
Country Of Origin
Guangdong, China
Brand Name
LDSK
Trading Properties
MOQ
2 piece
Unit Price
$90-$110 1-1000pcs
Payment Method
D/A, D/P, T/T, Western Union， Paypal
Supply Capacity
5000pcs per month
Product Summary
Product Parameters --Ladasky is the experienced signal jammer supplier for anti drone jammer, phone wifi gps signal jammer, signal jammer module and antenna. Customized frequency and output power. --GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators ...
Product Details
Highlight:
anti uav module 50w gan
,anti uav rf module 50Watt
,anti drone module for autel uav
Model NO.:
LDSK
Interface:
SMA
Working Power:
30V
Working Efficiency:
52%
Function:
Amplifier
Power:
50W
Model:
850-930MHz 50W Module
Gain:
47dBm
Size:
37.3*112*19.5mm
Customization:
Available | Customized Request
Product Description
Product Parameters
--Ladasky is the experienced signal jammer supplier for anti drone jammer, phone wifi gps signal jammer, signal jammer module and antenna. Customized frequency and output power.
--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.
--This document stipulates the radio frequency and monitoring technical indicators of the 850-930MHz 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
--This document applies to all aspects of product design, verification, production and quality inspection of the 850-930MHz 50W power amplifier module.
| Item name | Technical parameters |
| Working frequency | 850--930MHz |
| Power | 50W |
| Supply Voltage | DC 24-32V |
| Max Output Power | 47 dBm |
| Working Efficiency | ≥60% |
| Passband Riplpe | ≤2dB |
| Weight | 105 g |
| Operating Temperature | -10~+55ºC |
| Power supply requirements | ≥3.7A |
| RF Connector | SMA |
| Weight | 136g |
| Size | 37.3*112*19.5mm (Excluding SMA) |
| Connect line red | DC28-30V |
| Connect line black | GND |
| Connect line white | ENABLE |
Product Description
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
| Item | Logo | Frequency | Power | Packing |
| MOQ(PCS) | 1 | 1 | 1 | 1 |
Company profile
Packing and Delivery
| Selling Units: | Single item |
| Single package size: | 20X10X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
