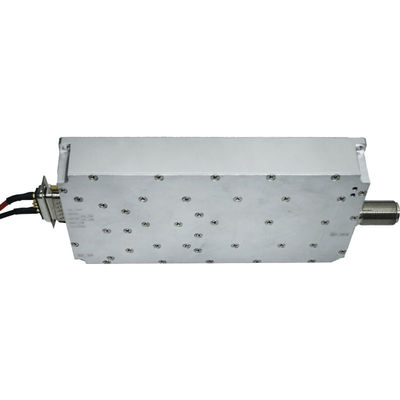

2400-2500MHz 100W GaN Anti-Module for Autel Anti Drone System C-Uas Mavic 3 Autel Fpv Ua Poland RF Module
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 1 piece |
| Delivery Time | 1-3 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 50000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Customization | Available For Frequency, Power And Logo | Model NO. | LDSK |
|---|---|---|---|
| Product Weight | 24-36V | Frequency | 433MHZ 400-500MHZ 428-438MHZ 420-450MHZ 400-450MHZ |
| Power | 100W | Gain | 50dBm |
| Size | 170*94*26.5mm (Excluding Connectors) | ||
| Highlight | 100W GaN Anti-Module,2400-2500MHz GaN Anti-Module |
||
Product Description
433MHZ 400-500MHZ 428-438MHZ 420-450MHZ 400-450MHZ 100W anti-drone gan module
Power and Frequnecy support Customzation form 380MHZ- 5.8G, 10W,20W,30W, 40W, 50W,100W
--The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the modul
②RF input interface: SMA-KFD (optional)
③RF output interface: N-KFD
④Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
Packing and Delivery
FAQ
1.Why Choose us?
2.What is the process of placing an order?
3. How to contact us?
--The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the modul

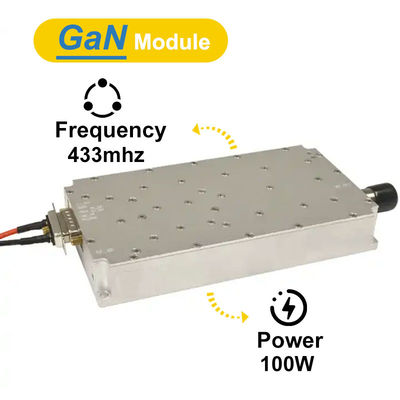

433Mhz 100W GaN Amplifier Module
Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:
① Power supply conditions: +30V power supply: 7W2 (male)1. Overall dimensions: 170*94*26.5mm
2. Interface form:
②RF input interface: SMA-KFD (optional)
③RF output interface: N-KFD
④Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
|
Frequency
|
1000Mhz
|
|
Output Power(dBm)
|
100W(50dBm)
|
|
In-band group delay
|
≤1us
|
|
Gain
|
45±1.0,45±1.0 (external input 6dbm, power amplifier output 50dbm)
|
|
In-band fluctuation (dB)
|
≤2.5 (peak-to-peak value)
|
|
Input voltage standing wave ratio
|
≤1.35
|
|
Output voltage standing wave ratio
|
≤1.3
|
|
Supply voltage Typical
|
+30Vdc Range: 24-36V
|
|
Supply current
|
+30Vdc@100W≤5.5A
|
|
Output RF connector
|
N-50KFD
|
|
Size
|
170×94×26.5mm (excluding connectors)
|
|
Input signal source
|
Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
|
|
1 7W2 male socket
2 Feedthrough capacitors (from top to bottom) |
1: A1 is the 30V power input, and A2 is GND;
2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source; |
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
| Item | Logo | Frequency | Power | Packing |
| MOQ(PCS) | 1 | 1 | 1 | 1 |
