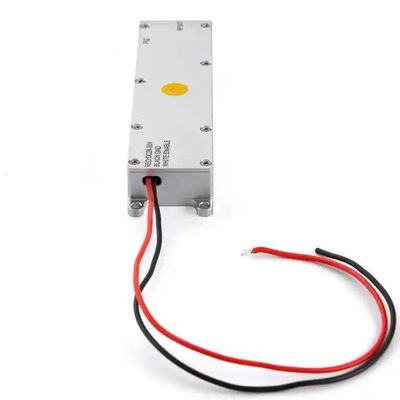

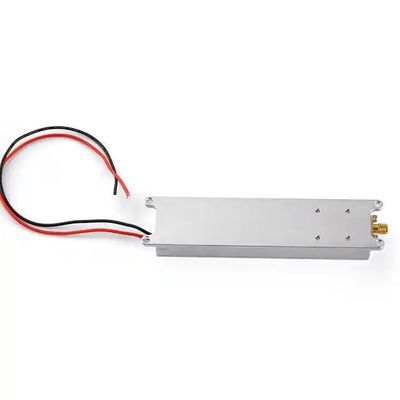

5150-5350MHz 20W GaN Module for Counter Fpv Anti Drone PA Power Amplifier Module
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | LDSK |
| Minimum Order Quantity | 2 piece |
| Delivery Time | 5-8 workdays |
| Payment Terms | D/A, D/P, T/T, Western Union, MoneyGram， Paypal |
| Supply Ability | 5000pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | TTSK-5.2G-20W | Max Output Power | 20W |
|---|---|---|---|
| Working Efficiency | More Than 52% | Peak Gain | 43dBi |
| Working Temperature | -10~+55 Degree Celcius | Weight | 136g |
| Packing | Plastic Bag + Paper Box | Transport Package | Carton Box |
| Specification | 29.7*131*15.5mm(excluding SMA) | Trademark | TTSK |
| Origin | Guangdong | Supply Ability | 50000PCS/Month |
| Frequency Range | WiFi | Frequency | 5150-5350MHz |
| Application | All | Model | Ttsk-5.2g-20W |
| Working Voltage | 24-32V | Required Power Supply | More Than 3.7A |
| Samples | US$ 175/Piece 1 Piece(Min.Order) | Request Sa | Customization | Available | Customized Request |
| Highlight | Counter Fpv GaN Module,20W GaN Module |
||
Product Description
Parameters
| Place of Origin | Guangdong, China |
| Brand Name | TTSK |
| Place of Origin | Guangdong, China |
| Product Name | RF power amplifier module(GaN) |
| Frequency | 5150-5350MHz |
| Output Power | 20W |
| Frequency and Power Customization | Support |
| Max Gain | 43 dBm |
| Voltage | 24-32V |
| Product Size | 29.7*131*15.5mm |
| Product Weight | 136 g |
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
| Item | Logo | Frequency | Power | Packing |
| MOQ(PCS) | 1 | 1 | 1 | 1 |
Product Description
Product Parameters

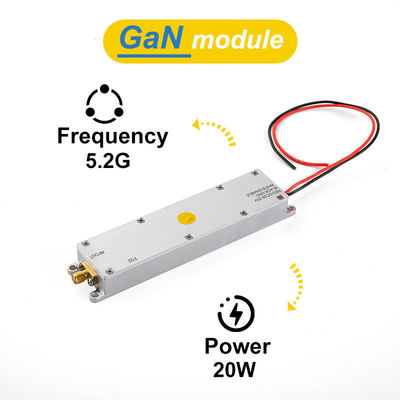

5150-5350MHz anti-drone module 20W

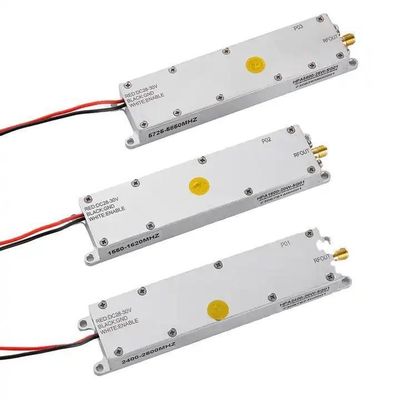

Power and Frequnecy support Customzation from 300MHZ- 6GHZ, 10W,20W,30W, 40W, 50W,60W,70W,80W,100W,150W,200W
GaN transistors are more efficient.
The efficiency minus the driver (heating power consumption) is about 55-65%.
In fact, the working efficiency over 2.4G is 52%, and the working efficiency below 2.4G is 55%.
However, the working efficiency of LDMOS modules is only 45%-55%, so GaN modules consume less power and generate heat slowly.
The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
Packing and Delivery
FAQ
| Selling Units: | Single item |
| Single package size: | 10X5X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a carton. |
FAQ
Q1: Factory or Trading Company?
A1: We're a factory based in Dongguan City, China. You're welcome to visit us!
Q2: Shipping Method?
A2: We offer various shipping options: DHL, UPS, TNT, FedEx, air, and sea shipments. Flexibility is key!
Q3: Delivery Date?
A3: Expect delivery in 5-7 working days for standard models. Larger orders? We'll provide a timeline upon inquiry.
Q4: Label and Logo Customization?
A4: Custom labeling and branding are available to meet your needs perfectly.
Q5: Minimum Order Quantity (MOQ)?
A5: MOQ ranges from 1 to 20 sets, offering flexibility.
Q6: Handling Defective Products?
A6: In case of defects, simply share photos or videos. We'll swiftly address and resolve the issue to ensure satisfaction.
Q7: How to contact us?
A7: +177 2785 3107
Q7: How to contact us?
A7: +177 2785 3107
