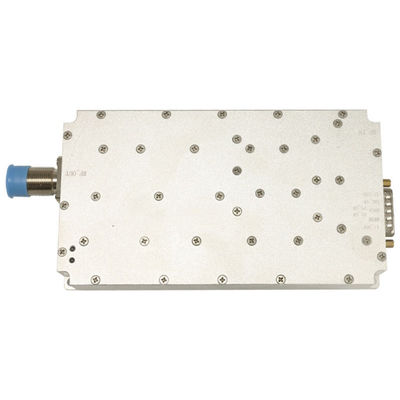

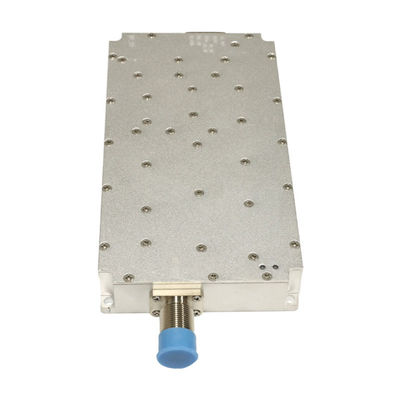

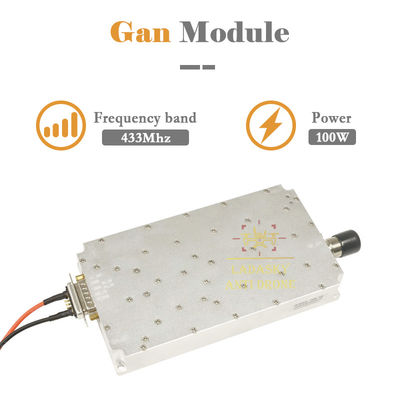

24-36V 433MHz 100W RF Power Amplifier Module Communication For Anti Uav 433MHz

Large Image : 24-36V 433MHz 100W RF Power Amplifier Module Communication For Anti Uav 433MHz

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LDSK

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Delivery Time:	1-3 workdays
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Model NO.:	LDSK	Customization:	Available \| Customized Request
Power:	100Watts Full Payment	Gain:	50dBm
Voltage:	24-36V	Out Power:	1709426.5mm
Samples:	US$ 205/Piece 1 Piece(Min.Order) \|
Highlight:	Anti Uav Module Portable , Anti Uav RF Power Amplifier Module , 433MHz Anti Uav Module

433mhz 428-438 100W module anti-drone module

Power and Frequnecy support Customzation form 90MHZ- 5.8g, 10W,20W,30W, 40W, 50w,100W

--The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the modul

Frequency	433Mhz 428-438 Mhz
Gain	50dBm
Size	1709426.5mm(excluding connectors)
Power	100W
Power Flatness	1-1.5dB
Supply Current	2.1A
Operating Temperature	--10~+55ºC
Connect line	RED:DC24-36V BLACK:GND WHITE:ENABLE

24-36V 433MHz 100W RF Power Amplifier Module Communication For Anti Uav 433MHz 0

24-36V 433MHz 100W RF Power Amplifier Module Communication For Anti Uav 433MHz 1
