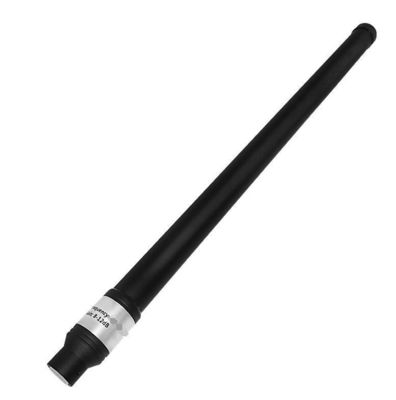

2.4G High Gain Omnidirectional Fiberglass Antenna Counter UAV 8dBi N-J Connector Type
2.4G High Gain Omnidirectional Fiberglass Antenna Counter UAV 8dBi N-J Connector Type
Basic Properties
Country Of Origin
Guangdong, China
Brand Name
LDSK
Trading Properties
MOQ
2 piece
Payment Method
D/A, D/P, T/T, Western Union， Paypal
Supply Capacity
5000pcs per month
Product Summary
2.4G 8dBi N-J High Gain Omnidirectional Fiberglass Antenna 20*600mm for Return refunds Parameters Frequency Range 2400-2500MHz Gain(dBi) 8±1dBi VSWR ≤1.5 Polarization Vertical Horizontal Beam width(0º) 360º Vertical Beam width(0º) 17±3º Ovality(dB) ±2dB Input Impedance(Ω) 50Ω Maximum input power(W) ...
Product Details
Highlight:
2.4G Fiberglass Antenna Counter UAV
,8dBi Fiberglass Antenna Counter UAV
Angle:
Full 360° (All- Airspace)
Input Connector Type:
N-J (Embedded)
Transport Package:
Carton
Specification:
660x360x340mm
Origin:
China
Package Size:
60.00cm * 36.00cm * 34.00cm
Package Gross Weight:
0.550kg
Weight:
500g
Frequency:
2.4G
Function:
Amplify The Distance Of The Anti-Drone Module
Samples:
US$ 15/Piece 1 Piece(Min.Order) |
Customization:
Available | Customized Request
Product Description
2.4G 8dBi N-J High Gain Omnidirectional Fiberglass Antenna 20*600mm for Return refunds
| Frequency Range | 2400-2500MHz |
| Gain(dBi) | 8±1dBi |
| VSWR | ≤1.5 |
| Polarization | Vertical |
| Horizontal Beam width(0º) | 360º |
| Vertical Beam width(0º) | 17±3º |
| Ovality(dB) | ±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Input connector type | N-J (embedded) |
| Lightning Protection | DC Grounding |
| Dimensionsmm(Diameter * Length) | 20*600mm |
| Packing size(mm) | 660*360*340mm |
| Antenna weight(kg) | 0.5±0.1KG |
| Rated Wind Velocity(m/s) | 36.9m/s |
| Radome Color | Black |
| Radome material | Fiberglass |
| Operating temperature(ºC) | -30~65º |
| Installation Method | Machine mounting |
Packing & Delivery
|
Quantity (sets)
|
> 500
|
> 1000
|
Others
|
|
Lead time (days)
|
7 days
|
about 7-14 days
|
Negociation
|
